Топ продаж 60ah mppt регулятор солнечной зарядки с электронной
- Категория: Контроллеры солнечных зарядных устройств >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 159.58 $* | 162.69 $* |
| Jul-17-2025 | 129.11 $* | 132.11 $* |
| Jun-17-2025 | 156.60 $* | 159.76 $* |
| May-17-2025 | 155.32 $* | 158.80 $* |
| Apr-17-2025 | 124.88 $* | 126.30 $* |
| Mar-17-2025 | 153.78 $* | 156.34 $* |
| Feb-17-2025 | 151.60 $* | 154.12 $* |
| Jan-17-2025 | 150.24 $* | 153.16 $* |
Характеристики
Product Introduction
Brief introduction A MPPT( Maximum Power Point Tracking ), or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank or utility grid. To put it simply, they convert a higher voltage DC output from solar panels (and a few wind generators) down to the lower voltage needed to charge batteries.
Compared to conventional PWM controller, MPPT technology increases the charge efficiency up to 20% and potentially decrease the power of solar array needed.
Details Show
Features
·Advanced maximum power point tracking technology to optimize using the solar system.
·Excellent thermal design and nature air cooling.
·Peak conversion efficiency of 98%, several seconds tracking speed.
·Adopting temperature compensation , improving the battery lifetime.
·Electronic Protection: over charging, over discharging, overload, short circuit.
·PV Modules or Battery Polarity Reverse Connect Protection: any combination of solar module and battery, without causing damage to any component.

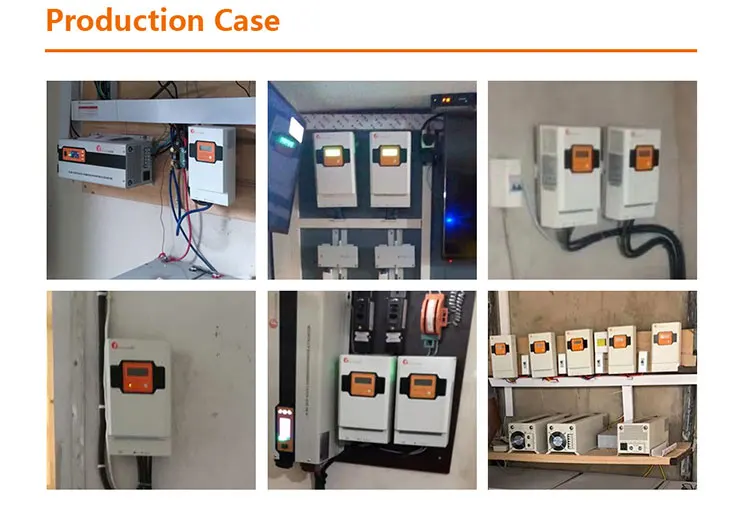

Factory Show
FAQ
Q: How many charging mode does the controller have?
A: There are two charging modes. There are PWM and MPPT. MPPT is the most advanced. Felicity have already developed MTTP charge controller with high performance, reliability, efficiency and fast tracking speed.
Q: What's the difference of the PWM charge controller and MPPT charge controller?
A: 1. MPPT controller uses maximum power tracking technology, compared to the PWM controller, the MPPT can generate more electricity with the same solar panels.
2. MPPT controller has low requirement of solar power system voltage, if the line or component parts damage the voltage, using MPPT controller does not affect the system generating.
3. MPPT controller can detect the temperature of the battery, then adjust the temperature by itself, the solar panel can charge the battery more efficiency.
Q: Why should the controller have temperature compensation function?
A: As temperature rises, electrochemical activity in the battery increases. Similarly, as temperature falls, electrochemical activity decreases. Therefore, as temperature rises, charging voltage should be reduced to prevent overcharge, as temperature falls, charging voltage should be increase to avoid undercharge. In general, to assure optimum service life, use of a temperature compensated charger is recommended.
Q: How does your factory carry out quality control?
A: Quality is our priority. Our QC always attached great importance to quality control from the very beginning to the end of the production. Each product will be fully assembled and carefully tested before packed.
Q: What is the warranty for MPPT Charge Controller SCCM6048?
A: For the charge controller, we offer 1 year warranty.
