Профилирующая машина типа ABM PROABMUBM120


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.89 $* 0.22 $*
Aug-18-2025 0.53 $* 0.13 $*
Jul-18-2025 0.83 $* 0.2 $*
Jun-18-2025 0.4 $* 0.41 $*
May-18-2025 0.3 $* 0.67 $*
Apr-18-2025 0.36 $* 0.11 $*
Mar-18-2025 0.20 $* 0.68 $*
Feb-18-2025 0.34 $* 0.36 $*
Jan-18-2025 0.64 $* 0.22 $*

Характеристики






                Technical parameters of PR-600-305

Size

 8900mmX2200mmX2300mm

Total Weight

 About 10Ton

Cutting Material

12CrMoV, Heat treatment

Cutting type

Mechanical Cutting Device

Forming type

Roll-formed and length-set cutting

Main Motor Power

5.5KW

Bending Power

3.0KW+1.5KW

Cutting Power

4.0KW

Seaming Power

1.1KW+1.1KW

Material of rollers

45# steel, quenched HRC 55~65

Feeding width

600mm

Finished width

305mm

Operating factor of the panel

50.8%

Thickness of the Panel

0.6-1.5mm

Applicable Span

4~28m



 Profile of PROABMUBM120

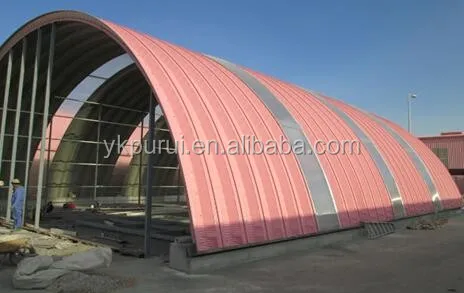

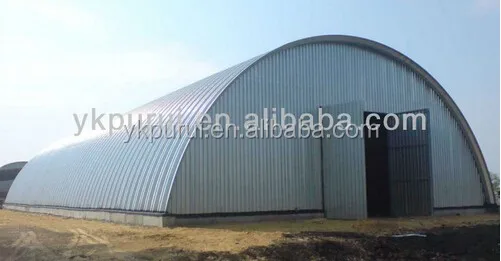

 Arch roof project by PR-600-305






Advantages of PROABMUBM



1There is a brake system on our uncoiler, if the machine stop suddenly, the uncoiler can be stopped accordingly.

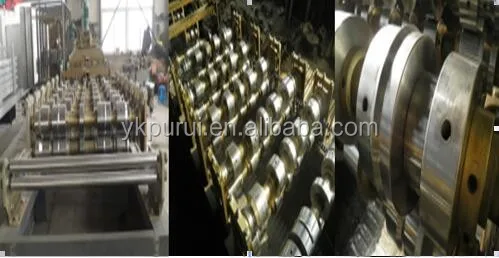

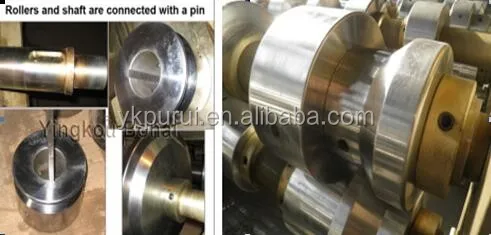

2.14-steps to form, Including the first step--Rubber Roller, it fixes the panel tightly at the beginning. Also there is one row Rubber Roller in the middle of each axle, coordinating the thickness of colored steel sheet to fix the sheet tightly when roll forming.

3.Bending leaf of 10mm thickness , smooth arch plate, produced by CNC machining center.

4.Cutting material: Cr12 MoV- Best and sharpest cutting material

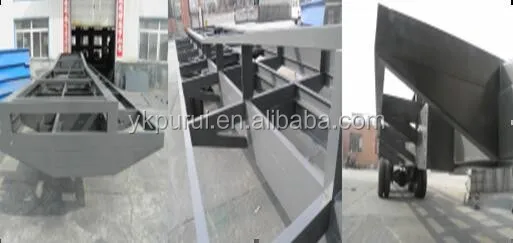

5.The thickness of side plate is 20mm.

6.There is one hand wheel with scale in the bending part, you can adjust the height of span as you need with it.




 Welcome to visit professional company for inspection!
