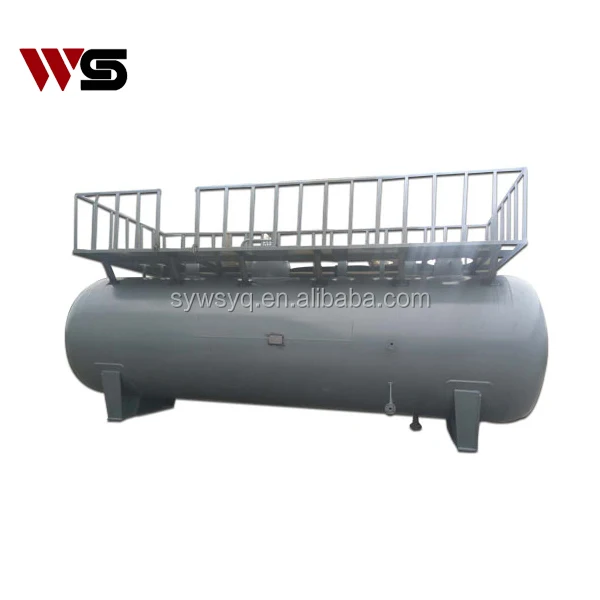

ASME Standard Industrial gas / liquid  Three phase filter  separator with platform and skid mounted









Application	Gas gathering and transportation station,pressure gas station,pigging station and gas distributing station.
Function	Protection of mainline transmission systems.
Optional choices	Quick opening closure
	Drain valve
Filter separator spare parts	Sealing gaskets contacted with QOC
	Safety interlocking sealing
	Filter element
Features &Benfits	Low pressure drop
	Quick opening closure elments easily replaceable
	Increase pipeline working Efficiency
	Convenient for maintance





Three types for you to choose	Horizontal Type
	Vertical Type
	Customize





           Vertical Type                                             Horizontal Type







Quick Opening Closure



    Separators can be equipped with quick opening closure to facilitate full access to the filter elements for repla-

cing and cleaning. Quick  opening  closure provides  a practical solution with  assures safety access to the filter

and allows to manage the large size for opening and closing in only one minute.



     Each clsoure is widly tested after manufacturing to give assurance of maximun reliability through time.



      Quick opening closure is one of the most necessary parts, we can produce various kinds of Quick opening

closure with the different size and pressure according to the special working condition.



   Note:  Our quick opening closure has acquired the national patent(patent NO.is 03210870.2).Normally,

                  opening the closure always needs 2-4 workers to open with pliers at least 5-7 hours. Our quick

                  opening closure opens within one minutes, it saves labour and enough time.



 Filter Elements



      We take high quality filter element and our filter element have following characters:



      1)  Filter element  has character of natural hydrophobicity which can guarantee  the achievement of the

           absolute filtration requirements under dry and wet conditions

      2)  Filter Membrane pore structure meets the orifice plate model, low pressure under working condition.

      3)  Strong Negative electrostatic membrane, good anti-pollution performance and long service life

      4)  Large filtering area, high gas flux and less energy consumption

      5)  Good Temperature resistant performance, air impact resistance, can be repeated steam disinfection.

      6)  Installation direct



     Note:   When differential pressure value of the pressure gauge reaches 150 kpa we suggest to clean

                     or replace filter element.



Material/Specification of Filter Elements
Filter Meid:	Molded fiberglass bonded with phenolic resin
Inner core:	S.S
End Cap:	Carbon steel or S.S
Gasket:	Rubber





      After finished the hydrotest its essential to open filter separator,empty the liquid inside the shell and wipe

 clean or airing the  filter separator innner and sealing parts then paint Glycerine as to lubrication in avoid of

 the  rust. the rust happend can take damage for the equipment and troble for engineering.
