8V wireless access point in wall POE repeater with glass touch panel



This product is our newest model, special touch panel design, with nice white tempered glass panel and blue wireless symbol, it can be well matched modern fashion decoration hotel style, when be installed into the wall, this panel will be good integrated with other hotel switch panels.

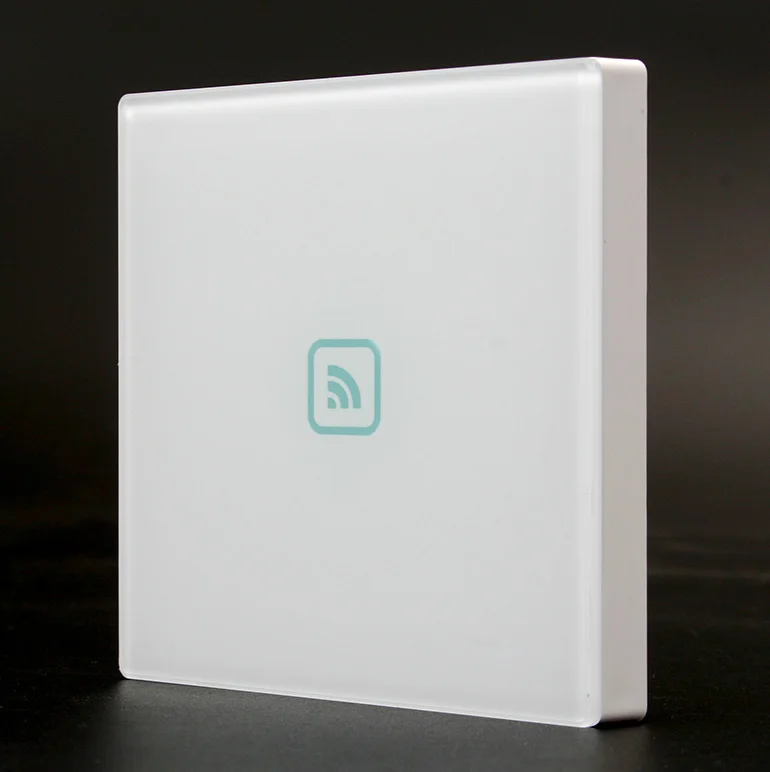

Exclusive new design Touch style panel

Different from traditional products, this product is using touch operating function style, with high sensitive, only need a gently touch, wireless open, very fashion, very easy using.

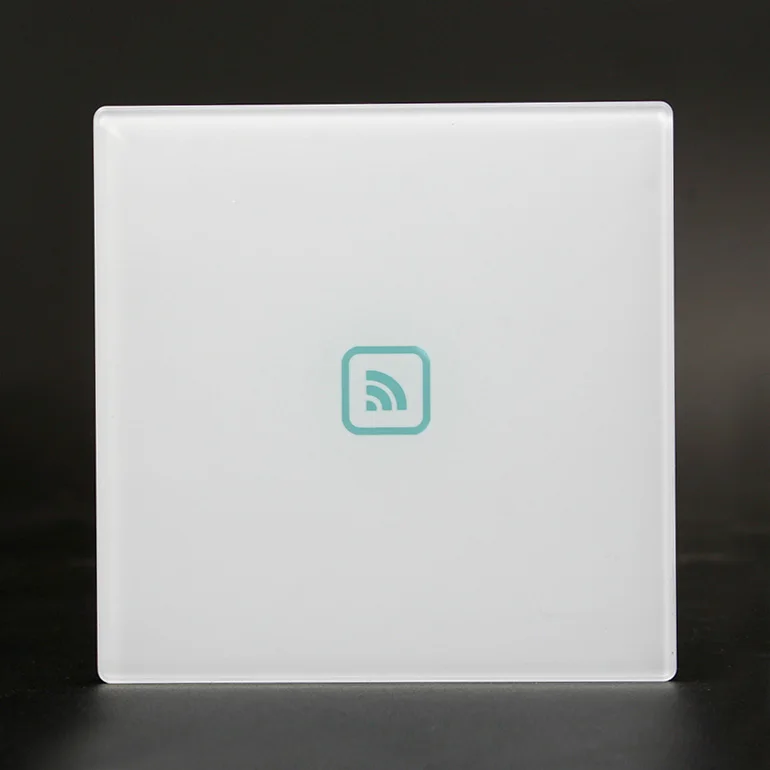

Crystal White tempered glass material panel with green wirelss symbol

It is using exclusive design crystal white tempered glass material panel, and printed green wireless symbol, well matched with lots of modern popular switches panels, and make the whole product seems high level, it is practical and artistic perfectly fusion.



Touch function lock option

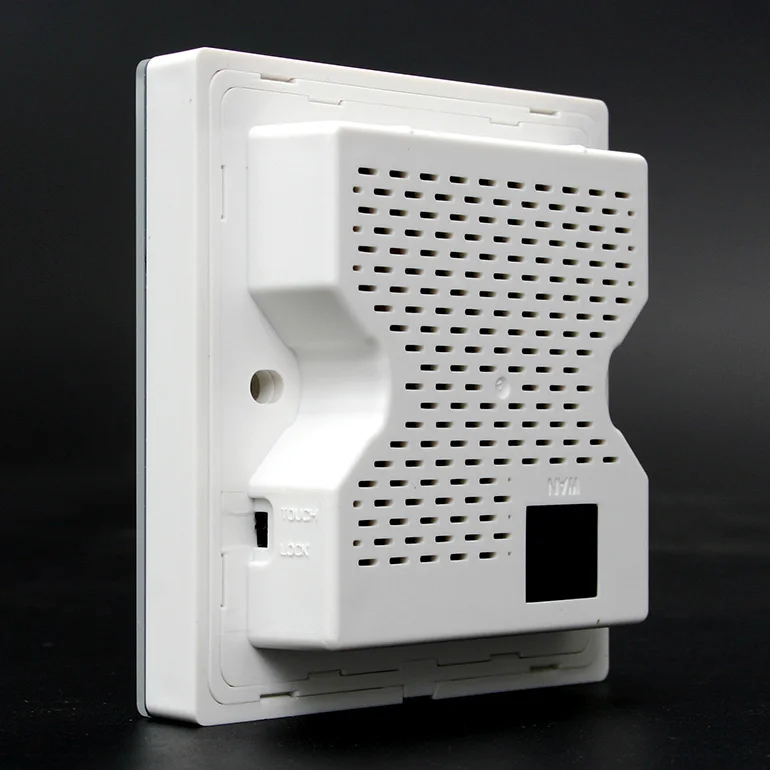

In the side of this product, there is a lock and touch button function choice.

LOCK: touch switch function disabled, you can't power on/off by front touch button

TOUCH: touch switch function open, you can power on/off by front touch button



Three operation modes of AP, gateways and repeaters.





Fast WAN port, 300Mbps, support 48V standard POE, 802.3af agreement

It is using MTK 7620N chipset, 300Mbps fast speed, 2.4Ghz frequency, and support widely used standard 48V POE device in the system, 802.3af agreement.



100mW high power, covering at least four hotel rooms; Client number of 32+, supports up to 20 concurrent users.



Support PC-side hardware or software AC AC unified management.



Datasheet:

1. Based on the independent software SDK version;
2. supports OPENWRT 3.1.4 version;
3. Support RippleOS system software.



Chipset:MTK MT7620N
FLASH: 4M(Expandable to 16M)
RAM:32M(Expandable to 64M)



Wireless speed:300Mbps
Max TX Power:20dBm
Receiver sensitivity:
11n:≤-68dbm
11g:≤-70dbm
11b:≤-85dbm
