Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Двухшнековый экструдер PP/PE/PVC/ABS/PS/PC машина для производства пластиковых
- Категория: Plastic Extruders >>>
- Поставщик: Nanjing,Yongjie,Qixin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.95 $* | 0.0 $* |
| Aug-20-2025 | 0.39 $* | 0.68 $* |
| Jul-20-2025 | 0.1 $* | 0.30 $* |
| Jun-20-2025 | 0.87 $* | 0.52 $* |
| May-20-2025 | 0.7 $* | 0.57 $* |
| Apr-20-2025 | 0.61 $* | 0.82 $* |
| Mar-20-2025 | 0.29 $* | 0.20 $* |
| Feb-20-2025 | 0.24 $* | 0.4 $* |
| Jan-20-2025 | 0.45 $* | 0.31 $* |
Характеристики

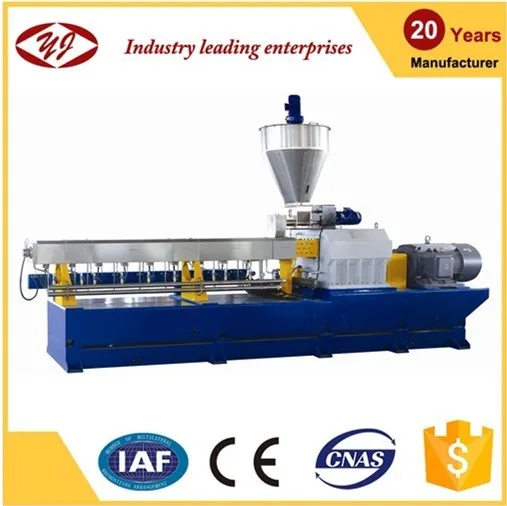

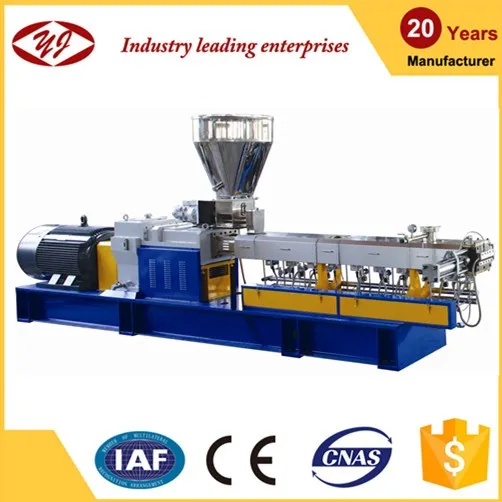

Plastic PP/PE/PVC/ABS/PS/PC twin screw pellet/granule making machine extruder
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
| Model |
Diameter (mm) | L/D |
RPM (r/min) |
Power (Kw) |
Torque (N.m) | T/N |
Capacity (Kg/h) |
| SJSL-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SJSL-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SJSL-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SJSL-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| SJSL-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
SJSL-63B | 63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| SJSL-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SJSL-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| SJSL-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| SJSL-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| SJSL-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| SJSL-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |
Application for water strand pelletizing:
1. Master batch and color master batch:
PP/PE/ABS+Caco3/Sio2(silicon dioxide)/talc(chalk)/carbon black
2. PP/PA/PA6/PA66/PA10/PA1012/ABS/PBT/PET/POM+glass fiber/carbon
Fiber/iron fiber
3. PBT, PET, etc. recycling
4. EVA
COMPLETE LINE:
65D SIZE TWIN SCREW EXTRUDER:
75D SIZE TWIN SCREW EXTRUDER
:
SUB-MACHINE (water trough+dryer+cutter):
Application for water-cooling strand
1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,
ABS, AS, POM, PPS, PET, etc.
2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,
PA+SBS, etc.
3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.
4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,
optical fiber protection compounds, cable coating material, thermal contraction material,
etc.
5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes
filter tip material, acetate fiber material, etc.
6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +
additives, etc.
7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.
8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,
anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.
9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.
Other product

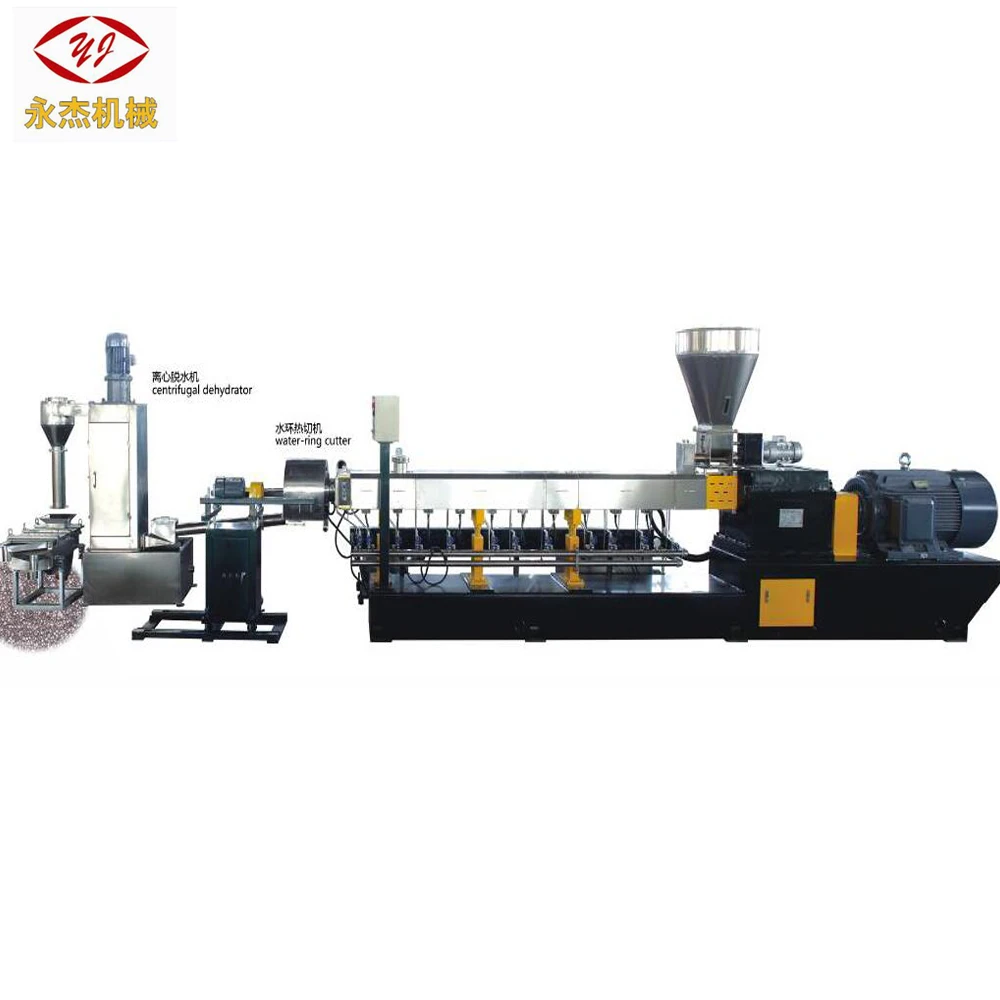

Water-ring Hot-face pelletizing line
Pelletizing in the water line
Air-cooling hot-face pelletizing line
Air-cooling strand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. how long is the warranty?
We can offer one-year warranty for the whole machine.
