Working Principle

Based on the relationship between the saturation water vapor pressure and temperature, Refrigerated air dryer can

efficiently precipitate water from compressed air with the usage of refrigeration device to cool the compressed air to

a certain dew point temperature. Then the water will be discharged by separator and auto water drain to make the

compressed air dried.



Features

1. Water-cooled and suitable for high temperature environment

2. High-efficiency & compact heat exchanger in Countercurrent design

3. Highly efficient moisture separation with patented design water separator

4. Refrigerant compressor: Danfoss, Performer, Bitzer, Copeland, Maneurop, Fusheng

5. Refrigerant control: Danfoss,Emerson,Sprolan

6. Real time display operating parameters



Working Conditions And Technical Specifications
Air Inlet Temp.	<=45 ℃ (standard type)
Cooling Way	Water-cooled type
Cooling water Inlet Pressure	0.2~0.4MPa
Cooling water	Indusrty recycled water
Pressure Dew Point	2-10℃
Inlet air pressure	0.6-1.0MPa
Control Method	Microcomputer Automatic Control/ PLC Control



Note: Refrigerated air dryer without metal box board for over 300 m3/min. The special standard can be customized.





Refrigerated Compressed Air Dryer
Model	Flow             Capacity (Nm^3/min) (cfm)		Voltage   (V)	Cooling  Water Circulation Volume (Nm3/h)	Air  Pipe Diameter	Cooling Water Pipe  Diameter	Net  Weight (Kg)	Length (mm)	Width (mm)	Height (mm)
SLAD-6NW	6.8	240.3	220	1.2	G1 1/2"	R1"	190	1230	600	963
SLAD-8NW	8.5	300.4	220	1.6	G2"	R1"	210	980	535	1098
SLAD-10NW	10.9	385.2	380	1.8	G2"	R1"	240	1200	650	1143
SLAD-12NW	12.8	452.3	380	2	G2"	R1"	280	1200	650	1143
SLAD-15NW	16	565.4	380	3	DN65	R1 1/2"	300	1180	740	1419
SLAD-20NW	22	777.4	380	3.6	DN65	R1 1/2"	410	1400	700	1463

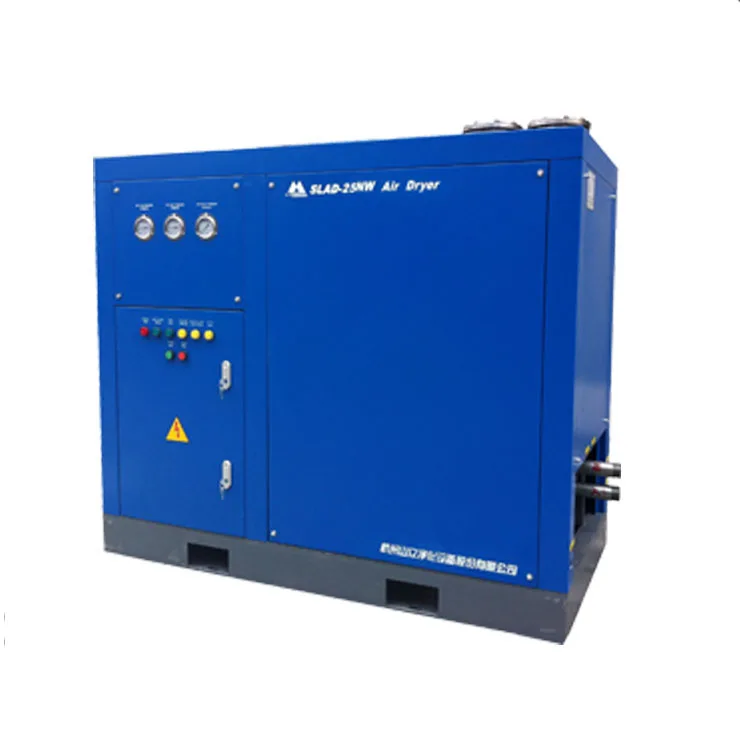

SLAD-25NW	26.8	946.9	380	4.6	DN80	R1 1/2"	530	1570	800	1433
SLAD-30NW	32	1130.7	380	5.6	DN80	R1 1/2"	640	1500	860	1576
SLAD-40NW	43.5	1537.1	380	7.2	DN100	R1 1/2"	720	1900	880	1605
SLAD-50NW	53	1872.8	380	9.2	DN100	R1 1/2"	880	2230	900	1605
SLAD-60NW	67	2367.5	380	10.8	DN125	R1 1/2"	1000	2140	1000	1787
SLAD-80NW	90	3180.2	380	12.4	DN125	R1 1/2"	1650	2130	1200	2006
SLAD-100NW	110	3887	380	14.6	DN150	R2"	2430	2410	1135	1996
SLAD-120NW	130	4582	380	16.2	DN150	R2"	2500	2600	1355	2164
SLAD-150NW	160	5639	380	18.6	DN200	R2 2/1"	2800	2970	1550	2394
SLAD-200NW	210	7402	380	24.4	DN200	R2 2/1"	3500	3370	1510	2454
SLAD-250NW	260	9164	380	30.5	DN250	R3"	3700	3660	1960	2666
SLAD-300NW	315	11102	380	36	DN250	R3"	4000	3795	1900	2714
SLAD-350NW	350	12336	380	43	DN300	R3"	4100	4060	2160	3009
SLAD-400NW	400	14098	380	50	DN300	R4"	4200	4460	2110	3009
SLAD-450NW	450	15860	380	57	DN350	R4"	4500	4600	2000	3059
SLAD-500NW	500	17623	380	62	DN350	R4"	4700	4900	2000	3059
SLAD-550NW	550	19385	380	68.5	DN400	DN125	5000	4900	2160	3209
SLAD-600NW	600	21147	380	75	DN400	DN125	5300	4900	2260	3309



Note: According to DIN7183, the design of refrigerated air dryers is based on the working pressure of 7 bar and the

 ambient temperature of 38℃. The correction coefficient should be taken into consideration. (High temperature style

 inlet air as 45℃)
