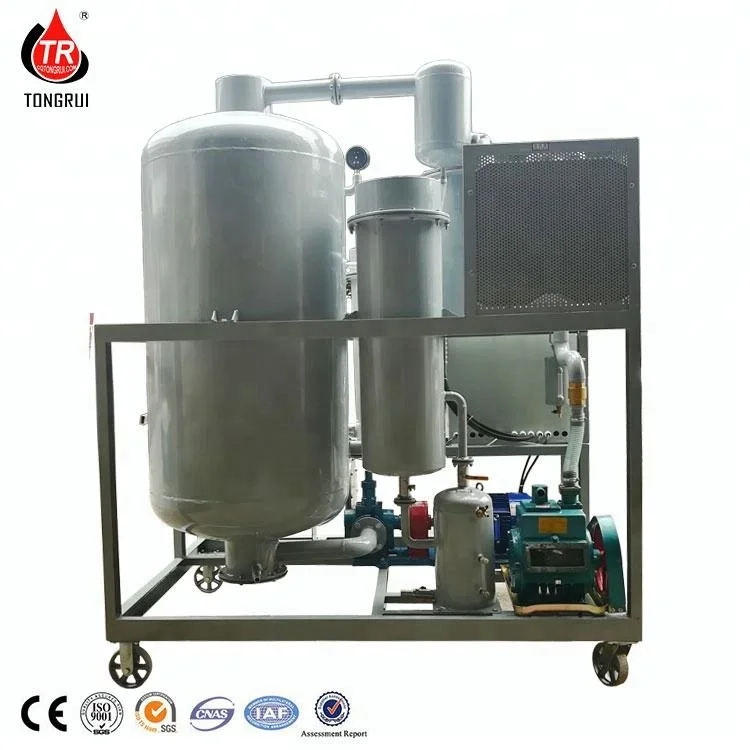

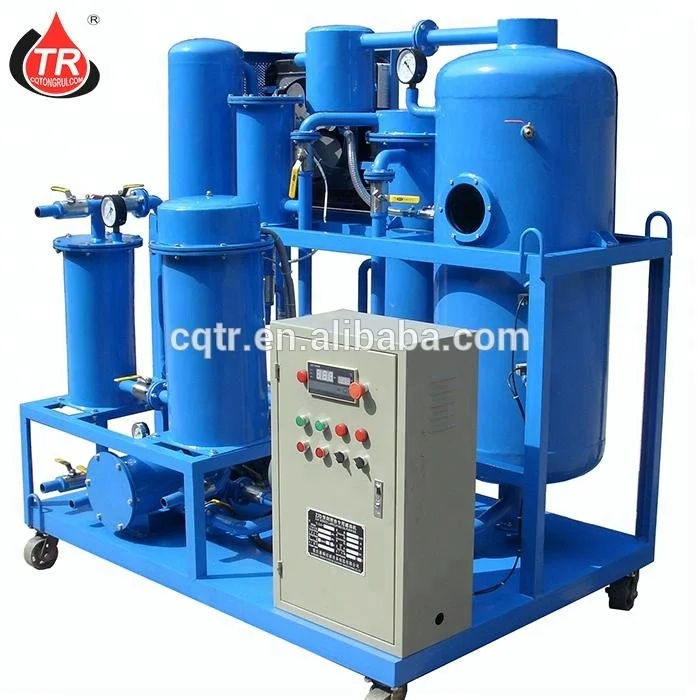

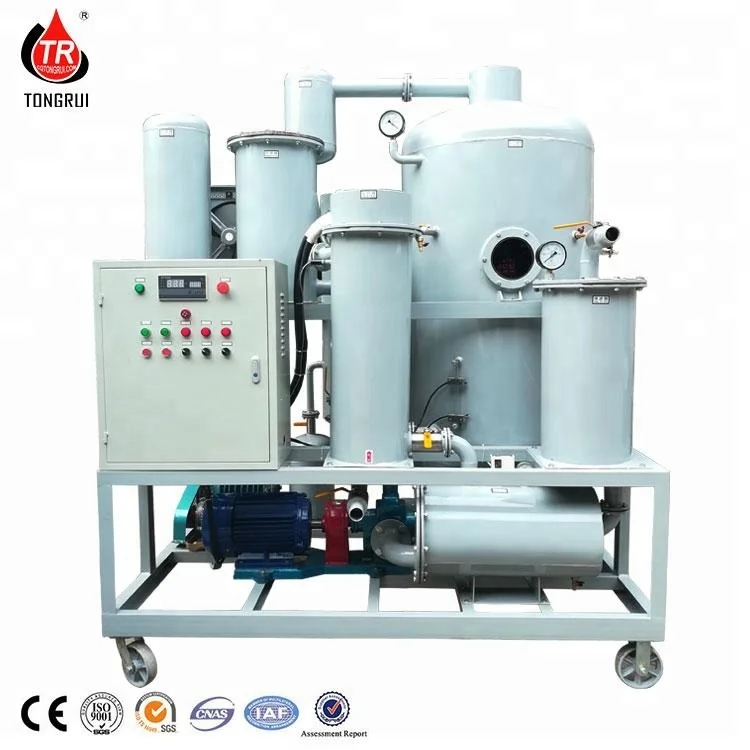

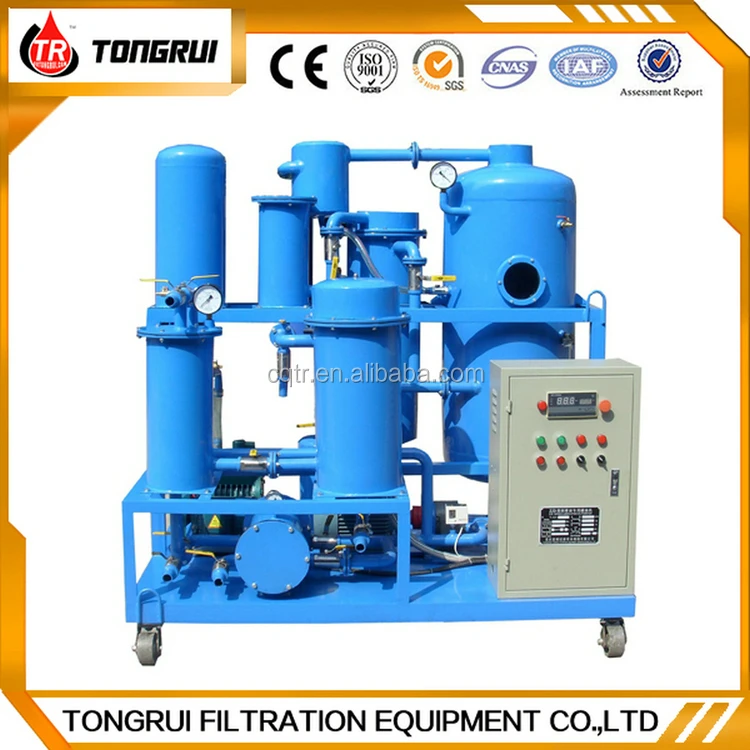

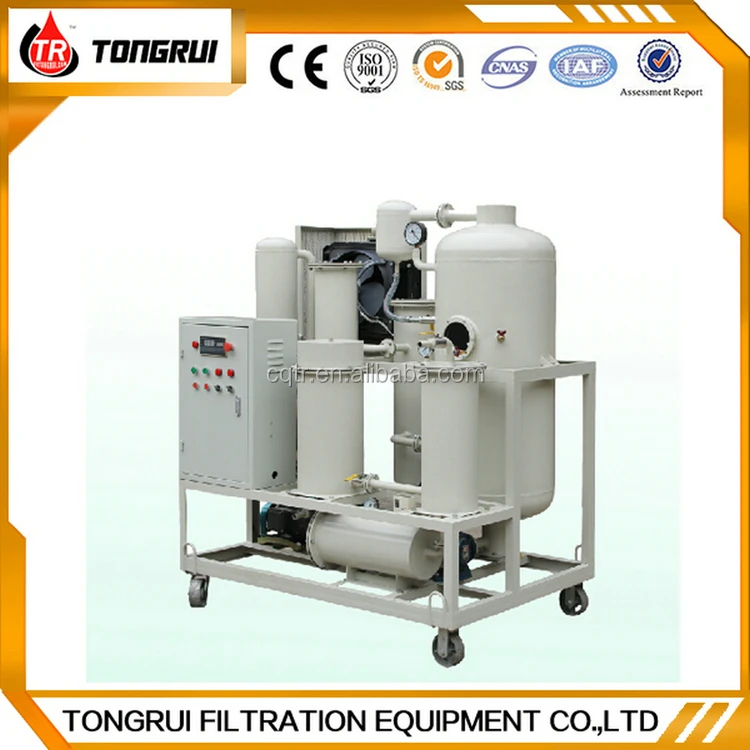

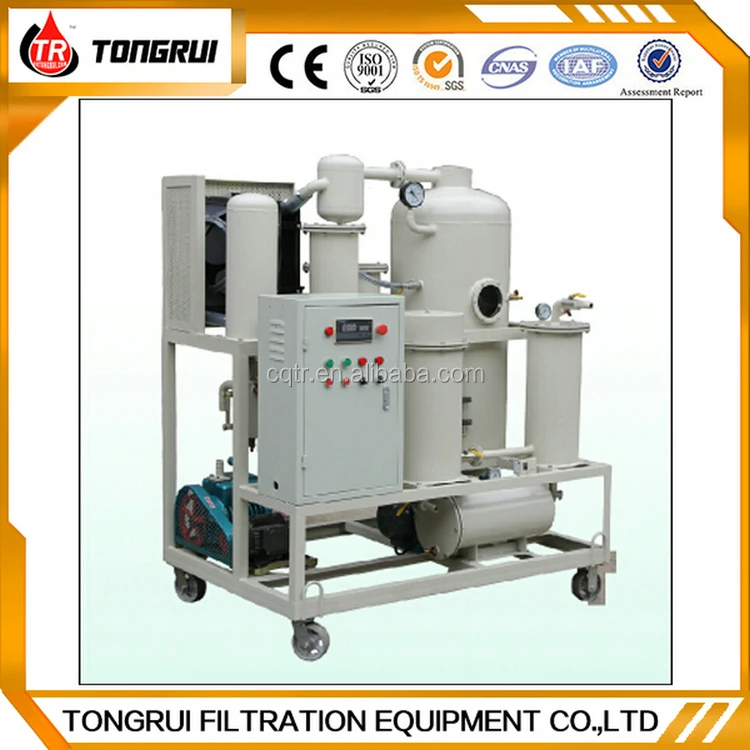

Лидер продаж в мире машина для переработки отходов пластикового

Описание и отзывы

Трекер стоимости

Характеристики



Applicable scope:
It is widely used in the fields of electric power, metallurgy, mining, machinery, chemical industry, communications, manufacturing, food stuff for purification or regeneration of hydraulic oil, shafting oil, refrigerator oil, machine oil, die-casting oil, air compressor oil, gear oil, heat treating oil, anti-wear hydraulic oil, emulsified oil, high water content oil ect. waste oil or contaminated oil, as well as injection molding oil, cylinder oil, textile knitting oil, high speed machinery oil, high precision lube oil.

Advantages:
1)Combined with coalescence separation and vacuum separation, water separation adopts world advanced coalescence separation technology, which is able to rapidly remove big quantity water and trace moisture from high water content lube oil.
2)High decontaminate ability, big area, deep levels, high precision FH rectangle filtration system is capable of remove metal particles, dust, impurities effectively.
3)H.P.M polymer adsorption material with Tongrui technology, utilizing high quality parts and sealing materials, meeting the requirement that high viscosity oil need high temperature in filtrating, extend ranges and types of oil to be filtrate-able.
4)Stainless steel filter elements with seats form nets are cleanable, economical, and reusable.
5)Heating system utilized optimized piping design, ensures averagely heating, no bypassed area, stable oil temperature.
6)Humanized design, dual infrared liquid level control system, relay protection, overload protection. Overload electric protection control system and oil temperature stabilizing system ensures easy operation and safety.
7)It is suitable for all sorts of lube oil purification and regeneration, to remove moisture, gas, mechanical impurities, acid ect. harmful substance, and ensure the cleanness of oil after treatment, make kinematic viscosity, flash point meet national standard.
8)After processing with this type of machine, the oil have low emulsification value, low water content, can be used in domestic or abroad high precision hydraulic lubricating equipments



Item		Unit	ZJD-6		ZJD-10		ZJD-20	ZJD-30	ZJD-50	ZJD-75	ZJD-100	ZJD-150	ZJD-200
Flow rate		L/H	360		600		1200	1800	3000	4500	6000	9000	12000
Vacuum degree		Mpa	-0.06 ~ -0.095
Working pressure		Mpa	≤0.4
Working temperature		℃	0 ~ 100
Power supply			380V/50Hz(or as per requirement)
Noise		dB(A)	≤75					≤78		≤80		≤82
Heating power		kW	9		15		18	30	45	60	96	120	135
Total power		kW	11		17		21	33	48	65	102	135	147
Inlet&outlet size		mm	15		25		25	25	32	42	50	50	60
Weight		Kg	350		500		550	600	750	850	1000	1500	2000
Size(mm)	L	mm	1100		1300		1350	1350	1350	1400	1650	1750	1850
	W	mm	950		900		950	1000	1100	1100	1000	1400	1500
	H	mm	1350		1600		1650	1650	1700	1750	1750	1950	2000
Oil index after treatment
Demulsification value				min		≤15min
Gas content				%		≤0.1%
Water content				%		Trace(no)
Cleanness				NAS		≤6
Precision				µm		≤5µm(or customer advice)









Trade terms:

EXW or FOB Chongqing( or any port of China) CIF, CFR( or according to customers)



Packing details:

wooden cases, bamboo weaving cases: suitable for long distance ocean freight transportation and changing climate, good resistance to moisture and shocks



Delivery time:

After 1~90work days, it depends on the specific goods



Min. Order:

1 set, the more, the better price





FREE Pre-sale service:

1) We provide presales service in various forms, for example, making investment budget, manufacturing, so that the customers can make reasonable plan with less cost.

2) Investment budgeting: we provided services of product profit analysis, recommendation of machine and relevant budgeting, human resources allocation and budgeting

3) Plant planning: we provide the dimension of the equipment base, design of the equipment layout, workshop construction suggestion ect.

4)provide the detail information of our our machines need to learn by our customers



FREE In-sale service:

1) Detailed design of lay-out that is the position of the procession according to the blueprint of customer’s factory

2) All the technology information for the products

3) Guide the machine’s installation and train the customers to use the machine for free



FREE After-sale service:

1) We provide customers free training so that they can use and maintain the machines independently

2) We will answer customers’ questions on technology in time. If needed, we will offer on-site guidance and assist

3) We will provide free technical guidance, if customers need new equipment, add or rebuild equipment

4) All the machines are life-long free technical assistant.

5) All the machines are at most warranty 24months for main parts. The consumable parts are 12months.
