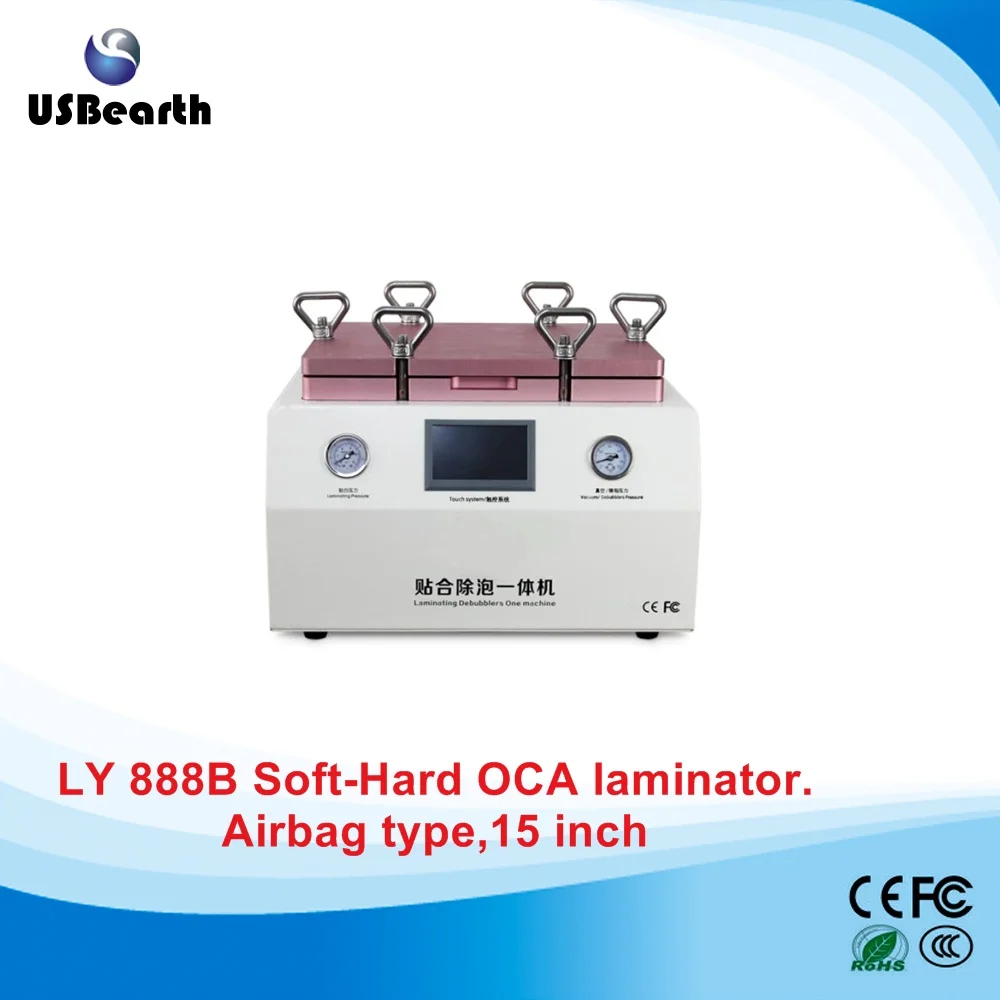

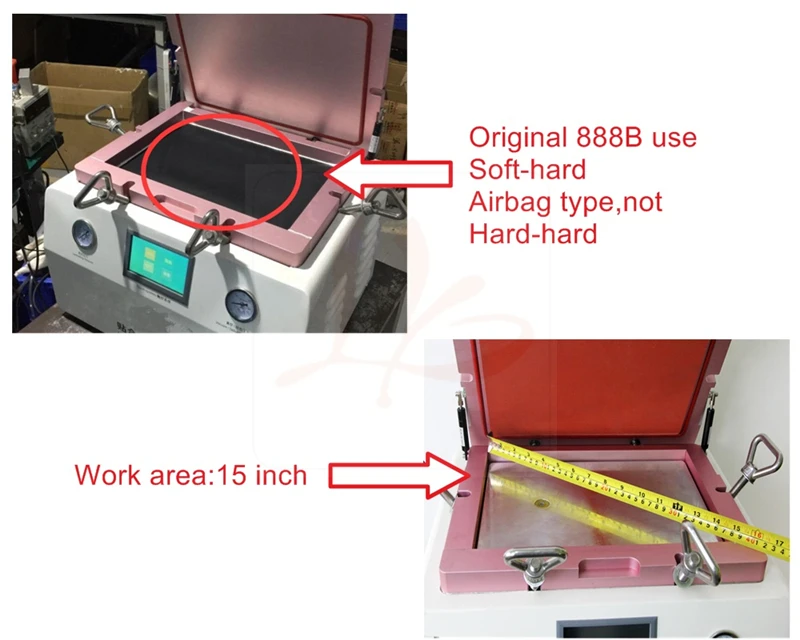

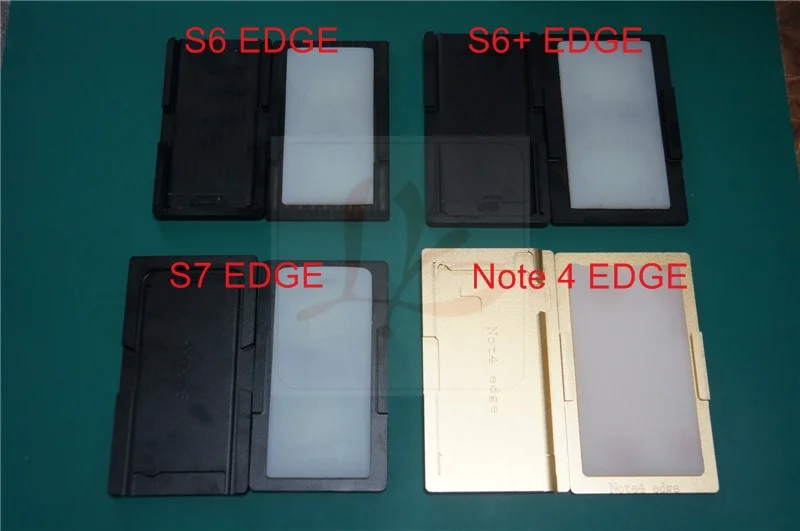

LY 888B all in one Soft to Hard airbag type OCA laminator 15 inch with S6 S6+ S7 NOTE4 EDGE OCA moulds



OCA laminator

airbag OCA laminator



Thank you for using our products.For the safe of use of this new product,Before operating this unit, please read these instructions completely and save this manual for future use.Please do not attempt to disassemble or modified the machine !

Usually our products can reach gold pressure value 6.8kg,that can be non bubble, oca attached super well effect!



1. 1.      soft glue cushion

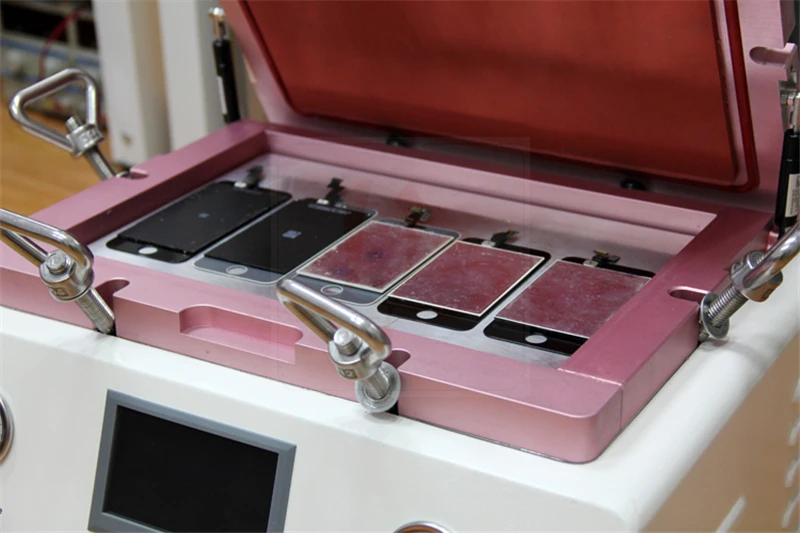

2. 2.    laminating area

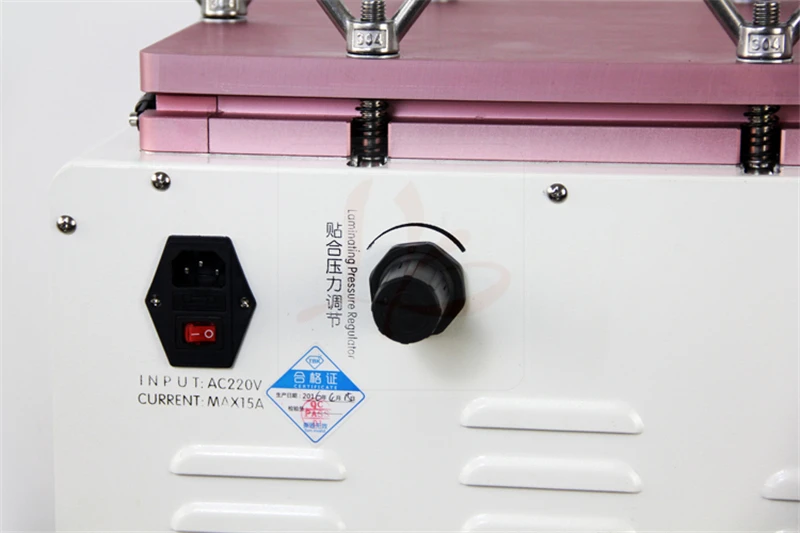

3. 3.    Laminating Pressure


4. 4.    Touch system


5. 5.    Vacuum/Debubblers Pressure


6. 6.    Fixed bolt


7. 7.    Power switch



INSTRUCTIONS

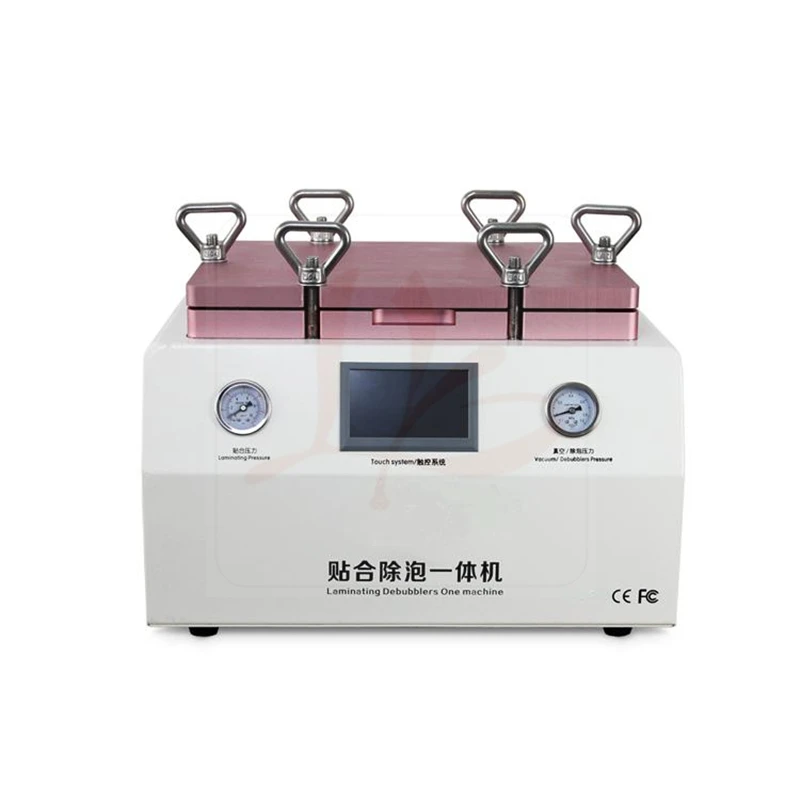

This is a newest upgrade 15 inch laminating debubbler in one machine.Built-in air compressor and vacuum pump .

Laminating and bubble remove only one step ,100% no bubbles.

Operating steps:

1. plug in power line ,turn on the power switch .

2. Adjust laminating pressure to 0.5Mpa.

3. touch system start ,click"setting".

4. set the "vacuum time" to 15S,"laminating time" 25S,"Debubble time" 5-10M,"Laminating debubble temp"40degree,Click"comfirm",Click"automatic" preheat.

5. open the machine cover lid ,tear off the oca protect film.

6. put the glass on lcd ,then use one finger click the middle screen softly.

7. put it to laminating area in order ,close the cover lid ,Tighten the screws.

8. click “ start “,vacuum air-removed start ,Tighten the scews again .

9. it will turn to bubble remove mode after 25 seconds automaticly,it will automatic exhaust after debubble .

10. Loosen the screws,Take out the screen .

PARAMETER

SUPPLY:        AC220V   AC110V

POWER:           800 W

SIZE:            420*350*330MM

WEIGHT:        About 45KG
