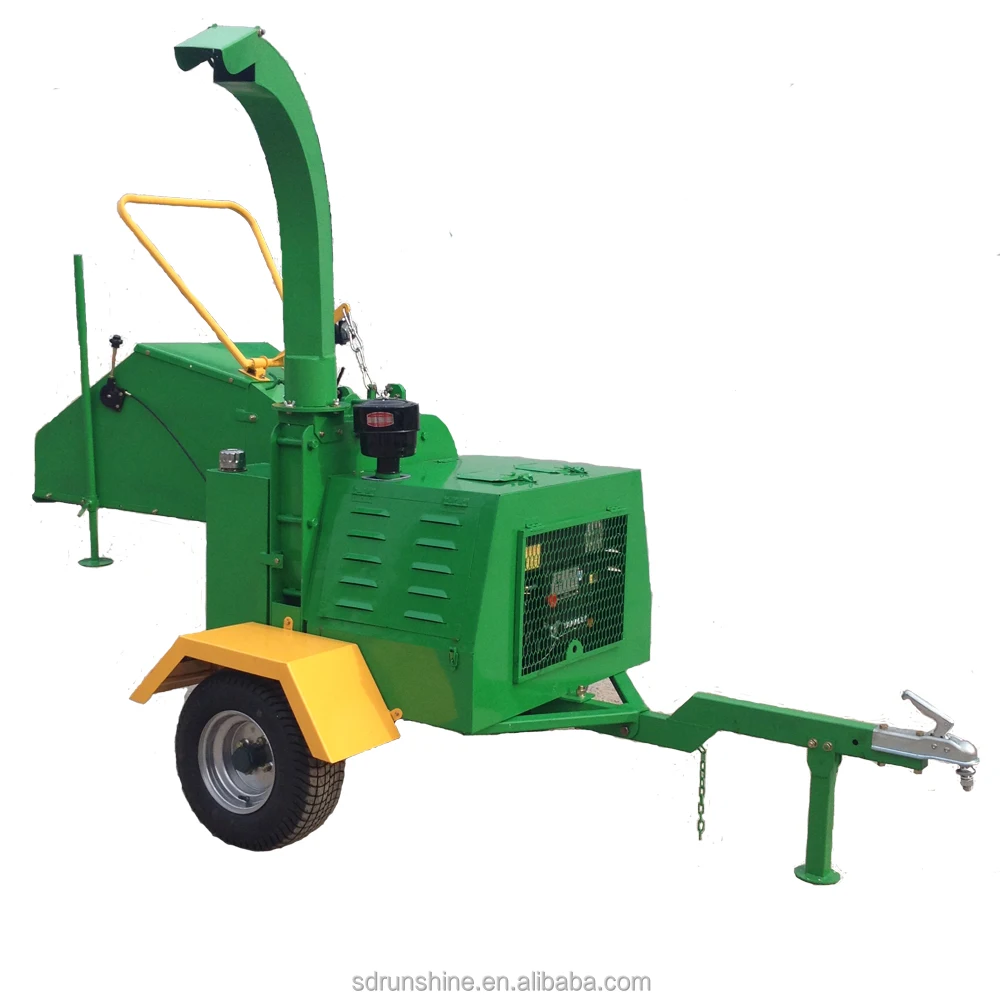

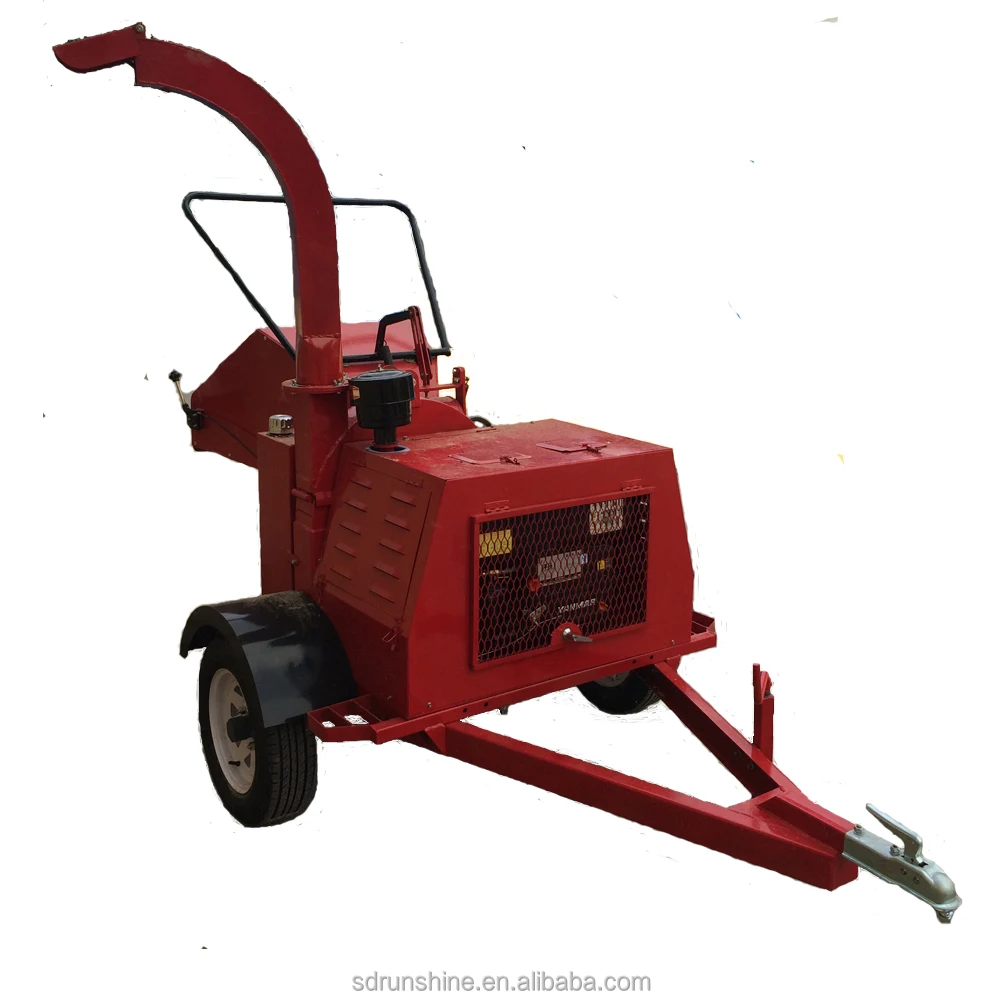

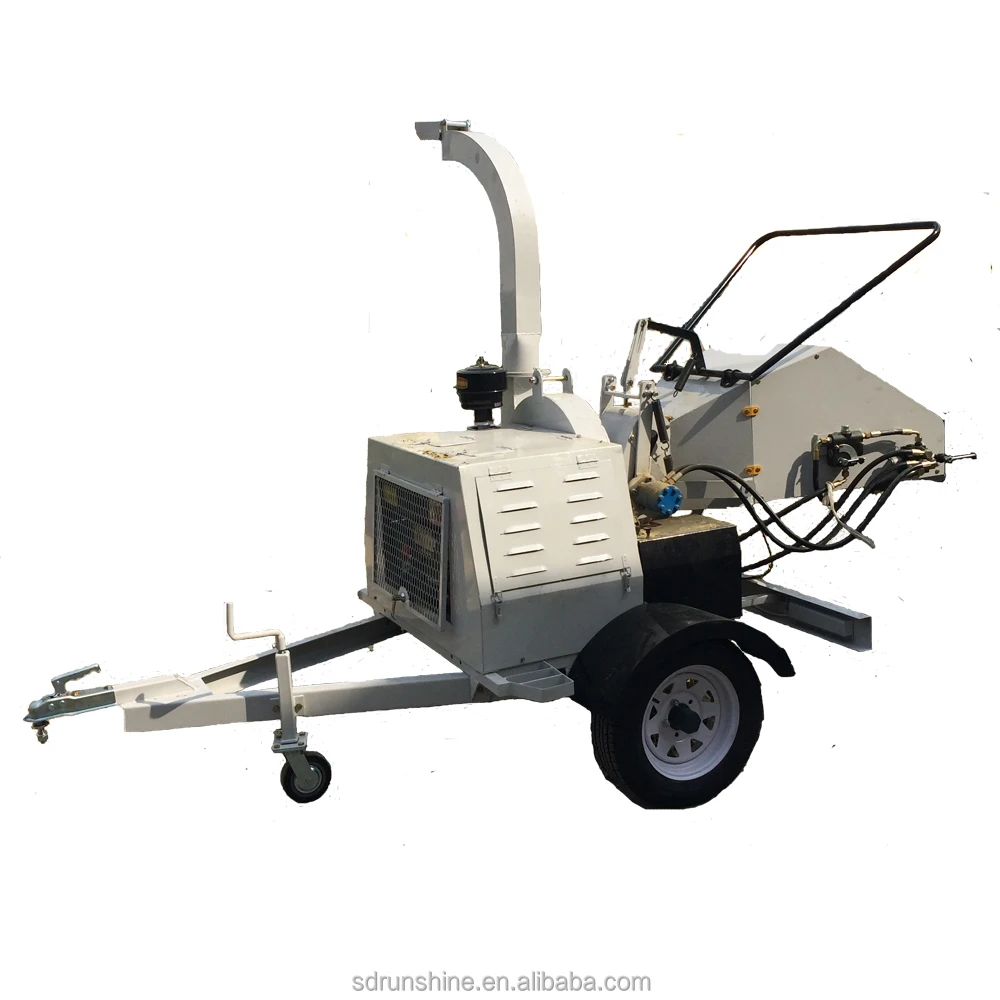

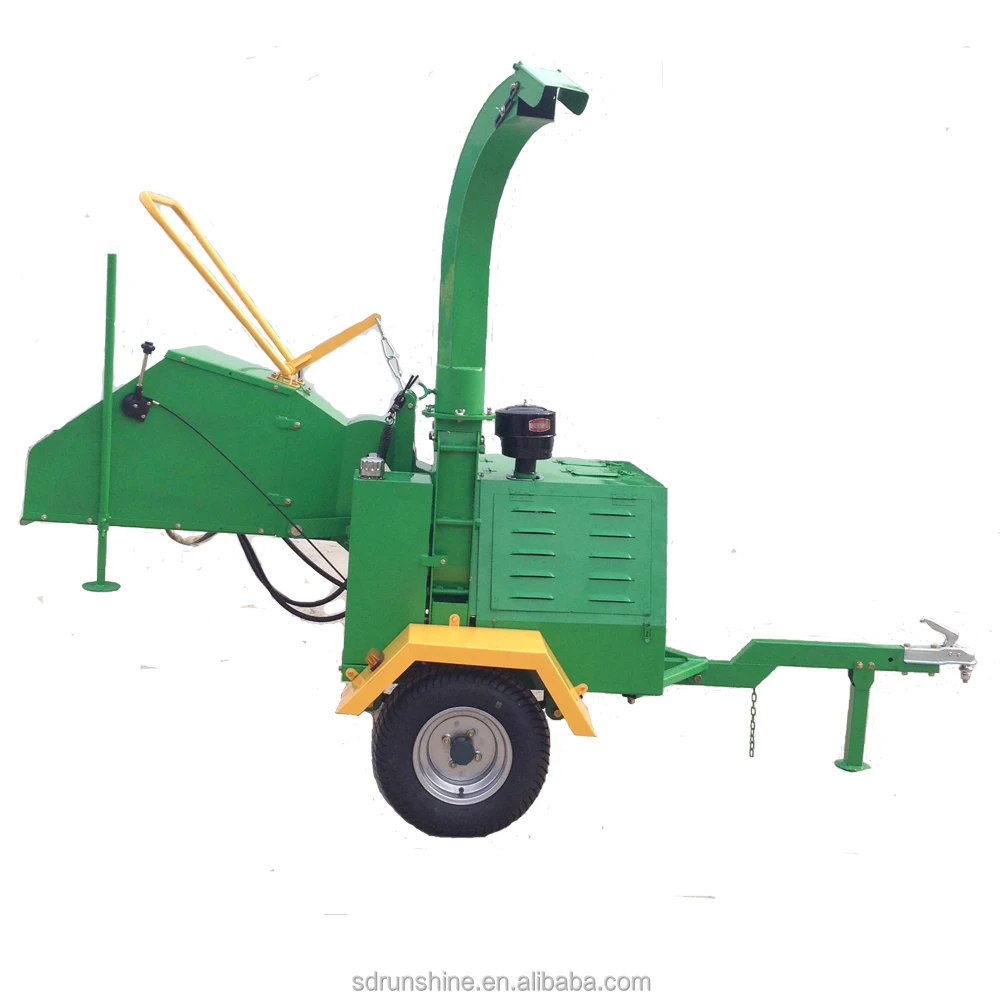

DWC22 Wood Chipper made in China Application

DWC22 wood chipper employ steel disc with rectangular blades mounted upon it and fans upon the other side.

while the disc rotates,powered by PTO shaft or engines,the blades cut the wood into pieces and fans blow the chips out from chute.

Main Features of wood chipper made in China

1) DWC22 Wood chipper with 22hp Yanmar diesel engine,electric start

2) 2 balls hitch,360 discharge hood

3)hydraulic feeding system,with free flow valve,easy to control feeding rate

4) horizontal design,easy to put wood in.

5)Mn-65 blades,2 rotary blades.

6)suit for branches and small log,low cost and high efficiency

Wood chipper Parts

Name: Disc flywheel

Brand: Runshine

Original: China

28mm thickness disc flywheel.with fans and 2 rotary blades

Wood chipper part

Name: free flow valve
Brand: Runshine
Original: China
Free flow valve could control hydraulic feeding roll rate well,makes roll forward,stop,backward,fast and slow.

according to different wood material and diameter,

choose different roll rate.

Wood chipper Parts

Name:structure
Brand:Runshine
Original: China
strong structure.

Wood chipper Features

Name: diesel engine
Brand: Yanmar
Original: Japan

CY1115 Yanmar diesel engine,Japanese brand and technology,produce in China.
