PRODUCT DETAIL

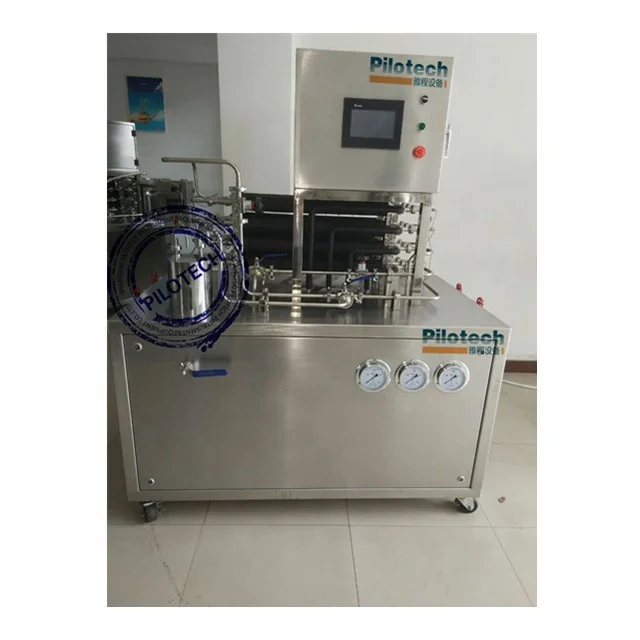

YC-02 mini uht sterilizer is manufactured for simulating industrial manufacture and research in laboratory,completely duplication the industrial production, which is adaptive to wide ranges of viscidity, and be same with preparation of fibers and granules, precisely mimic prepare, homogenizing, aging, pasteurism, fast sterilization under ultra-temperature and aseptic filling. The whole system is integrated with the CIP and SIP online, which can be configured optionally a homogeniser and a aseptic filling cabinet on your needs.

Application

Such as beverage,fruit juice, fresh milk, yogurt,tea, sauce dressings, soups and so on.

Product Parameters

PRODUCT PARAMETERS

YC-02 mini uht sterilizer technical parameter

Capacity of material processing :20 L per hour (Highly available by your demand).
Heating to 150 ℃ at the flow rates stated.
Cooling to below 5 ℃ at the flow rates stated.
heated hot water recirculators,no steam required
PLC controller, 8 inch LCD touch screen,two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
Temperature Precision:±0.5℃
The times of sterilizing include :3S,5S,10S,30S,300S(optional)
Product system pressures to 10 bar.
SIP (Sterilise In Place) an option for Aseptic sampling.
Built in true CIP (Clean In Place), flow for CIP more than 400 Ltr per hour
Outlet temp. adjustable by request.
Each heating section is individually controlled to enable a wide setting of product temperatures,the product is heated by pressurised hot water recirculators which are PID controlled for greater stability and accuracy(the precision of sterilizing temperature is ±0.5℃) . The cooling is in 1 or 2 stages dependant on the final cooling temperature required.
380 volt 3 phase, 50 or 60 Hz.
Power:13 KW

The technological flow

(1)Tube preheating & sterilizing: to sterilize the tube by superheated water and last for some time, then chill out to normal temperature and stand by.

(2) Material sterilizing: to ensure the sterilizing temp. & time according to experiment requirement(In line homogeniser can be added either upstream or downstream).

(3) Aseptic filling: hot filling or normal temp. filling based on laboratory needs.

(4) CIP cleanup .

Material→ hopper→screw pump→preheating tube→(homo.) →sterilizing tube(137~150℃)→water-cooling→(homo.)→(→ice-cold)→aseptic filling

Sr.no	Parameter	Pilotech YC-02 uht sterilizer
1	Power	13KW ,380V ,50/60Hz
2	Rated capacity	20-25l/h
3	Min. sample	3-5L
4	Max. heating temperature	150°c
5	Cooling temperature	normal temperature or 5°c(optional)
6	Heating unit	Heat hot water recirculators
7	Temperature control	PID control
8	Heating precision	±0.5°c
9	Sterilizing time	3s 5s 10s 30s 300s(optional)
10	System pressure	10Bar
11	Sterilize	SIP an option for aseptic sampling
12	Clean	CIP( 400LPH)
13	Outlet temperature	adjustable
14	Dimensions	16501150910mm
15	Operation mode	Automatic/Manual
16	USB connector	Yes
17	Body material	SUS304 Stainless steel
18	Filling system	Sterile cabinet(optional)
19	Filtering membrane	HEPA (filter efficiency 99.99%)
20	PET bottle	suitable
21	Jacketed filling device	10L(5L)
22	Filling valve	Air operated filling device
23	Ozone generating system	optional
24	Material touch part	SUS316L
25	Operation mode	Automatic/Manual
26	Display	7-Inch LCD display

Company Profile

COMPANY PROFILE

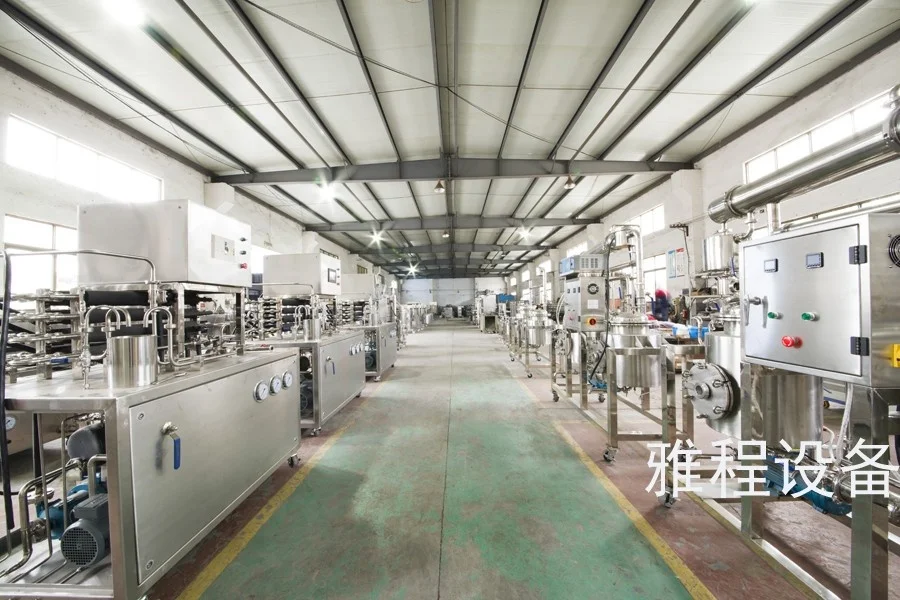

Production Show

PRODUCTION SHOW

Quality Inspection

QUALITY INSPECTION SHOW

Certificate Show

CERTIFICATE SHOW

Our Customers

OUR CUSTOMERS

Our company's laboratory equipment is widely used by well-known universities in China such as Tsinghua University, Peking University Fudan University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Wuhan University, Huazhong University of Science and Technology, Sun Yat-Sen University, Zhejiang University and Nanjing University, and world-renowned companies like Coca-Cola and General Electric. It has more than 1,500 users in mainland China.
