UNI-T UTD1062C60Mhz 2 канала Портативные Цифровые запоминающие

UNI-T UTD1062C60Mhz 2 канала Портативные Цифровые запоминающие

Категория: Осциллографы >>>
Поставщик: Sinotronics,Co.,Ltd.

Цена:335,00 $ - 376,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	425.51 $*	434.76 $*
Jul-18-2025	345.25 $*	352.15 $*
Jun-18-2025	419.95 $*	427.48 $*
May-18-2025	415.65 $*	423.79 $*
Apr-18-2025	332.27 $*	339.44 $*
Mar-18-2025	409.13 $*	417.6 $*
Feb-18-2025	405.76 $*	413.29 $*
Jan-18-2025	402.67 $*	410.60 $*

Характеристики

Features

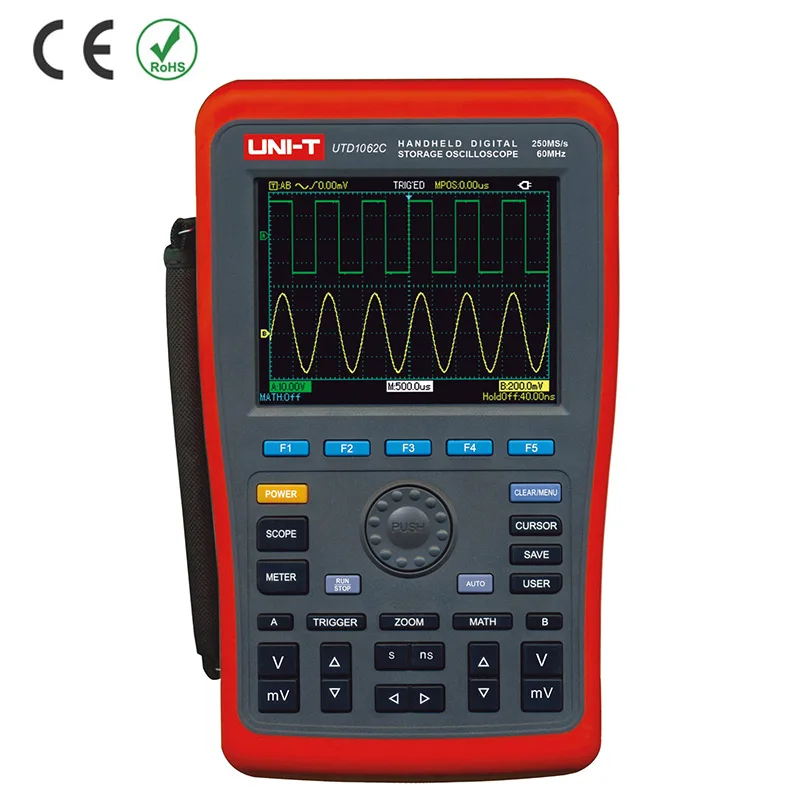

UNI-T UTD1062C60Mhz 2 Channel Handheld Digital Storage Oscilloscopes

UTD1000C Series Handheld Digital Storage Oscilloscopes achieve the ease of use, excellent technical indicators and a number of functional perfect combination, which helps users quickly complete the test. Scale and position knobs provide intuitive operation,and conform to the using habits of traditional instruments. Users do not have to spend a lot of time learning and being familiar with operations of the handheld digital storage oscilloscope.

1. Automatic waveform and status configuration2. Storage of waveforms, setups and interfaces; waveforms and setups reproduction
3. Print Screen function
4. Fine window extension; precise analysis of waveform details and overview
5. Unique waveform recording, storage and replay function
6. HD color 5.7 inches LCD panel at 320 x 240 pixels aspect ratio
7. Multiple waveform mathematics functions (including add, subtract, multiply and divide)
8. Multimeter function
9. USB drive system software upgrade

Details Images

Specification

Specifications
Model	UTD1062C	UTD1102C	UTD1202C
Bandwidth	60MHz	100MHz	200MHz
Channels	2
Sampling rate	250MS/s	500MS/s	1GS/s
Rise time	≤5.8ns	≤3.5ns	≤1.8ns
Memory depth	7.5kpts
Vertical sensitivity	5mV/div~50V/div
Time base scale	5ns/div-50s/div			2ns/div-50s/div
Storage modes	Setup, waveform, bitmap
Trigger modes	Edge, pulse width, video and alternative
Interfaces	USB host, USB OTG (UTD1202C Optional)
Multimeter Specifications	Range			Accuracy
DC voltage (V)	600mV/6V/60V/600V/1000V			±(1%+5)
AC voltage (V)(45Hz~400Hz)	600mV/6V/60V/600V/700V			±(1.2%+5), Frequency: ＜200Hz
AC voltage (V)(45Hz~400Hz)	600mV/6V/60V/600V/700V					±(1.5%+5), Frequency: ≥200Hz
DC current (A)	6mA/60mA/600mA			±(1.2%+5)
DC current (A)		6A			±(1.5%+5)
AC current (A)(45Hz~400Hz)	6mA/60mA/600mA			±(2%+5)
AC current (A)(45Hz~400Hz)		6A			±(2.5%+5)
Resistance (Ω)	6kΩ/60kΩ/600kΩ			±(1.2%+5)
Resistance (Ω)		600Ω/6MΩ/60MΩ			±(1.5%+5)
Capacitance (F)	6nF/6mF			±(5%+10)
Capacitance (F)		60nF/600nF/6μF/60μF/600μF			±(4%+5)
Display count	6000
Auto range	√
General Characteristics
Power	Li-ion battery: 7.4V 4400mAh; DC adapter: 100~240V 50/60Hz input, 9V/4A output
Display	5.7 inches TFT LCD, QVGA (320x240)
Product net weight	Red and grey
Product color	1.8kg
Product size	268mm x 168 mm x 60mm
Standard accessories	Probe x2 (1x, 10x switchable), current voltage converter, power cord, adapter, test leads
Standard individual packing	Carton box, carrying bag
Standard quantity per carton	4pcs
Standard carton measurement	500mm x 400mm x 320mm
Standard carton gross weight	16.7kg
