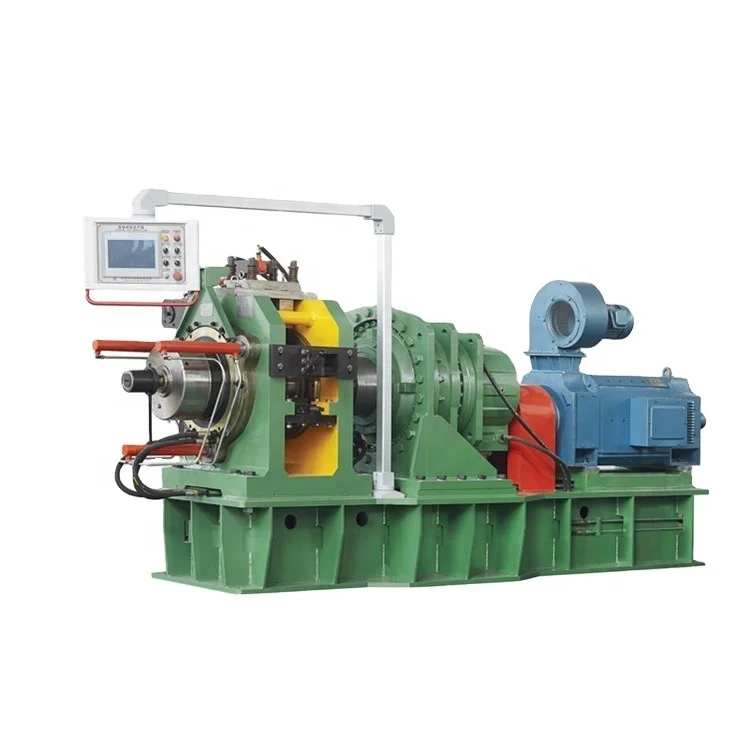

Copper Continuous ExtruderTBJ300

I. Description of the copper continuous extruder

1.1 The continuous extrusion equipment is to extrude the copper rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.

1.2 Through the high-pressure and high-temperature treatment, the influence of defects (cracks, burr and so on) existing in the raw material on the finished products can be eliminated.

1.3 To increase the density. The finished products are extruded at high temperature and high pressure, so that the surface is bright and clean, and the dimensional precision is high.

1.4 The product does not require annealing, and the hardness shall be uniform. The extrusion process can thoroughly eliminate the problem of raw material joint, and the length of the required product is not subject to the restriction of the length of the raw material.

1.5 The floor area of the extrusion equipment is small, the installation and construction are simple, the energy consumption is low, and the labor intensity is low. The safety during the production process is high, and the production environment is clean, which completely meets the environmental protection requirements.



II. Technical Parameters of copper continuous extruder





Types of raw materials:



TU2 oxygen free copper rod (the surface shall be clean and free of oil dirt, non-oxidation)



The diameter: 12.5mm. Yield strength: less than 120Mpa.



III. Configuration of copper continuous extruder
