Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00

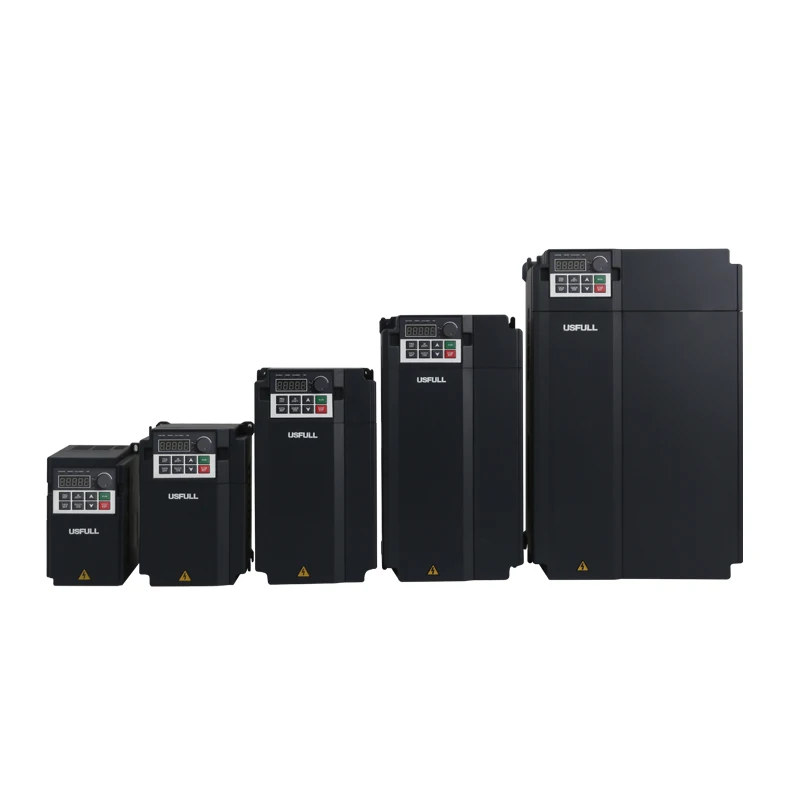

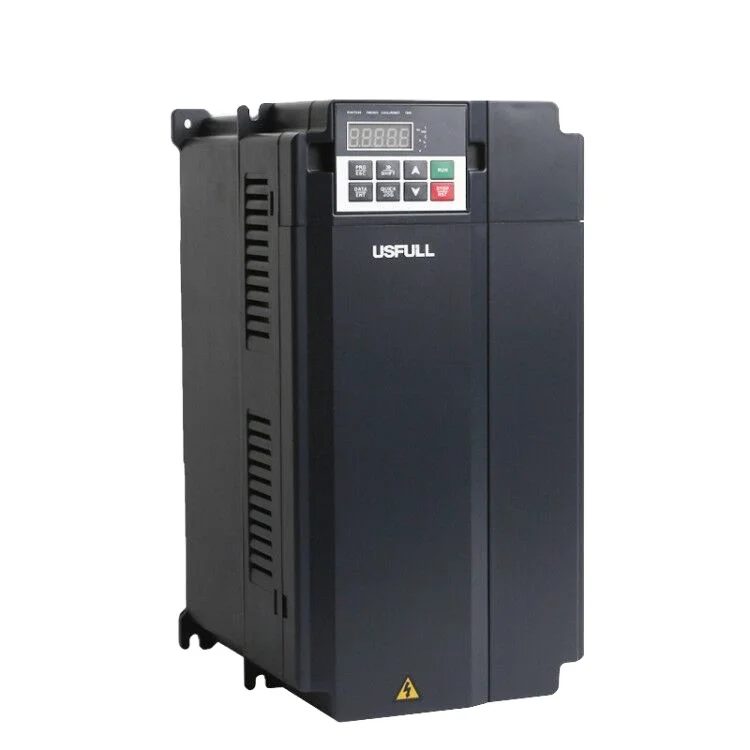

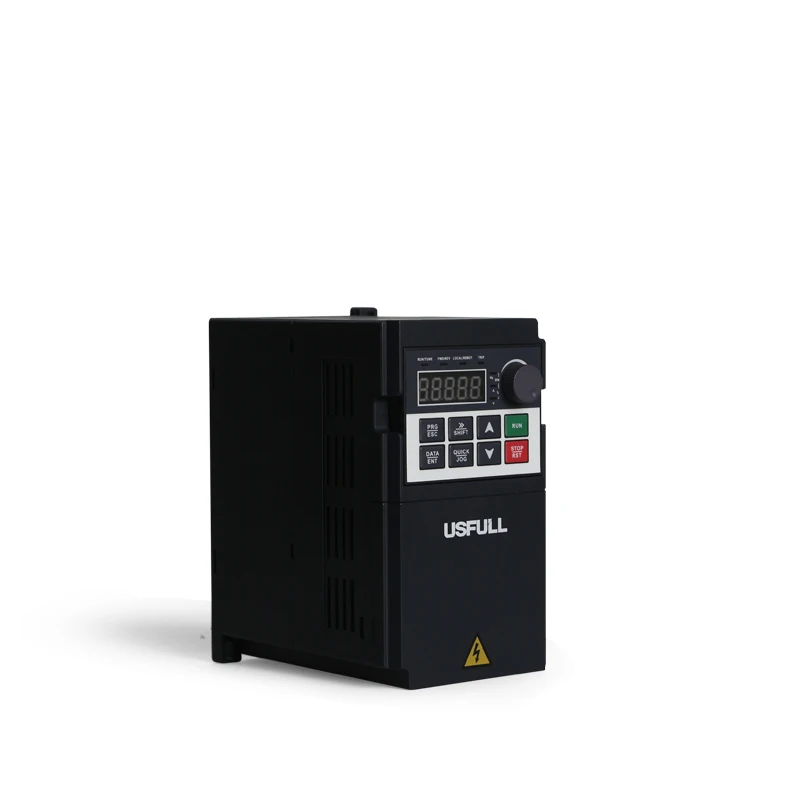

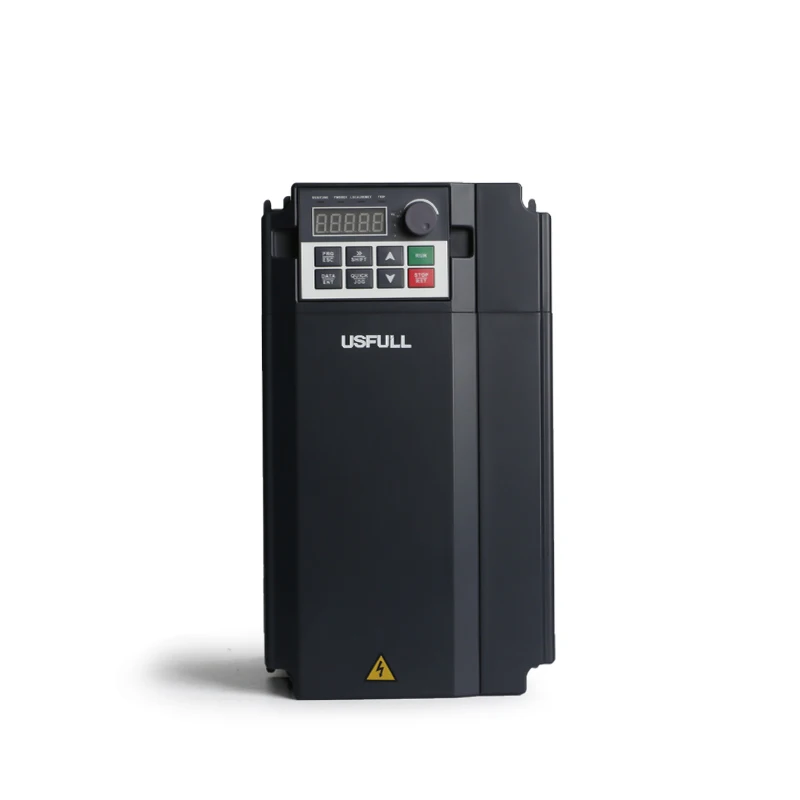

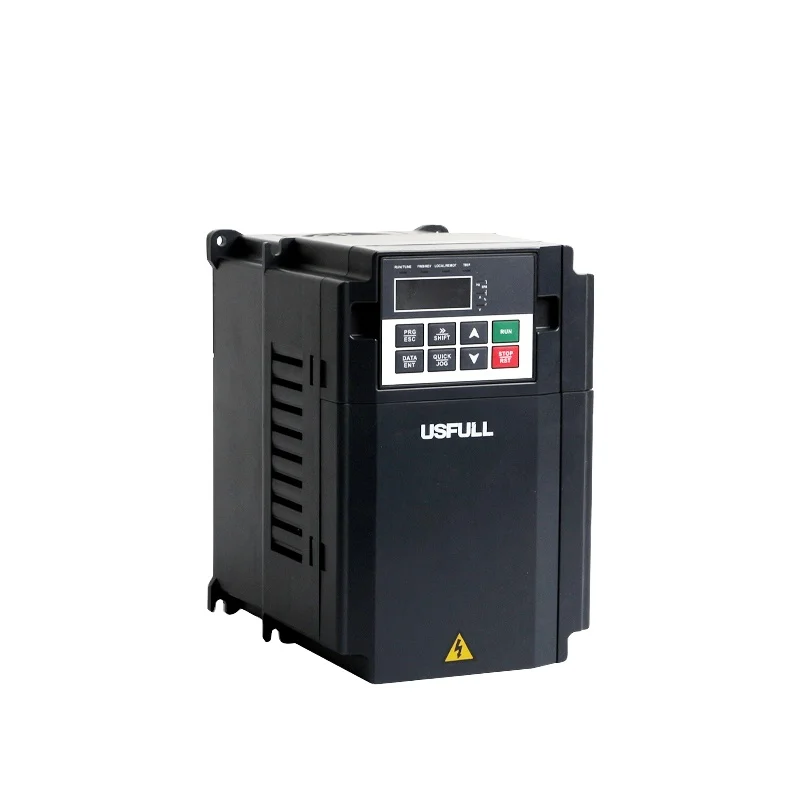

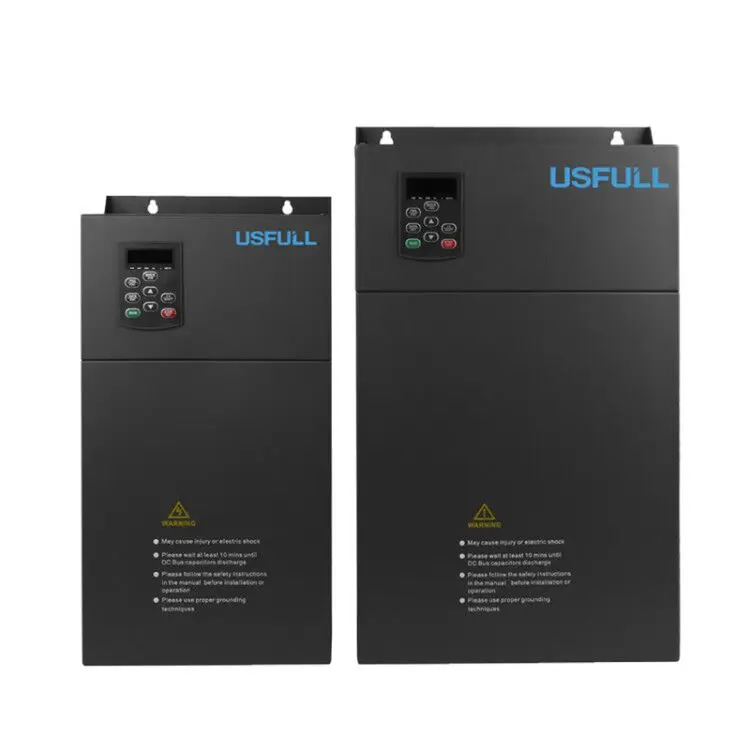

USFULL solar variable frequency drive vfd 3phase inverter 5.5kw
- Категория: Solar Pump Inverter >>>
- Поставщик: Zhejiang,Fullwill,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 286.37 $* | 292.18 $* |
| Jul-16-2025 | 232.87 $* | 237.55 $* |
| Jun-16-2025 | 281.76 $* | 287.99 $* |
| May-16-2025 | 279.19 $* | 285.62 $* |
| Apr-16-2025 | 223.92 $* | 227.42 $* |
| Mar-16-2025 | 275.60 $* | 281.4 $* |
| Feb-16-2025 | 272.74 $* | 277.1 $* |
| Jan-16-2025 | 270.81 $* | 275.89 $* |
Характеристики
Product Description
Built-in MPPT
Solar Pump Inverter maximum power point tracking (MPPT) functionality guarantees the system
get the most power output from solar panel and maximizes the efficiency of pumping system.
Monitoring System
With the optional GPRS modules, monitor and control drive and adjust parameters via computer.
Best Off-grid Solution
For off-grid area, solar pump inverter without battery is the best solution for agricultural irrigation.
Professional Pump Protection
Automatic start and stop in the morning, for full tank and water shortage in the well.
| Series | Model | Rated output power (Kw) | Rated input current (A) | Rated output current (A) |
| FU9000SI-SS2 (0.75KW-2.2KW) | FU9000SI-0R7G-SS2 | 0.75 | 9.3 | 7.2 |
| FU9000SI-1R5G-SS2 | 1.5 | 15.7 | 10.2 | |
| FU9000SI-2R2G-SS2 | 2.2 | 24 | 14 | |
| FU9000SI-S2 (0.75KW-2.2KW) | FU9000SI-0R7G-S2 | 0.75 | 9.3 | 4.2 |
| FU9000SI-1R5G-S2 | 1.5 | 15.7 | 7.5 | |
| FU9000SI-2R2G-S2 | 2.2 | 24 | 10 | |
| FU9000SI-2 (4KW-7.5KW) | FU9000SI-004G-2 | 4 | 17 | 16 |
| FU9000SI-5R5G-2 | 5.5 | 25 | 20 | |
| FU9000SI-7R5G-2 | 7.5 | 33 | 30 | |
| FU9000SI-4 (0.75KW-110KW) | FU9000SI-0R7G-4 | 0.75 | 3.4 | 2.5 |
| FU9000SI-1R5G-4 | 1.5 | 5 | 4.2 | |
| FU9000SI-2R2G-4 | 2.2 | 5.8 | 5.5 | |
| FU9000SI-004G-4 | 4 | 13.5 | 9.5 | |
| FU9000SI-5R5G-4 | 5.5 | 19.5 | 14 | |
| FU9000SI-7R5G-4 | 7.5 | 25 | 18.5 | |
| FU9000SI-011G-4 | 11 | 32 | 25 | |
| FU9000SI-015G-4 | 15 | 40 | 32 | |
| FU9000SI-018G-4 | 18.5 | 47 | 38 | |
| FU9000SI-022G-4 | 22 | 51 | 45 | |
| FU9000SI-030G-4 | 30 | 70 | 60 | |
| FU9000SI-037G-4 | 37 | 80 | 75 | |
| FU9000SI-045G-4 | 45 | 94 | 92 | |
| FU9000SI-055G-4 | 55 | 128 | 115 | |
| FU9000SI-075G-4 | 75 | 160 | 150 | |
| FU9000SI-090G-4 | 90 | 190 | 180 | |
| FU9000SI-110G-4 | 110 | 225 | 215 |
Packaging & Shipping
1-Company
Founded in 2005,ZHEJIANG FULLWILL ELECTRIC CO.LTD is a hi-tech enterprise dedicated to world-class frequency drive, solar pump inverter, combiner box, circuit breakers, contactor. They have been succeeded in passingsome safety certificates such as CB, CE, CCC, INMETRO etc.
Our company has first-rate production line with advanced production test facility , such as assembly line, testing line,high temperature and the high temperature aging room.
We satisfy our customers with high quality products, considerate services and favorable prices.Our products have beenexported to Europe, United States, Southeast Asia and others.With the support and trust by large user, We are confident to be your trustable partner based on our efforts.
FULLWILL ELECTRIC company is looking forward to establishing long-tem business relationship with you, we are always on stand by to provide the service you.
2-Production Flow
3-Exhibition
4-Certifications
FAQ
| 1. How to choose the power of the solar pumping inverter? |
| According to your motor power, you can click "Chat Now" on the right and our sales staff will provide you with solutions online. |
| 2. Do you support urgent orders? |
| of course. We have an ERP management system. Once there is an inventory warning, we will prepare materials in advance to meet the urgent needs of customers |
| 3. What is the standard of package? |
| Below 30kw, it's carton package; 37kw and above,it's wooden package. |
| 4. What voltage range can you support? |
| Single-phase 220v input, single-phase 220v output; Single-phase 220v input, three-phase 220v output; Three-phase 220v input, three-phase 220v output; Single-phase 220v input, three-phase 380v output; |
| 5. If there is no sun at night, can I switch solar panel input to mains power? |
| We have solutions for AC/DC switching cabinets. For details, please contact us for sales. |
| 6. About the terminal instructions of the solar pumping inverter? |
| R, S, T are input terminals of three-phase power supply of frequency converter. |
| U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor |
| P+ and PB are connected to the brake unit, P+ and P- are connected to DC (solar panel) |
| 7. Do you accept OEM business? |
| We accept OEM and ODM with your autherization. |
