Характеристики
BFB-W Germany machine for rope CNC turning machine CNC braiding machine
Product Description

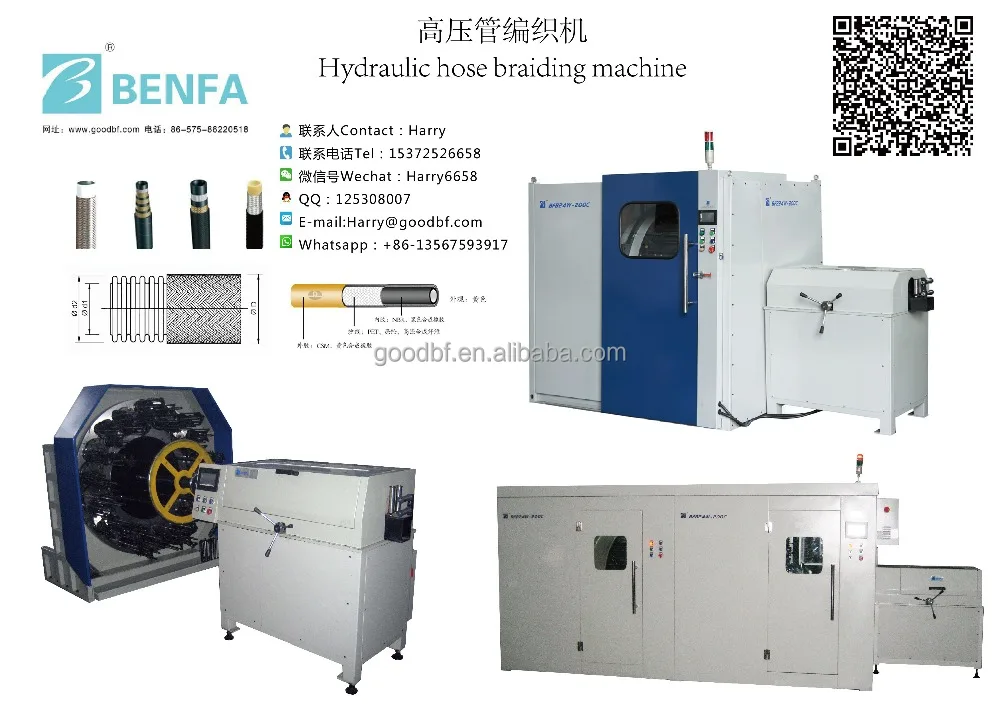

BFB-W Series single or double horizontal high speed braiding machine is adopt advantage braiding technology, such as human machine interface, inverter control and PLC control cell ,auto lubricant ,transmission gear in-phase , pneumatic and hydraulic pressure design. The braiding machine can come true Single or double braiding. Our braiding machine can be used in high pressure rubber hose , auto motor hose ,auto drive turning hose , brake hose ,apply the brake hose ,auto air condition hose , cable and industrial rubber hose , plastic hose enhanced braiding.
Main Feature
- One person can operation several machine . When the bobbin empty , wire broken the machine will stop, the alarm flicker.
- Operation easy , digital display . Setting pitch by digital control . The machine run display by the digital display.
- Automatic , advantage technology . Adopt human machine interface ,PLC control cell . Coder , inverter control , counting function , protection.
- Good quality, high efficiency. Often used operation button outside fixed. The efficiency is twice other braiding machine.
- Design is reliable, good looking.
- Less noise, produce precision spare parts, good material and heat treat. Sound proof less noise.
- Remember function. Braiding parameter and production total can be record for a while.
TECHNICAL PARAMETERS
| Carrier Qty | 20PCS | 24PCS | 36PCS | 48PCS | 64PCS | 96PCS | 112PCS |
| Braicled material | Steel wire:0.16~0.5mm / Stainless steel wire:0.18~0.5mm | ||||||
| Bobbin capacity | 956cm³( 84(Outside diameter)x32(Inside diameter)x202)or 603cm³(78( Outside diameter)x32( Inside diameter)x152) | ||||||
| Braid strand | 3~15strands | ||||||
| Carrier RPM | 40rpm | 35rpm | 25rpm | 17.5rpm | 12rpm | 7.8rpm | 6.75rpm |
| Braiding machine power | 4.0KW | 4.0KW | 5.5KW | 7.5KW | 11.0KW | 18.0KW | 22.0KW |
| Haul off motor power | 1.1kw | 1.5kw | |||||
| Carrier tension | 1.5kg~15kg | ||||||
| Braided hose OD | ≤22mm | ≤30mm | ≤50mm | ≤80mm | ≤150mm | ≤230 | ≤350 |
| Weight | 1575kg | 1575kg | 2750kg | 3200kg | 4230kg | 5600kg | 7600kg |
Company Information
Xingchang benfa electromechanical establish in 1998 ,professional designing and producing braiding machine and complementary equipment technology company. Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimper machine and flexible hose assemble machine.
Quality First, Win-win each other. We will try our best to offering perfect hose braiding solution.
Power show
Certificate
Exhibition
Partners
Packaging & Shipping
Our Services
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing,debugging, operation of the machine, it will indicate you how to use this machine well.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
3.online service
24 hours on line, buyers can talk to us any time.
Your satisfaction is our eternal need! We always pursuing to do better!
FAQ
Frequently Asked Questions
Q: How long have you been in this field?
A: Our enterprise was founded in 1998, and we are professional in designing and producing knitting machine in this field for 18 years.
Q: How long is the warranty-period?
A: The warranty period of machine is one year, and we provide lifetime quality guarantee.
Q:As a transnational business, how do you deal with the after-sale service of the machine?
A: Depending on the problem, we have professional engineers with professional guidance; we promise we will solve your problem as soon as possible.
Q:Can you customize the machine for the customer?
A:Yes. We can, we also provide OEM for customers; If you need customized service, please contact with us.
