Новая линия по производству питьевой воды 3 в 1/малая производству/линия
- Категория: Filling Machines >>>
- Поставщик: Zhangjiagang,Keerman,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 20230.39 $* | 21242.45 $* |
| Aug-17-2025 | 20060.64 $* | 21063.1 $* |
| Jul-17-2025 | 16830.30 $* | 17672.92 $* |
| Jun-17-2025 | 19720.86 $* | 20706.51 $* |
| May-17-2025 | 17170.29 $* | 18029.72 $* |
| Apr-17-2025 | 19380.70 $* | 20349.31 $* |
| Mar-17-2025 | 19210.59 $* | 20171.52 $* |
| Feb-17-2025 | 19040.58 $* | 19992.31 $* |
| Jan-17-2025 | 18870.96 $* | 19814.10 $* |
Характеристики
Product Description
The cold drink making machineis mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole cold drink making machine process is automatic. The cold drink making machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the cold drink making machine to fill various types of bottles. The cold drink making machine filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main cold drink making machine to make the operations of moving bottle forward steadily and reliably.Cold drink making machine is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The cold drink making machine is an idea-preferred equipment forprogram control are adopted in this machine.
Model | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-12 | RCGF40-40-12 | |||
capacity :500ml | 4000-6000 | 8000-10000 | 12000-15000 | 16000 | |||
bottle shape: | roud or square | ||||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||
cap: | PE srew cap | ||||||
filling precision: | ≤±5mm | ||||||
filling pressure:(Mpa) | 0.15-0.35 | ||||||
rinsing pressure:(Mpa) | 0.2-0.25 | ||||||
filling volume :(L) | 3.5 | 4 | 6 | 8 | |||
overall size:(mm) | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 | |||
weight: (kg) | 3500 | 4500 | 5500 | 6500 | |||

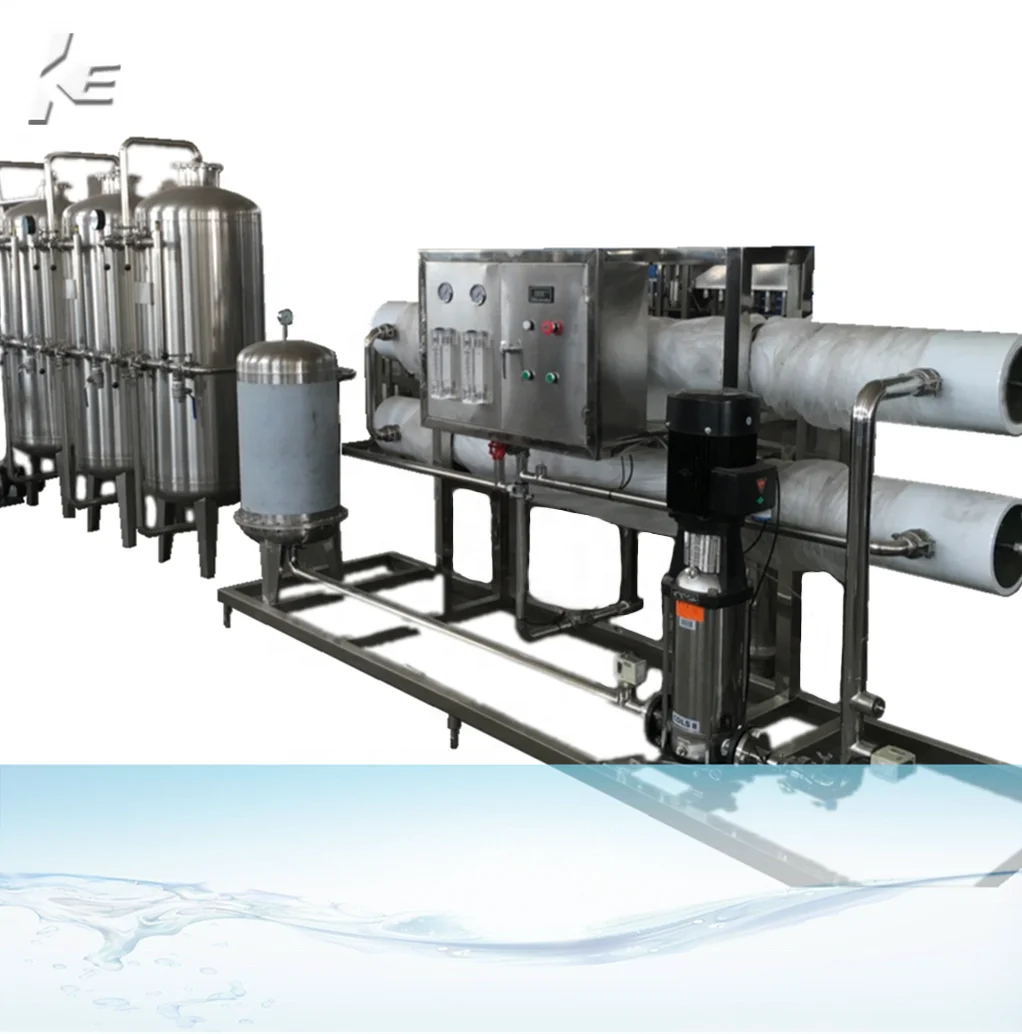

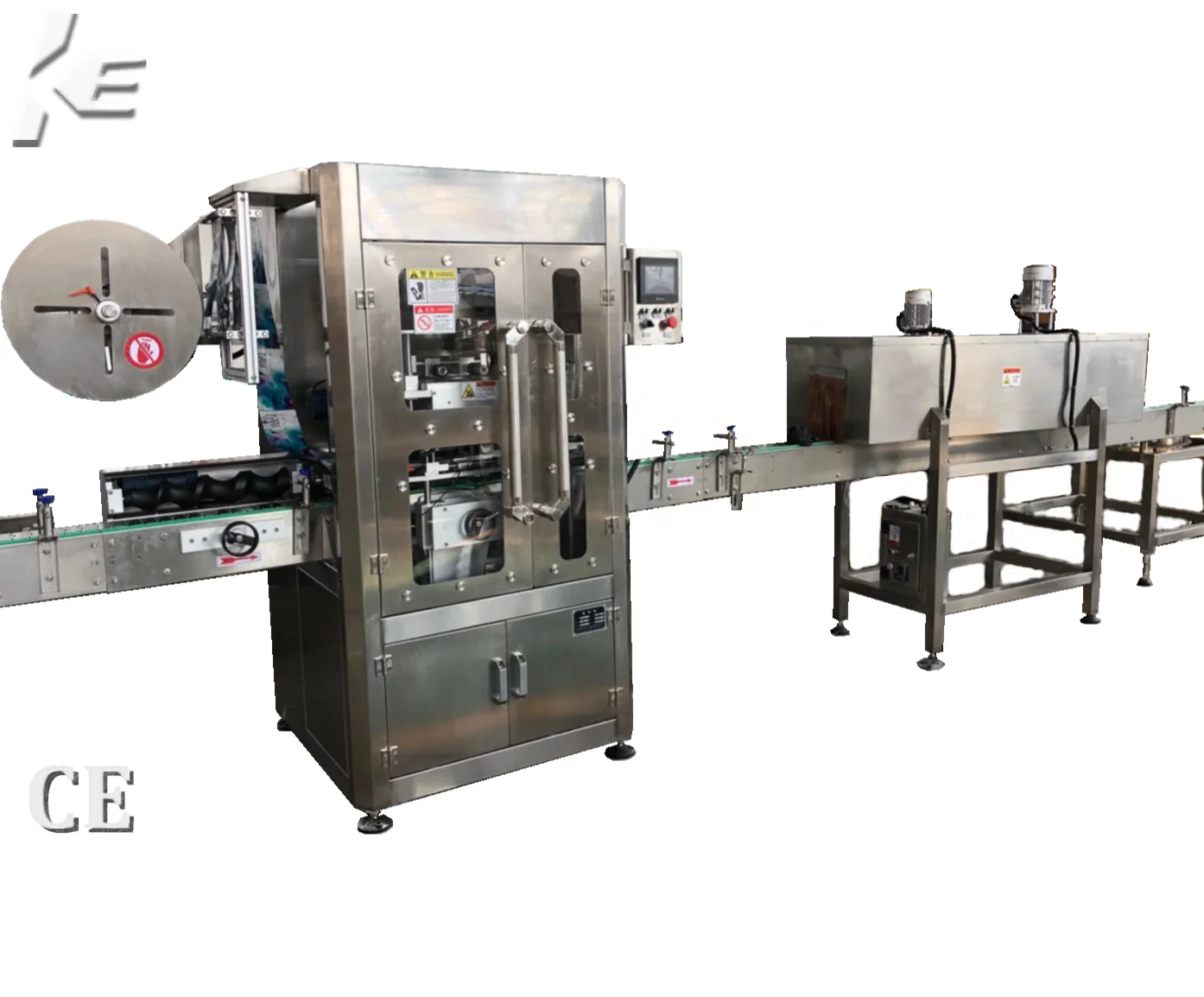

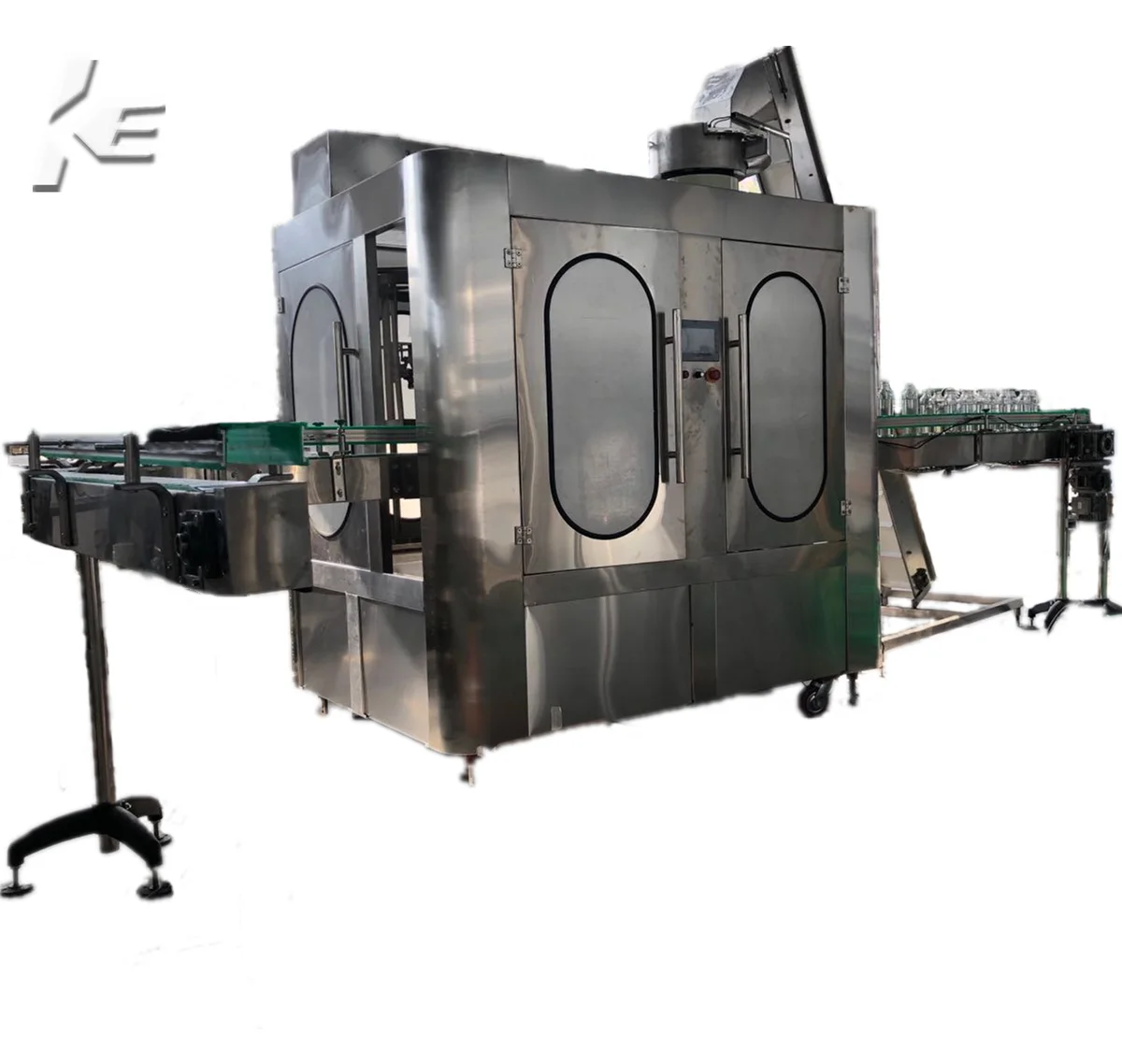

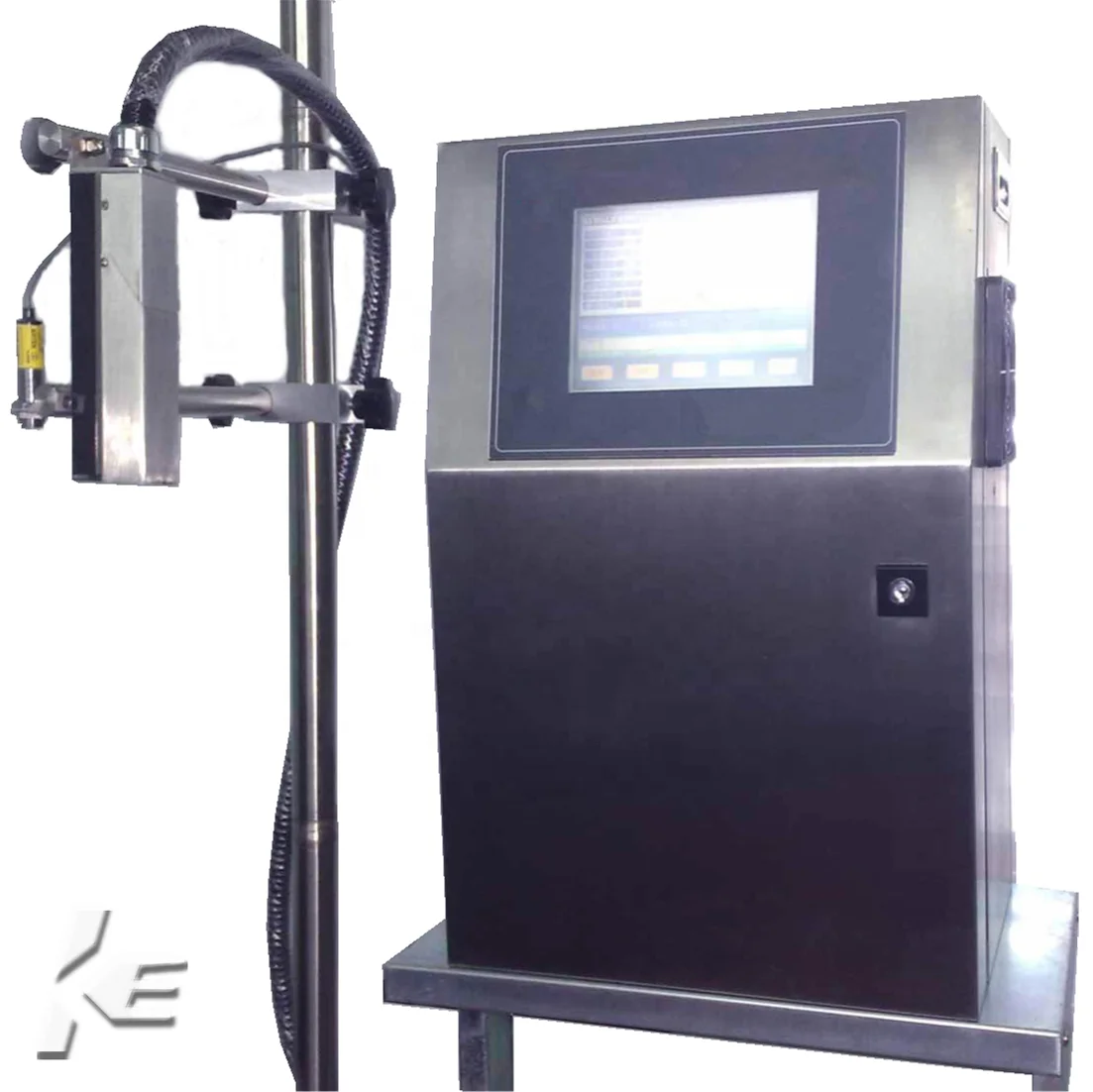

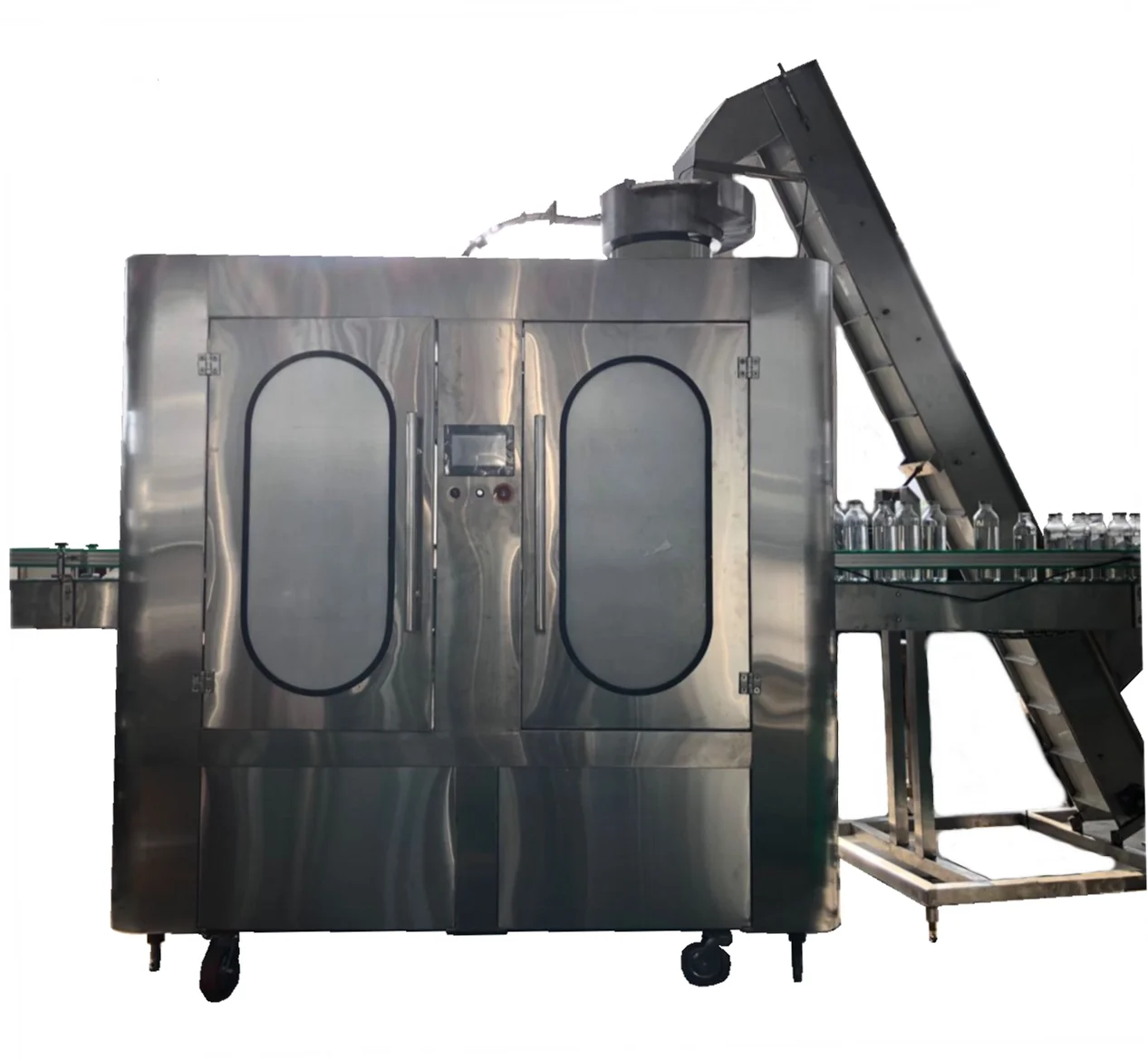

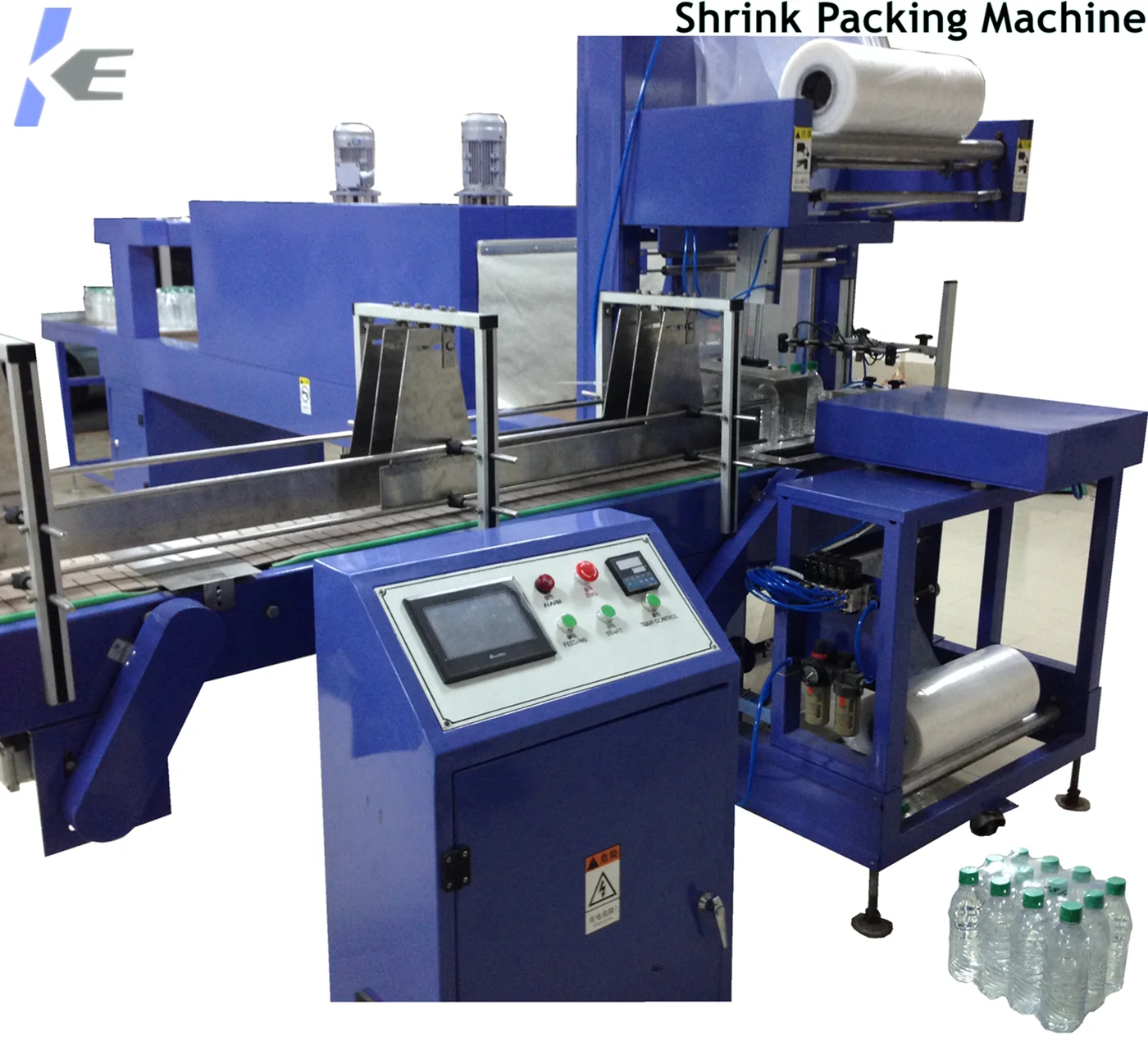

Photo show
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Our Company
Zhangjiagang Keerman Machinery Co.,Ltd of Jiangsu province is a professional manufacturer of beverage machinery and water treatment.The company takes market as aim,science and tachnology as our principle. Our main products:carbonated beverage and non-carbonated beverage,as well as other production line. We would like to cooperate with clients to develop and establish long-term steady-going business. We cordially welcome new and old clients to visit our company.
FAQ
Why choose KEERMAN?
Manufacture with many years experience
Stable high quality of machine
Competitive price
Fast,sincere and efficient service
Quality-packaging
1-year warranty
