Пассивный POE Разветвитель RJ45 24 В 48 12 кабель для точки доступа IP-камеры

Пассивный POE Разветвитель RJ45 24 В 48 12 кабель для точки доступа IP-камеры

Категория: Ethernet & Communication Modules >>>
Поставщик: Shenzhen,Zhangqing,Electronic,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.77 $*	0.63 $*
Aug-17-2025	0.11 $*	0.49 $*
Jul-17-2025	0.48 $*	0.55 $*
Jun-17-2025	0.63 $*	0.4 $*
May-17-2025	0.22 $*	0.53 $*
Apr-17-2025	0.38 $*	0.2 $*
Mar-17-2025	0.21 $*	0.86 $*
Feb-17-2025	0.79 $*	0.17 $*
Jan-17-2025	0.26 $*	0.54 $*

Характеристики

RJ45 24v 48V 12V Passive POE Injector Splitter cable for IP camera IP phone Access Point

Convenient and cheap solution for remote networking power.
Input: RJ45 female plug
Output: RJ45 male and 2.1*5.5mm

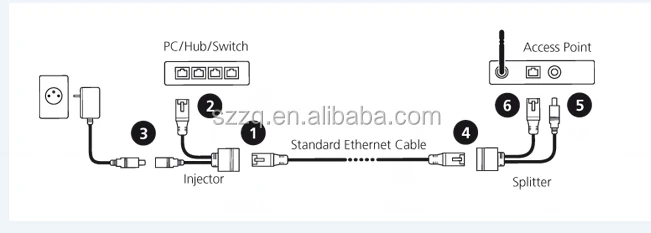

Passive PoE Splitter + Passive PoE Injector
Easy to install PoE Application for AP, CPE, IPCam, IP Phone
Use the Power Supply from Powered Device
Accept up to 57V Voltage Input

Features of the mini PoE splitter cable

Splitter: RJ45 Female to RJ45 Male + Power Out
Passive PoE - means that input and output voltage are equal.
Works with all DC powered non-PoE devices
Supports 5V, 12V, 24V, 48V
Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.
Uses industry standard 5.5mm x 2.1mm power plugs.
Can work up to 150ft (depending on the quality of the cable and the power draw of the device)

Specification of the mini PoE splitter cable

1.1 Data : Pins 12 / 36

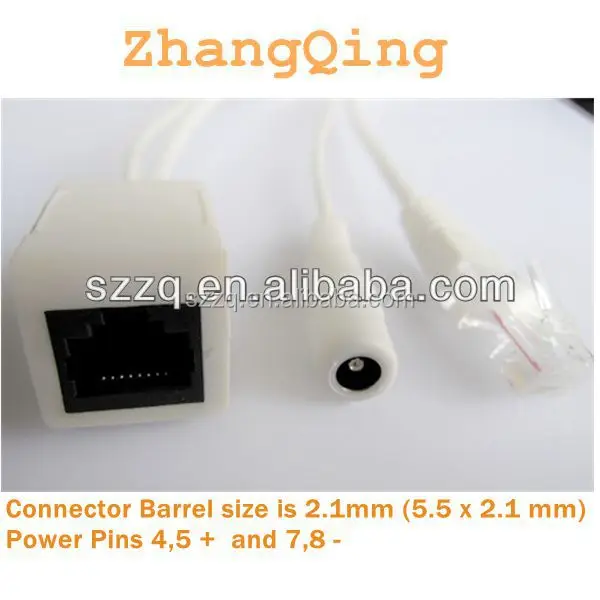

1.2 Power : Pins 45(+) / 78(-)
1.3 Data in : PC / Hub / Switch
1.4 Connector : RJ-45
1.5 Data rate : 10/100 Mbps
1.6 Ethernet cable : Cat.5 or Cat.5e

Injector Plug	5.5mm x 2.1mm
Splitter Jack	5.5mm x 2.1mm
Overall Length	19 cm (7.5 inches).
Network Type	10BASE-T, 100BASE-T
Data Pins	1&2 and 3&6
Power Pins	4&5 and 7&8
Input Voltage Max	Up to 60VDC
Output Voltage Max	Up to 60VDC
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)

Application of the mini PoE splitter cable:

IP Phone

Wireless Access Point (WiFi AP)

WiMAX Basestation

IP Survellance Camera

Door Security

POS

Netbook/mini Notebook

PoE Cable without logo-3.jpg PoE Cable without logo-25.jpg PoE Cable without logo-354.jpg
