High Speed Plastic Laminating Machine



This series of Laminating Machines are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.



1. Machine Introduction



1. Machine Controlled By Three Vector Motor.



2.Both Unwind Of Machine Adopt Photoelectric Edge

correcting Device While The Material Feeding Is Controlled By Automatic Tension.



3.The Anilox Rollers Control The Amount Of Ink Scrapping By Scrapers. While The Rubber Roller Adopts Dual Air Cylinder .



4. 4-sect Heating In Drying Tunnel  Controlled By Intelligent Temperature Controller, Quipped With Inner Cycling Device. Save Power.



5.Laminating Hot Drum And Pressing Roller Device Are Heated Through The Hot Oil



6.The Rewinding Of Machine Adopts Torque Motor.



7.Gluing Pressing Roller And Laminating Pressing Roller Adopt Pneumatic Pressure And The Pressure Is Adjustable.





2. Machine Advantages



1, We use stronger steel plate for machine body, which makes machine more stable.



2, Motor with CE standard, more than 10 years life



3, Long Oven for drying the glue.



4, EPC for unwinder, and automatic tension controlling system for unwinder.



5, Anilox roller is 180 DPI.







3. Machine Parameters



Model	YHL600A	YHL800A	YHL1000A	YHL1200A
Material max width	600mm	800mm	1000m	1200mm
Max unwinding diameter	650mm	650mm	650mm	650mm
Max rewinding diameter	650mm	650mm	650mm	650mm
Mechanical speed	90-180m/min	90-180m/min	90-180m/min	90-160m/min
Max laminating speed	160m/min	160m/min	150m/min	140m/min
Voltage	32kw	34kw	36kw	40kw
Machine weight	3000kg	3500kg	4000kg	5000kg
Outline dimension (mm)	8500/1330/2600	8500/1530/2600	8500/1730/2600	8500/1930/2600

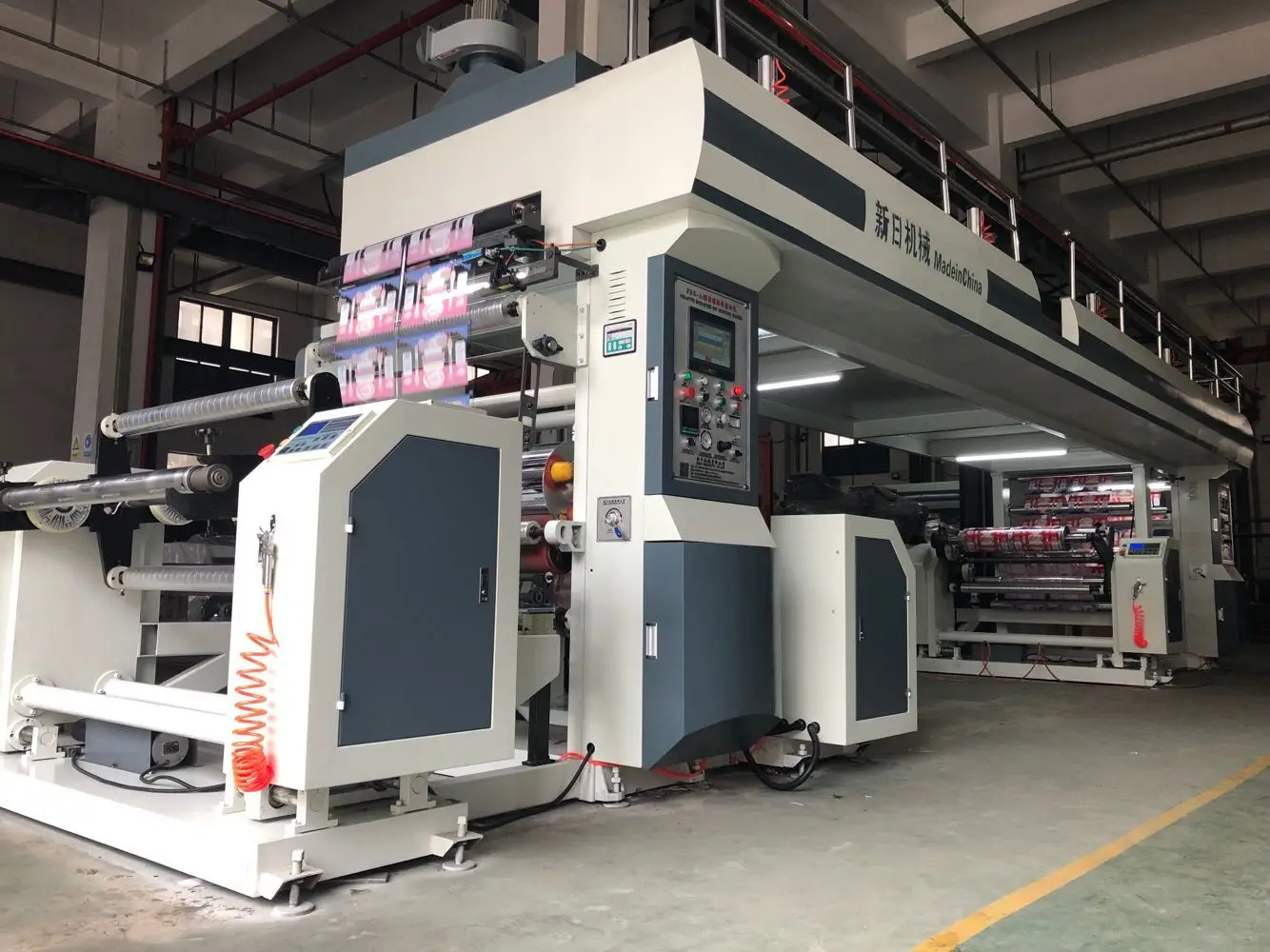

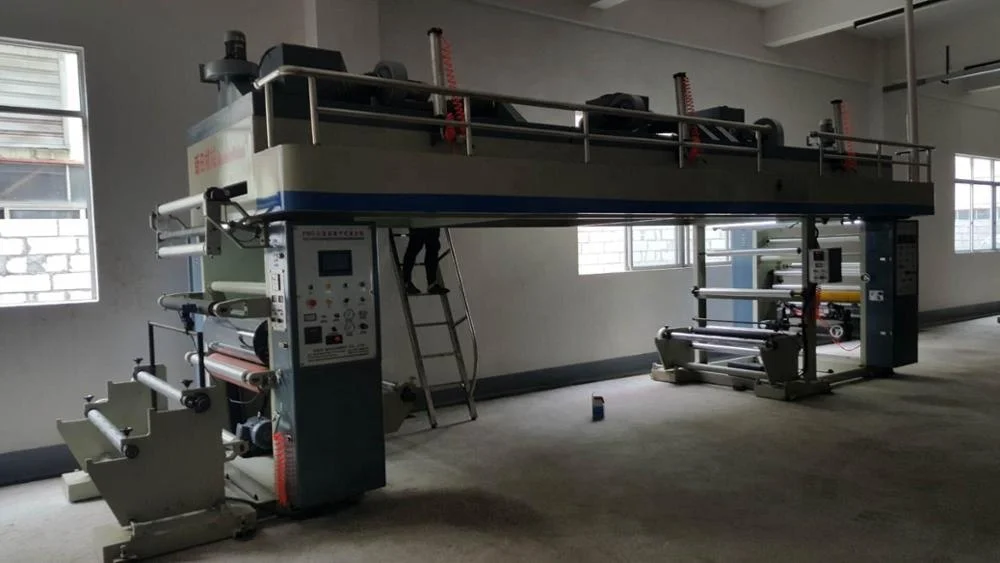

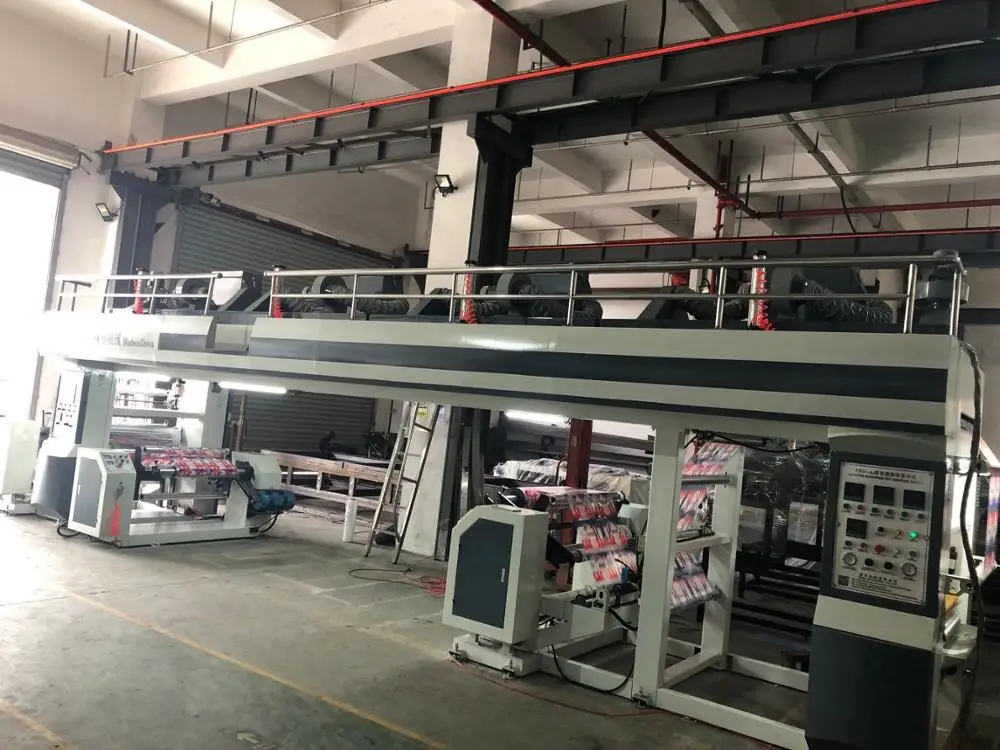

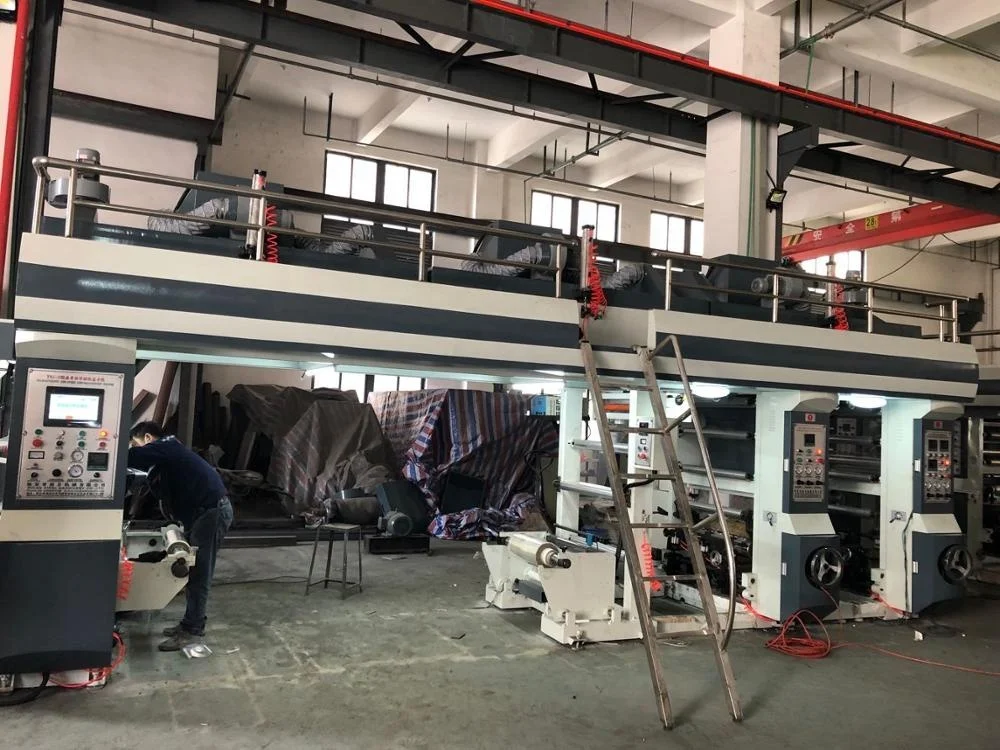

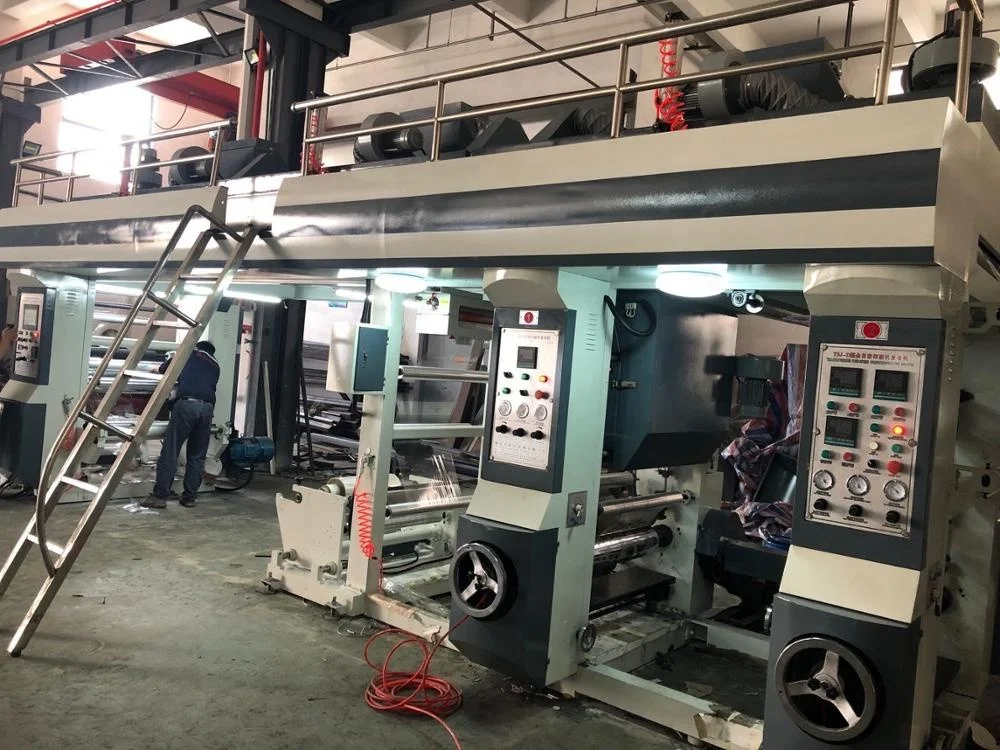

4. Machine Photos:
