Hantek1008 8 каналов осциллограф с USB 2
Hantek1008 8 каналов осциллограф с USB 2

Hantek1008 8 каналов осциллограф с USB 2


Поделиться:


Цена:80,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 95.30 $* 100.27 $*
Aug-18-2025 94.25 $* 99.9 $*
Jul-18-2025 79.42 $* 83.57 $*
Jun-18-2025 93.99 $* 98.26 $*
May-18-2025 81.77 $* 85.88 $*
Apr-18-2025 91.38 $* 96.37 $*
Mar-18-2025 90.36 $* 95.35 $*
Feb-18-2025 90.32 $* 95.18 $*
Jan-18-2025 89.15 $* 93.79 $*

Характеристики


Hantek1008 8 channels oscilloscope with USB 2.0 interface

Introduction
Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing; 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
Product Features

  • 1) Oscilloscope

    • 8 channels oscilloscope, 2.4MSa/s real time sampling rate
    • 12 bits vertical resolution, spectrum analysis function

    3) Programmable Generator2

    • 8 channels programmable generator
    • Can analog signals of crankshaft, camshaft etc.

    3) Others

    • USB 2.0 interface plug and play, and no need extra power supply;
    • More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
    • Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.
Technical data
Model Hantek1008
Oscilloscope Mode
Vertical System
Analog Channel8
Input ImpedanceResistance: 1MΩ
Input Sensitivity10mV/div to 5V/div
Input CouplingDC
Resolution12 bits
Horizontal System
Memory Depth4K
Max. Input400V (DC+AC Peak)
Real-Time Sampling Rate2.4MSa/s
Time BaseRange1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision±50ppm
Trigger System
Time Base Range1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision±50ppm
Trigger SourceCH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger ModeEdge
X-Y Mode
X-Axis InputCH1
Y-Axis InputCH2
Cursors and Measurement
Voltage MeasurementVpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time MeasurementFrequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors MeasurementHorizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process+,- , x,÷, FFT, Invert
Voltage Range10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1
Current Range100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)
FFTRectangular, Hanning, Hamming, Blackman Window
MathAddition, subtraction, multiplication, division
Programmable Generator
Channel8
Output LevelLVTTL
Frequency Range0-250kHz
InterfaceUSB  2.0
PowerNo need extra power supply
Size & Weight185 x 150 x 27 (mm); 0.35kg
Product Picture

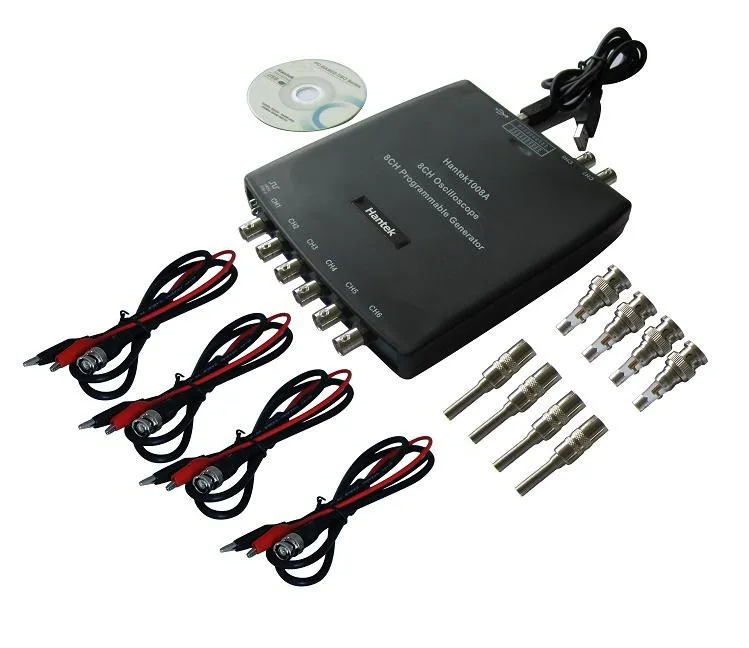

Main body
