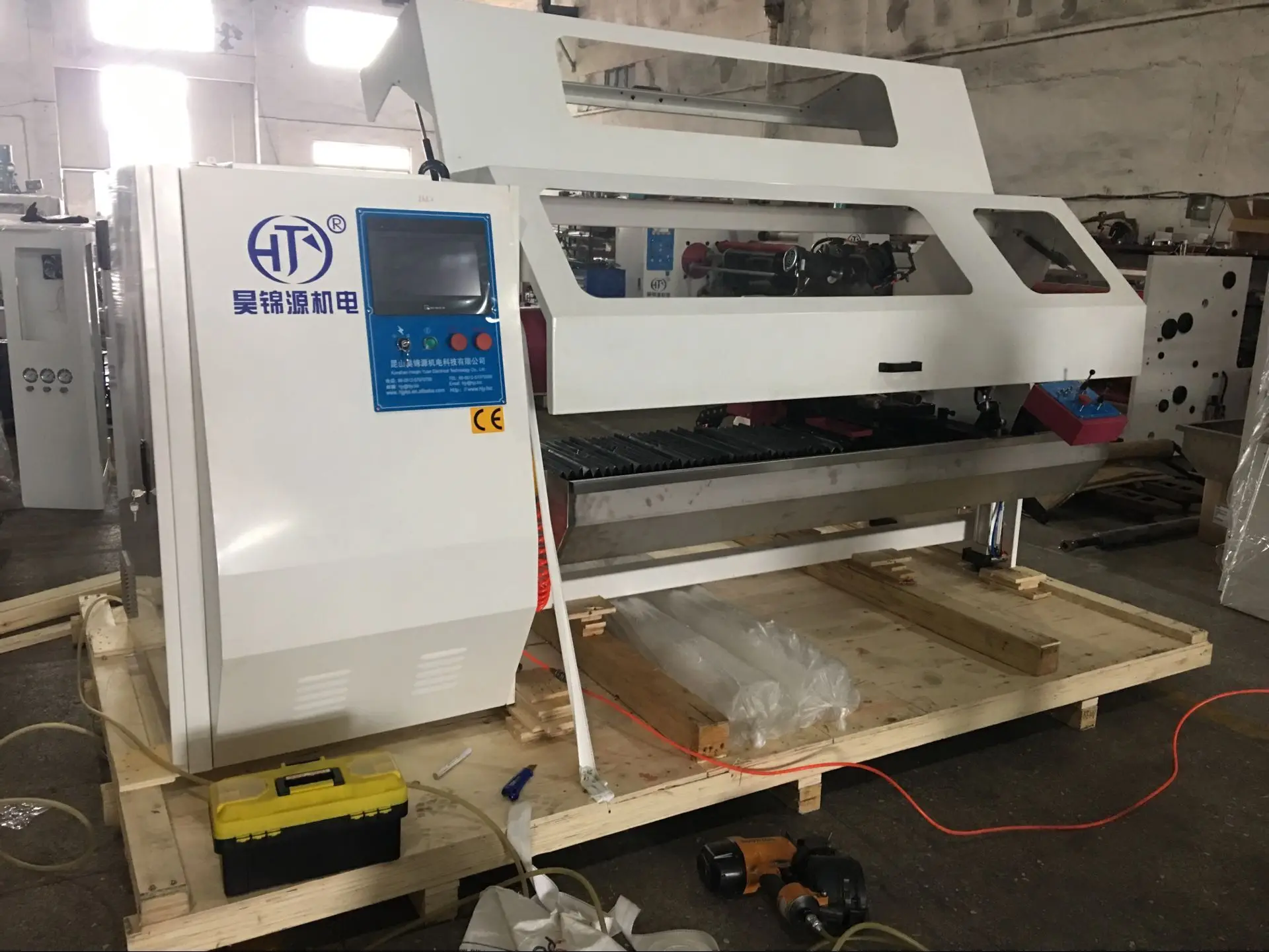

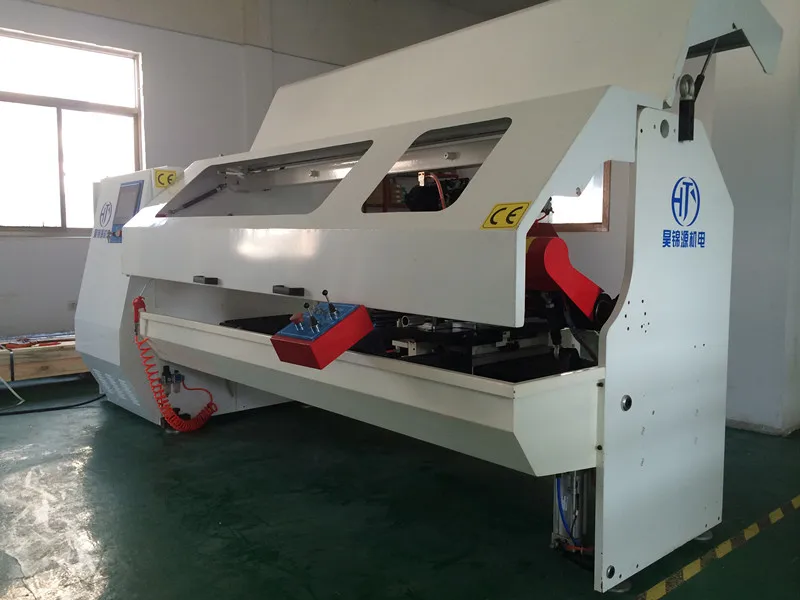

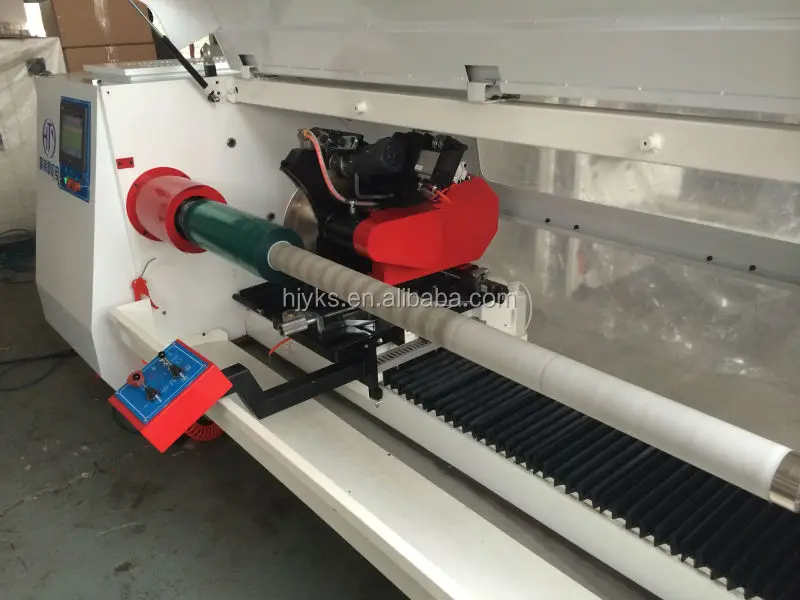

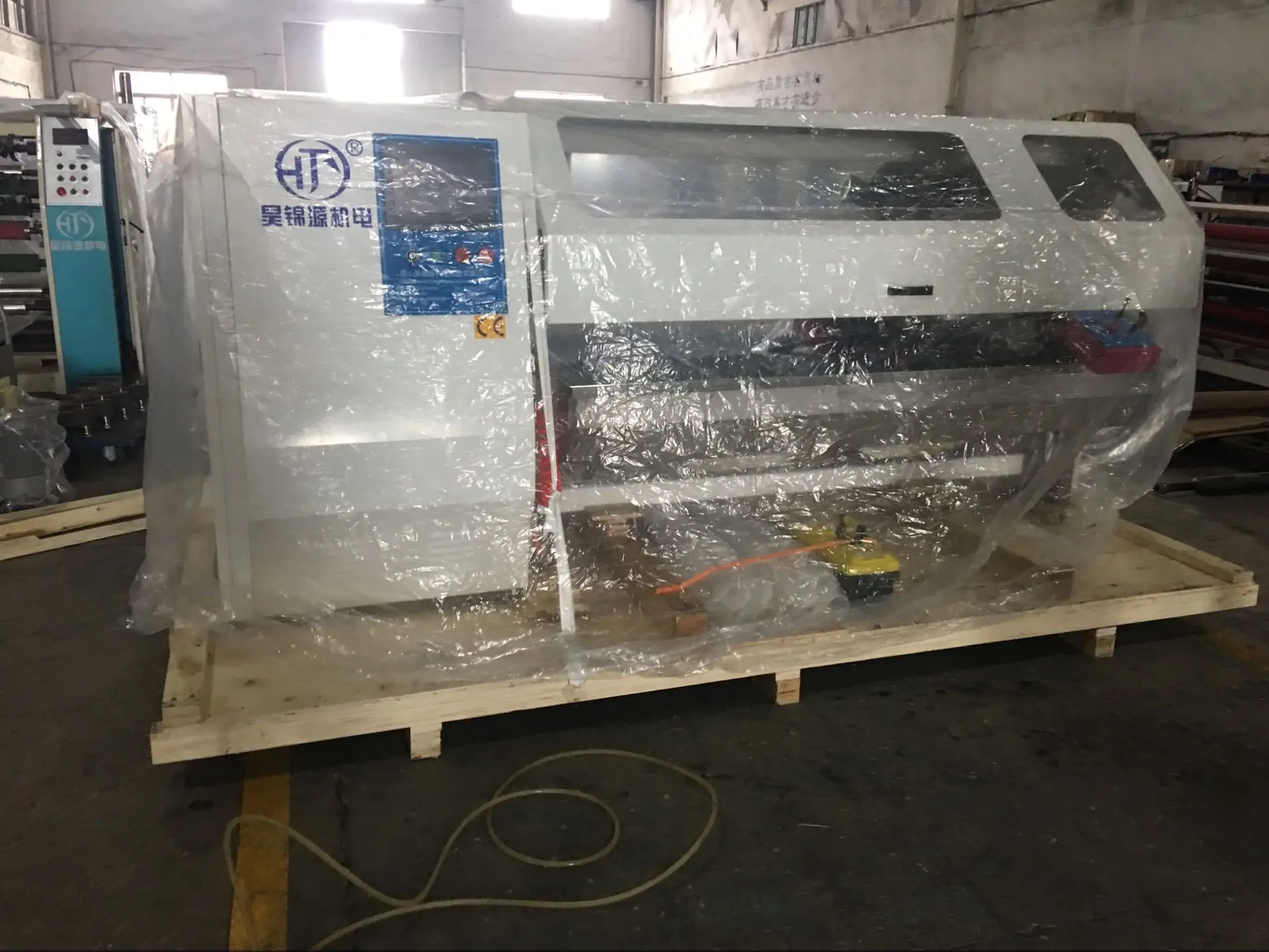

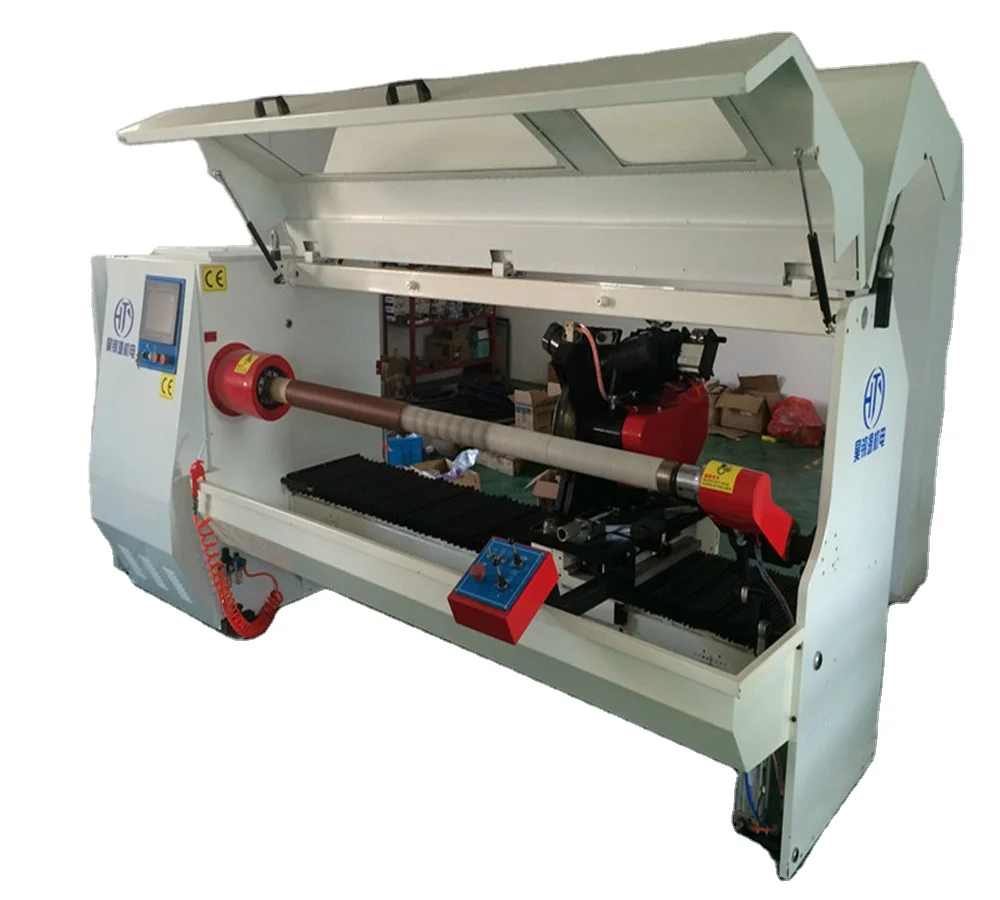

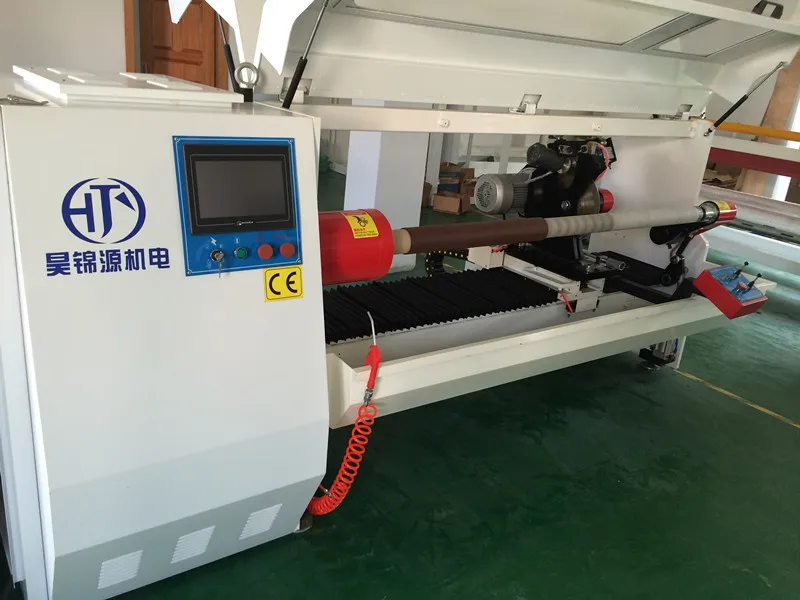

HJY-QJ01  AUTOMATIC TAPE CUTTING SLITTING CUTTER SLITER MACHINE

Main Technical Parameters of  bopp opp adhesive tape slitter rewinder machine

Model Number	bopp opp adhesive tape slitter rewinder machine
Weight	2000Kg
Dimension(L*W*H)	3200mm*1500mm*1400mm
Certification	CE
Machine width	1.0M 1.3M 1.6M
Cutting precision	±0.1mm
Max. Cutting O.D.	400mm
Min. Cutting width	2mm
Inner core I.D.	1"-3"
PLC	MITSUBISHI
Bearing	NSK
Switch button	Schneider
Servo motor	Mitsubidshi
Touch screen	Japan's Fuji



-Application of  bopp opp adhesive tape slitter rewinder machine

 Suitable for PE, PET,BOPP tape, masking tape, double-sided tape, release paper and many other adhesive and non-adhesive materials slitting.



-Main Features of bopp opp adhesive tape slitter rewinder machine

1. Main driving system: AC motor with inverter is employed.

2. Operating panel:  All functions are operated on the 10" LCD touch panel.

3. Central control unit:   Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

4. Cutting positioning system: Cutting positioning is controlled by Mitsubishi servo motor.

    The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

5. Blade feeding positioning system: Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

6. Auto angle adjustment of circular blade: Mitsubishi servo motor is used to calculate the circular blade angle  and the angle change is subject to different materials (The angle change range is ±8°).

7. Quick shaft change system: Three kinds of shafts are available and quick change of shafts is applied for different materials.



- Optional Parts of bopp opp adhesive tape slitter rewinder machine

1. Other size cutting shaft, It can be made as per the required core I.D.

2. Cutting supporter, For supporting log roll when cutting core is smaller than 38mm.

3. Safety cover is to protect operator during the production and lessen the noisy.
