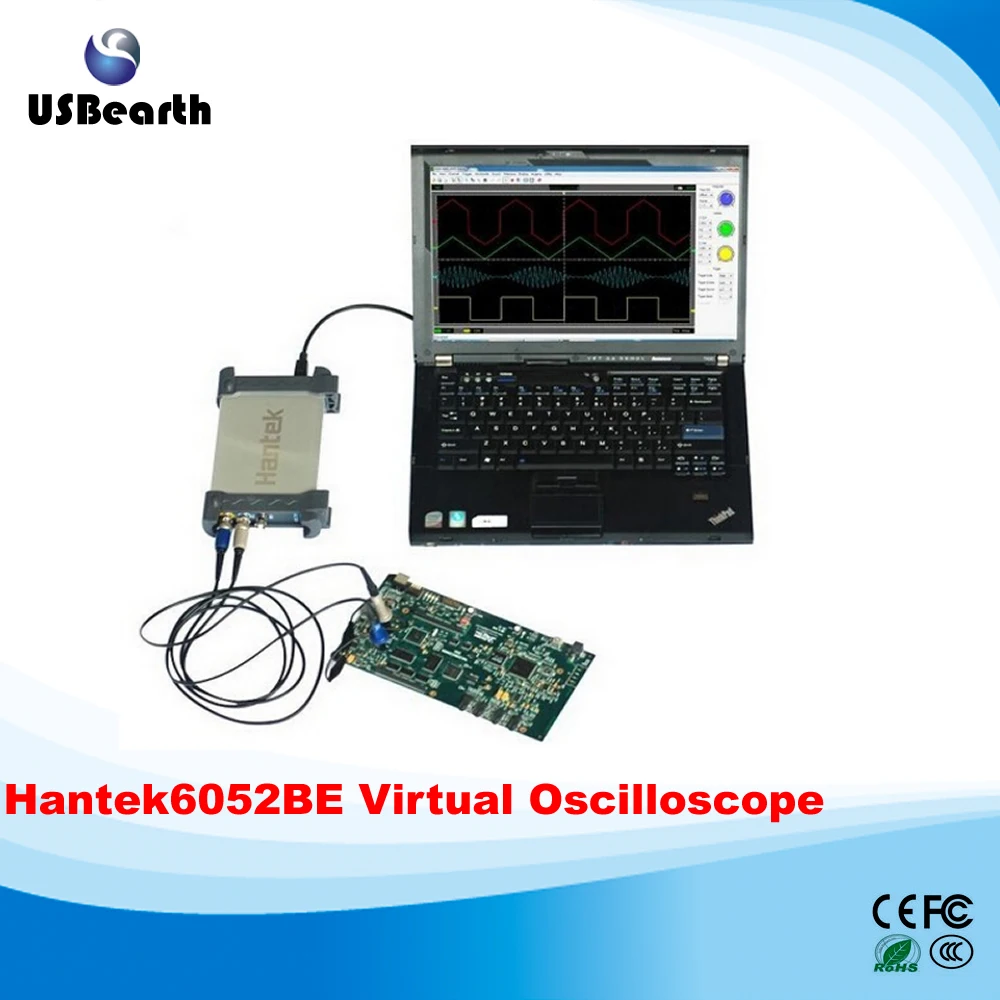

PC-Based USB Virtual Oscilloscope 50MHz 2Channels 150MSa/s Anodised Aluminium Casing Hantek6052BE

Hantek6000BE Series:

Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

Features:

• *Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
• *Standard USBXI^TM interface, easily inserts into USBXI^TM housing to make up a combination instrument.
• *USB2.0 interface, no external power source required, easy to use.
• *Be suitable for notebook computer, product line maintenance, be used easily on business.
• *Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
• *High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.
• *Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
• *23 measurement functions, PASS/FAIL Check, be suitable for technical application.
• *Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
• *Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
• *FFT
• *One computer can connect many DSO, extend channel easily.
• *Labview\\\\VB\\\\VC\\\\Delphi\\\\C++Builder Second Design instance.

• Model	Hantek6082BE	Hantek6052BE	Hantek6022BE
  Channel	2 Channels
  Bandwidth	80MHz	50MHz	20MHz
  Input Impedance	1M 25pF
  Max. Sample rate	250MS/s	150MS/s	48MS/s
  Coupling	AC/DC/GND
  Vertical resolution	8Bit
  Gain range	10mV-5V, 9Steps
  DC accuracy	3%
  Timebase range	4ns-1h, 38 Steps		4ns-5ks
  Vertical adjustable	Yes
  Input protection	Diode clamping
  X-Y	Yes
  EXT. input	Yes		No
  Trigger Mode	Auto, Normal and Single
  Trigger Slope	+/-
  Trigger level adjustable	Yes
  Trigger Type	Rising edge, falling edge
  Trigger Source	CH1, CH2, EXT		CH1, CH2
  Pre/Post trigger	0-100%
  Buffer size	10K-64KB/Channel		1M
  Sampling selection	Yes
  Waveform Display	port/line, waveform average, persistence, intensity
  Network	Open/Close
  Vertical mode	CH1, CH2, Dual, ADD
  Cursor measurement	Yes
  Math	FFT, addition, subtraction, multiplication, division.
  Cursor	Frequency, Voltage
  Accessories	S/W CD, probes, manual, USB cord

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
