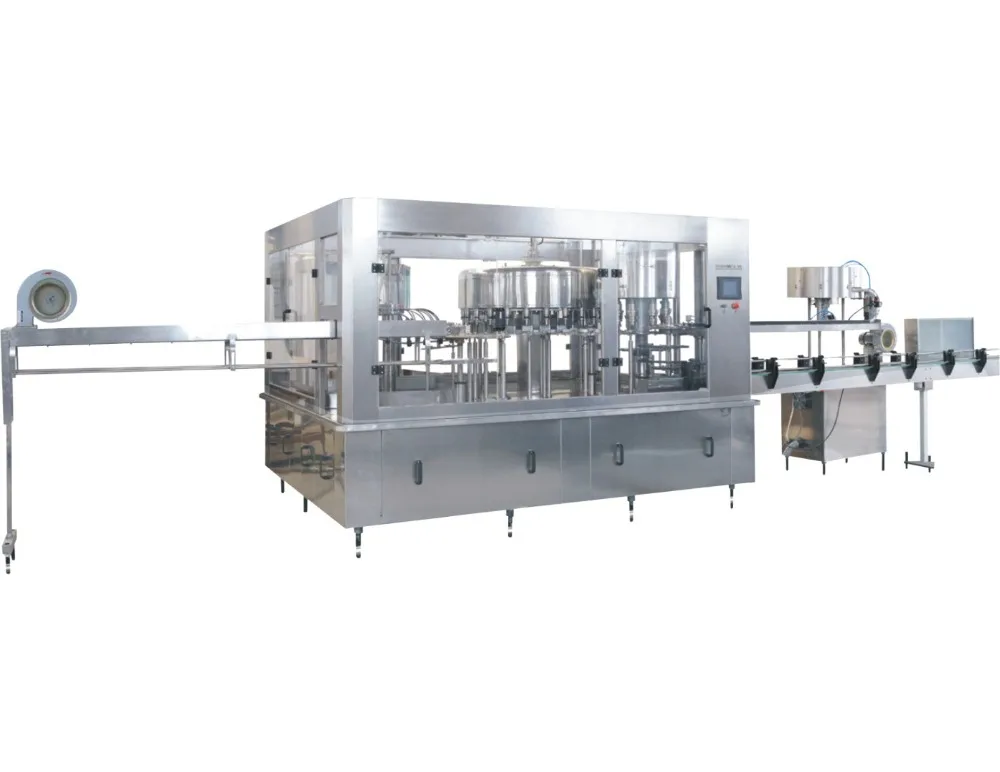

This series of mineral water filling machine are applied to the production of pure water, mineral water, with optional capacity from 3,000 to 30,000BPH. The washing, filling and capping will be finished just by this one machine.



It is very convenient to change bottle size by means of advanced bottle conveying technology-bottle neck clamping & bottle suspending technology.





PET Bottle Mineral Water Filling Machine Main Feature

• This water filling machine has a compact structure, perfect control system, easy to operate and highly automated.
• The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

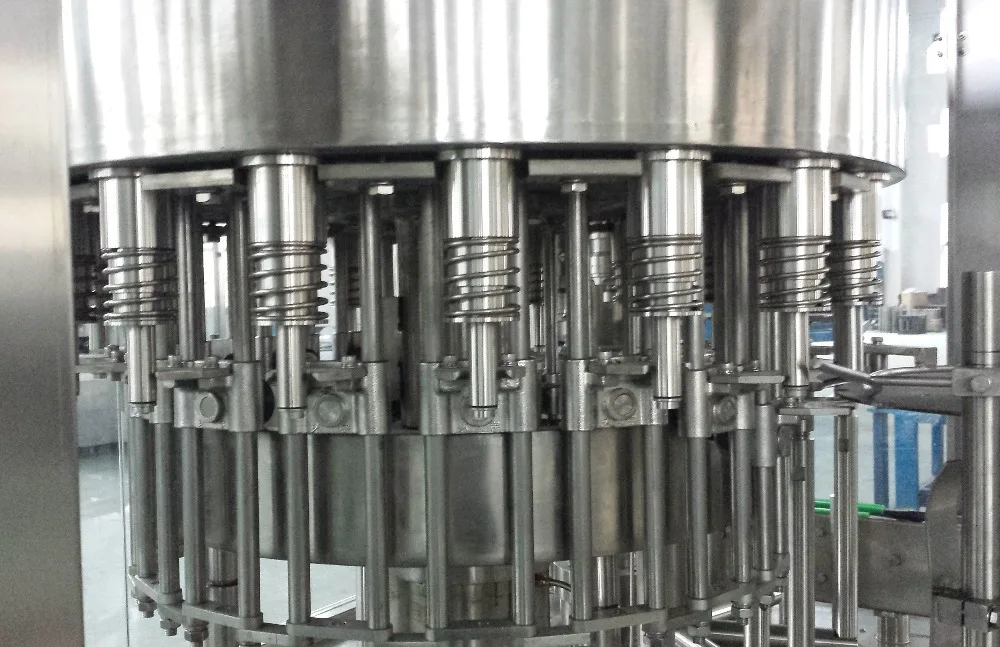

• By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

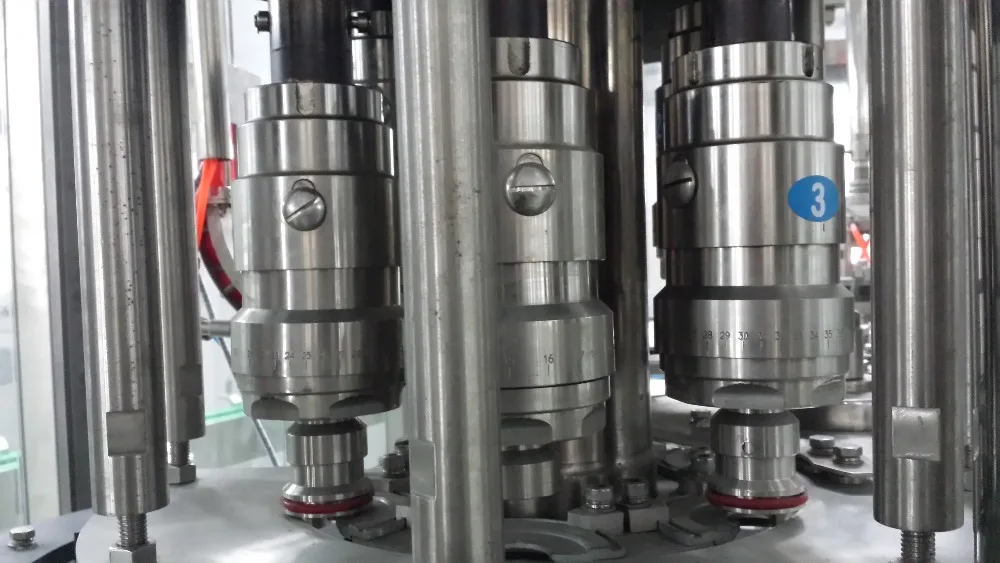

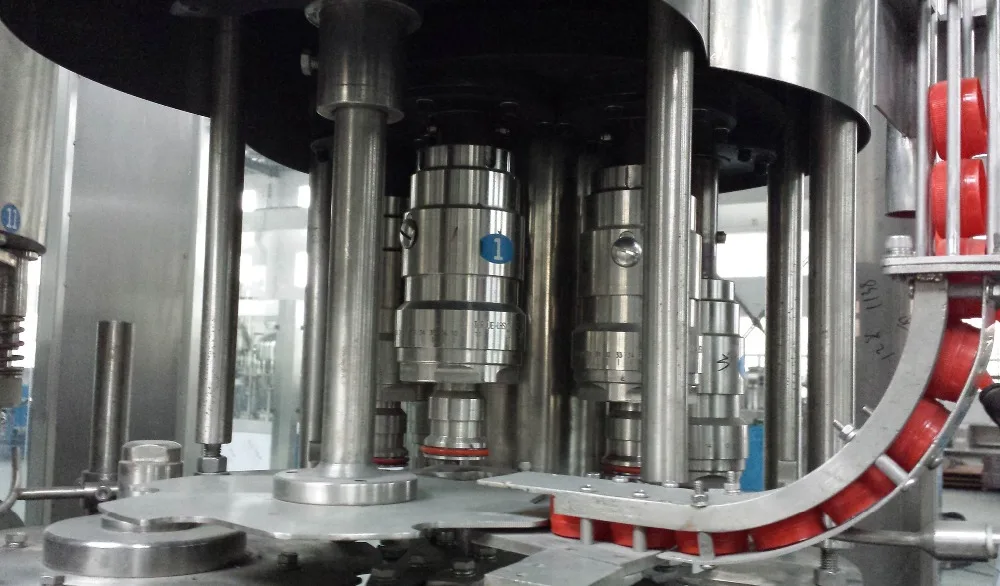

• The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

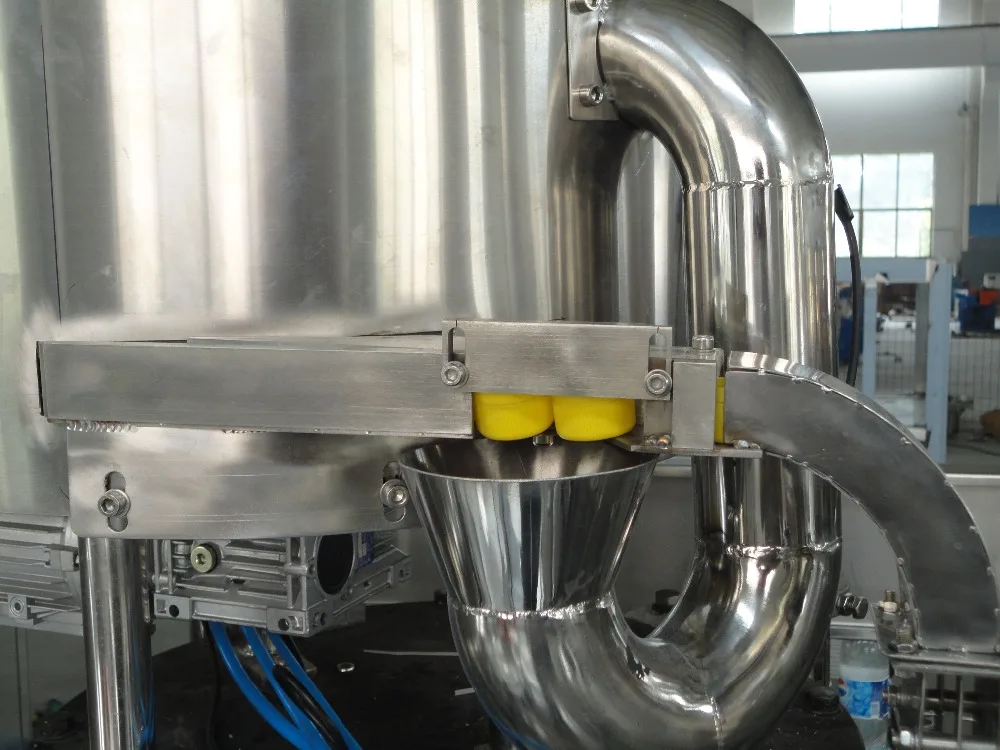

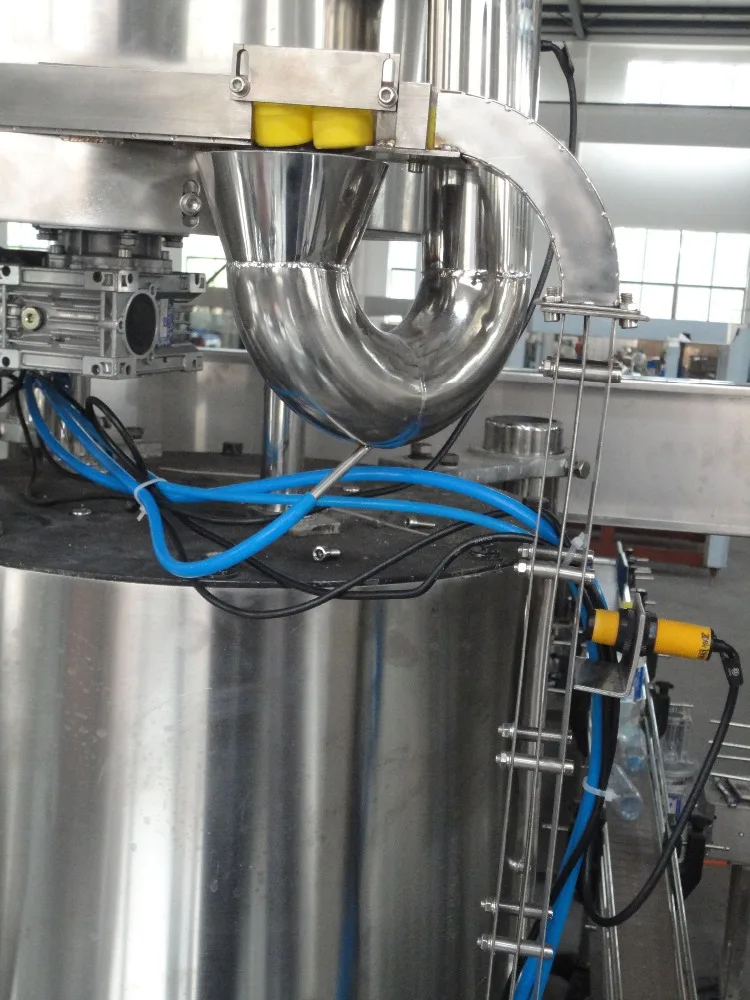

• This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
• Equipped with perfect clean management system to ensure the bottle clean.
• Only by changing the star-wheel, can realize to fill the changed bottle shape.
• The machine adopts perfect overload protective device can ensure the operator and machine safe.
• This machine adopts adjustable frequency converter.
• The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
• The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
• The electric components and pneumatic components are all introduced from world famous brand products.

PET Bottle Mineral Water Filling Machine Technical parameter



Model	CGF24-24-8
Production capacity	8,000-9,000B/H(basis on 500ml bottle)
Filling precision	≤±5mm(liquid level)
Polyester bottle specification	bottle diameter:φ50-φ110mm bottle height: 150-340mm
Suitable cap type	plastic screw cap
Water pressure of washing bottle	0.18-0.25Mpa
water consumption for washing bottle	2500Kg/h
Spraying position	6
Dripping bottle position	3.5
Gas source pressure	0.4Mpa
Gas consumption	0.4m3/min
Total power	5.5Kw
Overall dimension	2750×2180×2200mm
Total weight	5500Kg
