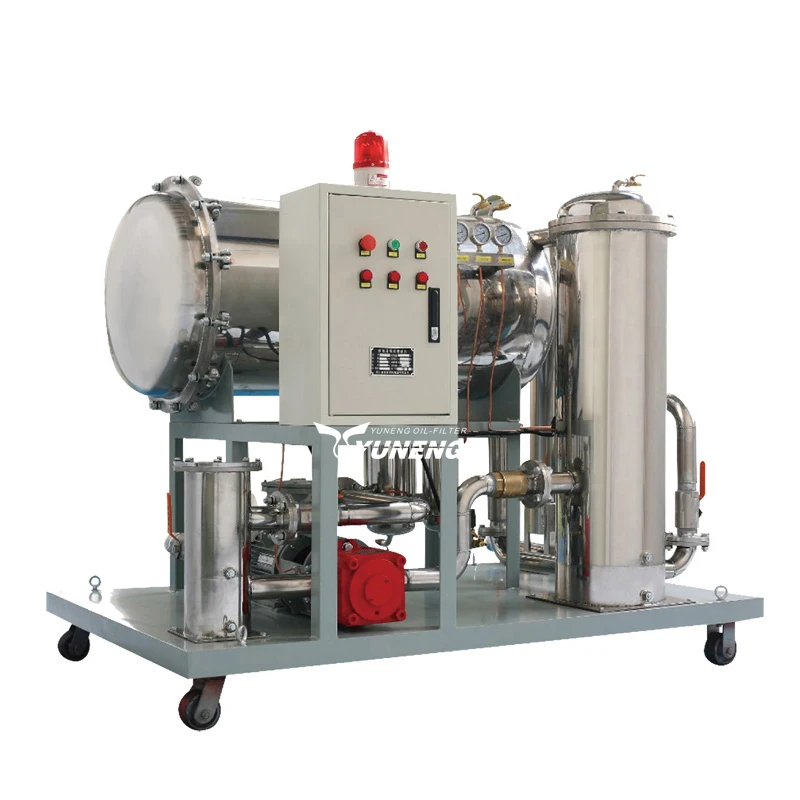

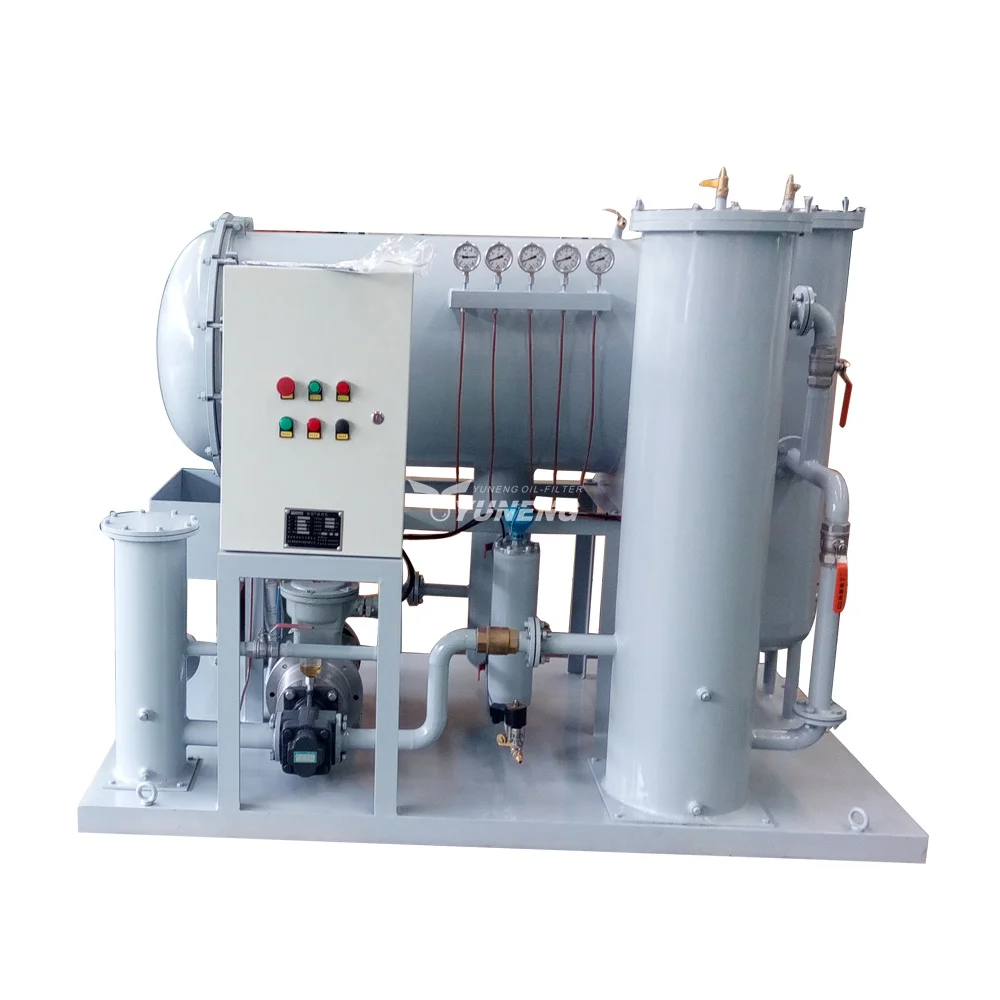

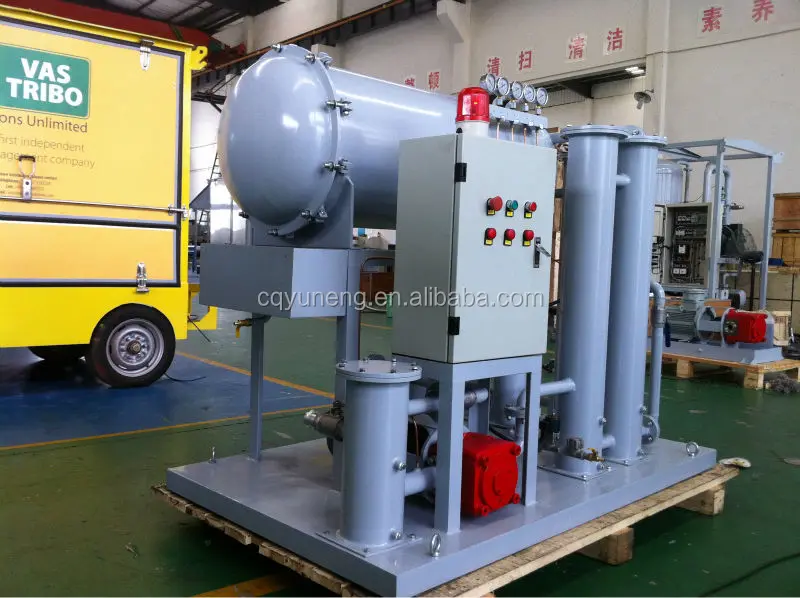

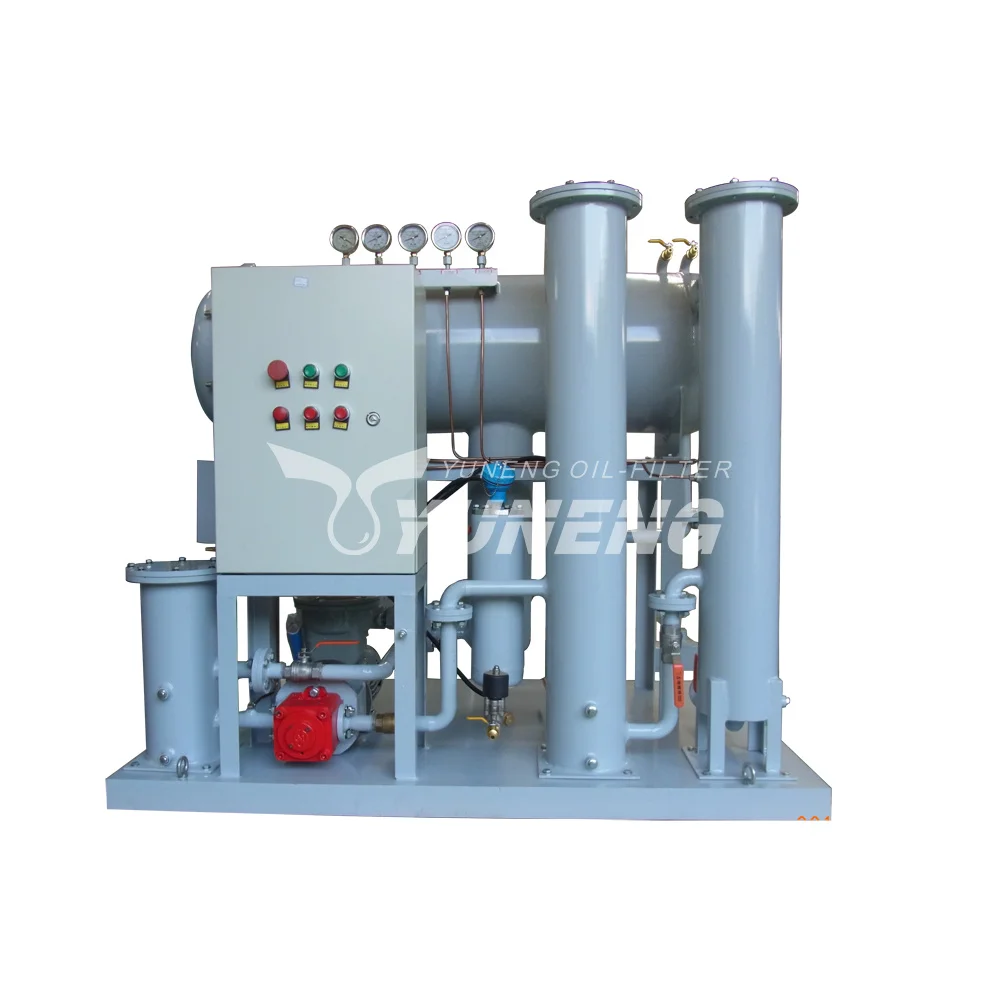

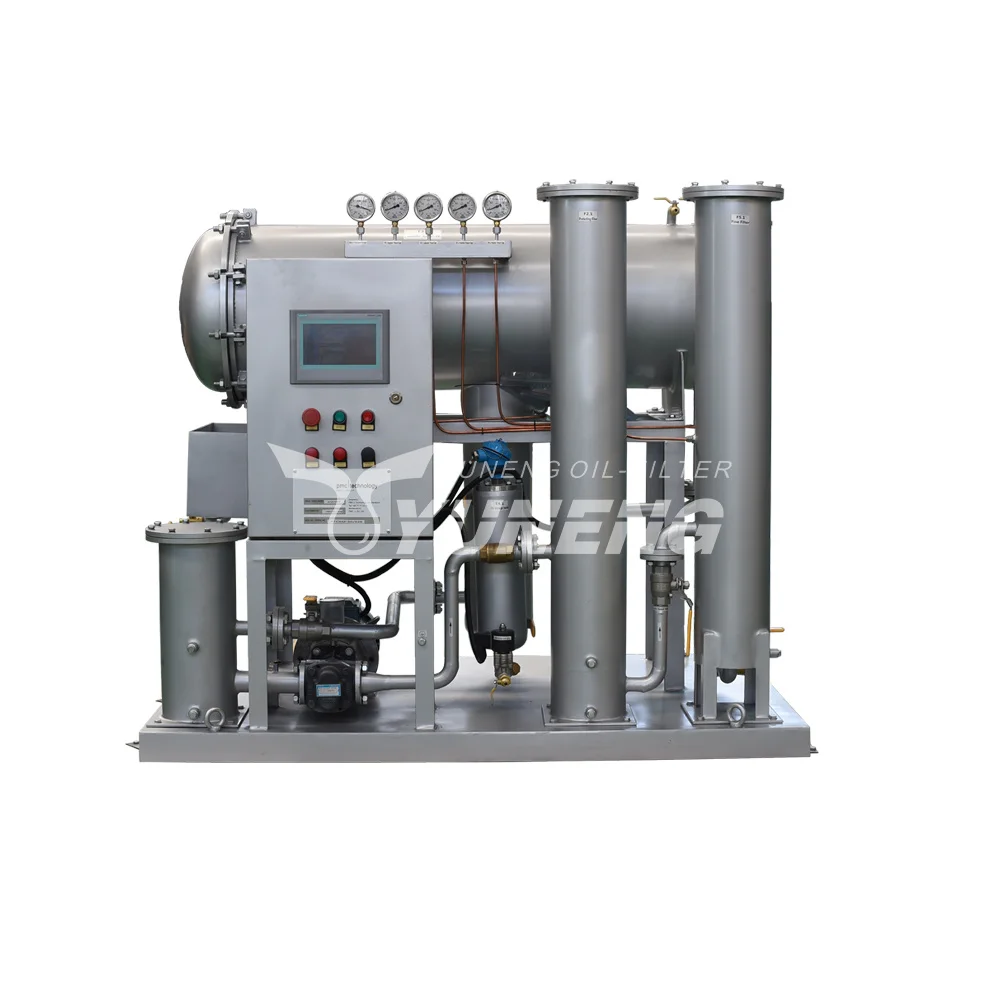

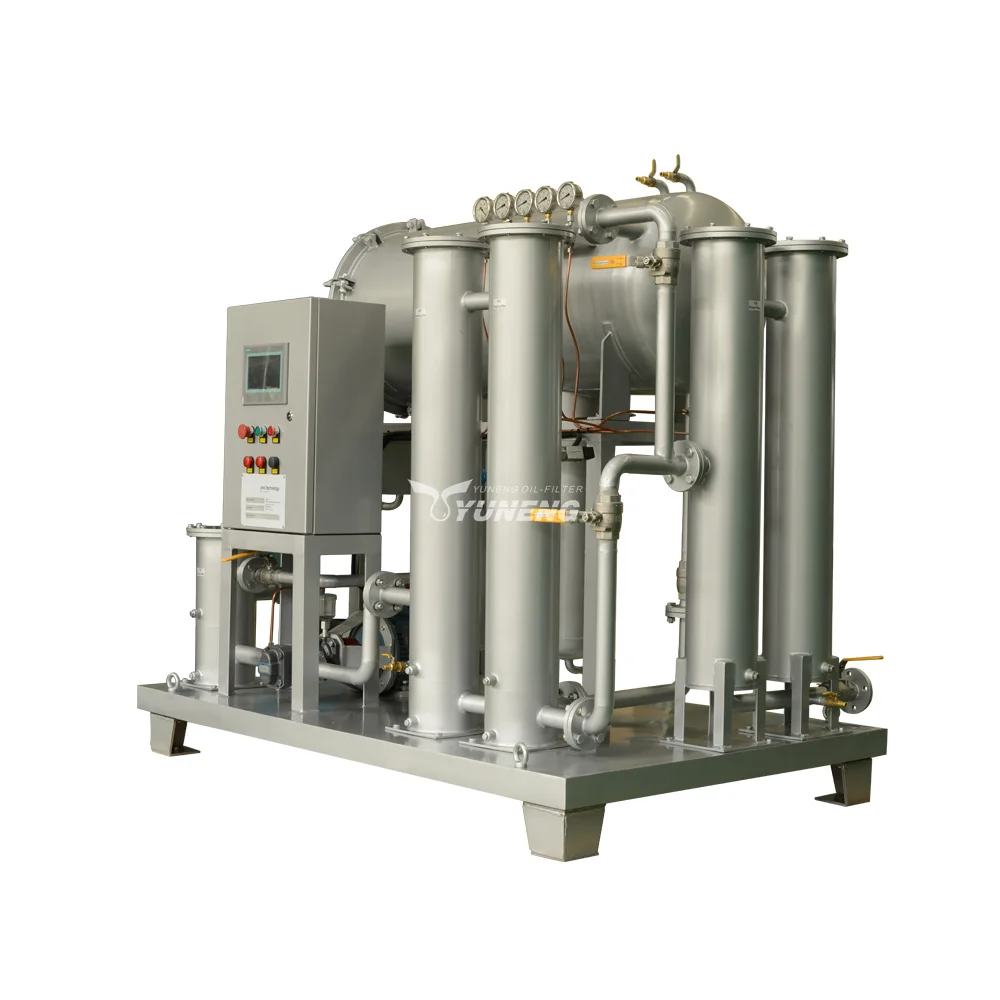

Mobil Used Lubricant Oil Recycling Machine/Oil Purifying Plant/Oil Filtering System







1. The whole equipment is designed particularly with fine appearance, low power and low operating costs.



 2. The pipelines and oil tank of the purifier, both made of stainless steel, have been designed to go through the antiseptic treatment. Thus it can work continuously for a long period of time .



 3. Oil / water interface Detector can provide exactly the detached water level and the automatic drain valve will discharge the water when it has accumulated to a certain degree.



 4. The Electric system is controlled by the PLC (with touch screen) which can show the working conditions of all the parts ,thus the operation of the equipment can be observed clearly. It also possesses such features as monitoring and alarming, action control and safety stop which enable the equipment to run online without being attended.



 5. The equipment adopts the special oil pump made in Germany that has good sealing quality, low noise and long service life.



 6. Multilayer filtration has been adopted to filter the impurities through coarse filter, protecting filter, and fine filer imported from Europe and America. Effect on the control of granularity is excellent(able to achieve Grade 5-8 of NAS6.).



                                                          Technical Parameter



Item	Name of  parameter		Unit	Model
				JT-50	JT-100	JT-150	JT-200
Technical parameter of the equipment	Nominal flow capacity		L/min	50	100	150	200
	Working pressure		MPa	≤0.35
	Working temoerature of oil		℃	45~65
	Working power			(380V-50Hz) 3Phase 4 Wires, or as per buyer's option
	Total electric power		KW	1.5	1.5	3	3
	Pipe diameter of oil outlet/inlet		DN	25/25	40/40	50/50	50/50
	Size	Length	cm	155	175	190	200
		Width	cm	100	110	120	130
		Height	cm	140	165	155	160
	Weight		Kg	400	450	550	700
Oil treatment index	Water content		PPM	≤150
	Filtering accuracy		μm	3
	Cleanness		NAS	≤6







Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14,500 square meters, specializes in the R&D, manufacturing, and marketing of turn-key projects in oil purification, water and gas filtration, and other reclamation products.



We gather a group of specialized talents with years of working experience and technological development. Now we have 168 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture. We attach great importance to product quality, specialization, dedication and constant improvement......
