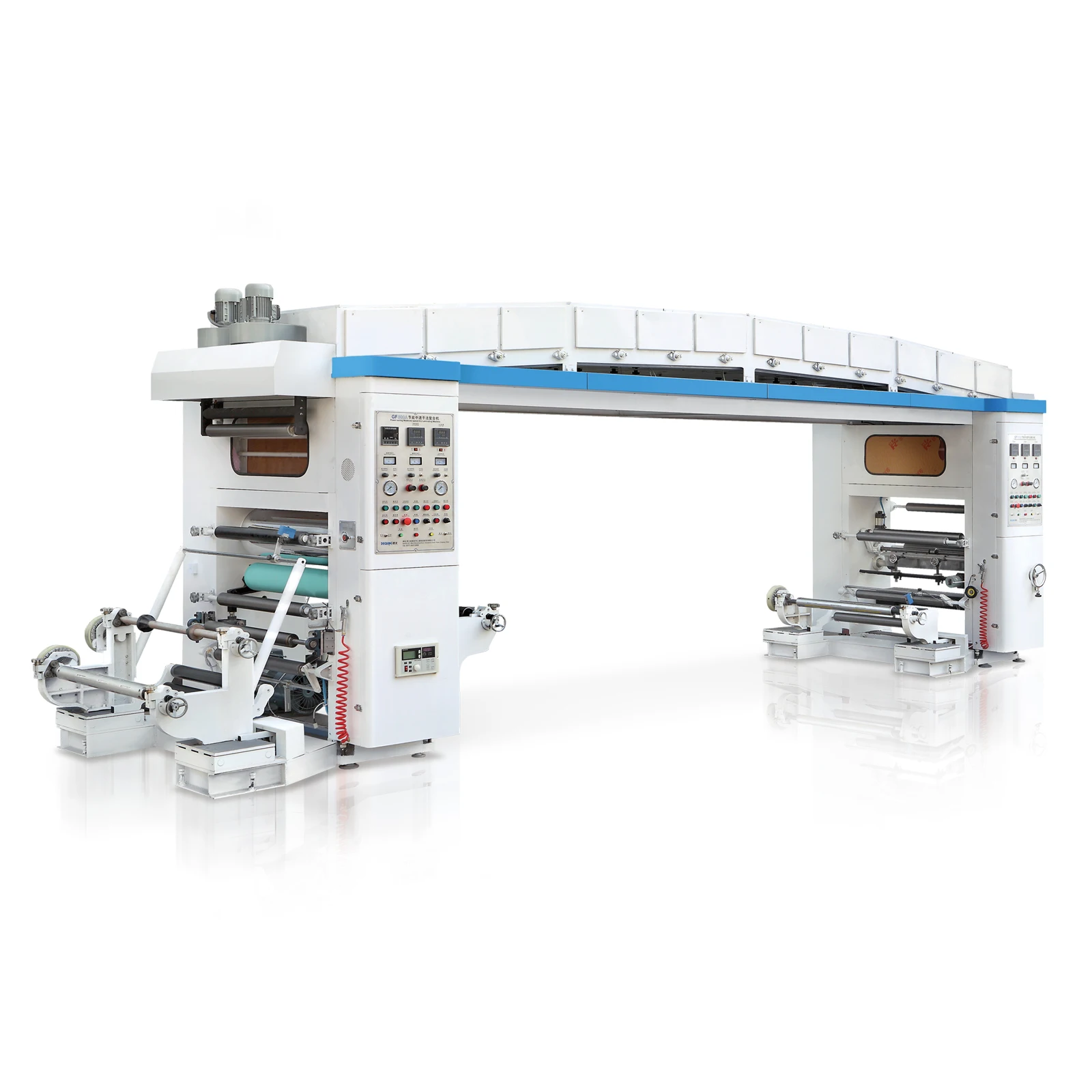

Автоматическая высокоскоростная сухая ламинирующая машина для пластиковой пленки/бумаги/алюминиевой фольги
- Категория: Laminating Machines >>>
- Поставщик: Zhejiang,Deguang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 45220.29 $* | 47481.54 $* |
| Aug-15-2025 | 44840.60 $* | 47082.12 $* |
| Jul-15-2025 | 37620.92 $* | 39501.84 $* |
| Jun-15-2025 | 44080.23 $* | 46284.20 $* |
| May-15-2025 | 38380.32 $* | 40299.97 $* |
| Apr-15-2025 | 43320.38 $* | 45486.82 $* |
| Mar-15-2025 | 42940.17 $* | 45087.40 $* |
| Feb-15-2025 | 42560.18 $* | 44688.21 $* |
| Jan-15-2025 | 42180.59 $* | 44289.46 $* |
Характеристики
Product Description
BOPP 20-100μm
CPP 25-100μm
PET 12-100μm
NYLON 15-100μm
PE 35-100μm
Paper 20-150Gram
Technical parameter: | ||||
Model | GSGF-800A model | GSGF-1100A model | ||
Layers of complex | 2 Layers | 2 Layers | ||
Laminating width | 800mm | 1100mm | ||
Loading material's diameter | 600mm | 600mm | ||
Adjustable range of laminating linear speed | 50-120m/min | 50-120m/min | ||
Max. adjustable temperature of dry oven | 80 ºC | 80 ºC | ||
Max. adjustable temperature of heat beat | 70 ºC -90 ºC | 70 ºC -90 ºC | ||
Tension ratio | ≤1/1000 | ≤1/1000 | ||
Total power | 87kw(Actually 70kw) | 101kw(Actually 70kw) | ||
Weight | 8500kg | 9400kg | ||
Overall dimensions (L×W×H)(mm) | 11500×2500×3200 | 11500×2800×3200 | ||
Main parameter:
1. Max. width of laminating material: 800mm
2. Laminating layers:2 layers
3. Max. Mechanical speed: 130m/min.
4. Max. Laminating speed: 120m/min
5. Max diameter of unwind: 600mm.
6. Max diameter of rewind: 800mm
7. Max oven temperature: 80°C
8. Paper core diameter: 76mm
9. Machine power: Max 87/101kw, actually 52-70kw.
1. Max. width of laminating material: 800mm
2. Laminating layers:2 layers
3. Max. Mechanical speed: 130m/min.
4. Max. Laminating speed: 120m/min
5. Max diameter of unwind: 600mm.
6. Max diameter of rewind: 800mm
7. Max oven temperature: 80°C
8. Paper core diameter: 76mm
9. Machine power: Max 87/101kw, actually 52-70kw.

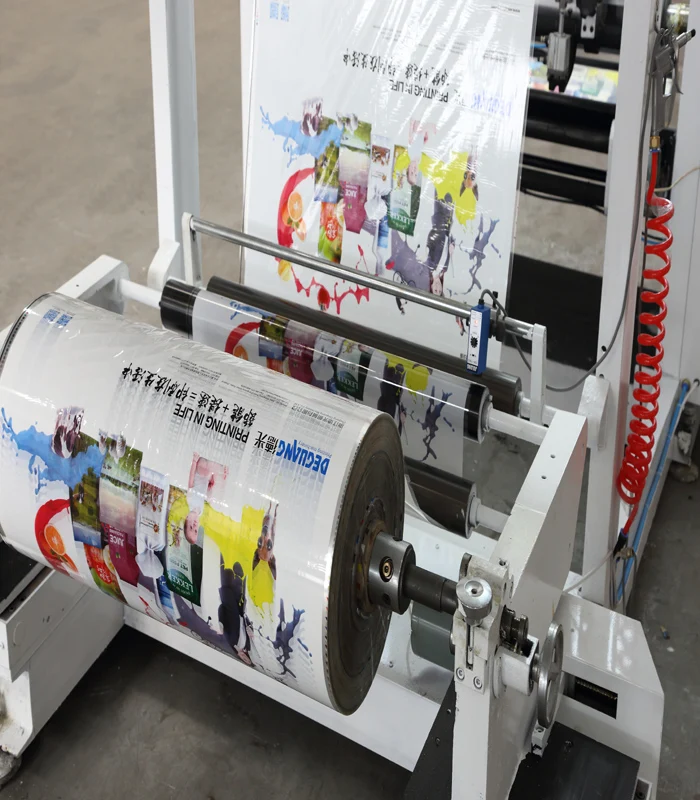

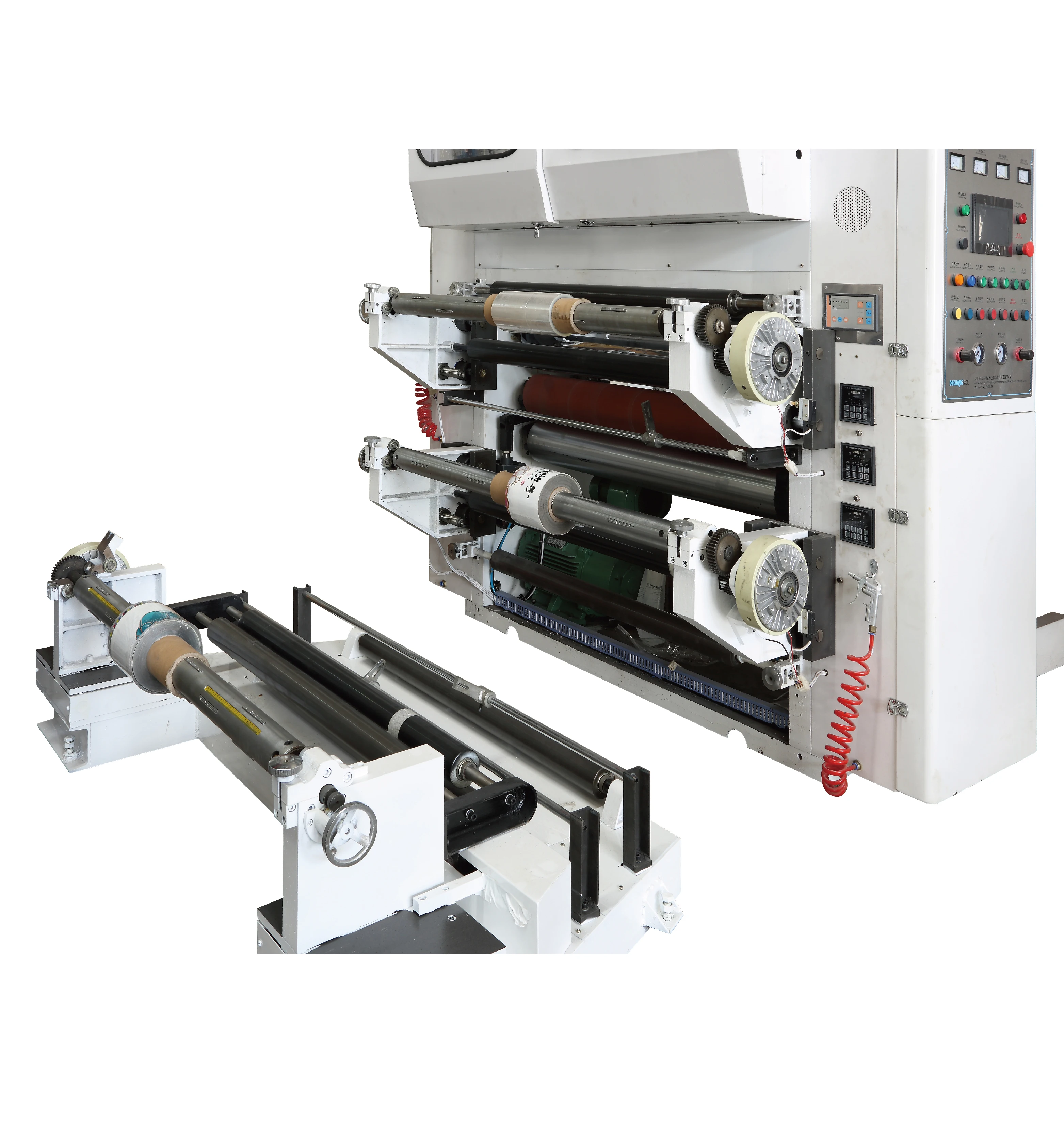

Unwind unit
Structure:

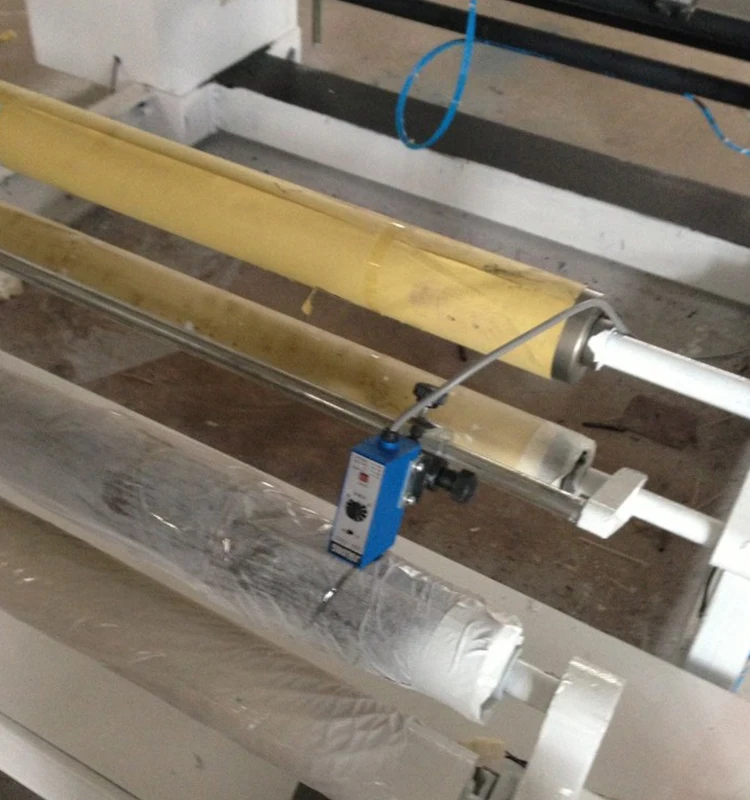

(1) Outside dual station unwinding turret, 360°inching positive and negative rotation. Each unwinding has two EPC.
(2) Adopt with magnetic powder brake
(3) Auto tension control
(4) Air shaft
(5) Auto splicing and cutting
Structure:
(1) Outside dual station unwinding turret, 360°inching positive and negative rotation. Each unwinding has two EPC.
(2) Adopt with magnetic powder brake
(3) Auto tension control
(4) Air shaft
(5) Auto splicing and cutting
Gluing part
Structure:
(1)Independent motor drive, frequency inverter controlling
(2) Gluing with anilox roller(Diameter:160mm).
(3) Anilox roller is shaftless installation which is convenient.
(4) Pneumatic pressing rollers.
(5) Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous
motor.
Drying part
Structure:
(1) Electric heating.
(2)Waste air exhausting tunnel.
(3)3 pace intelligent temperature control, 3 pace independent constant hot air drying and recycled system, air circulation system.
(4)Max temperature:80°C
(5)Material length in the oven:9000mm
(6)Pneumatic oven open and close
(7)Blower power:Intake 3KW, outtake 2.2KW
(8)Oven power: Each pace 0.8kw*24=19.2kw
Total 3 pace: 19.2kw*3=57.6kw
(9) EPC at the oven exit ensures the material not moving left and right during speeding after heating.
Laminating part:
Structure:
(1) Independent motor drive, frequency inverter controlling.
(2) The laminating rollers are heated by heat-guiding oil, making the heating even and constant.
(3) Water cooling roller make the laminating more firm.
(4) Floating roller adjust the tension.

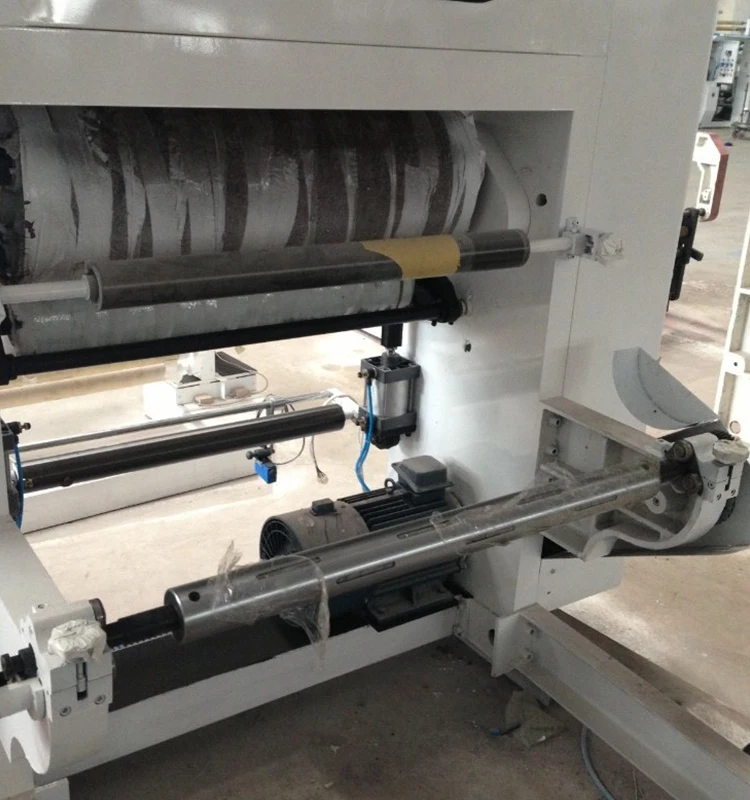

6. Rewind part:
Structure:
(1) Outside dual station unwinding turret, 360°inching positive and negative rotation.
(2) Rewinding is transmitted by two torque motor, it can buffer the film impacting, reduce waste, save time, improving efficiency
during roll change under high speed
(3) The horizontal adjustment of the material rolls are manual.
(4) Max rewinding diameter: 800mm
(5) Air shaft
(6) Automatic cutting and splicing device.
Structure:
(1)Independent motor drive, frequency inverter controlling
(2) Gluing with anilox roller(Diameter:160mm).
(3) Anilox roller is shaftless installation which is convenient.
(4) Pneumatic pressing rollers.
(5) Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous
motor.
Drying part
Structure:
(1) Electric heating.
(2)Waste air exhausting tunnel.
(3)3 pace intelligent temperature control, 3 pace independent constant hot air drying and recycled system, air circulation system.
(4)Max temperature:80°C
(5)Material length in the oven:9000mm
(6)Pneumatic oven open and close
(7)Blower power:Intake 3KW, outtake 2.2KW
(8)Oven power: Each pace 0.8kw*24=19.2kw
Total 3 pace: 19.2kw*3=57.6kw
(9) EPC at the oven exit ensures the material not moving left and right during speeding after heating.
Laminating part:
Structure:
(1) Independent motor drive, frequency inverter controlling.
(2) The laminating rollers are heated by heat-guiding oil, making the heating even and constant.
(3) Water cooling roller make the laminating more firm.
(4) Floating roller adjust the tension.
6. Rewind part:
Structure:
(1) Outside dual station unwinding turret, 360°inching positive and negative rotation.
(2) Rewinding is transmitted by two torque motor, it can buffer the film impacting, reduce waste, save time, improving efficiency
during roll change under high speed
(3) The horizontal adjustment of the material rolls are manual.
(4) Max rewinding diameter: 800mm
(5) Air shaft
(6) Automatic cutting and splicing device.
Frame and transmission part
1) The wall board is made of high strength low stress combined alloy cast iron.
2) The guiding roller isΦ75mm, length 830mm.
3) The main transmission adopts AC frequency control, gluing roller and hot drum adopts floating roller to control the tightness
or looseness of the film.
4) Frequency motor power: Gluing 1.5kw, lamination 3kw.
2) The guiding roller isΦ75mm, length 830mm.
3) The main transmission adopts AC frequency control, gluing roller and hot drum adopts floating roller to control the tightness
or looseness of the film.
4) Frequency motor power: Gluing 1.5kw, lamination 3kw.
