2014 high accuracy cutter plotter CE test PC-720C



Specification on cutting plotter :



1) Forward direction and reverse direction paper feed
2) Emergency stop and free setting original point
3) Maximum speed of 800mm/s
4) Cutting speed and cutting pressure with memorial storage
5) Double photoelectric reset and without any collision
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation won't be influenced by voltage change
9) Circuit uses low power consumption and doesn’t need fan for heat radiation so as

to ensure long and reliable operation .
10) We own the patent of appearance design
11) Beautiful buttons are made of durable acrylic

name: cutter plotter

model: PC-720c

max paper width:720mm
max cut width:630mm

Motor		Original imported high speed stepper Motor
Cutting pressure/Speed		50-500g  /  50-800mm/s
Cartriage(Whole Aluminum)		Whole aluminum Cartriage with Imported Gear inside.
Mechanical Resolution		0.0254mm/Step(0.001"/step)
Stands		Yes, All comes with Stand besides  PC-360C
Interface/EMS-memory		Serial+USB / 4M
Control language		DMPL/HPGL
Cutting test		Yes
Curve flat cutting		Yes
Power		AC90V--240V
Cutting knife soft loading		Yes
Working temperature		5C°-35C°
Working humidity		5%-95% (Non Condensing)
Type of cutter		Long longevity high-speed carbon alloy-steel cutter
Drawing instruction		PL/HT-GL(TM)

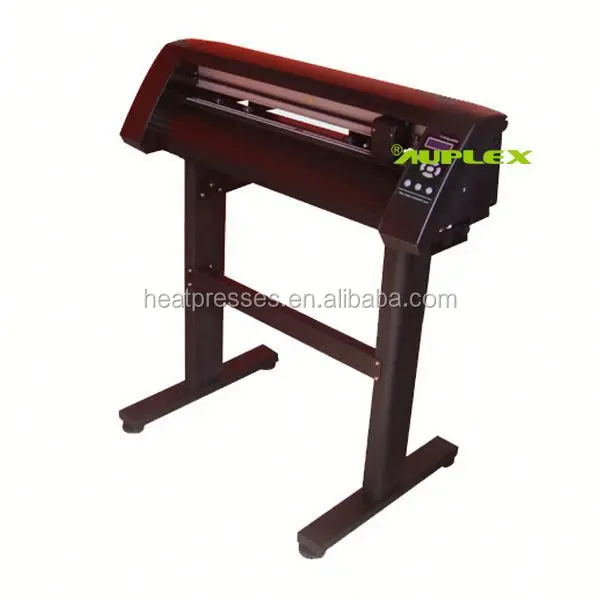

machine picture display :

What can be cut on this cutter plotter?

Sublimation paper

Vinyls (PU/PVC)

Usage of vinyls & paper

How to pack?

Carton with foam inside

1pc/carton

G.W.: 16kg
size:67*35*35cm



How to order with us ?





All machines already passed CE & SGS tests.





You can choose plug



After Sale Service

1.One year warranty on whole machine/parts

2.Free lifetime tecnology support on all orders
