Известный бренд 3 оси cnc металлическая трубка для плазменной резки с ЧПУ
- Категория: Pipe Cutting Machines >>>
- Поставщик: Shandong,Jiaxin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5950.47 $* | 6248.48 $* |
| Aug-20-2025 | 5900.24 $* | 6195.8 $* |
| Jul-20-2025 | 4950.96 $* | 5198.24 $* |
| Jun-20-2025 | 5800.46 $* | 6090.64 $* |
| May-20-2025 | 5050.50 $* | 5303.13 $* |
| Apr-20-2025 | 5700.17 $* | 5985.8 $* |
| Mar-20-2025 | 5650.95 $* | 5933.27 $* |
| Feb-20-2025 | 5600.31 $* | 5880.82 $* |
| Jan-20-2025 | 5550.77 $* | 5828.80 $* |
Характеристики
Product Overview

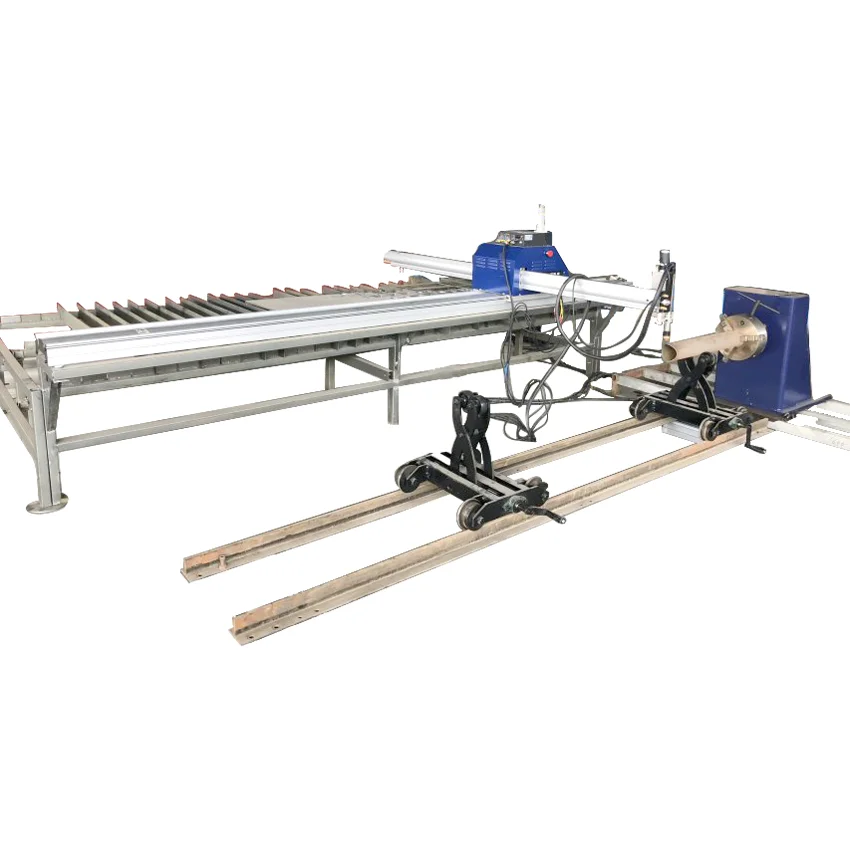

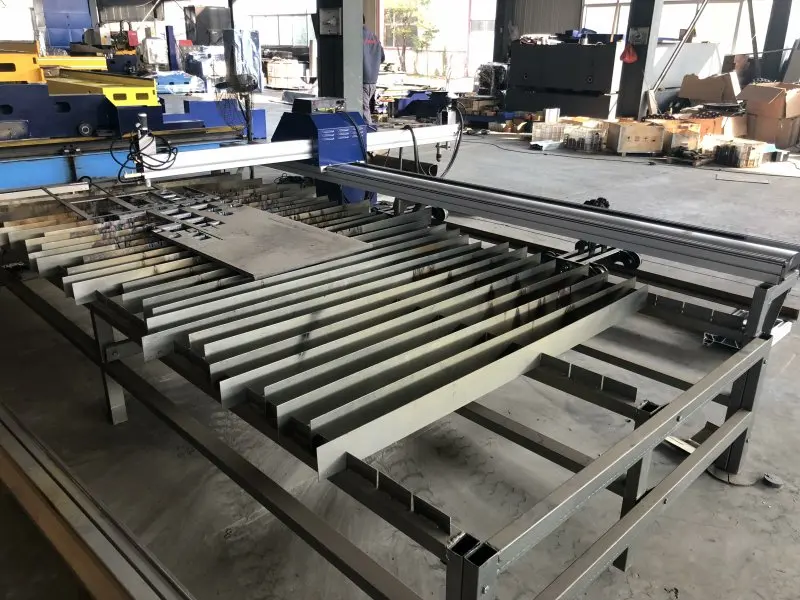

portable cnc pipe and plate double use plasma cutter
1500*3000mm working area; Shanghai Fangling controller, Starcam software;
Linear guide, big power servo motor for chucks; both flame and plasma cutting tools ; with plasma THC(automatic torch height controller);
Linear guide, big power servo motor for chucks; both flame and plasma cutting tools ; with plasma THC(automatic torch height controller);
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Technical specification | Item | Data | |||
1 | Model | JX-1530T | JX-1560T | ||
2 | Power source and machine voltage | Power source: AC 380±10%VAC 50/60Hz Machine : AC 220±10%VAC 50/60Hz | Power source: AC 380±10%VAC 50/60Hz Machine : AC 220±10%VAC 50/60Hz | ||
3 | Cutting mode : Flame and plasma | O2/C3H8 or C2H2 Plasma cutting | O2/C3H8 or C2H2 Plasma cutting | ||
4 | Effective cutting range(mm) | 1500*6000mm | 1500*6000mm | ||
5 | Length of pipe | 6000mm, | 6000mm, | ||
6 | The ovality of tubes | Less than 2% | Less than 2% | ||
7 | Max. Weight of metal tubes | Less than 600kg | Less than 600kg | ||
8 | Cutting thickness | According to plasma power source | According to plasma power source | ||

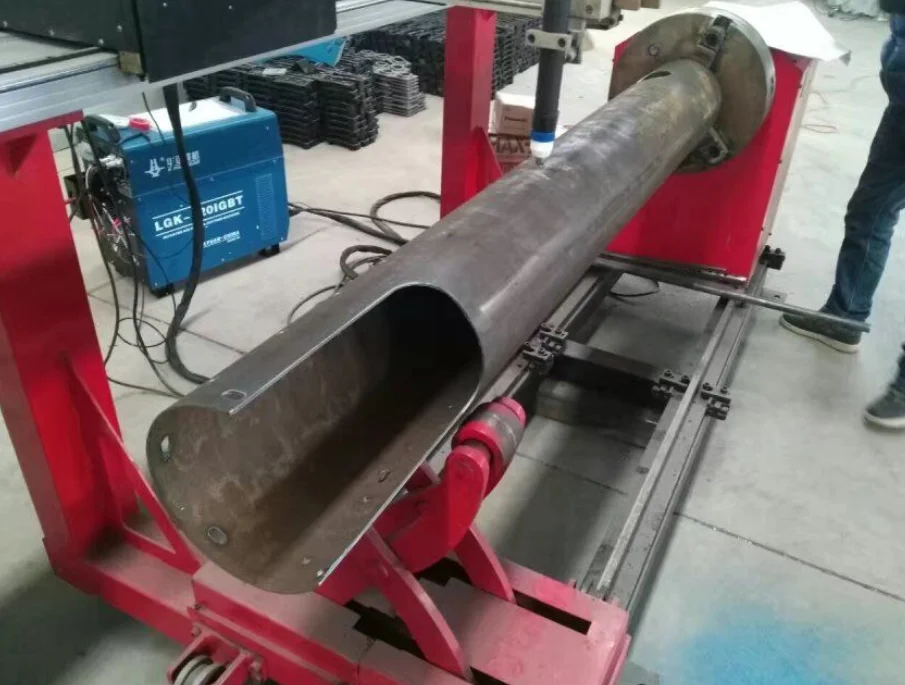

9 | Size of chuck | 250type chuck with three claws; pipes diameter 25mm to 300mm; also could customize bigger diameter; | 250type chuck with three claws; pipes diameter 25mm to 300mm; also could customize bigger diameter; | ||
10 | Motor of chuck | 400W servo motor | 400W servo motor | ||
11 | Cutting system | Shanghai Fangling control system | Shanghai Fangling control system | ||
12 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates, other metal | Iron, steel aluminum sheets, galvanized sheets, Titanium plates, other metal | ||
SALES AND SERVICE NETWORK
Packing and Delivery
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What’s the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and
50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials
or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What’s the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and
50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials
or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
