Сепаратор литий-ионной батареи для обменной мембраны 25 мкм
US $1.00-$4.00
Горизонтальная фильтрационная
- Категория: Separation Equipment >>>
- Поставщик: Jiangsu,Huada,Centrifuge,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 35700.96 $* | 37485.51 $* |
| Aug-15-2025 | 35400.38 $* | 37170.65 $* |
| Jul-15-2025 | 29700.93 $* | 31185.56 $* |
| Jun-15-2025 | 34800.40 $* | 36540.55 $* |
| May-15-2025 | 30300.29 $* | 31815.76 $* |
| Apr-15-2025 | 34200.20 $* | 35910.96 $* |
| Mar-15-2025 | 33900.19 $* | 35595.39 $* |
| Feb-15-2025 | 33600.1 $* | 35280.54 $* |
| Jan-15-2025 | 33300.55 $* | 34965.4 $* |
Характеристики
360〫Huada Factory Virtual Tour https://world-port.made-in-china.com/viewVR?comId=cqEmRdJkvlWt |
PRODUCT DESCRIPTION

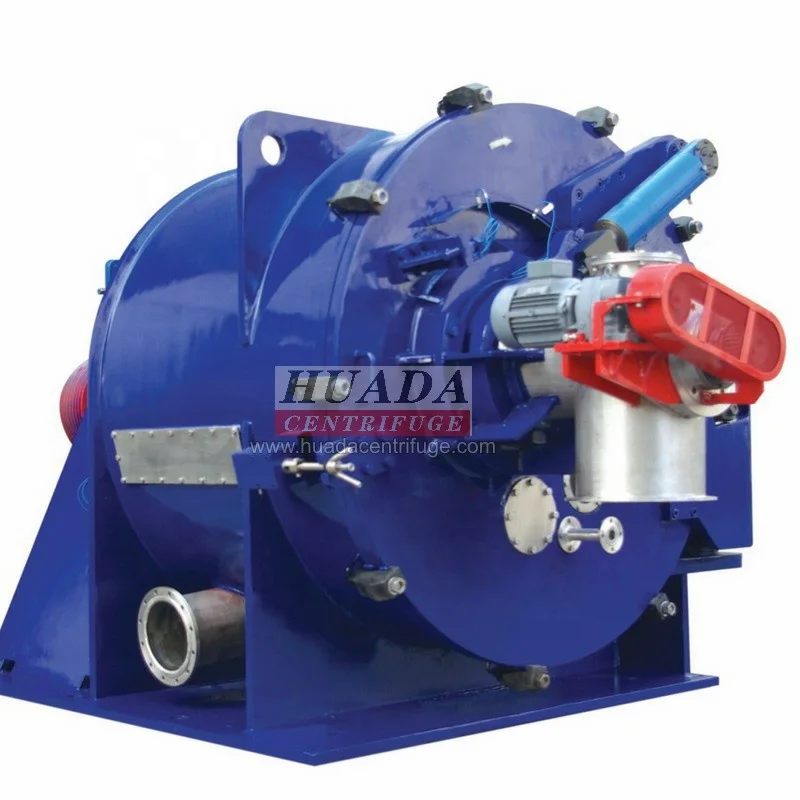

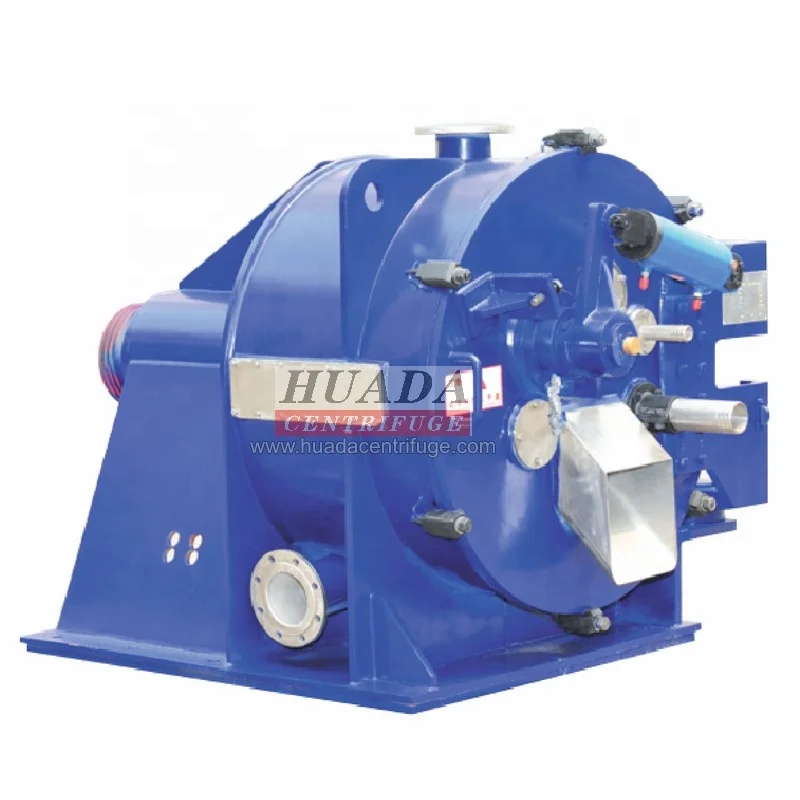

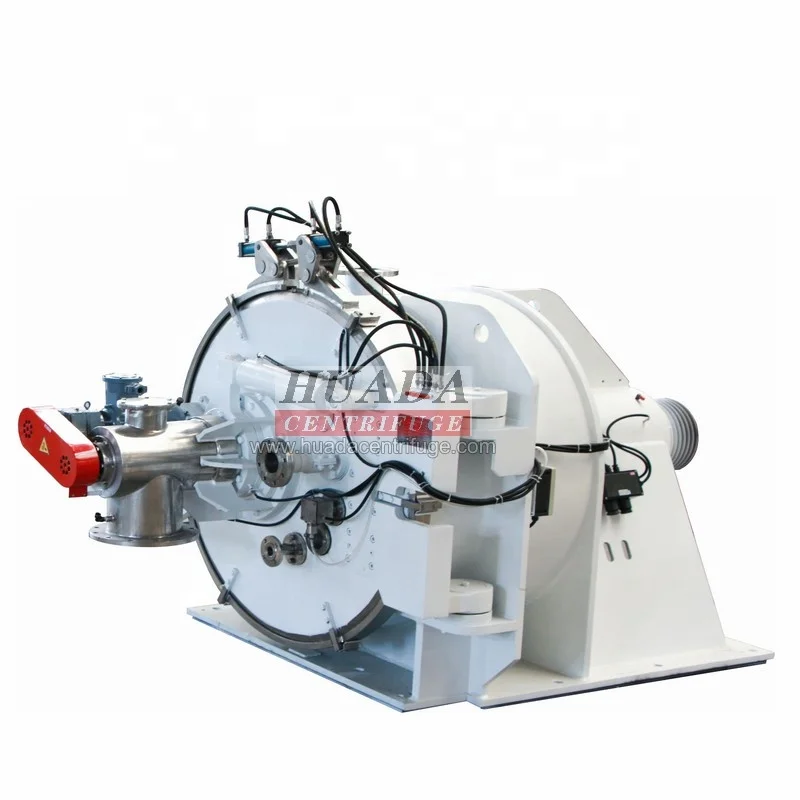

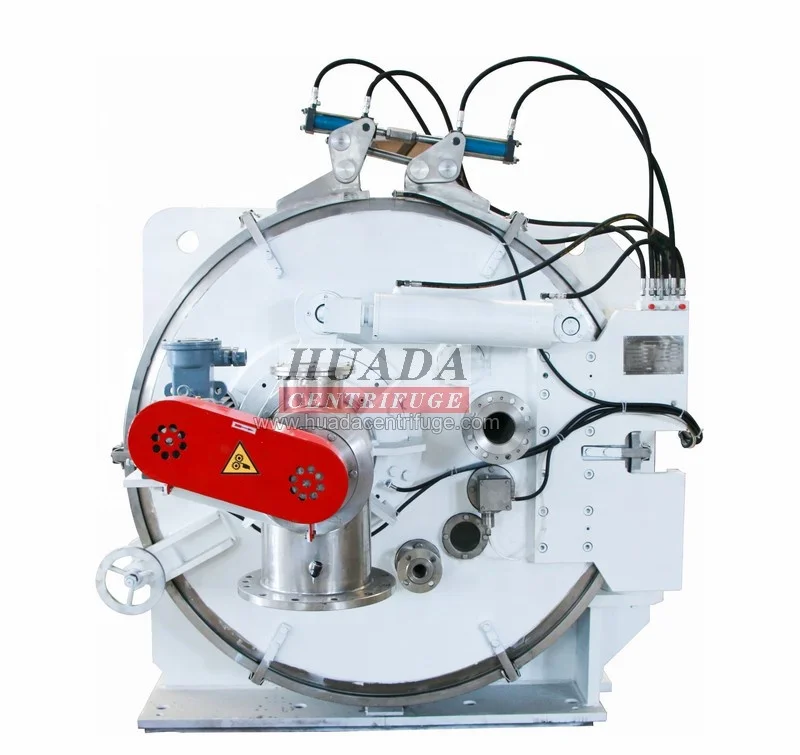

GK peeler centrifuge
is a type of automatic filtration centrifuge featuring continuous running, intermittent operation and high-speed peeling, which is able to complete feeding, separation, washing, dehydration, discharging, back-blowing and other processes at full speed, and therefore is commonly applied to the washing and solid liquid separation of suspension medium containing solid particles.
With high separation factor, short single circulation duration and large handling capacity, relatively dry residues after filtration can be obtained and ideal washing effect can be ensured.
With high separation factor, short single circulation duration and large handling capacity, relatively dry residues after filtration can be obtained and ideal washing effect can be ensured.
This type has high performance in separating suspensions with the cake density of 0.8~2.5, particle size of 0.05mm~1mm and solid concentration of 15%~80%.
It has been widely applied in the chemical, food, pharmaceutical, light industry and other industries for separating such materials as sodium bicarbonate, caustic soda, starch, boric acid, ammonium sulfide, sulfuric acid, sodium sulfate, ferrous sulfate, calcium phosphate, polyvinyl chloride, sodium chloride, and potassium chloride.
It has been widely applied in the chemical, food, pharmaceutical, light industry and other industries for separating such materials as sodium bicarbonate, caustic soda, starch, boric acid, ammonium sulfide, sulfuric acid, sodium sulfate, ferrous sulfate, calcium phosphate, polyvinyl chloride, sodium chloride, and potassium chloride.
PRODUCT CONFIGURATION
Control mode: PLC control, with touch panel and human-machine interface and supporting electric-hydraulic actuator to realize automatic remote control.
Multiple safety protections: speed detection, overvibration protection, cover opening protection, overload protection,
overtemperature protection, peeler action protection, nitrogen protection, electromagnetic interlocking, etc.
Discharge mode: open discharging through chute or integrated discharging with peeler conveyed through screw.
Hydraulic coupler can be adopted for the transmission of models below GK1250 to realize stable startup, simple control and effective overload protection of motor.
Variable-frequency control, dynamic braking or energy feedback braking, stepless regulation of speed are designed to realize energy saving, environmental protection and more reliable operation.
Optional configurations: online washing system, nitrogen protection system, steel platform, hydraulic locking device, etc.
Multiple safety protections: speed detection, overvibration protection, cover opening protection, overload protection,
overtemperature protection, peeler action protection, nitrogen protection, electromagnetic interlocking, etc.
Discharge mode: open discharging through chute or integrated discharging with peeler conveyed through screw.
Hydraulic coupler can be adopted for the transmission of models below GK1250 to realize stable startup, simple control and effective overload protection of motor.
Variable-frequency control, dynamic braking or energy feedback braking, stepless regulation of speed are designed to realize energy saving, environmental protection and more reliable operation.
Optional configurations: online washing system, nitrogen protection system, steel platform, hydraulic locking device, etc.
STRUCTURE ADVANTAGES
Dovetail slot design is adopted for door and base fitting flange to ensure reliable sealing.
Full-hydraulic locking door and dual-locking protection are designed to ensure structural reliability and easy operation.
Enclosed and explosion-proof design is employed for the whole structure to meet the GMP standards and the requirements for the application in flammable and explosive places of the pharmaceutical industry.
Cake layer controller is configured to effectively control the thickness material layers, prevent overload operation, and avoid overflowing of materials.
Full-hydraulic locking door and dual-locking protection are designed to ensure structural reliability and easy operation.
Enclosed and explosion-proof design is employed for the whole structure to meet the GMP standards and the requirements for the application in flammable and explosive places of the pharmaceutical industry.
Cake layer controller is configured to effectively control the thickness material layers, prevent overload operation, and avoid overflowing of materials.
Hydraulic drive is adopted to ensure stable discharge.
Detachable were-resistant hard-alloy blades are configured to expand the service life.
Screw discharge is adopted to ensure high collection rate of cakes and effectively prevent the blockage of materials.
Equipment is supported by front and rear rolling bearing, with high rigidity and small revolving resistance.
Peeler support is welded and polished as a whole, with high structural strength and high rigidity to ensure smooth scrapping.
Maximum service life of 30 years.
Large bearing capacity and good vibration attenuation effect.
Anti-slip base plate, without fixing the equipment with bolts.Integrated design of floating platform and vibration attenuation
system.
Dynamic load isolated positively, with no need to lay a foundation, easier to be installed.
system.
Dynamic load isolated positively, with no need to lay a foundation, easier to be installed.
Imported damper adopted for the vibration absorber, with special structural design to effectively improve the vibration isolating capacity as well as the equipment running safety and stability.
Integrated design for the equipment base, which is manufactured as a whole to ensure both aesthetic appearance and production safety.
Coaxial machining for the front and rear bearings to ensure high coaxial precision.
Ion plating process employed for the spindle sleeve to resist wear and corrosion, and realize a longer service life.
Welded as a whole to eliminate stress, with high strength and strong vibration resistance.
Multiple sealing structures such as lip seal, air-tight seal and labyrinth seal adopted to ensure reliable sealing for transmission.
Forcible lubricant spraying mode adopted to ensure good lubricating and cooling effect.
Devices for detecting the temperature, velocity, vibration, etc. are configured for the spindle assembly to realize real-time monitoring of the equipment's operation.
DIMENSION AND STRUCTURE
MAIN TECHNICAL PARAMETERS

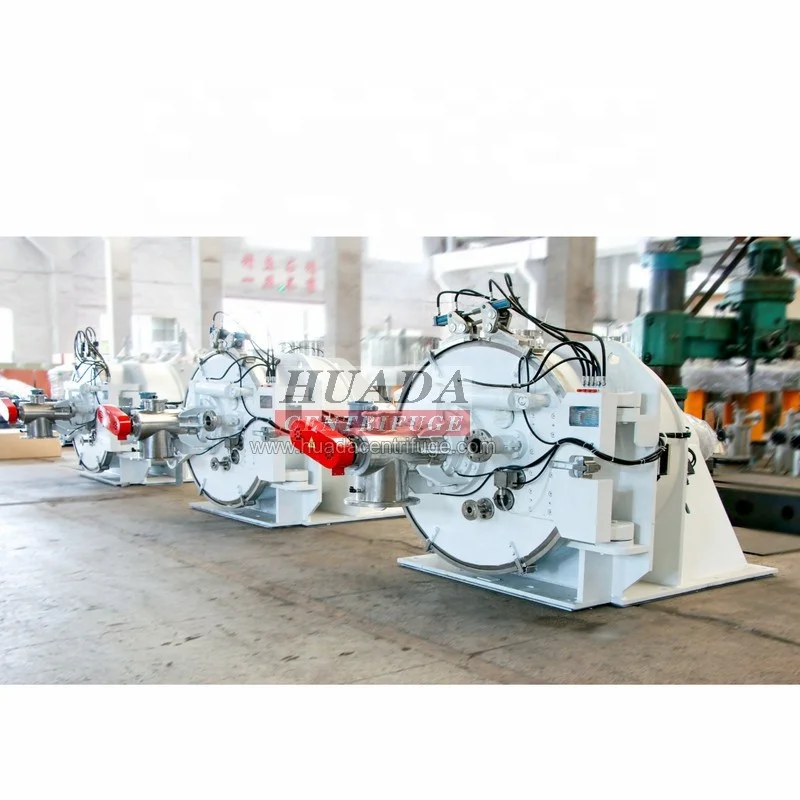

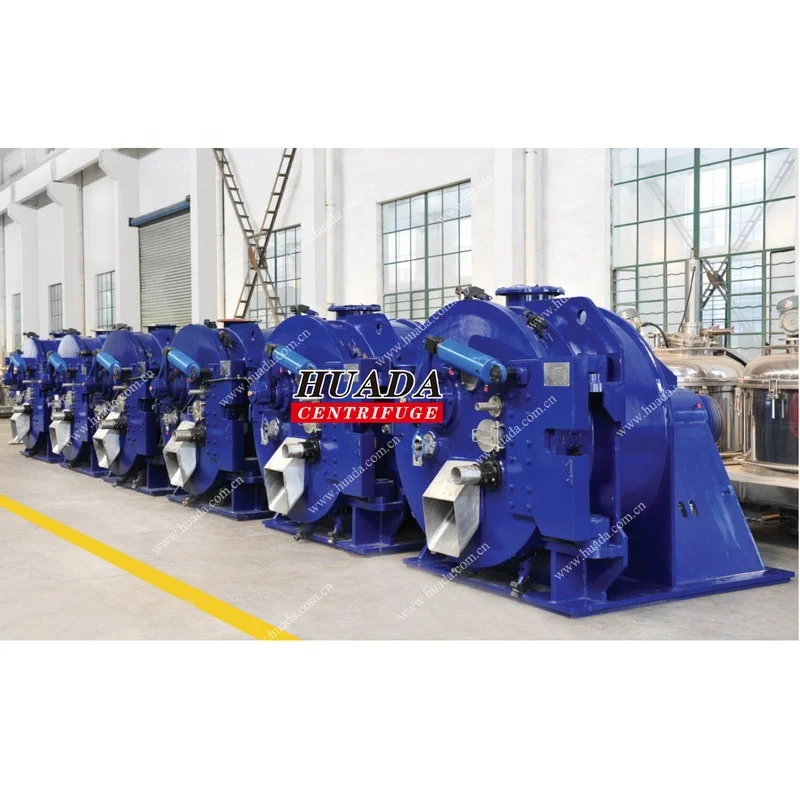

PRODUCTION SITE
About us
Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.
Huada is a member of Technical Committee for Standardization of Chinese Separation Machinery, a vice president of Separation Machinery Branch of China General Machinery Association, a drafter of national and industrial standards on centrifuges, a high-tech enterprise in Jiangsu Province and a key high-tech enterprise for national torch plan. In 1998, our centrifuges acquired national safety certification. Huada is one of enterprises in domestic filtration and separation machinery industry which is the largest in scale, the most complete in product varieties and series, the most competitive and the most influential.
Huada has a large number of engineers and technical personnel who account for over one third of total number of employee. It owns an engineering technology research center of Jiangsu Province and establishes multiple professional teams of technical research and development, technical application, process design, inspection and testing, lean production management, etc. and we have made great achievements. We have successfully developed multiple new products and technologies having proprietary intellectual property rights and, national invention patent which include vertical pull-bag automatic discharge centrifuges, horizontal preconcentration filtering centrifuge, intelligent remote control system technology and so on, as well as obtained good market application; we have resolved difficult problems on filtration and separation for users.
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
