Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом
Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом

Солнечный насос переменного тока Sunpal с инвертором 380 кВт 3 фазы в сертификатом


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.10 $* 0.44 $*
Aug-19-2025 0.33 $* 0.88 $*
Jul-19-2025 0.9 $* 0.41 $*
Jun-19-2025 0.11 $* 0.18 $*
May-19-2025 0.56 $* 0.18 $*
Apr-19-2025 0.92 $* 0.7 $*
Mar-19-2025 0.50 $* 0.72 $*
Feb-19-2025 0.21 $* 0.11 $*
Jan-19-2025 0.19 $* 0.86 $*

Характеристики



Product Description







Main Features:

1. Latest MPPT Technology,automatically achieve the max efficiency,no need programming, user-friendly.
2. Efficiency is 5%-10% higher than the inverter which need programming.
3. Muti-input Solution: SOLAR,GRID/BATTERY/GENERATOR for option.
4. IP65 Waterproof and dustproof,can be installed outdoor .
5. GPRS SMS Control/Monitoring for option.
6. Settable working time & working frequency range.
7. Variable Frequency Drive the AC Pump (15HZ~50/60Hz).
8. Dry-run protection by software or sensor.


Product Deatails





What Is Solar Water Pump Inverter?

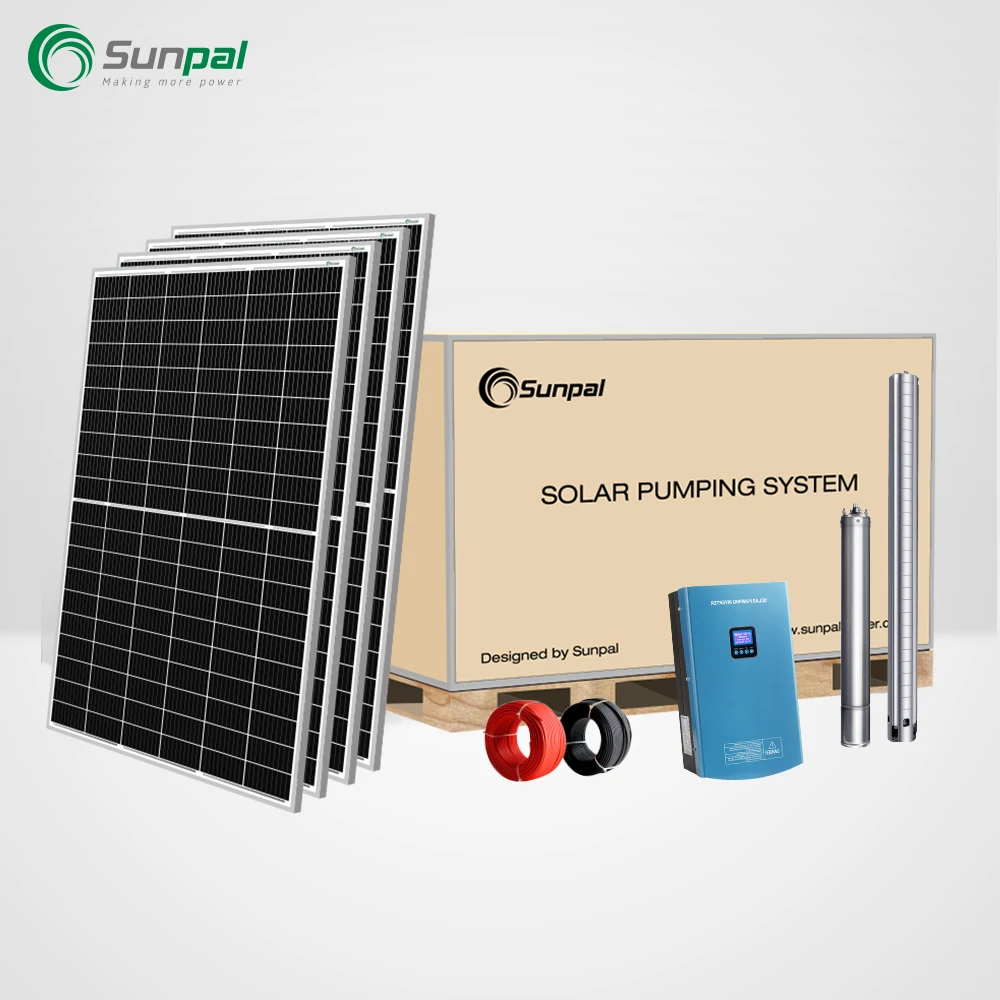

1. Solar pumping system converts solar energy directly into electric energy, and then drives motors to drive water pumps to pump water from deep wells, rivers, lakes and other water sources. The system consists of solar panels, solar pump inverter and water pump.
2. Solar pump inverter, also called solar variable frequency drive, converts the direct current of solar panel into
alternating current, thereby driving various AC motor water pumps (centrifugal pump, irrigation pump, deep well water pump, swimming pool pump, etc.), the input can be the solar DC power supply (DC 200V-350V, DC 350V-750V), also can be single phase or three phase AC power supply (AC 220V, 380V, 400V, 460V, 480V), built-in MPPT control system to maximize the output power of the PV array, is very suitable for use in remote and dry areas.


Specifications:

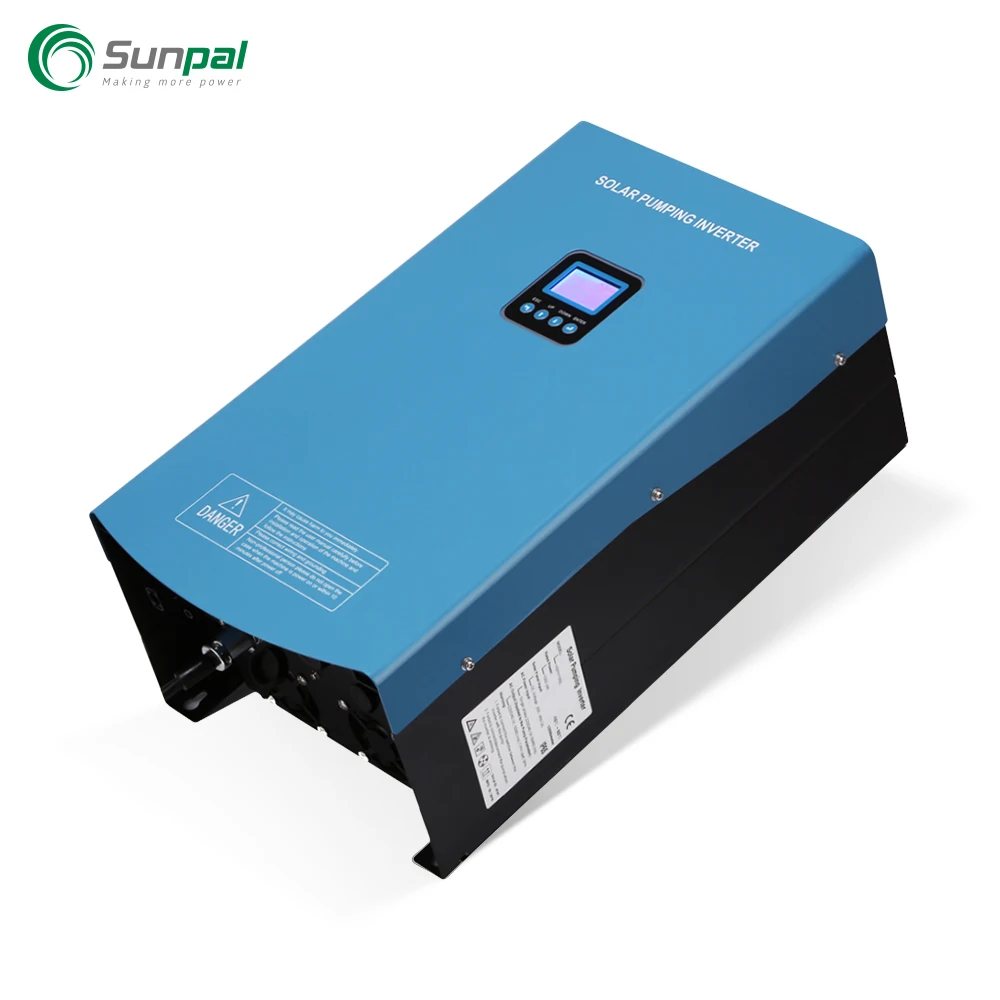

Sunpal Solar Pump Inverter Model
HSPH2200H
HSPH3700H
HSPH5500H







 Solar Panel DC Input
Max Voc Voltage
780V
Min Vmp Voltage
400V
Recommend Vmp Voltage
>500V ( Only Solar )>560V ( Hybrid Power )
Recommend Vmp Voltage
99%
Max Input Current
6A
10A
14A
Number of Strings
1
2
2
Inside Booster
N
Note
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel, without Programming


Hybrid AC/Generator Input
Voltage
3 Phase 380/400/440V
Max Input Current
7A
10A
14A
Hybrid Mode
Automatic, AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery




AC output ( For Pump, Aerator, Fan )
Max Adapted AC Pump HP
3HP
5HP
7.5HP
Max Adapted AC Pump Power
2200W
3700W
5500W
Drive Mode
Variable Frequency Drive 3 Phase
Max Output Voltage
380/400/440V
Max Output Frequency
50~60Hz ( Support program range 15-60Hz)
Max Output Current
6A
9A
13A
Max Efficiency
97%
 Water Level Sensor (Well / Tank)
Yes
GPRS SMS Monitor & Controller
Optional
Display
LCD display
Waterproof
IP65
Noise
<50dB
Cooling Method
Force Cooling by Fan ( IP68 )

Protection
Solar DC Input Low/Over Voltage; Solar DC input Reverse Polarity; AC output Short-circuit; Over Temperature; Over Flow of Tank;Against Lightning; AC Input & Output Phase Lose; Dry-Run (detecting by Sensor or Software); AC output Unbalance




Operating Environment
Operating Evironment Temperature
-10 to 60℃, Above 60℃ need to derate load
Max Humudity
95%RH
Using Altitude
<3000m, Above 300m need to derate load
 Others
Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid. etc

Package
 Size
550*350*285MM
Weight
14KG
15KG
15KG


Certifications




Packing & Delivery

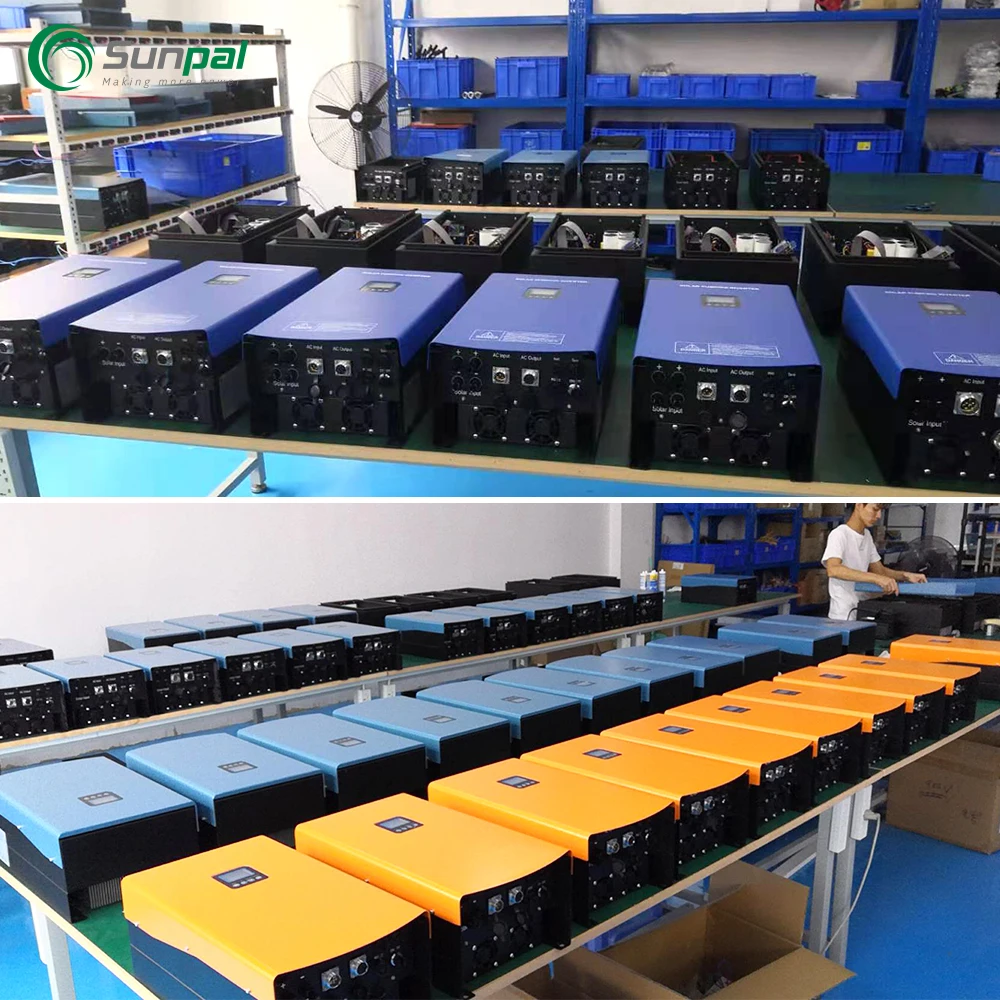

Auto Production Line




Pick & Placing & Soldering Manual Insertion




ICT & FCT Test & Function Test Assembly Lines


Project Case




Community Water Provision Sustainable Water Provision
Reliable, safe and affordable drinking water 100% solar-powered, safe & clean drinking water




Multi-pump Installation Hybrid Pumping
Solar drinking water supply Flexible solar powered irrigation


FAQ


Q 1. What's the payment term?
A. We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH, pay by Alibaba.

Q 2. What's the delivery time?
A. Normally 15 working days.

Q 3. What is the standard of package?
A. Both carton box and wooden box is ok.

Q 4. What kind of product quality do your factory offer?
A. We offer most competitive prices with best quality.

Q 5. Do you accept OEM business?
A.We accept OEM with your authorization. If you need pls let us know your specific requirements.

Q 6. What is your production capacity?
A. Frequency inverter and solar pump inverter 8000 pcs per month. Support rush order.

Q 7. What are your main markets?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q 8. What kind of certificate you have?
A.We have ISO9001, CE. If you have special demand of certificate, please let us know.


Contact Detail





Rita Zhang
Whatsapp/Wechat: +86 199 5543 2687
Email: rita(at)sunpalpower.com
Skype: sunpalpower(at)outlook.com
Web: www.sunpalpower.com
