Product Description





Main Features:

●High Efficiency,using dynamic VI MPPT control method,MPPT efficiency 99%

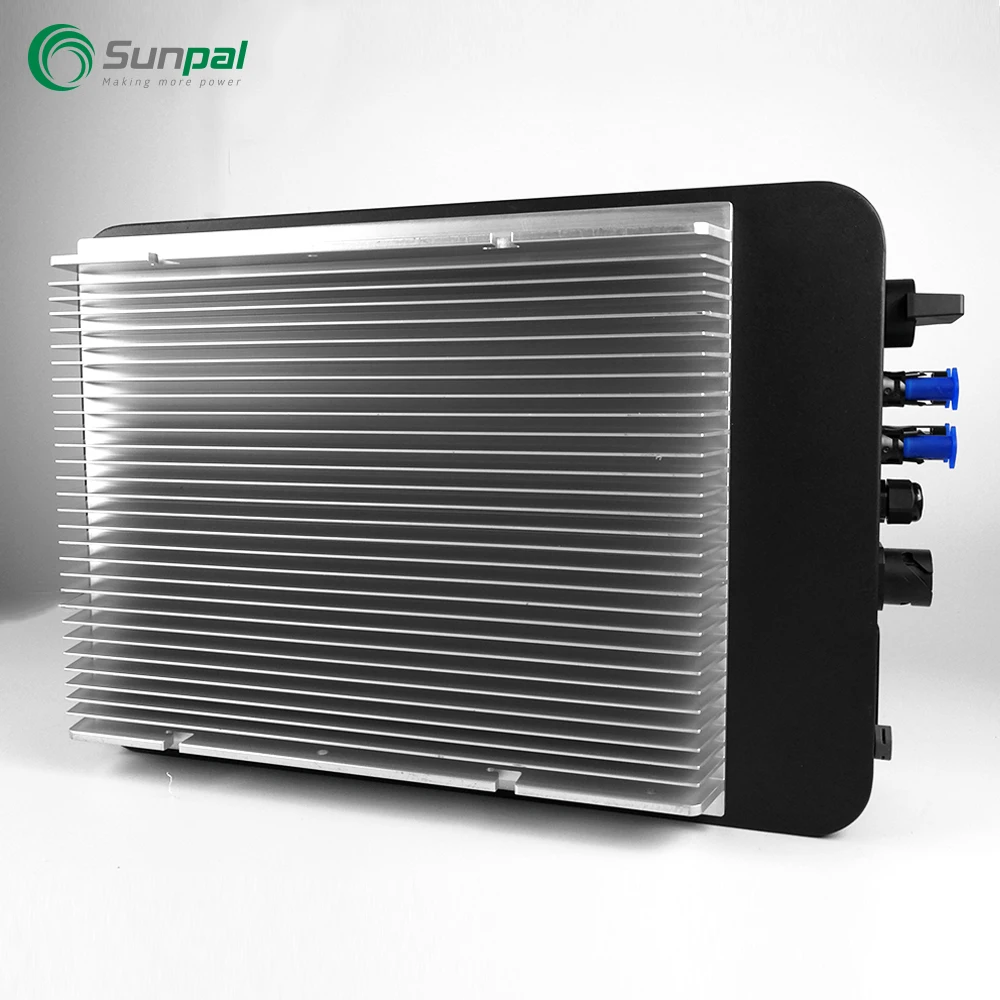

●IP65 protection level,with heat sink cooling
●Strong reliability,with power module (PIM)
●DC input voltage up to 900V
●Support pump soft start, with complete motor protection function. Equipped with lower water level detection and control
circuit to prevent overflow and dry pumping
●Full automatic operation
●Full protection function and self-diagnosis
●RS232/CAN/GPRS(optional), remote monitor or control system running status and mode


Product Deatails








Specifications：


MODE
SP-1500S2
SP-2200S2
SP-1500T2
SP-1500T2
DC INPUT
Max.DC voltage
450V
Starting voltage
80V
Recommended MPPT voltage
100-400V
Max. DC current
12A
AC INPUT
Input voltage
1PH 220V-240V(-15% +10%)
1PH 220V-240V(-15% +10%)
Rated input current
16A
24A
16A
24A
Input frequency
47-63Hz
AC input terminal
L,N,PE
AC OUTPUT
Rated output power
1500W
2200W
1500W
2200W
Rated output current
10.2A
14A
7.5A
10A
Output wiring mode
1P1L
3P3L
Output voltage
0-220V single phase
0-220V three phase
Output frequency
0-50/60Hz
CONTROL PERFORMANCE
Control mode
V/F
Motor type
Asynchronous motor (1PH 220V)
Asynchronous motor (1PH 220V)
PROTECTION FUNCTIONS
Output overcurrent
YES
Output overload
YES
Output short-circuit
YES
Dry/Overflow protection
YES
OTHERS
Display
LCD
Comunication
GPRS/WIFI (OPTIONAL)
Certificate Standard
CE
Dimensions(W×D×H), mm
370×335×135
Net weight, kg
9.5
Operation temperature range
-25-60℃(with derating above 45℃)
Environmental Protection
IP65
Cooling
Natural cooling
Altitude
3000m (with derating above 2000m)
Relative humidity
0-100%


Certifications




Packing & Delivery










Auto Production Line




Pick & Placing & Soldering Manual Insertion




ICT & FCT Test & Function Test Assembly Lines


Project Case










FAQ


Q 1. What's the payment term?
A. We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH, pay by Alibaba.

Q 2. What's the delivery time?
A. Normally 15 working days.

Q 3. What is the standard of package?
A. Both carton box and wooden box is ok.

Q 4. What kind of product quality do your factory offer?
A. We offer most competitive prices with best quality.

Q 5. Do you accept OEM business?
A.We accept OEM with your authorization. If you need pls let us know your specific requirements.

Q 6. What is your production capacity?
A. Frequency inverter and solar pump inverter 8000 pcs per month. Support rush order.

Q 7. What are your main markets?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q 8. What kind of certificate you have?
A.We have ISO9001, CE. If you have special demand of certificate, please let us know.
