Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А
Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А

Контроллер солнечного зарядного устройства 12 В/24 В/36 В/48 в 40 А


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.61 $* 0.33 $*
Aug-15-2025 0.81 $* 0.62 $*
Jul-15-2025 0.31 $* 0.65 $*
Jun-15-2025 0.77 $* 0.44 $*
May-15-2025 0.31 $* 0.68 $*
Apr-15-2025 0.18 $* 0.19 $*
Mar-15-2025 0.43 $* 0.20 $*
Feb-15-2025 0.21 $* 0.20 $*
Jan-15-2025 0.17 $* 0.46 $*

Характеристики

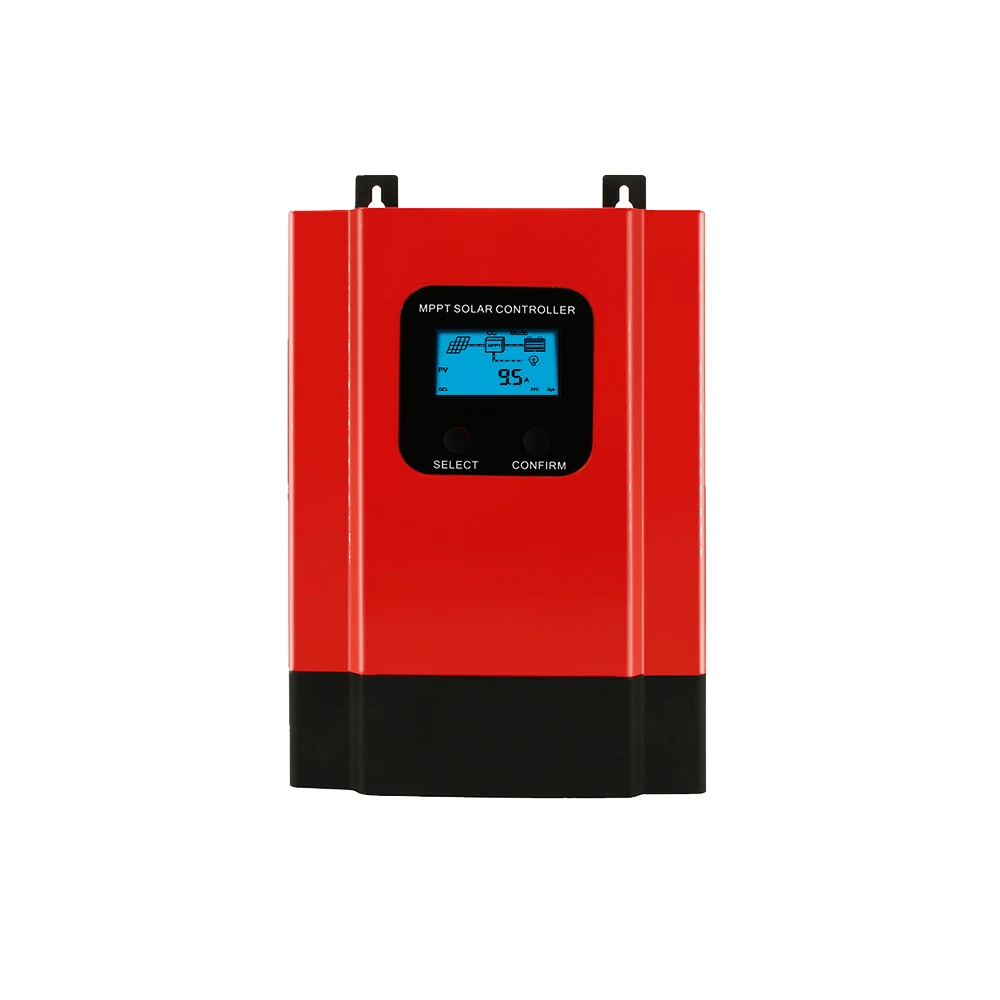

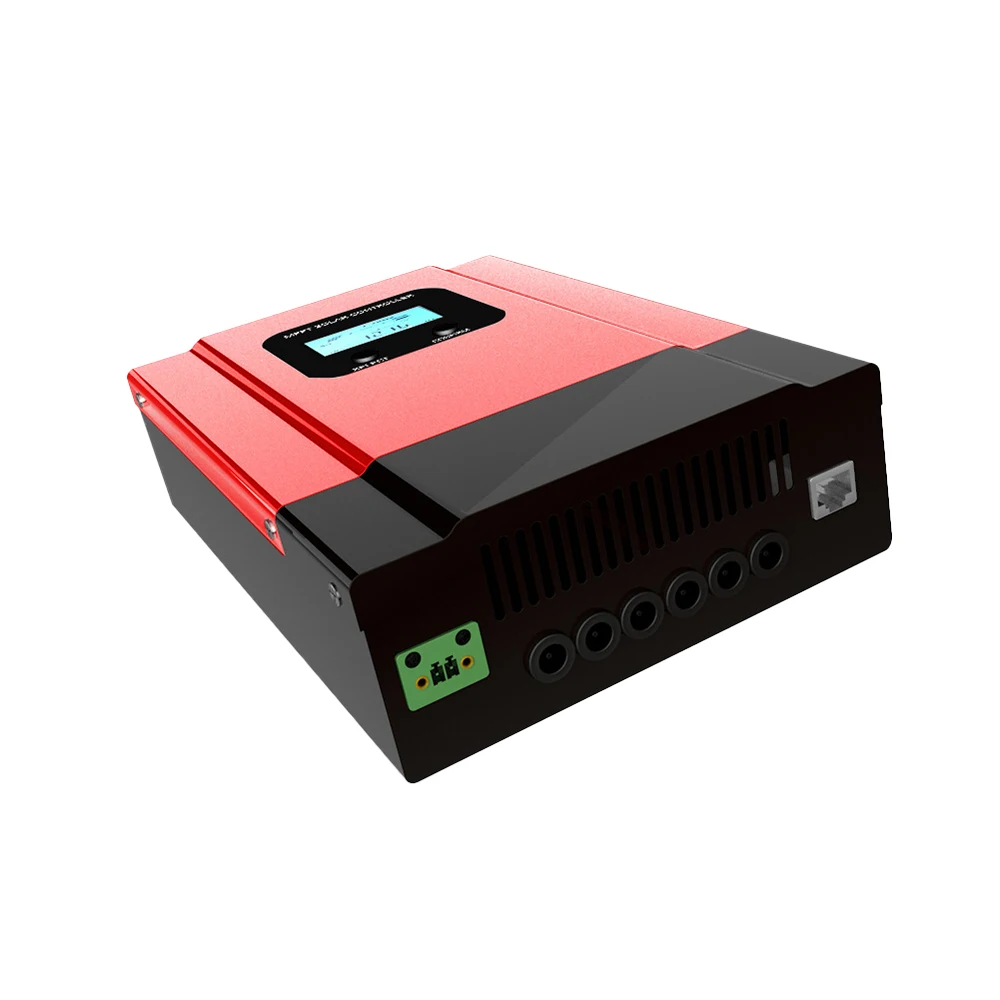

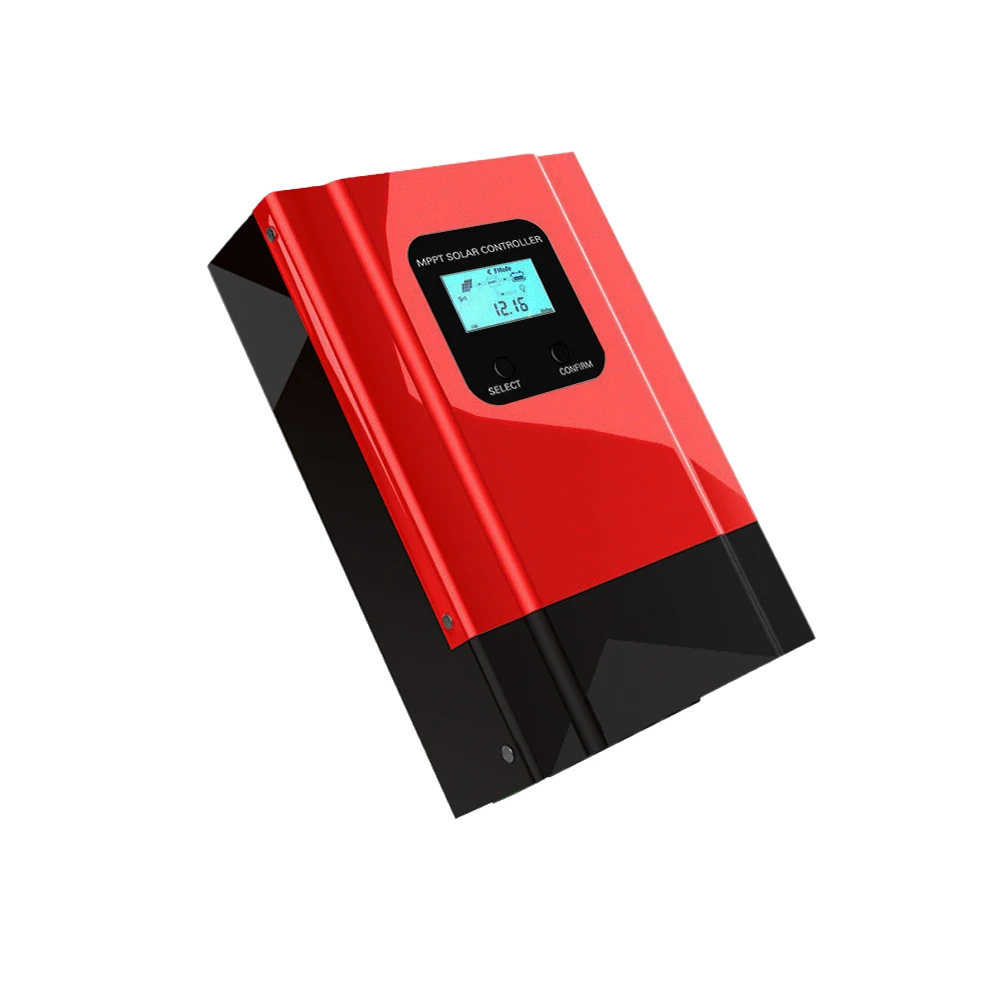

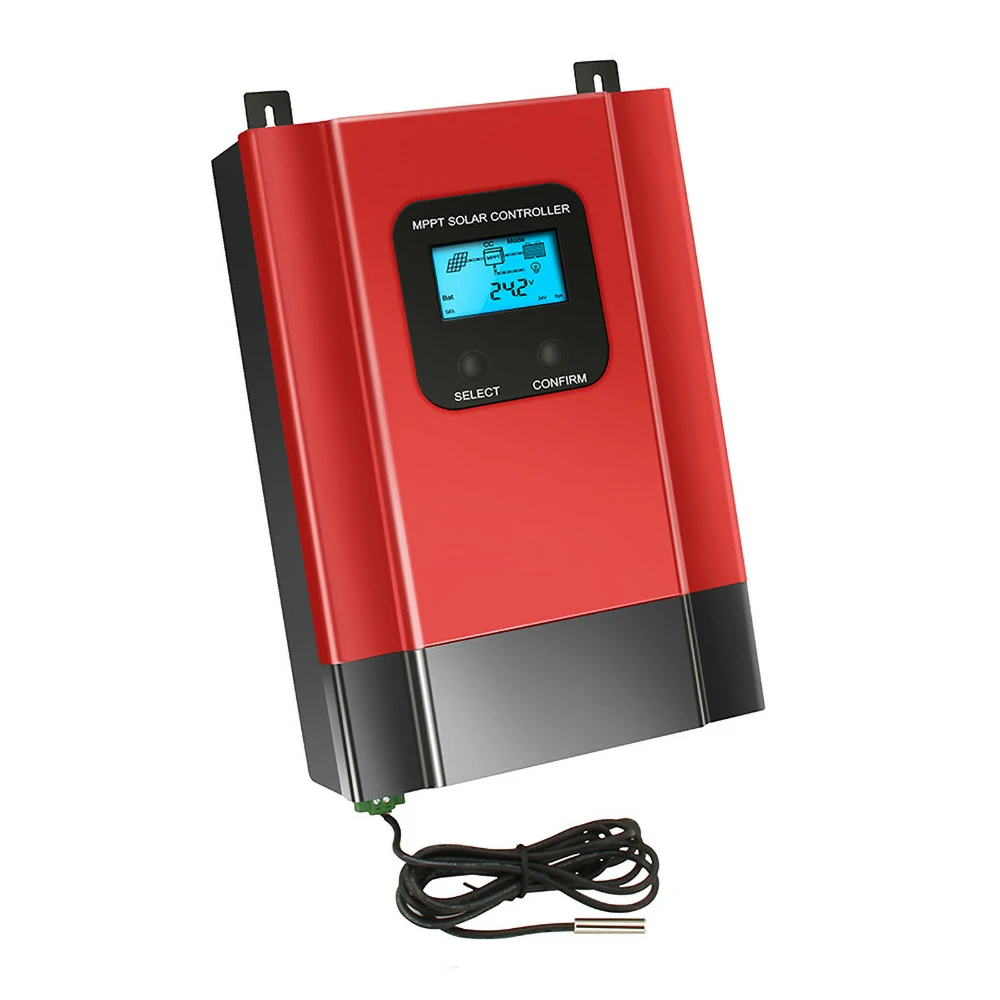

12v/24v/36v/48v 40A MPPT solar charger controller








1 .jpg2 .jpg3 .jpg



Product Parameter























































































Model


SCM-40A/60A




Product category


Controller Properties


MPPT (maximum power point tracking


MPPT efficiency


≥99.5%


Heat-dissipating method

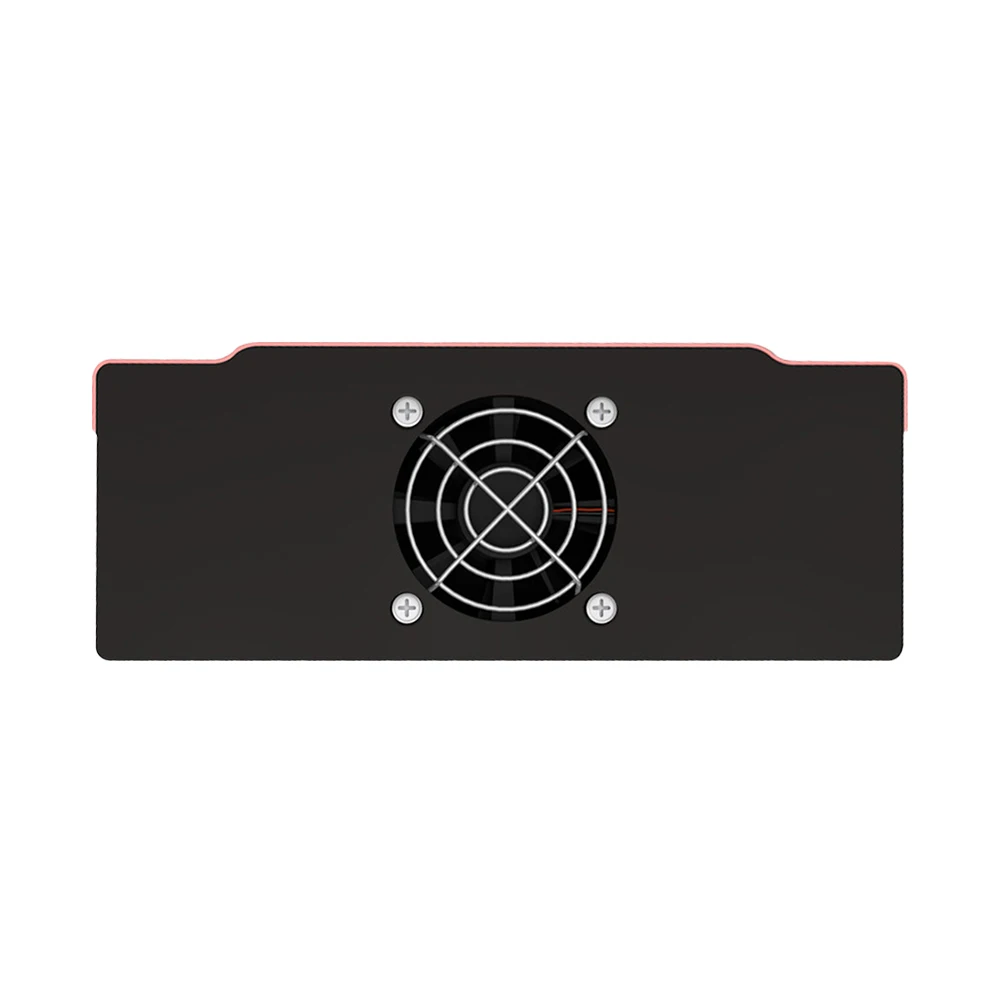

Intelligent fan cooling




Input

Characteristics


Max.PV input voltage(VOC)


150V


Start the charge voltage point


Battery voltage + 3V


Low input voltage protection point


Battery voltage + 2V




Rated PV Power


12v system


260w~780w


24v system


520w~1560w


36v system


780w~2340w


48v system


1040w~3120w




Charge Characteristics


Selectable Battery Type


Sealed lead acid, Gel battery, Flooded


Charge rated current


40A/60A




Charge Method


3-Stage: constant current(fast charging)-constant voltage-floating charge




Display &
Communicatio


Display mode


High-definition LCD segment code backlight display




Communication mode


8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring




Other Parameters




Protect Function


Input-output over \\ under voltage protection,
Prevention of connection reverse protection,battery shedding protection etc.


Net Weight /Gross Weight (K.G)


2.3~2.6/3~3.5





Certifications








Company Information








FAQ


1.  How does a power inverter work?
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.


2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.


Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.


3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.


4.  Do you accept OEM and ODM service?


Yes, we accept OEM and ODM service.


5. How long of the delivery time, sample order and wholesale order?


For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.


6. How do I know which inverter to buy?


Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:


AMPS x 120 = Watts


For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
