Лидер продаж плоская листовая пластина из нержавеющей стали оборудование для выпрямления
- Категория: Metal Straightening Machinery >>>
- Поставщик: Shenzhen,Lihao,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1964.16 $* | 2062.21 $* |
| Aug-15-2025 | 1947.32 $* | 2044.83 $* |
| Jul-15-2025 | 1634.37 $* | 1716.90 $* |
| Jun-15-2025 | 1914.16 $* | 2010.52 $* |
| May-15-2025 | 1667.0 $* | 1750.30 $* |
| Apr-15-2025 | 1881.55 $* | 1975.73 $* |
| Mar-15-2025 | 1865.18 $* | 1958.17 $* |
| Feb-15-2025 | 1848.32 $* | 1940.57 $* |
| Jan-15-2025 | 1832.1 $* | 1924.76 $* |
Характеристики
MAIN FEATURES
● It can feed material for various thickness and feeding stroke length.
● It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
● With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is 0.1mm-9999.99mm.
● It adopts pneumatic cylinder releasing method,Mechanical releasing method can be made according to customers&rsquo
● It adopts good belt, to avoid gears gap, to avoid gear abrasion, without noise, without lubrication, safe, environmental.
● Motor is installed in its structure internally, to avoid possible damages caused during transportation and loading.
Type | TL-200 | TL-300 | TL-400 | TL-500 | TL-600 | ||||
Max.Material width | 200mm | 300mm | 400mm | 500mm | 600mm | ||||
Material thickness | 0.4-2.2mm | ||||||||
Width.thickness | 200*1.5 | 300*1.5 | 400*1.5 | 500*1.5 | 600*1.5 | ||||
(mm) | 200*2.0 | 300*1.5 | 400*2.0 | 400*2.0 | 450*2.0 | ||||
160*2.2 | 240*2.2 | 320*2.2 | 250*2.2 | 300*2.2 | |||||
Max.Feed speed | 15m/min | ||||||||
Motor | 1HP | 1HP | 2HP | 2HP | 3HP | ||||
Straightener Roller
● The straightener wheel is made of solid bearing steel, thickened and electroplated after intermediate frequency, and the surface hardness is not low HRC58, to ensure the durability of material.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
● Use forging round steel with GCr15,after preheating treatment( spheroidizing annealing ),then turning, miliing,medium frequency treatment, rough grinding, cold stabilization, then fine grinding, finally electroplating .Maximize the guarantee of precision degree ,concentricity, smoothness and hardness, extend the service life of straightening roller.

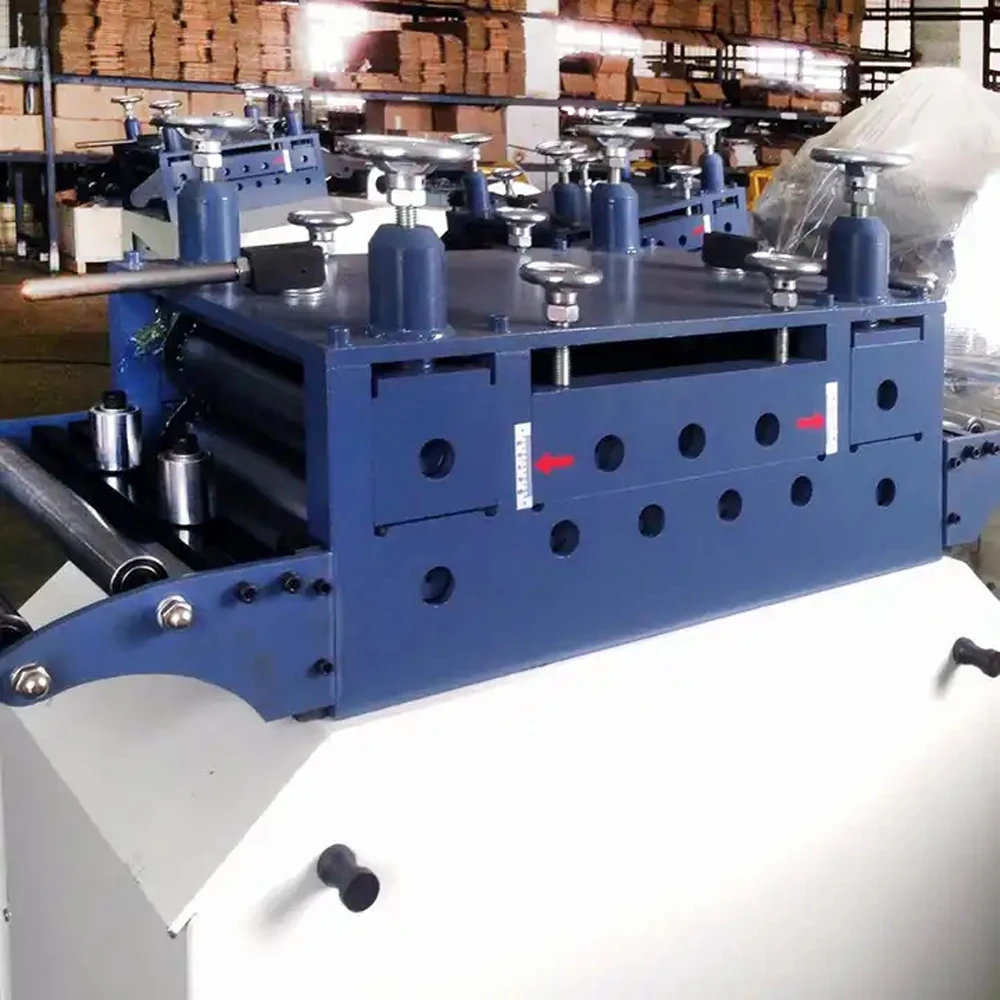

Head of Straightener
● The head adopts design of parallel roller, the upper 3 rollers/lower 4 rollers, totally 7 refined roller structure
● Adopting four point fine adjustment ,which is more suitable for processing high-precision products. Four point independent pressure is used to adjust the pressure of feeding wheel for incoming and outgoing materials, which can effectively prevent deviation and deformation of materials.
● Adopting four point fine adjustment ,which is more suitable for processing high-precision products. Four point independent pressure is used to adjust the pressure of feeding wheel for incoming and outgoing materials, which can effectively prevent deviation and deformation of materials.
Electric Control Box
● Adopt silver alloy relay ,full copper coil ,flame retardant safety base, long lasting and durable.
● Adopt safety protection adjustment circuit time delay ,silver alloy contact ,various and dial, satisfied different delay ranges.
● Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.
