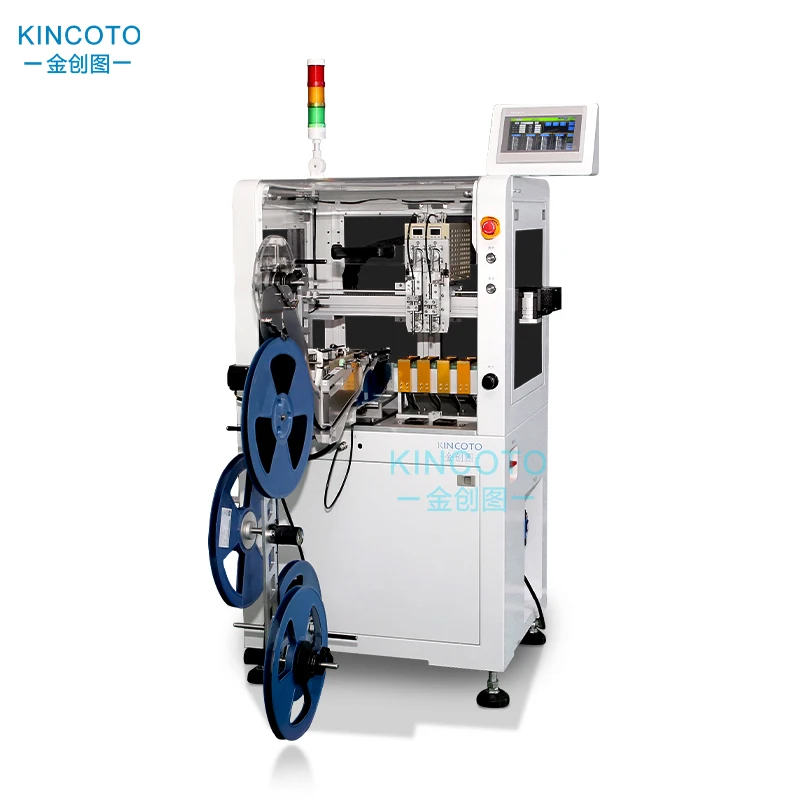

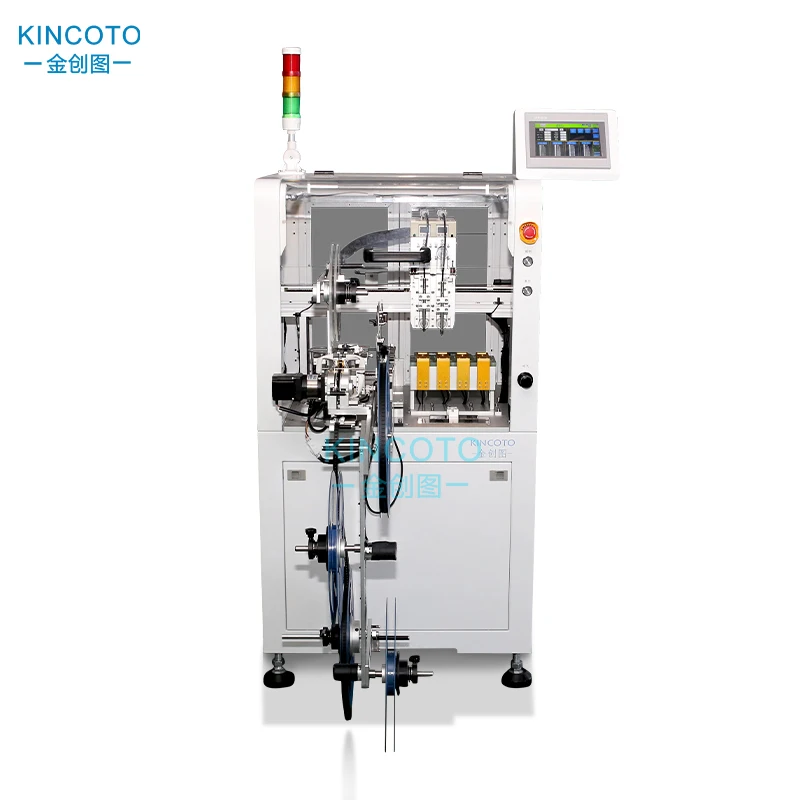

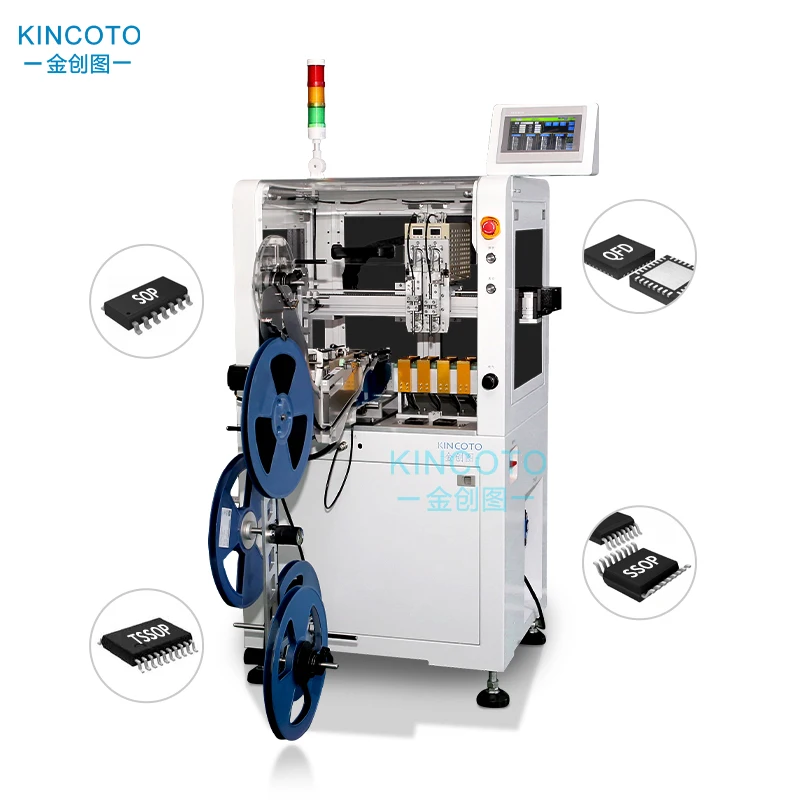

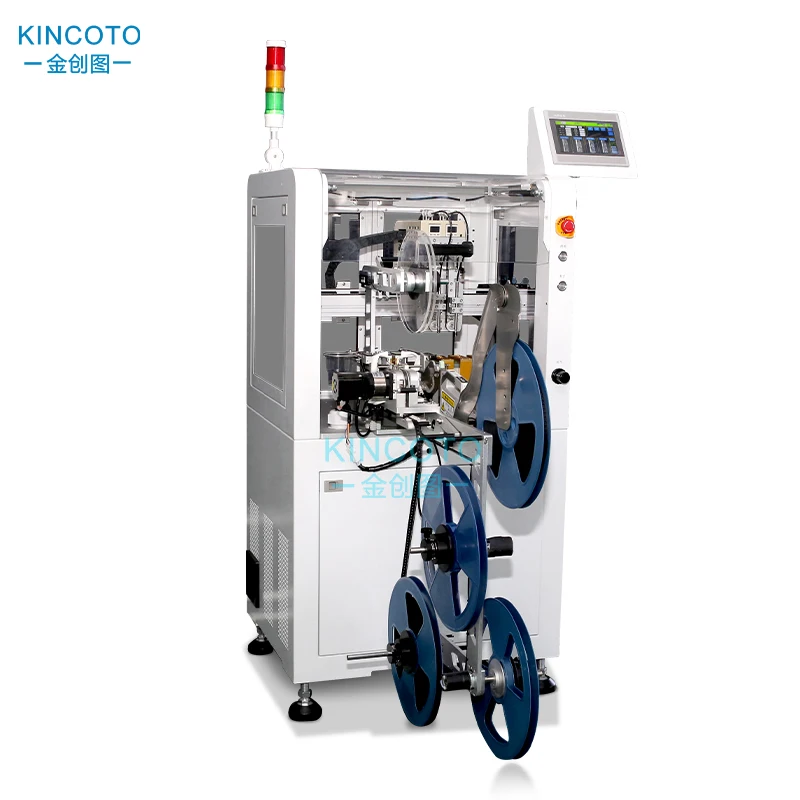

Automatic Tape IC Programming Machine KA42-2000

This is an IC automatic burning machine that supports the packaging of IC incoming materials into tape, realizes the tape in and out, automatic packaging after burning, and automatically distinguishes between OK and NG.

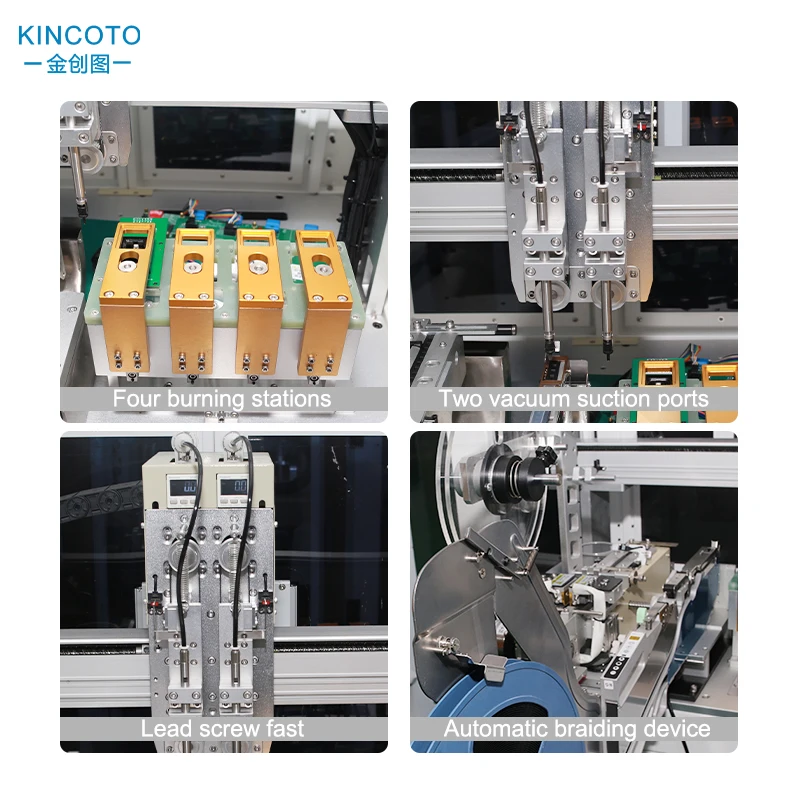

X, Z axis manipulator, double nozzles:

Instead of manually picking and placing a single IC;

One pick-and-place suction pen design;

Signal communication connection:

Support offline burner (subject to the actual function!);

When the programming is completed, the OK and NG ICs are automatically distinguished and placed in the corresponding position coordinates that have been set;

Input and output packaging support:

Support tape-in and tape-out;

No-load can be recycled and reused;

UPH output:

The burning completion time of burning files is within 5 seconds, and the efficiency is 1500-1800 pieces/hour;

Reference. The general mcu efficiency is about 1800 pcs/h;

If the programming time is greater than 5 seconds, the efficiency will be relatively reduced;
