Одиночная головка термоусадочная машина для солнечной линии
- Категория: Other Machinery & Industrial Equipment >>>
- Поставщик: Shandong,Zentek,Energy,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.9 $* |
| Aug-16-2025 | 0.10 $* | 0.15 $* |
| Jul-16-2025 | 0.5 $* | 0.64 $* |
| Jun-16-2025 | 0.14 $* | 0.43 $* |
| May-16-2025 | 0.45 $* | 0.14 $* |
| Apr-16-2025 | 0.54 $* | 0.16 $* |
| Mar-16-2025 | 0.89 $* | 0.97 $* |
| Feb-16-2025 | 0.48 $* | 0.64 $* |
| Jan-16-2025 | 0.74 $* | 0.16 $* |
Характеристики
Company Profile
Shandong Zentek Energy and Technology Co. Ltd., a prominent member of the esteemed CSP Holding Group, stands at the forefront of the water heater production machine industries. Through its dedication to research and development, advanced manufacturing processes, and a customer-centric approach, Zentek has carved a niche for itself in the market. We’ve been devoting ourselves to customized design, manufacturing, machine improvement and upgrade for our customers from all over the world.
The machines we could manufacture: fully automatic production machines for solar /electric/glass-lined/gas storage water heater and LPG cylinder, including sand-blasting machine and enamel-coating line, machines for flat solar collector, like CNC bending, CNC punching etc., laser cutting machine, and polyurethane machine and lines for water heater, PE insulation pipe, fridge, freezer and so on.
Advantages from our side:
1.Machines could be customized according to your requirement.
2.We could offer A-Z turnkey solution for solar/ electric water heater production line and LPG cylinder production line.
3.Technical design and support available: we could help customers design the products
4.Accessories& raw material purchase and quality control
5.Over 10 years’ of international logistic experiences. We can do EXW, FOB, CIF etc.;
6.Abundant experience in packaging no matter for sea, land or air transportation
Our machines have been exported to over 20 countries like India, Egypt, UAE, Brazil etc..and only in the last three years, we have helped A.O. Smith in India, Havells in India, Artel in Uzbekistan with their production line. We are still looking forward to the cooperation with partners worldwide.
The machines we could manufacture: fully automatic production machines for solar /electric/glass-lined/gas storage water heater and LPG cylinder, including sand-blasting machine and enamel-coating line, machines for flat solar collector, like CNC bending, CNC punching etc., laser cutting machine, and polyurethane machine and lines for water heater, PE insulation pipe, fridge, freezer and so on.
Advantages from our side:
1.Machines could be customized according to your requirement.
2.We could offer A-Z turnkey solution for solar/ electric water heater production line and LPG cylinder production line.
3.Technical design and support available: we could help customers design the products
4.Accessories& raw material purchase and quality control
5.Over 10 years’ of international logistic experiences. We can do EXW, FOB, CIF etc.;
6.Abundant experience in packaging no matter for sea, land or air transportation
Our machines have been exported to over 20 countries like India, Egypt, UAE, Brazil etc..and only in the last three years, we have helped A.O. Smith in India, Havells in India, Artel in Uzbekistan with their production line. We are still looking forward to the cooperation with partners worldwide.
Product Description

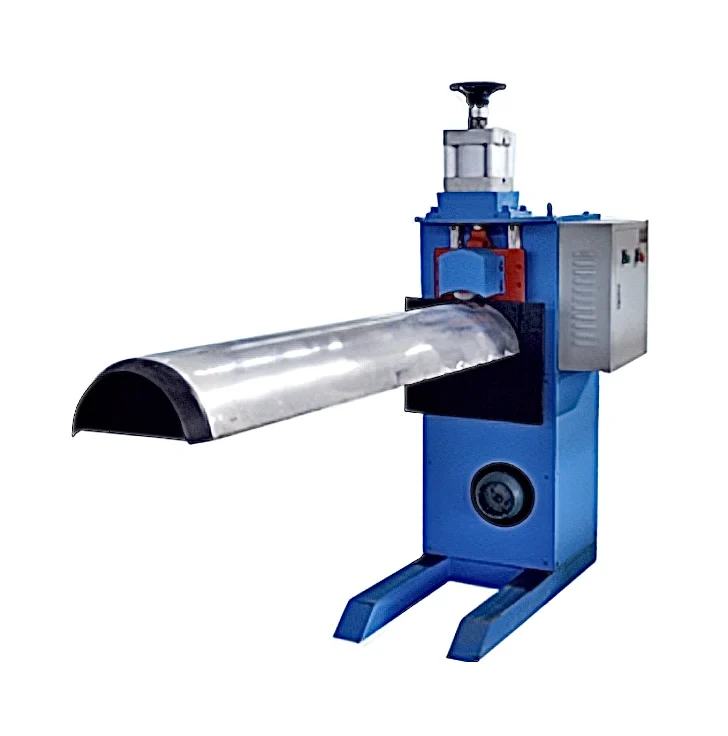

Single Head Shrinking Machine
Spec. L800/ L1000/ L1300 / L1500 / L1800 mm
Pressing metal plate: Color coated galvanized steel/PPGI, Galvanized steel, cold rolled sheetSheet thickness: 0.3-0.8mm
Efficiency: 1-3 pcs/min
Tank diameter: within 500mm
-----Single head shrinking machine picture
Specification
Device performance | this machine is designed for horizontal shrink mouth and ginning specially | ||||||||
The diameter is not less than φ 420 m m, and the length is not less than 700mm | |||||||||
Automatic processing, disposable forming of shrink mouth and rollingl | |||||||||
Length Adjustment: the ball screw driven by a stepping motor, (tolerance ≤ 0.5mm) | |||||||||
the host machine adopts servo motor controls hatchback body synchronization | |||||||||
Available working efficiency ：3 pieces/min (φ 420 mm shell as an example) | |||||||||
Working conditions | Working supply way | The work piece is placed on the transmission line, and the material is loaded and unloaded automatically. | |||||
Workpiece’ processing mode | Automatic and manual | ||||||
The number of workpiece for forsimultaneous processing | one piece | ||||||
Wiring mode | Electrical wirings are all sealed. | ||||||
Shrink mouth depth | According to the operating instructions | ||||||
Control way | Automatic control | ||||||
Lubrication way | Plus lubricants Periodically and regularly | ||||||
Machine Protection | Partly with guard | ||||||
Length adjustment | Use stepper motor to drive the ball screw | ||||||
Automatic lifting | Take use of vacuum cupule | ||||||
Input circuit | 380V | ||||||
Output circuit | 24V or 36V | ||||||
Packing & Delivery
OUR SERVICE
Technical support
30 years experience
Oversea service
12month free warranty
Customer Visit
FAQ
1. Q: What servicesare availabe?
A: Services we could offer: product design, machine production, installation&debugging, local production guidance, spare parts supply etc.
2. Q: What is your payment term?
A: 30% prepaid, 60% paid before loading, 10% paid after installation and debugging at customer's plant.
3. Q: How long will machines be delivered?
A: The time depends on how many sets of machines you require. 20 days to 5 months.
4. Q: How will the machines be packaged?
A: Normally machines will be covered with film and fastened in the container. But package could be customed, like steel frame,wooden boxes etc..
5. Q: How long will the machines be guaranteed?
A: One year.
