3D Спортивное программное обеспечение для футбола иглы пряжа промышленные автоматические машины вязания
- Категория: Sock Knitting Machines >>>
- Поставщик: Foshan,Dafeng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9044.34 $* | 9496.47 $* |
| Aug-15-2025 | 8968.95 $* | 9416.61 $* |
| Jul-15-2025 | 7524.0 $* | 7900.38 $* |
| Jun-15-2025 | 8816.12 $* | 9257.26 $* |
| May-15-2025 | 7676.36 $* | 8060.66 $* |
| Apr-15-2025 | 8664.42 $* | 9097.53 $* |
| Mar-15-2025 | 8588.38 $* | 9017.87 $* |
| Feb-15-2025 | 8512.61 $* | 8938.19 $* |
| Jan-15-2025 | 8436.79 $* | 8858.98 $* |
Характеристики
Product Description
Specification
item | value |
Applicable Industries | Manufacturing Plant |
Showroom Location | Thailand |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Motor, Pump |
Condition | New |
Type | Plain Knitting Machine |
Production Capacity | 2.2kw |
Place of Origin | China |
Guangdong | |
Brand Name | DAFENG |
Voltage | 220V |
Power | 0.75kw |
Weight | 780 |
Dimension(L*W*H) | 2180*900*2000mm |
Warranty | 1 Year |
Key Selling Points | High-accuracy |
After-sales Service Provided | Video Technical Support |

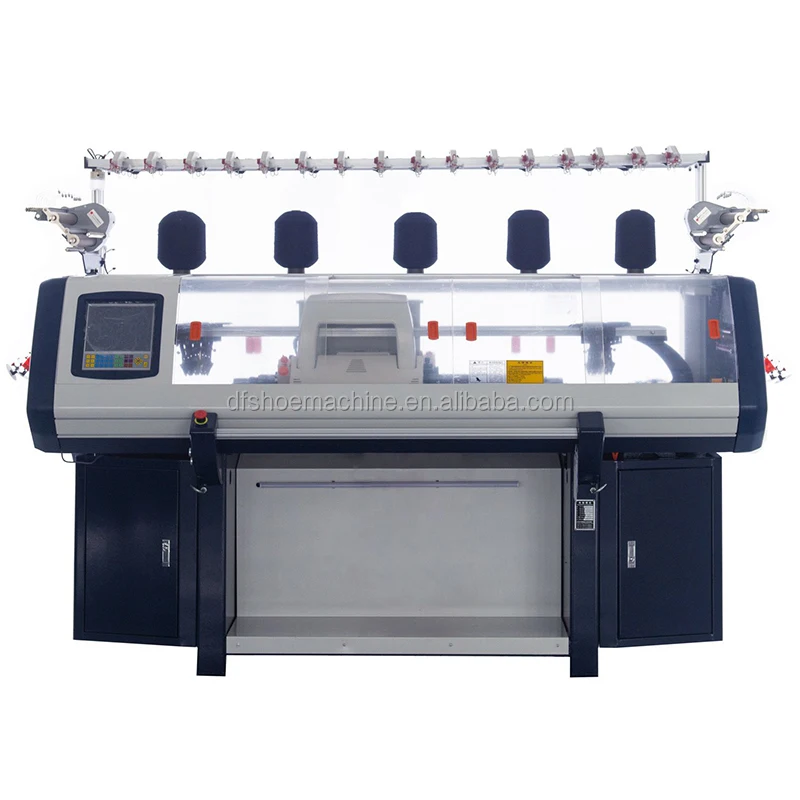

Product name | Socks Making Machine Automatic Computerized Plain |
Keywords | Stocking Knitting Machine |
1.Model | DF-A3-36 |
2.Gauge | 12G、14G |
3.Knittingwidth | 36(inch) |
4.KnittingSpeed | Controlled by servo motor with 8 sections speed optional, max speed reach 1.6M/S, servo motor use the precise back award control and link up the high speed operation ability of digital signal processor (DSP), which control 1GBT to produce the accurate output of electric current. |
5.Knittingsystem | Single carriage with double systems |
6.Knitting functions | Transfer, tuck, pointelle, intarsia, jacquard, evidence shaping, concealed shaping and other regular or irregular patterns. |
7.Racking | Controlled by servo motor racking within 2inches and with fine adjusting function |
8.Alarming system of probes | The safety alarm detect device, achieve to up down and lQIDAt-right swing function, which surmount the normal flat knitting machine with detect simply lQIDAt-right swing only and great increase the detect protect function. |
9.Encoder | Advanced encoder adopted. |
10.Transfer function | Triangle composite design, can transfer needles from front to back and back to front together |
11.Stitchdensity | Controlled by step motor, 32-segment density selection, fine differentiation technology is adopted, adjustable range:0-650.Closed loop system monitoring the current position of motor, which precisely control the length of the fabrics |
12.Sinkerssystem | Controlled by step motor, adjustable to different knitwear, have various results of shaping and pattern. |
13Take down roller | Programmed instruction controlled by step motor changeable pull power with 32 levels and adjusted scope:0-100 |
14.Yarn feeder | 2*8 yarn carriers on both side of 4 guide rails, shift able on any position (special no dashed carriers available) |
15.Protective system | Themachinewillautomaticallyalarmifyarn-breaking,spin,floatingyarn,rewind,endofknitting,fail of tracking, Needle crash, error. Programming occur etc, automatism give an alarm, also setup the safety auto-lock protect device. |
16.Control system | (1)、Screen display: LCD display, touch membrane-wide graphical interfaces, input device depend on USB or internet, the system memory can reach to 2G, can input a large of design files, which can be Fetched out for use at any time as per production requirements. (2)、Monitoring menu: Each kind of operating parameter can be showed by Chinese, English and Arabic language, and adjusted at any time when the machine is running, create conveniences for Operation as much as possible. (3)、Design system and control software are visual and easy to understand and upgrade. |
17.Network | The high-speed ETHERNET, The knitting data can upload, down load and share |
18.Power | Single-phase 220V and triple–phase 380V. adopts advanced CMOS technology, having memorizing function at power–off moment. |
19.Volume&Weight | Length*Width*Height:2180*900*2000mm Net weight: about780KG |
shoe machine application
shoe manufacturing process
Why Choose Us
Company Profile
About us-Professional shoe machine manufacturer
Guang dong Da feng shoe making machine since the date of the establishment,Uphold the "integrity, quality, service,communication"principle, To continue to meet the real needs of target customers, The true mission of customer satisfaction,Forgeahead and Intentions, Force Venture Street brand shoes, Service.
Da feng shoe making machine is a research and development, production, sales, service, agent for the integrated company, Products covered Measuring machine,folding machine,splitting machine,toe lasting machine, Vacuum vulcanizing forming machine ,upper binding machine,attaching machine,nailing machine,heat setter,chilling machine,molding machine,steaming machine,pounding machine,bootleg flattening machine,upper flatten machine,cutting machine,NIR conveyor Etc. And provide Mold, Accessories Etc。
We Can provide the relevant equipment, technical guidance, staff training, service, material supply and other services
Thank customers for their support and concern ，Da feng shoes machinery will be a more reasonable price, Better quality, Better services, And you work together to create brilliant.
Da feng shoe making machine is a research and development, production, sales, service, agent for the integrated company, Products covered Measuring machine,folding machine,splitting machine,toe lasting machine, Vacuum vulcanizing forming machine ,upper binding machine,attaching machine,nailing machine,heat setter,chilling machine,molding machine,steaming machine,pounding machine,bootleg flattening machine,upper flatten machine,cutting machine,NIR conveyor Etc. And provide Mold, Accessories Etc。
We Can provide the relevant equipment, technical guidance, staff training, service, material supply and other services
Thank customers for their support and concern ，Da feng shoes machinery will be a more reasonable price, Better quality, Better services, And you work together to create brilliant.
HONOR
Transaction Process
project case
FAQ
Q1: Are you factory or trading company?
A1: We are factory with 18 years experience in producing shoe machines. We have confidence of both the quality and price. Welcome you to visit our factory.
Q2: What is your MOQ of your Product?
A2: MOQ is 1 set. For regular customers and dealers,more orders, more preferential price.
Q3: What's your payment term?
A3: We accept TT advance payment, CAD or DP through bank, or Letter of Credit .
Q4: What's your machine voltage?
A4: We can customize the voltage as your request. Like 110v/220/380V/415V,single phase/three phases.
A4: We can customize the voltage as your request. Like 110v/220/380V/415V,single phase/three phases.
Q5: What's your after-sales service?
A5: All machines has one year warranty service, any parts damaged (except easy wearing or electronic parts used over 3 months) can be claimed from us. We have exclusive agents and local technical team in India,Vietnam, Bangladesh, Cambodia etc more than 8 countries , every single customer has their communication group chat through whatsapp or wechat with our sales and technicians, any machine problem will be promptly replied. For complete line project.
Q6: What is the product package?
A6: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
A6: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
Q7: Do you test all your goods before delivery?
A7: Yes, our procedure is to pass the QC check 100% before delivery.
Q8: How to install the machine?
A8: The normal machines are already installed before deliver.So after receiving the machine,you can directly connect to the power supply and use it. We may also send you the manual and operating video to teach you how to use it. For bigger machines,we can arrange for our senior engineers to go to your country to install the machines.They can give you technical training.
A8: The normal machines are already installed before deliver.So after receiving the machine,you can directly connect to the power supply and use it. We may also send you the manual and operating video to teach you how to use it. For bigger machines,we can arrange for our senior engineers to go to your country to install the machines.They can give you technical training.
Q9:Why can i trust you and place order with you?
A9: Our company established since 2005, so far we have served more than 2000 clients from more than 40 ountries/areas, cooperate with many famous brand like Nike, Adidas, Hush Puppies, Lotto,Zara, H&M etc. We are awarded china Top 10 shoe machine manufacturer, DAFENG offer complete solution for More than 500 shoe factories, well-know for the quality and service.
