10 тонный катушитель

Категория: Other Construction Material Making Machinery >>>
Поставщик: Cangzhou,Zhongtuo,Roll,Forming,Machinery,Co.,Ltd.

Цена:8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	9520.30 $*	9996.63 $*
Aug-18-2025	9440.64 $*	9912.24 $*
Jul-18-2025	7920.13 $*	8316.50 $*
Jun-18-2025	9280.90 $*	9744.99 $*
May-18-2025	8080.87 $*	8484.52 $*
Apr-18-2025	9120.93 $*	9576.38 $*
Mar-18-2025	9040.14 $*	9492.2 $*
Feb-18-2025	8960.64 $*	9408.76 $*
Jan-18-2025	8880.0 $*	9324.18 $*

Характеристики

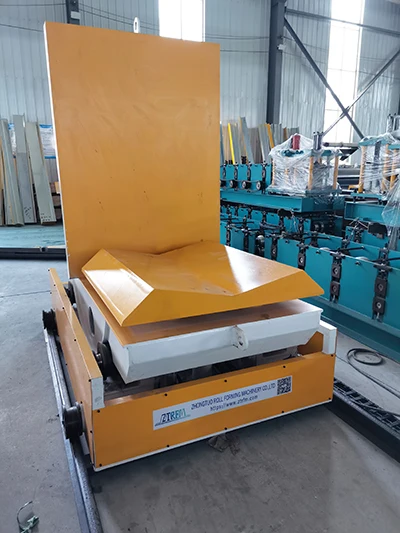

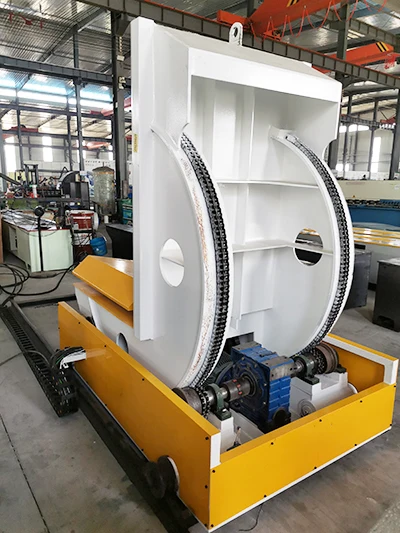

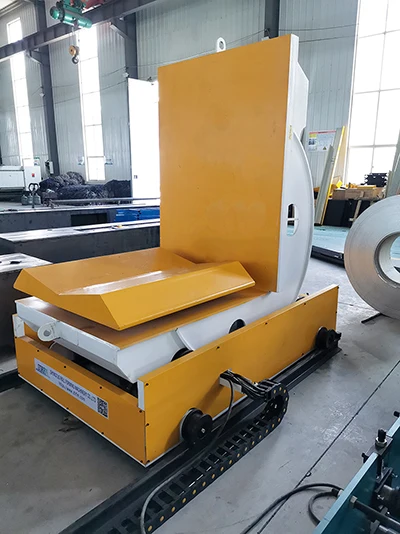

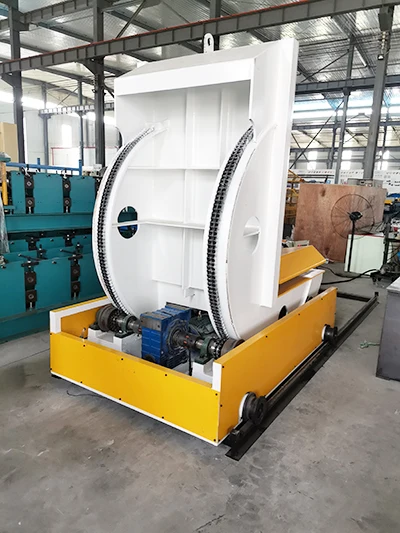

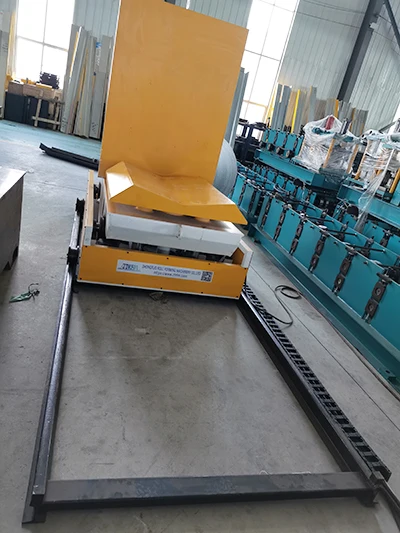

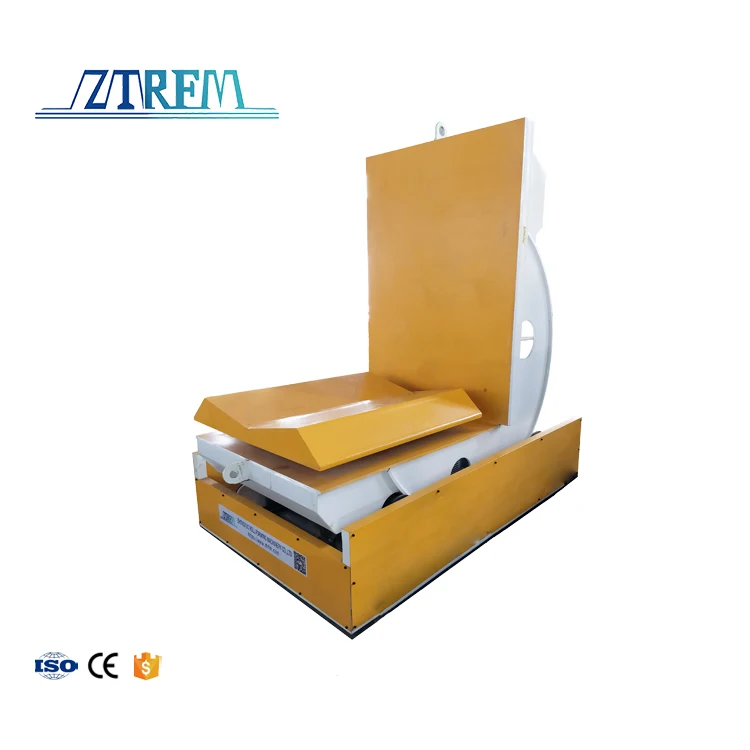

What is an upender or tipper
An upender or tipper is used in a variety of applications and is a great alternative to a weld positioner. They are typically used in servicing injection molds to lay the mold down for an overhead crane to split them vertically. It’s also used in upending coils to allow handling via a c-hook through the coil ID. Their primary function is to upend or downend a load to a 90-degree angle. This makes changing positions to transport or service the load far more efficient. Tippers or upenders are easy to integrate with any material handling system.

Industries That Use a 90º Upender or Mechanical Tipper

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Upender line is designed to turn wide stacks of products or extremely heavy loads including coils, molds, and more. Industries that work with steel, aluminum and other heavy materials can benefit from mechanical tippers and upenders, as they protect workers and improve efficiency. An upender is an important addition to any factory floor. You can easily tip steel, aluminum and other types of coils or molds using this equipment. Your employees won’t have to handle any loads, helping you avoid workplace accidents, tool damage, time off and compensation claims.

Technical parameter
No.	Item	Details
1	Upender maximum load	10 tons
2	Upender discharge panel	1.351.6 m (4 5 feet)
3	Coil width	300-1250 mm (12-50 inch )
4	Flip cylinder	2 set journey 900mm Cylinder Dia: 160mm
5	Main hydraulic pump station	5.5 KW
6	journey	180 degree turn
7	Machine frame	400# steel
8	box body	25mm thickness plate welding
9	Upender weight	2.5 tons
10	Voltage	380 v 50 hz 3 phase (Customized)
11	Upturn method	Hydraulic
12	Delivery time	25 days

A Safer Way to Handle Heavy Loads

The main benefit of using a coil tipper or upender is safety. Working with any heavy loadintroduces the potential accidents or injuries. With an upender, staff doesn’t have to turn loads manually or using unsafe means. This results in less chance of an accident — which can interrupt your productivity, damage your products, coils, and molds, or lead to costly liability issues. Our equipment features easy-to-use motorized controls that can be automated for increased
convenience.
