Характеристики
Products Description

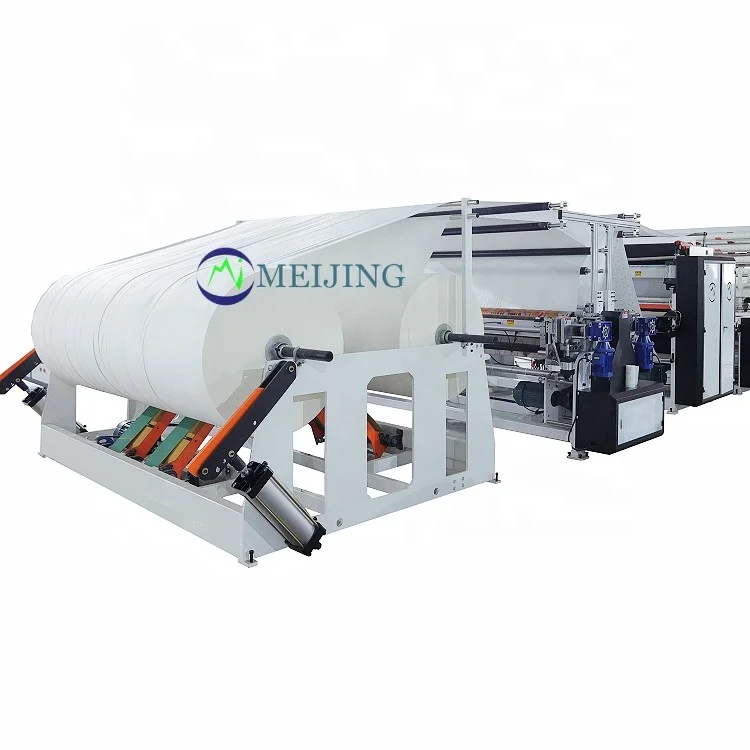

Fully Automatic Toilet Tissue Paper Roll Making Machinery And Rewinding Machine Line With Packing Machine
Machine Model | FS-1575 | FS-2200 | FS-2500 | FS-2800 | |||
Paper Width | 1800mm | 2200mm | 2500mm | 2800mm | |||
Finished paper core dia | 30-55mm | ||||||
Jumbo roll dia | 1200mm | ||||||
Jumbo Roll Core Diameter | Standard 76mm | ||||||
Finished Diameter | 90-150mm, can be customized to 300mm for maxi roll | ||||||
Machine Speed | 200-240m/min | ||||||
Back Stand | Standard three layer synchronous transmission | ||||||
Parameter Setting | PLC computer operating system interface | ||||||
Pneumatic System | The 3 horse air compressor,a minimum pressure of 5kg/cm2Pa | ||||||
Power | Stepless variable speed | ||||||
Driving | Independent motor step drive | ||||||
Machine Structure | Independent wallboard structure | ||||||
Band Saw Cutting Machine
♦ 1. The band saw transmits torque through magnetic particles filled in the working gap.
♦ 2.By changing the excitation current, the magnetic state of the magnetic powder can be changed and the transfer torque can be
adjusted.
♦ 3. Stepless speed regulation from zero to synchronization.
♦ 4.This band saw machine is suitable for fine adjustment of high speed section and speed control system of medium and low power.
♦ 2.By changing the excitation current, the magnetic state of the magnetic powder can be changed and the transfer torque can be
adjusted.
♦ 3. Stepless speed regulation from zero to synchronization.
♦ 4.This band saw machine is suitable for fine adjustment of high speed section and speed control system of medium and low power.
Machine name | Automatic Band Saw Cutting Machine for Toilet Paper Rolls | ||||||
Power supply | 5kw 380V 50H | ||||||
Cutting tolerance | ±1.5mm | ||||||
Cutting blade | band saw blade (Size 3750*60*0.6) | ||||||
Finished paper roll diameter | 70-150mm | ||||||
Finished paper roll length | ≦300mm | ||||||
Machine Speed | 100～120cuts/minute | ||||||
Overall size | 2800*1500*2100 mm | ||||||
Machine weight | 1100KG | ||||||
Toilet log length | ≦2850mm(it can be made according to customer request) | ||||||
Packing Machine
1. Adopt packing method by wrapping, folding and sealing with compact structure and high product appeal.
2. Adopts advanced PLC computer program, human-machine interface operation.
3. Automatic tailing, automatic push function,cutting and sealing
4. Emergency stop/pause control function,safe power off, pressure protection.
Machine name | Full Automatic Toilet Paper Packing Machine | ||||||
Scope of Application | Toilet Paper roll, Kitchen Towel Roll | ||||||
Packing Material | CPP, packing film | ||||||
Packing film thickness | 0.018mm~0.06 mm | ||||||
Packing speed | 70-150mm | ||||||
Finished paper roll length | ≦300mm | ||||||
Machine Speed | 120-160 rolls/min | ||||||
Single roll size | Diameter:90-120 mm,Height:95-200 m | ||||||
Power supply | 220 V 50 H | ||||||
Control | PLC | ||||||
Machine Weight | 2500kg | ||||||
Full Servo | feeding, cutting , sealing | ||||||

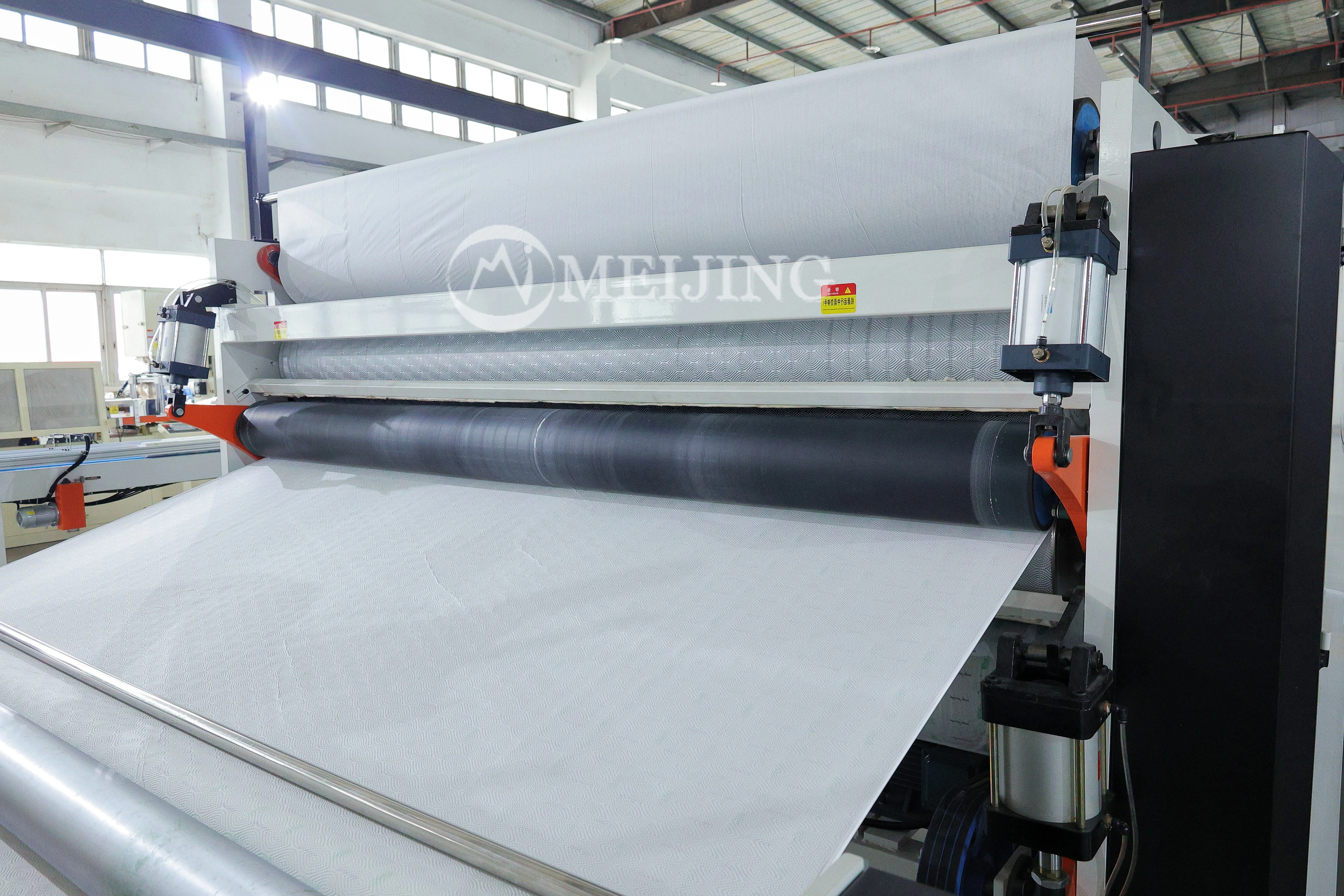

Full Embossing Unit
1.The whole wallboard Structure: 30 mm steel plate
2.Steel roll to steel roll or steel roll to rubber roll
3.Independent motor driving, frequency converter control
4.Embossing roll dia: 320 mm depends on machine width.
5.We will provide embossing pattern for free or design
3.Independent motor driving, frequency converter control
4.Embossing roll dia: 320 mm depends on machine width.
5.We will provide embossing pattern for free or design

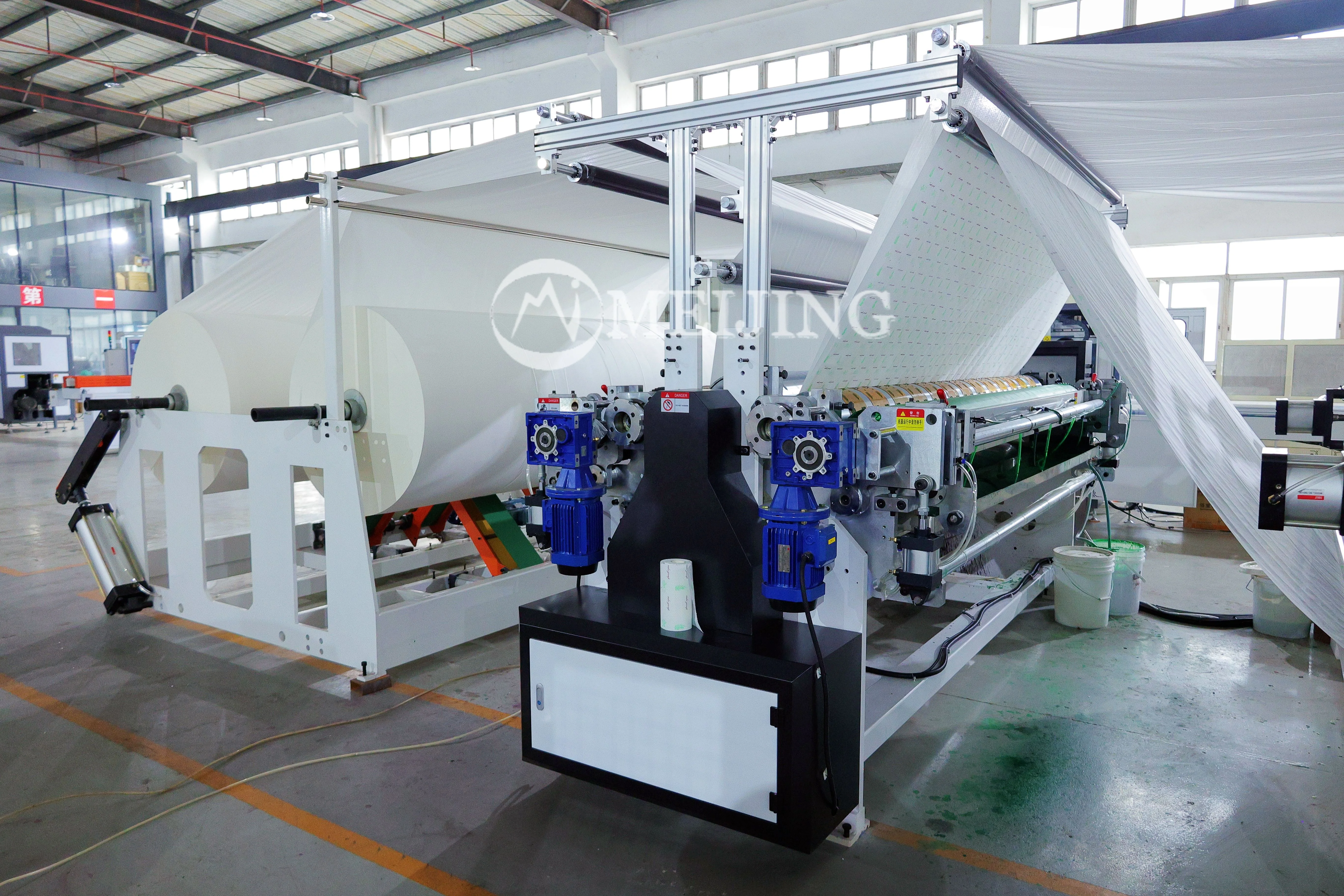

High Level Glue Lamination System
1. It adopts scraping glue system, also can adopt rolling glue, the cost is different.
2.Independent motor control glue: when stop machines, this motor automatically stir glue to avoid glue dry hard to clean.3.when paper broken, machine will stop automatically.
1.What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
2.Are your a manufacturer?
A: Yes. Of course we are. We are specialized in paper tissue converting manufacturing in Foshan City for more than 15 years.Welcome to visit our factory and I believe you will be satisfied with our products.
3.What's your advantages? A: We have more than 15years experience in the field of paper making
industry. ISO9001 and BV certification. Strict quality control of every procedure. Perfect after-sales service.
industry. ISO9001 and BV certification. Strict quality control of every procedure. Perfect after-sales service.
4.Can you send us sample?
A: we can send samples for free, also wish you can send us your sample to analysis your tissue products.
