Заводская Настройка высокая точность BK7 стекло диаметр 25 4 мм угловой кубик
- Категория: Prisms >>>
- Поставщик: Nantong,Lianze,Promise,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.99 $* | 6.79 $* |
| Jul-16-2025 | 5.39 $* | 5.15 $* |
| Jun-16-2025 | 6.39 $* | 6.90 $* |
| May-16-2025 | 6.90 $* | 6.6 $* |
| Apr-16-2025 | 5.92 $* | 5.46 $* |
| Mar-16-2025 | 6.67 $* | 6.22 $* |
| Feb-16-2025 | 6.87 $* | 6.67 $* |
| Jan-16-2025 | 6.2 $* | 6.76 $* |
Характеристики

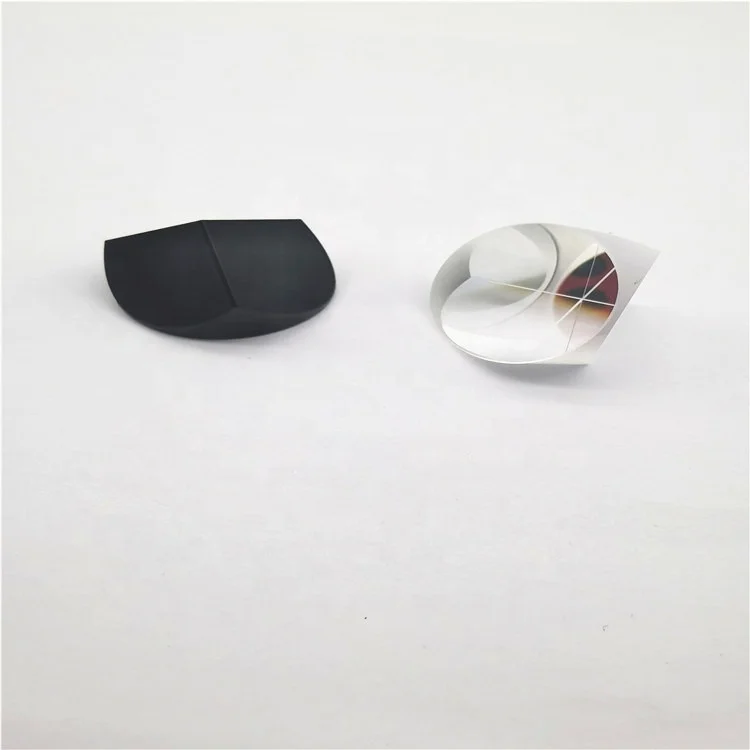

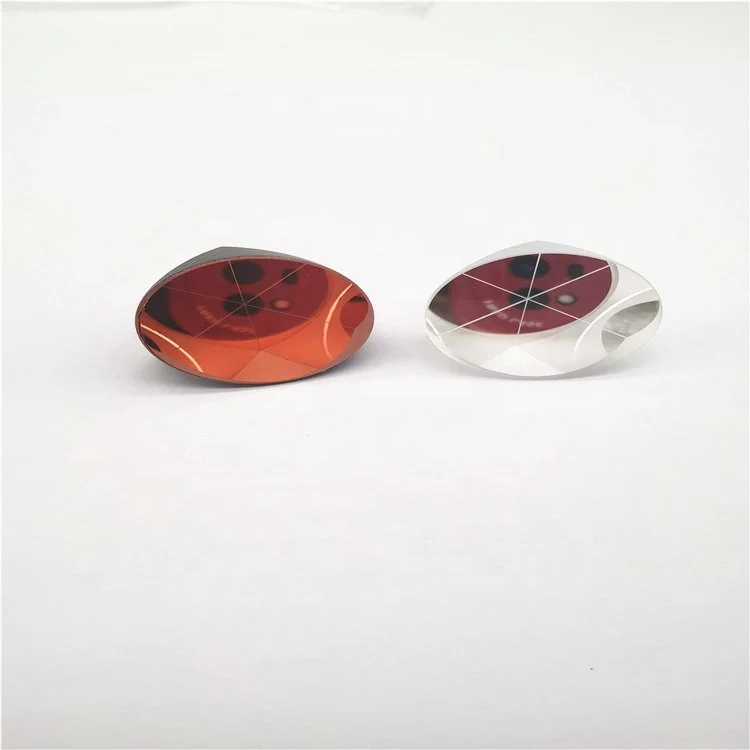

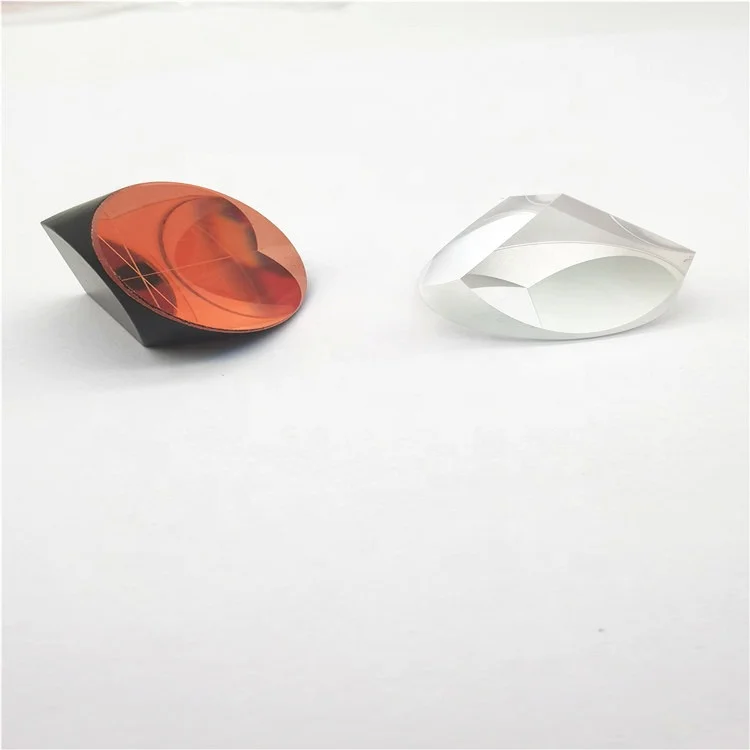

Factory customize High precision BK7 glass dia 25.4 mm uncoated corner cube reflector prism
Feature of corner cube prism
* Corner cube prism is also known as a CCR or trihedral prism manufactured from fine BK7optical glass
* It consists of three adjacent, mutually-orthogonal plane-reflecting surfaces which form the corner of cube
* The corner cube reflects the incident ray at a specific angle, indepedent of the prism and beam orientations
* Reflect the incident light at 180 degrees
* A number of coating options are available. The front face may have an AR coating applied,and the three reflecting faces may have metallic or dielectric coating or may remain uncoated.
* It consists of three adjacent, mutually-orthogonal plane-reflecting surfaces which form the corner of cube
* The corner cube reflects the incident ray at a specific angle, indepedent of the prism and beam orientations
* Reflect the incident light at 180 degrees
* A number of coating options are available. The front face may have an AR coating applied,and the three reflecting faces may have metallic or dielectric coating or may remain uncoated.
Product Description
Material | BK7/fused quartz or other crystal material |
Surface Quality | 60-40 or OEM |
Dimension Tolerance | +/-0.05 to 0.1mm |
Angle Tolerance | 3 or customize |
Flatness | 1/4 lambda or as needed |
size range: | 12.7mm, 25.4mm, 64mm |
180° deviation tolerance | ±2''~±10'' |
Chamfer | optical level as needed |
Bevel | Protective bevel as needed |
Coating type | BBAR 400~700nm,Ravg<0.5% as needed |
Application:
Corner cubes are used in a wide variety of applilcations such as spectroscopy, battlefield technology laser resonator cavities,land surveying, ground base range-finding, satellite communications and space vehicle docking.Details Images
Related products
Company Profile
Nantong Lianze Promise Technology Co.,Ltd. is a manufacturer of optical filters(long pass and Narrow band pass),Lenses,Prism,Protection coated window,Telescope,Camera filters.
We could also design special optical component according to customers' requirement.
Introduction of our company
Our company is located in optical bases of China--Nantong City,which is famous for Optics and Fine Mechanics and the best quality teaching are all in here.
---Who we are?
Our company estabished in 2010,who specialized in manufacturing variety of optical precision components.Through many year's hark work and positive innocation,we have become a optical company integrating optical products design,production and sales.
View of our equipment,tooling in warehouse
Nantong Lianze Promise Technology Co.,Ltd. will test every lens before shipping in order to keep quality is compliance with specification,inspection report could be provided together with every goods.
We care about every details of each article, every lens will be packed in strong enough package, and special packing will be available as requested.
We care about every details of each article, every lens will be packed in strong enough package, and special packing will be available as requested.
Application of our lenses Avionics,Astronomy,Military,Medical,Scientific,Laser,Camera ect..
Company Patent
Customer Feedback
Nantong Lianze Promise Technology Co.,Ltd. received many praise from customers who bought items from us, fast delivery, high quality and best service will be your first choice.
FAQ
Q: Do you provide samples? Is it free or charged?
· We'd like to supply samples for free if we have it in stock, but we don't pay freight.
Q: How long is your delivery time?
· Regarding inventory, it is 3 working days;
· For customized one, it's about 15-25 working days, depended on exact quantity and order date.
Q: Is it possible to customize special lens?
· Yes, to customize special optical element and coating are available here.
Q: How to pay?
· T/T, Alibaba online assurance payment, MoneyGram, West Union, Paypal and so on.
Q: How to ensure the safety of payment?
· Lianze Promise Technology is a reliable supplier on Alibaba and we support Alibaba Trade Assurance.
Q: How do you ship goods?
· Low value sample: EUB, E Express of China Post, which is cheap;
· Light weight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on pallet.
Our company enjoy a considerable discount owing to long-term cooperation with courier company.
· We'd like to supply samples for free if we have it in stock, but we don't pay freight.
Q: How long is your delivery time?
· Regarding inventory, it is 3 working days;
· For customized one, it's about 15-25 working days, depended on exact quantity and order date.
Q: Is it possible to customize special lens?
· Yes, to customize special optical element and coating are available here.
Q: How to pay?
· T/T, Alibaba online assurance payment, MoneyGram, West Union, Paypal and so on.
Q: How to ensure the safety of payment?
· Lianze Promise Technology is a reliable supplier on Alibaba and we support Alibaba Trade Assurance.
Q: How do you ship goods?
· Low value sample: EUB, E Express of China Post, which is cheap;
· Light weight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on pallet.
Our company enjoy a considerable discount owing to long-term cooperation with courier company.
Every details of production and communication is crucial for us, please do feel free to tell us any your question, suggestion or comment on us, it will be very helpful for us to be a worthy, trusted and reliable supplier. Thank you for visiting and stopping!
