3 градуса квадратная клиновая призма
- Категория: Prisms >>>
- Поставщик: Nanyang,Jingliang,Photoelectric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.84 $* | 0.60 $* |
| Aug-15-2025 | 0.89 $* | 0.39 $* |
| Jul-15-2025 | 0.31 $* | 0.88 $* |
| Jun-15-2025 | 0.95 $* | 0.13 $* |
| May-15-2025 | 0.54 $* | 0.89 $* |
| Apr-15-2025 | 0.56 $* | 0.42 $* |
| Mar-15-2025 | 0.96 $* | 0.7 $* |
| Feb-15-2025 | 0.38 $* | 0.63 $* |
| Jan-15-2025 | 0.43 $* | 0.53 $* |
Характеристики
Product Description
3 Degree Square Wedge Prism For Experiment
Material: BK7 UV Fused Silica
Design Wavelength: BK7-632.8nm, n=1.515 (632.8nm) UVFS-355nm, n=1.476 (355nm)
Dimension Tolerance: +0/-0.1mm
Thickness: 3mm on the thinnest edge
Wedge Angle Tolerance: 30 arc sec.
Flatness: Surface Quality: 60/40 scratch and dig
Clear Aperture: >90%
Deviation Angle: From 1°to 10°
Coating: custom
Design Wavelength: BK7-632.8nm, n=1.515 (632.8nm) UVFS-355nm, n=1.476 (355nm)
Dimension Tolerance: +0/-0.1mm
Thickness: 3mm on the thinnest edge
Wedge Angle Tolerance: 30 arc sec.
Flatness: Surface Quality: 60/40 scratch and dig
Clear Aperture: >90%
Deviation Angle: From 1°to 10°
Coating: custom
Product name | Wedge Prism |
Material | Optical Glass Quartz BK7 K9L Acylic |
Type | Prism |
Color | Transparent |
Diameter Tolerance | 0.00/-0.02mm |
Flatness | 1/4lambda |
Clear Aperture | 98% |
Surface quality | 60/40 |
Coating | Customer Request |
Application | Optical instruments |

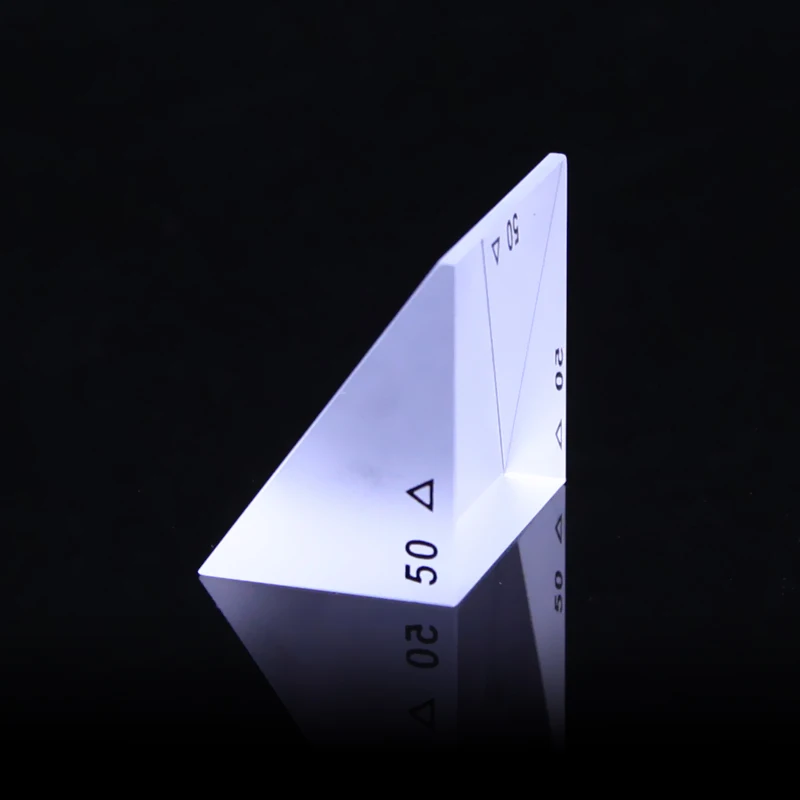

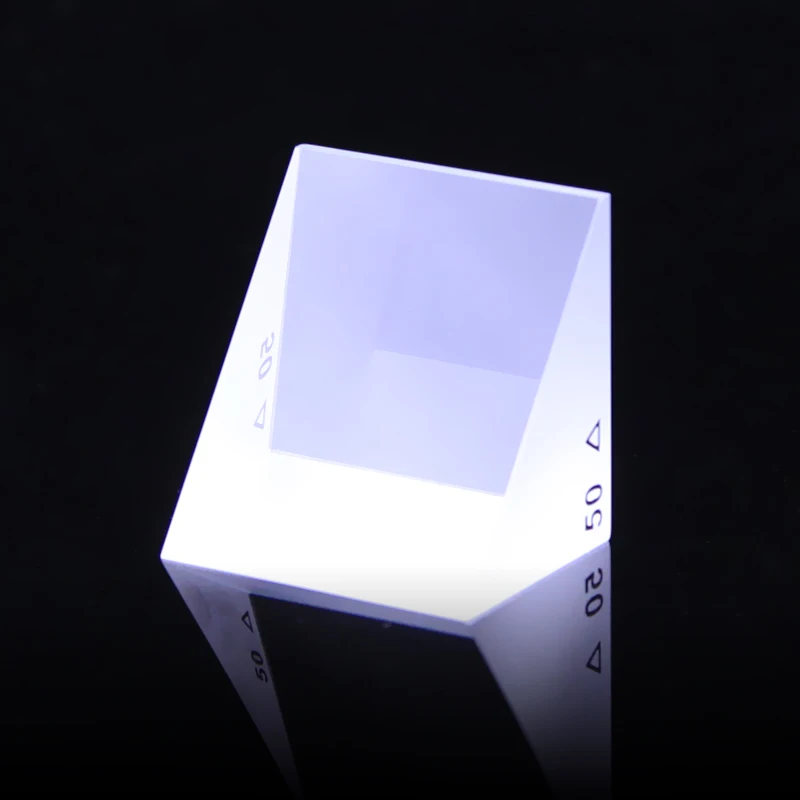

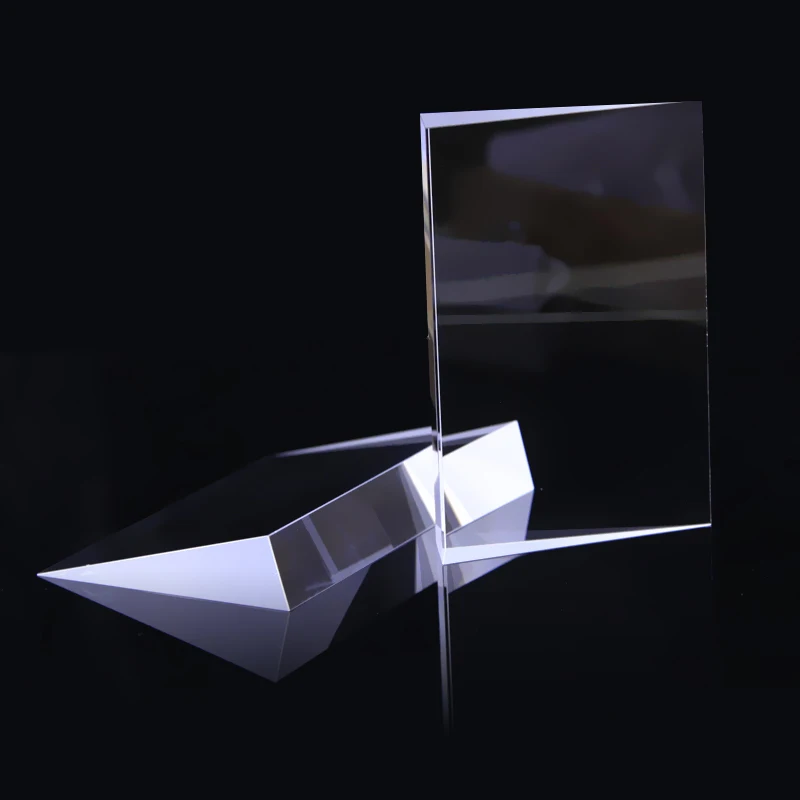

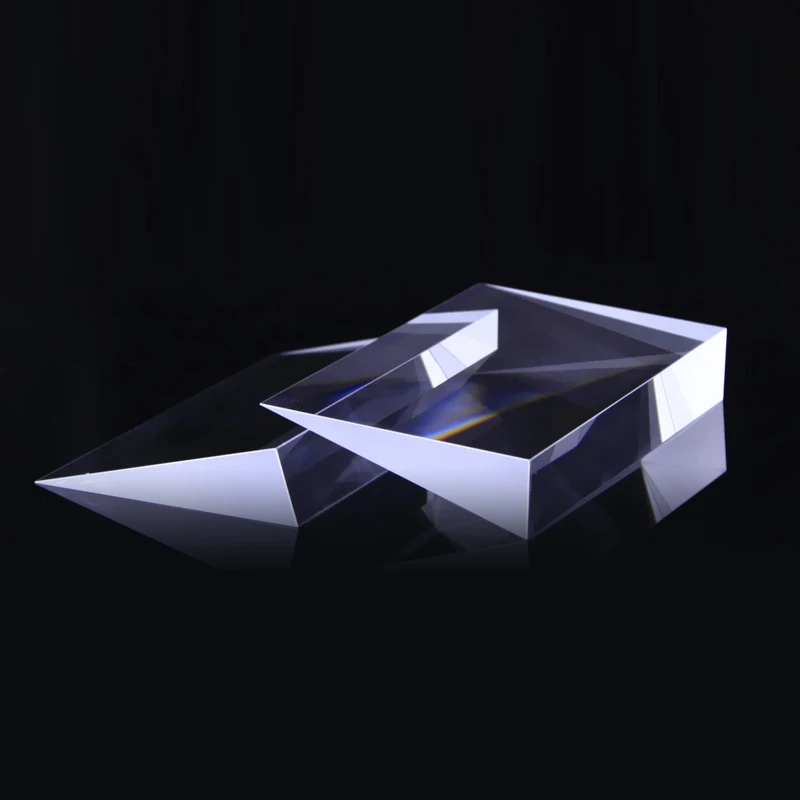

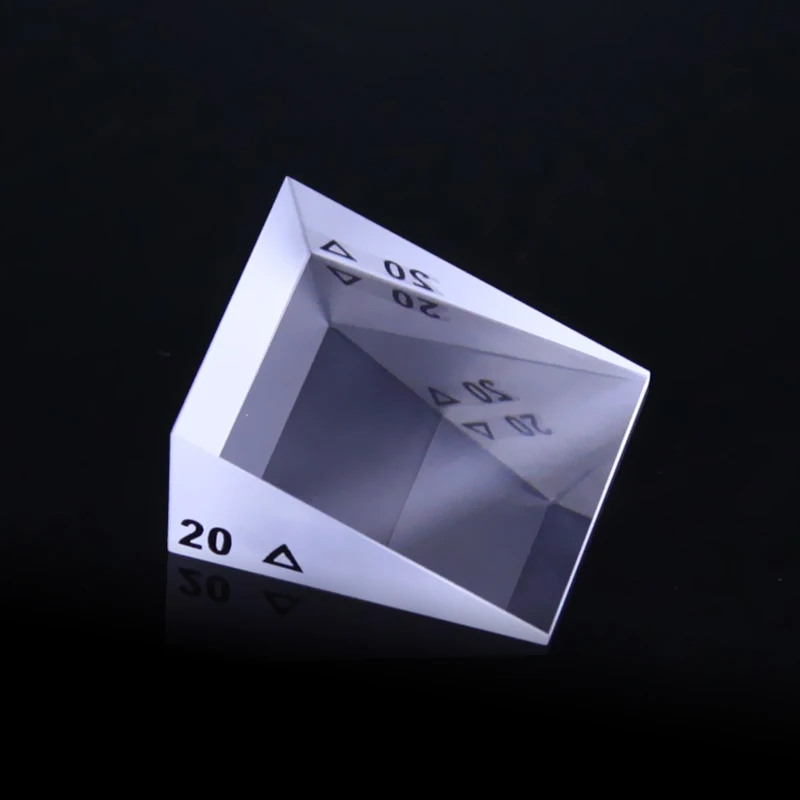

Detailed Images
Packing & Delivery
Company Profile
Nanyang Jingliang Optical Technology Co., Ltd. was established in 1985 with a registered capital of 1 million yuan.
We are a high-tech enterprise specializing in the processing, production and sales of optical glass products, prisms and lenses. The headquarters and R&D base are located in central China. The largest optical equipment manufacturing site, Huanggang Industrial Park, Nanyang, Henan.
Our company has strong technical and R&D capabilities, with professional technicians, operators and sales teams.
Factory Production Line
Certificate
FAQ
