Оптическое прозрачное стекло высокой точности на заказ фианит цилиндрическая матрица
- Категория: Prisms >>>
- Поставщик: Beijing,fortune,opto,electronic,technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.21 $* | 0.25 $* |
| Aug-15-2025 | 0.99 $* | 0.67 $* |
| Jul-15-2025 | 0.43 $* | 0.10 $* |
| Jun-15-2025 | 0.73 $* | 0.13 $* |
| May-15-2025 | 0.74 $* | 0.75 $* |
| Apr-15-2025 | 0.48 $* | 0.62 $* |
| Mar-15-2025 | 0.24 $* | 0.24 $* |
| Feb-15-2025 | 0.4 $* | 0.33 $* |
| Jan-15-2025 | 0.13 $* | 0.90 $* |
Характеристики
Products Description

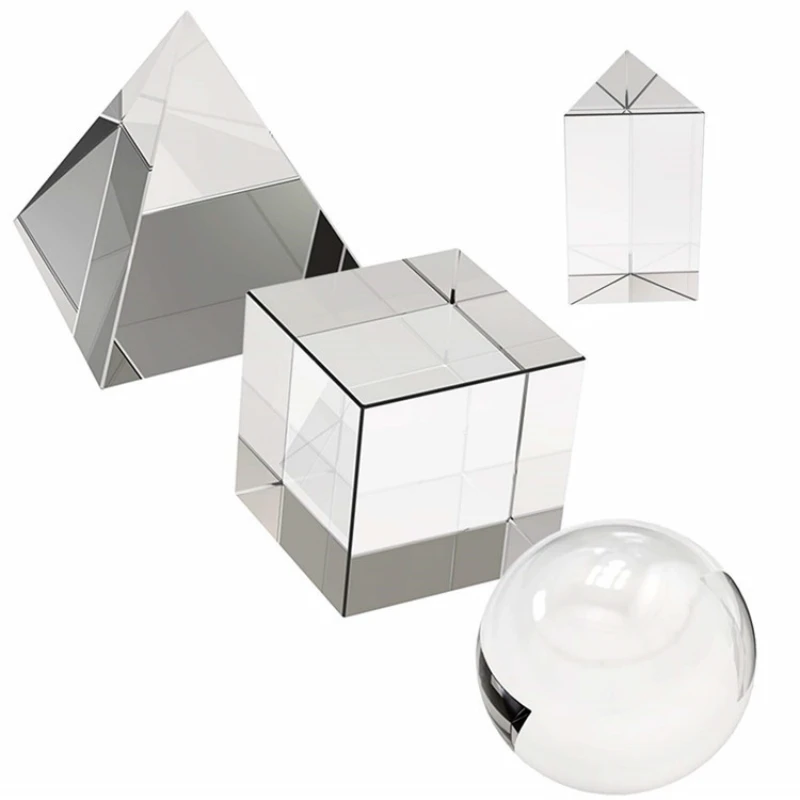

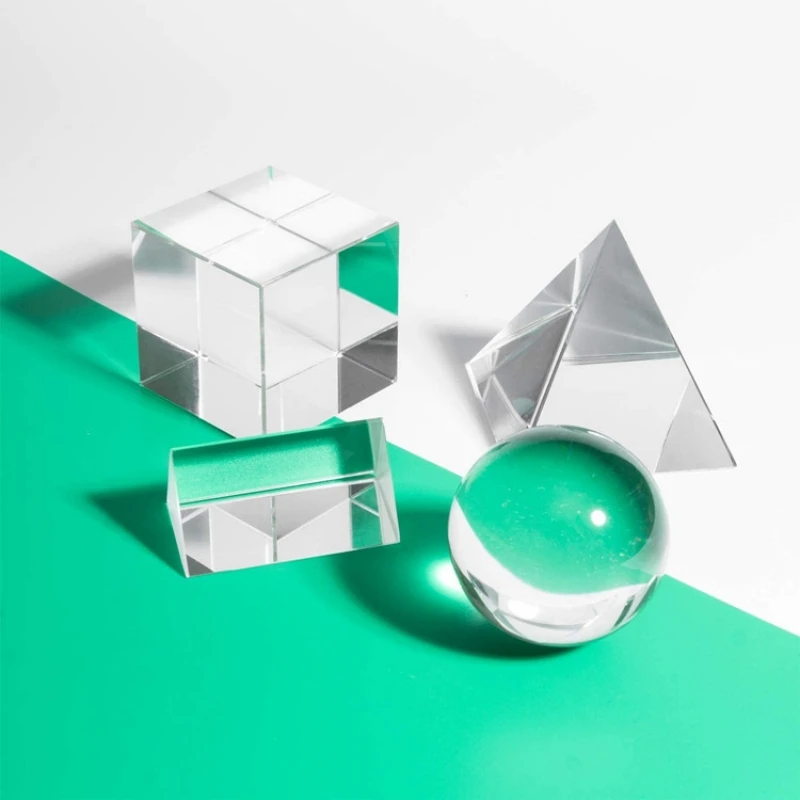

Custom High Precision Optical Crystal Glass Cubic Reference Prism and Cylindrical Surveying Reflective Prism Glass for sale
Custom Window,Mirror,Waveplates, Filters, Beamsplitters, Prisms, Lens, and other optics. | ||||||||
Wavelength | UV | VIS | IR | Other band | ||||
Optics | Lens | Prism | Mirror | Beamsplitter plate | ||||
BK7 K9 | Plano-convex lens | Right-angle prisms | Metallic mirro | Beamsplitter cube | ||||
Quartz | Plano-concave lens | Dove prisms | Dielectric mirror | Cylindrical rod lens | ||||
Borosilicate | Bi-convex lens | Penta prism | Flat front mirror | Filters | ||||
Sapphire | Bi-concave lens | Cube prisms | Flat concave mirror | Fresnel lens | ||||
Ruby | Meniscus lens | Triangular prisms | Prism mirror | Windows | ||||
CaF2 | Achromatic lens | Corner cube prism | Half mirror | Coating & Assembely | ||||
ZnSe | Ball and half ball | RGB combiner prism | Special-shaped | Hot sale | ||||
Other | Other | Other | Other | Other | ||||

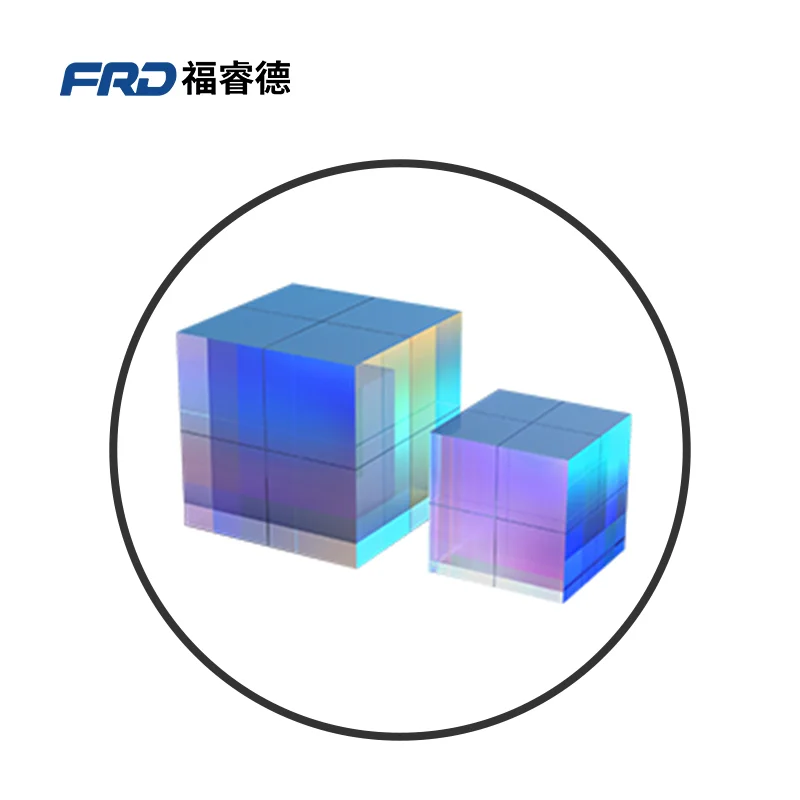

The cubic reference prism is a regular hexahedron, and the angle tolerance between its adjacent faces is 2~5 seconds, and there are 3-5 adjacent faces AR coated and cross reticle. In the development process of the spacecraft, the cubic mirror coordinate system can be constructed by directly measuring the normal of the cubic reference prism reflection surface with the electronic theodolite, and it can represent the spatial position of the product.

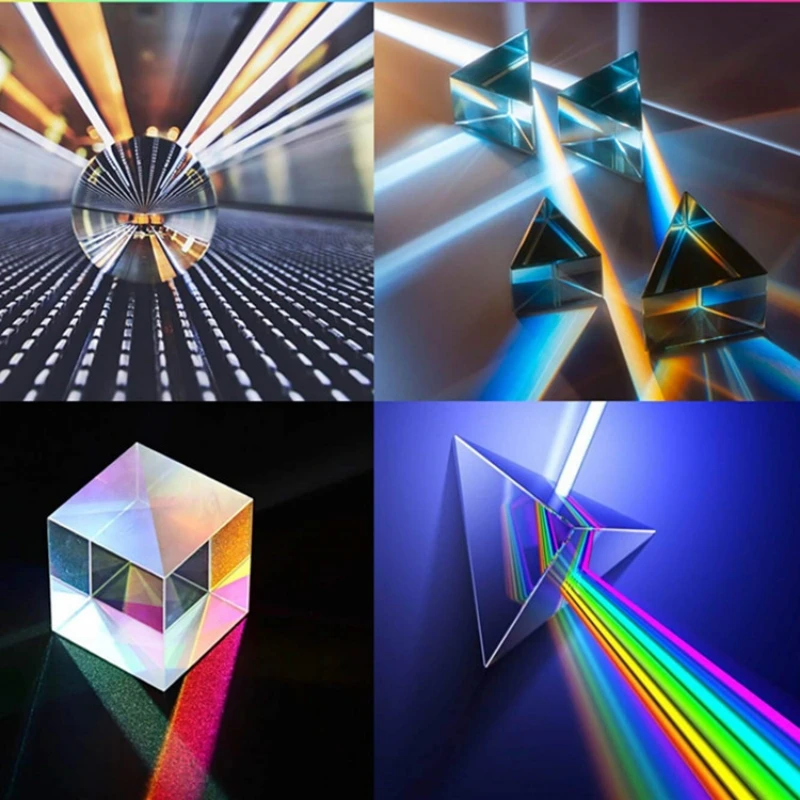

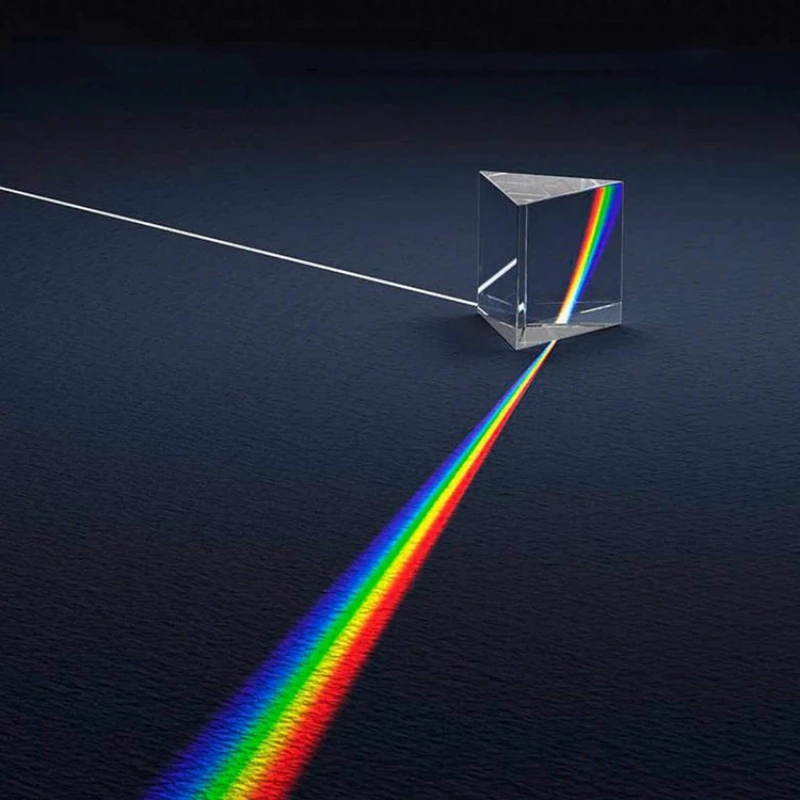

Prisms are often used for beam reflection. reflection and image deflection, etc. It is an important component of the optical system. FRD Optics provides variety of types and materials of prisms.
Optical Lenses : Achromatic lens Aspheric lens Plano-Convex（PCX）lens Cylinder lens | Optical Mirrors: Flat mirror Laser Line mirror Off-Axis Parabolic mirror Focusing Concave mirror | Windows and Diffusers : Visible Windows UV and IR Windows Laser Line Windows Optical Diffusers | Optical Filters: Bandpass filter Longpass filter Shortpass filter Neutral Density（ND）filter | Aspheric Lenses Polarization Optics Prisms Beamsplitters:Cube / Plate Diffraction Gratings |
Optical Material Overview | ||||||||
Materials name | Refractive Index | Transmission Range(um) | Thermal Expansion Coefficient (10'7K) | Density(g/cm3) | ||||
BK7 | 1.5164 (588nm) | 0.330-2.1 | 7.5 | 2.52 | ||||
Fused Silica | 1.4858 (308nm) | 0.185-2.5 | 0.58 | 2.2 | ||||
Crystal Quartz | n0= 1.5427 ne=1.5518 (633nm) | 0.200 - 2.5 | 13.2||a;7.1||c | 2.65 | ||||
CaF2 | 1.399 (5000nm) | 0.170-7.8 | 18.85 | 3.18 | ||||
MgF2 | n0= 1.3836 ne= 1.3957 (405nm) | 0.120-7.0 | 13.7||a;8.48||c | 3.17 | ||||
Sapphire | 1.755 (1000nm) | 0.180-4.5 | 8.4 | 3.98 | ||||
Silicon | 3.426 (5000nm) | 1.2-7.0 | 2.55 | 2.33 | ||||
Germanium | 4.004 (10000nm) | 2.0-14.0 | 5.5 | 5.33 | ||||
ZnSe | 2.4028 (10600nm) | 0.55-19.0 | 7.6 | 5.27 | ||||
YVO | n0= 1.9500 ne=2.1554 (1300nm) | 0.35-4.0 | 4.43||a; 11.37||c | 4.22 | ||||
Calcite | n0= 1.6557 ne=1.4852 (633nm) | 0.210-2.3 | 5.68||a; 24.39||c | 2.7 | ||||
a-BBO | n0= 1.6749 ne= 1.5555 (532nm) | 0.190-3.5 | 4.0||a; 36.0||c | 3.85 | ||||
LiNbO3 | n0=2.2863 ne=2.2027 (633nm) | 0.370 - 4.5 | 14.8||a;4.1||c | 4.64 | ||||
Company Information
FRD Optics Technology Co., Ltd is focus on the R&D, production and sales of optical components, optical lenses and infrared thermal image for more than 10 years.Our products are mainly used in electric power monitoring, maritime monitoring, petroleum and petrochemical, metallurgical manufacturing, coal mine safety, airport inspection and quarantine,Oilfield monitoring and scientific research, railway testing, urban security monitoring, border monitoring, highway monitoring, forest fire prevention, fire protection and other industries.
What product FRD can supply:
Products including: Optical element,optical lens,such as UV lens, Visible light lens, Near-infrared short-wave lens, medium-wave cooled lens, infrared long-wave lens, terahertz camera lens,we're an all band optical products supplier.
Lenses customized
Such as Extender/Teleconverter lenses,Field lenses,Terahertz Lenses,Beam Expander,Shot Wave Infrared (SWIR)Lenses,UV Lenses,Telecentric Field Lenses,Prime Athermalized Lens,Continuous Zoom Lens,Dual field of view lens,Medical temperature measuring lens,Uncooled surveillance camera,Laser field lens-Telecentric Scan lens,etc.
Optical element:
Such asdiaphragms speculum lenses,sphere lenses,brewster window,plane waveplate,plane mirror,plano filter,plane windows,attenuance filter, plane attenuator,curved surface mirror,
clindrical lenses,prisms,ellipsoidal mirror,spherical lenses,infared (IR) Filter,axicon lenses,aspherical lenses,aspherical metal lenses,aspherical mirror,spherical mirror,etc.
clindrical lenses,prisms,ellipsoidal mirror,spherical lenses,infared (IR) Filter,axicon lenses,aspherical lenses,aspherical metal lenses,aspherical mirror,spherical mirror,etc.
Module customized
Such as LWIR Uncooled module,Temperature measurement type,LWIR Uncooled module--Alarm type,MWIR cooled module,etc.
Complete equipment
Such as Dual optical path monitoring system,HD Laser Night Vision,Automatic infrared human body thermometer,Thermal Imaging Microscope,Dual light ship navigation aid system,FRD_F series handheld thermal imager,Military Multispectral Handheld Thermal Imager,Dual optical path Forest Fire Monitoring System,etc.
Optical materials
Such as BK7,Fused Silica,Quartz,CaF2,MgF2,Sapphire,Silicon,Germanium,ZnS,etc.
Optical design
Quality assurance
Certificate
FAQ
1. Q: How to order on Alibaba?
A: With regards the payment with your visa&master card, please refer to below steps.
1.Please create a personal buyer account before you by from Alibaba,
2.Write your email address, when place an order,
3.Go to your email and click the link,"Send Initial Payment/Pay Balance" or " Go to Pay"
4.Then choose"+Add a new card to pay in USD($)"
5.Fill in the bank card information, "Confirm and Pay", that charge from your card directly, place an order。
2. Q: What information will I have to provide for price?
A: To offer the exact price, we hope customers could inform us the material, specification as thickness, size, surface treatment, quantity required and so on.
3.Q: Can I order with just my logo?
A: Of course! Any color, shape and size with any designs!
4.Q: How do you prefer my artwork or logo to be supplied?
A: As a general rule, our preferred file formats are .PDF .AI and .DXF. corelDraw. CAD (Hi-res or vector files).
5.Q: Do you accept small order?
A: Any order quantity is welcome. But some type of products are high cost that not suitable small order..
A: With regards the payment with your visa&master card, please refer to below steps.
1.Please create a personal buyer account before you by from Alibaba,
2.Write your email address, when place an order,
3.Go to your email and click the link,"Send Initial Payment/Pay Balance" or " Go to Pay"
4.Then choose"+Add a new card to pay in USD($)"
5.Fill in the bank card information, "Confirm and Pay", that charge from your card directly, place an order。
2. Q: What information will I have to provide for price?
A: To offer the exact price, we hope customers could inform us the material, specification as thickness, size, surface treatment, quantity required and so on.
3.Q: Can I order with just my logo?
A: Of course! Any color, shape and size with any designs!
4.Q: How do you prefer my artwork or logo to be supplied?
A: As a general rule, our preferred file formats are .PDF .AI and .DXF. corelDraw. CAD (Hi-res or vector files).
5.Q: Do you accept small order?
A: Any order quantity is welcome. But some type of products are high cost that not suitable small order..
