Колёсный погрузчик 5 тонн 8
- Категория: Forestry Machinery >>>
- Поставщик: Xiamen,Tder,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.48 $* | 0.54 $* |
| Aug-17-2025 | 0.40 $* | 0.62 $* |
| Jul-17-2025 | 0.6 $* | 0.84 $* |
| Jun-17-2025 | 0.94 $* | 0.75 $* |
| May-17-2025 | 0.22 $* | 0.7 $* |
| Apr-17-2025 | 0.97 $* | 0.74 $* |
| Mar-17-2025 | 0.3 $* | 0.56 $* |
| Feb-17-2025 | 0.19 $* | 0.24 $* |
| Jan-17-2025 | 0.67 $* | 0.61 $* |
Характеристики
Product Description
Model | ZT05J | ZT08J | ZT10J | ZT15J |
Operating weight | 16,500 kg | 18500kg | 20,800kg | 25,000kg |
Rated load | 5,000 kg | 8,000 kg | 10,000 KG | 15,000 KG |
Bucket capacity | 3 m³ | |||
Engine model | WEICHAI WD10G220E23 | Cummins 6CTA8.3-C215 | WD10G220E23 | WD10G270E201 |
Rated power | 162KW | 162KW | 162KW | 199KW |
Rated rotate speed | 2000r/min | 2000r/min | 2200r/nin | 2200r/nin |
Max. torque | ≥745.3N.m | ≥745.3N.m | 920N.m | 920N.m |
Driving speed | ||||
Forward Ⅰ | 0-11.5km/h | 0-11.5km/h | 0-11.5km/h | 0-7km/h |
Forward Ⅱ | 0-38km/h | 0-38km/h | 0-38km/h | 0-11km/h |
Reverse Ⅰ | 0-16km/h | 0-16km/h | 0-16km/h | 0-7km/h |
Grade ability | 28° | 28° | ≥25° | ≥25° |
Overall length | 7660mm | 7950mm | 8400mm | 9500mm |
Overall width | 2870mm | 2870mm | 3130mm | 3230mm |
Overall height | 3410mm | 3500mm | 3550mm | 3800mm |
Bucket width | 3000mm | 3000mm | 3000mm | 3600mm |
Wheel base | 2900mm | 3300mm | 3550mm | 3600mm |
Track base | 2260mm | 2260mm | 2510mm | 2410mm |
Transmission | Planet-type | Planet-type | Planet-type | Beilian |
Raise time | ≤6.3s | ≤6.8s | 16s | 12s |
Tire type | 23.5-25 20PR | 23.5R25(front tires) | 23.5-25 | 26.5R25(front tires) |

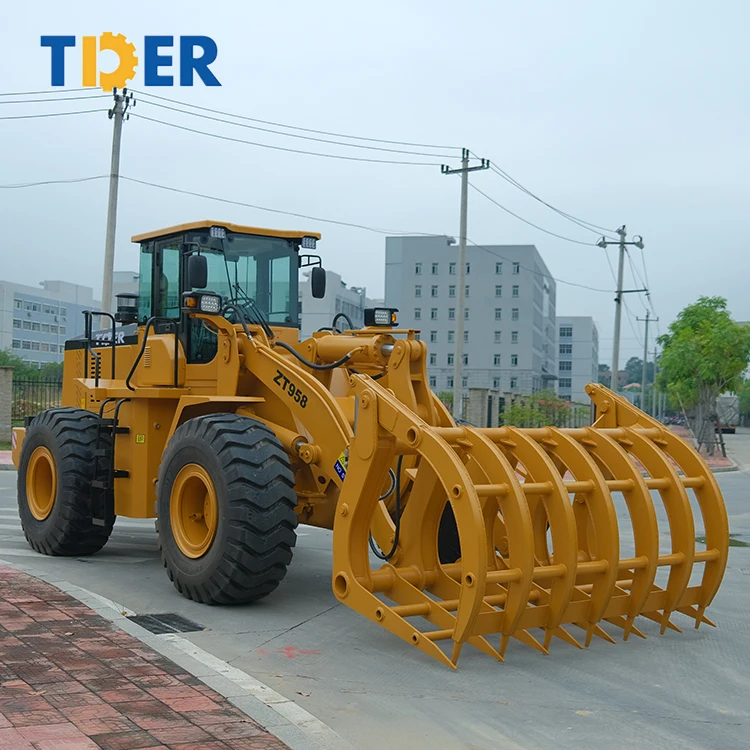

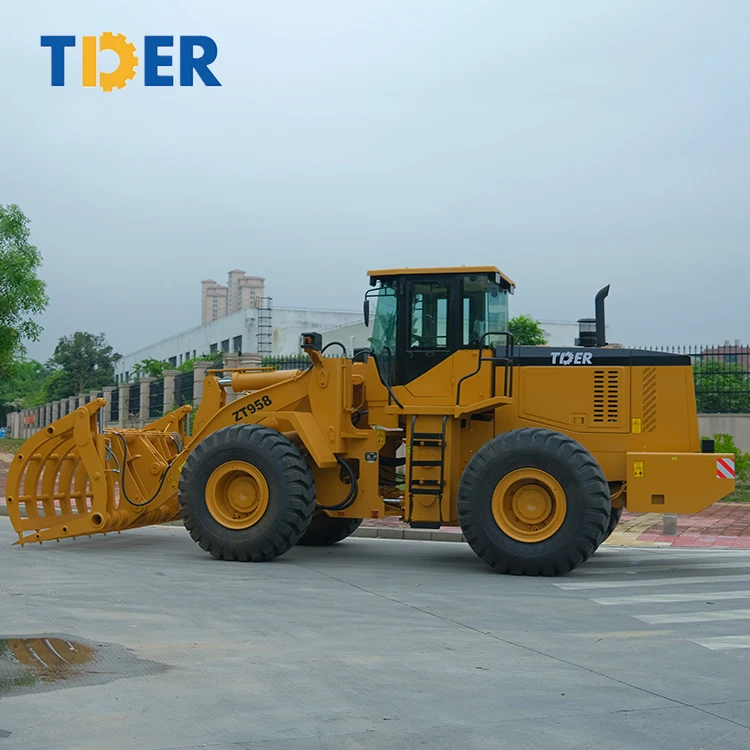

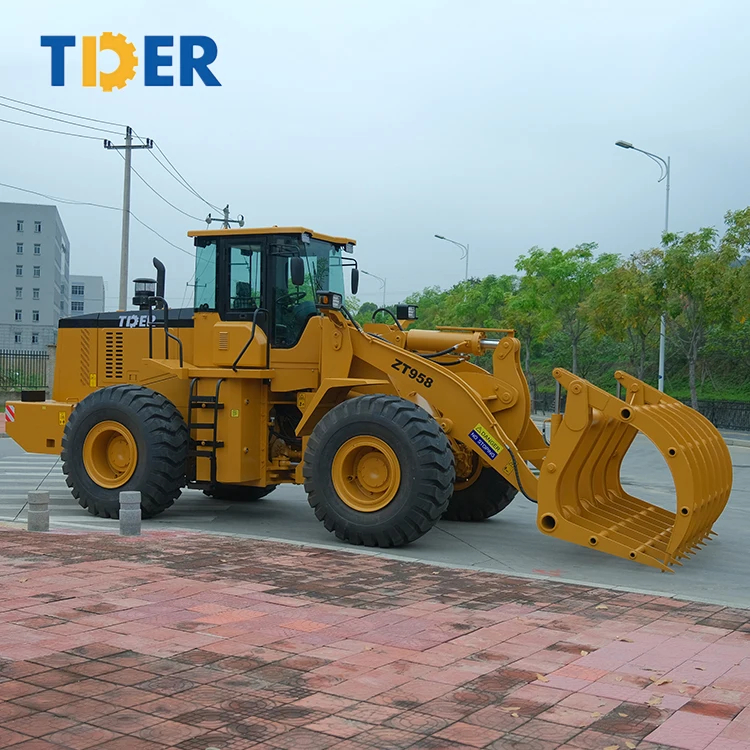

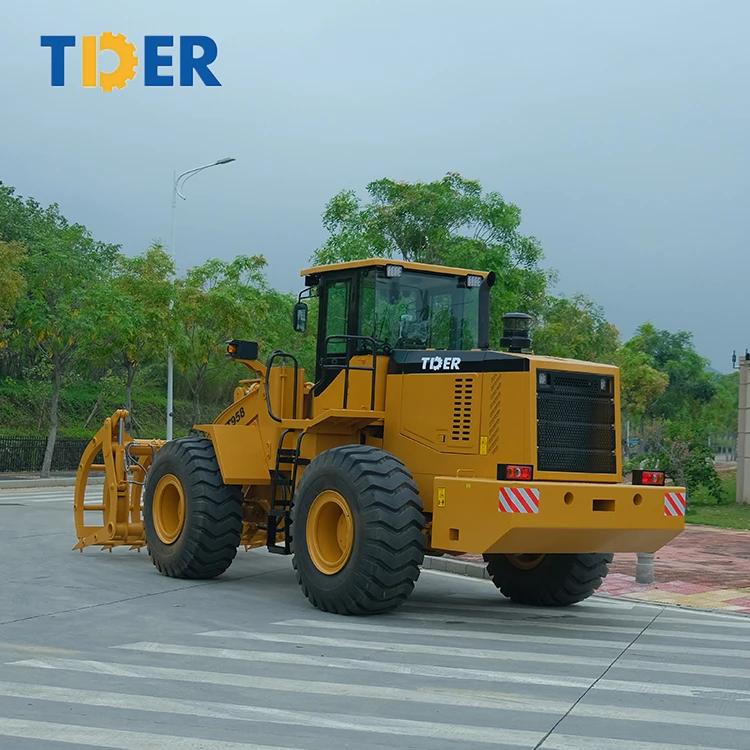

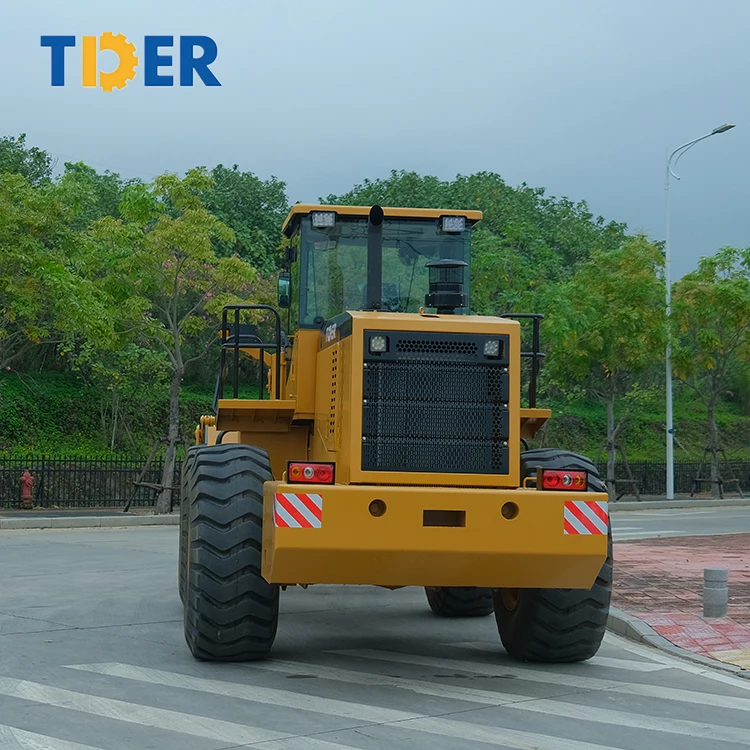

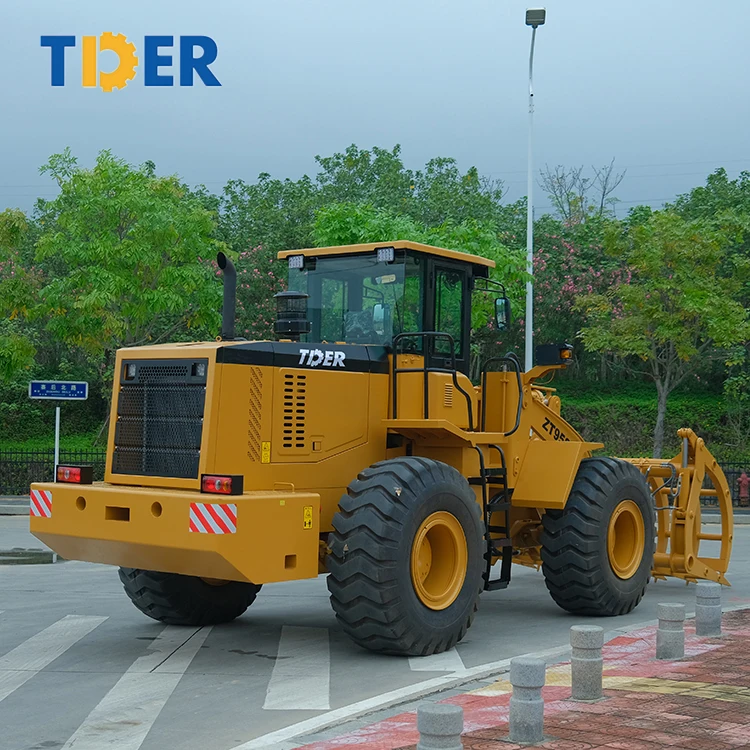

The specification of ZT05J Log loader
1.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.
2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.
3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.
2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.
3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Our Service
After-services:
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services. All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
FAQ
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
