Характеристики



Products Description




Parameter

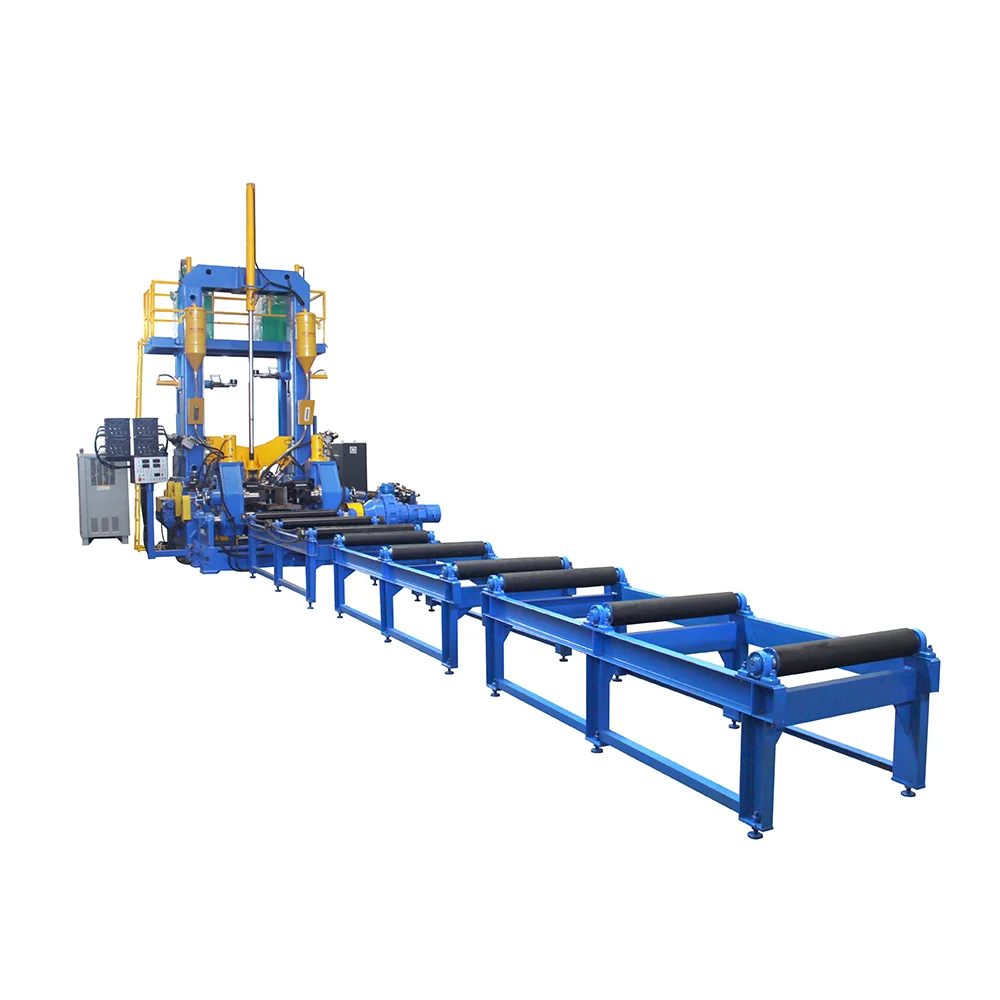

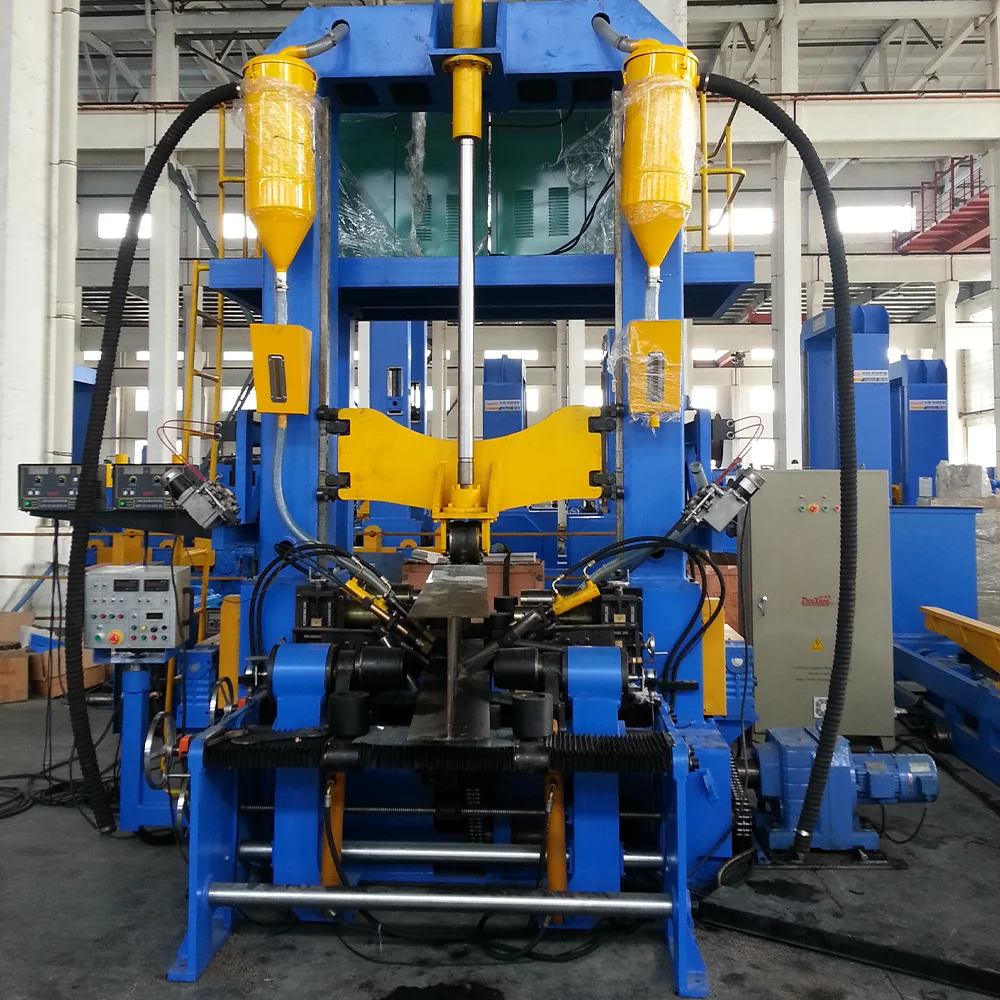

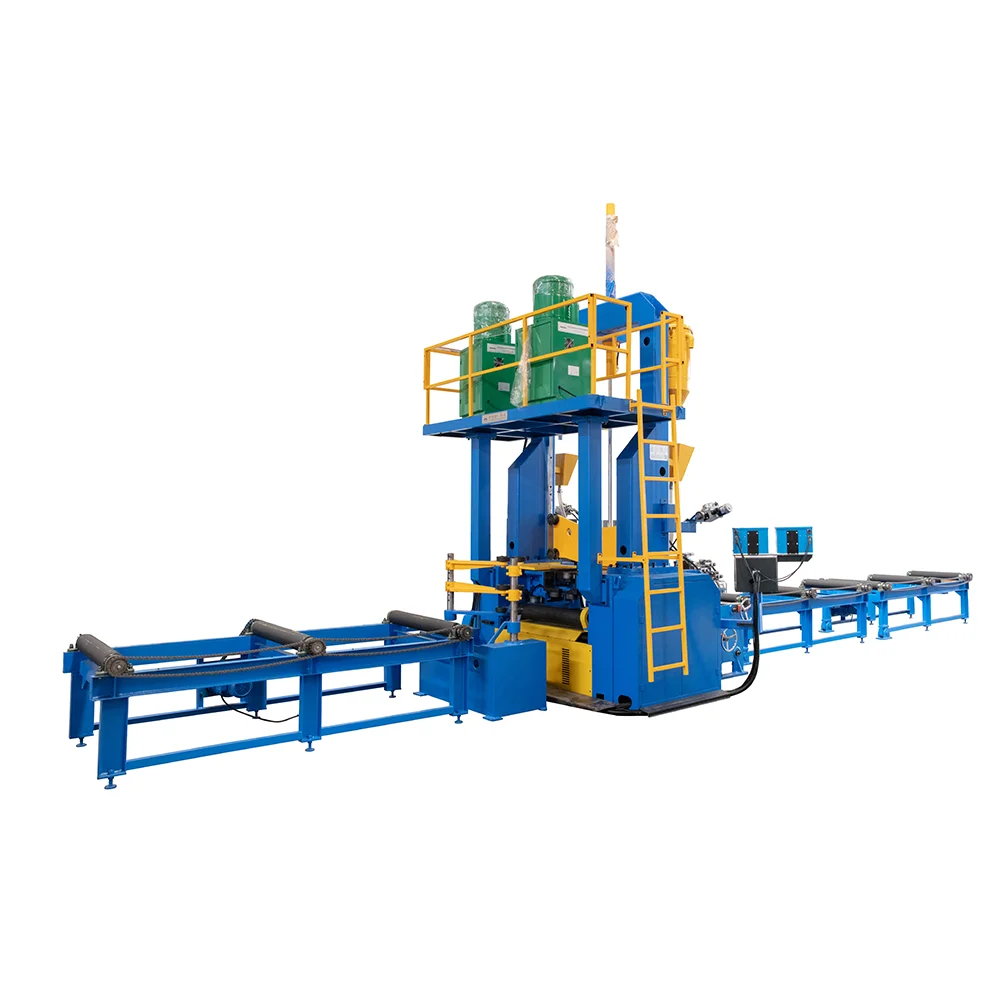

H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.



H beam assembling, welding, straightening machine


Metric units：


Web plate height
160~1500 mm
Web plate thickness
6~16 mm
Flange plate width
50~800 mm
Flange plate thickness
6~20 mm
H beam length
6000~15000mm or as user’s request
Assembly and welding speed
0.35~3 m/min
Main machine power
0.55kw*4=2.2kW
Roller conveyor motor power
4 kW
Flux recycling machine motor power
3kw*2=6 kW
Pump station power
4 kW
Welding source power
69kW*2=138kW
Above are our standard model, it can be designed and manufactured according to customer’s request.


Web plate height
7 7/8＂~ 49 1/5＂
Web plate thickness
15/64＂~ 5/8＂
Flange plate width
7 7/8＂~ 31 1/2＂
Flange plate thickness
15/64＂~ 25/32＂
H beam length
19＇8 5/32＂~ 49＇2 13/32＂ or as user’s request
Assembly and welding speed
0.35~3m/min
Main machine power
4 HP
Roller conveyor motor power
4 x 1HP= 4 HP
Flux recycling machine motor power
2 x 4 HP= 8 HP
Pump station power
5.36 HP
Welding source power
2 x 92.5HP = 185 HP
Improving Efficiency 3 In 1 Integrated T Beam H Beam Steel Assembly Welding Straightening Machine
Above are our standard model, it can be designed and manufactured according to customer’s request.


Product Advantages





The French high-quality Schneider inverter can effectively realize the automatic assembly, welding and correction of plates of different thicknesses by changing the working speed.

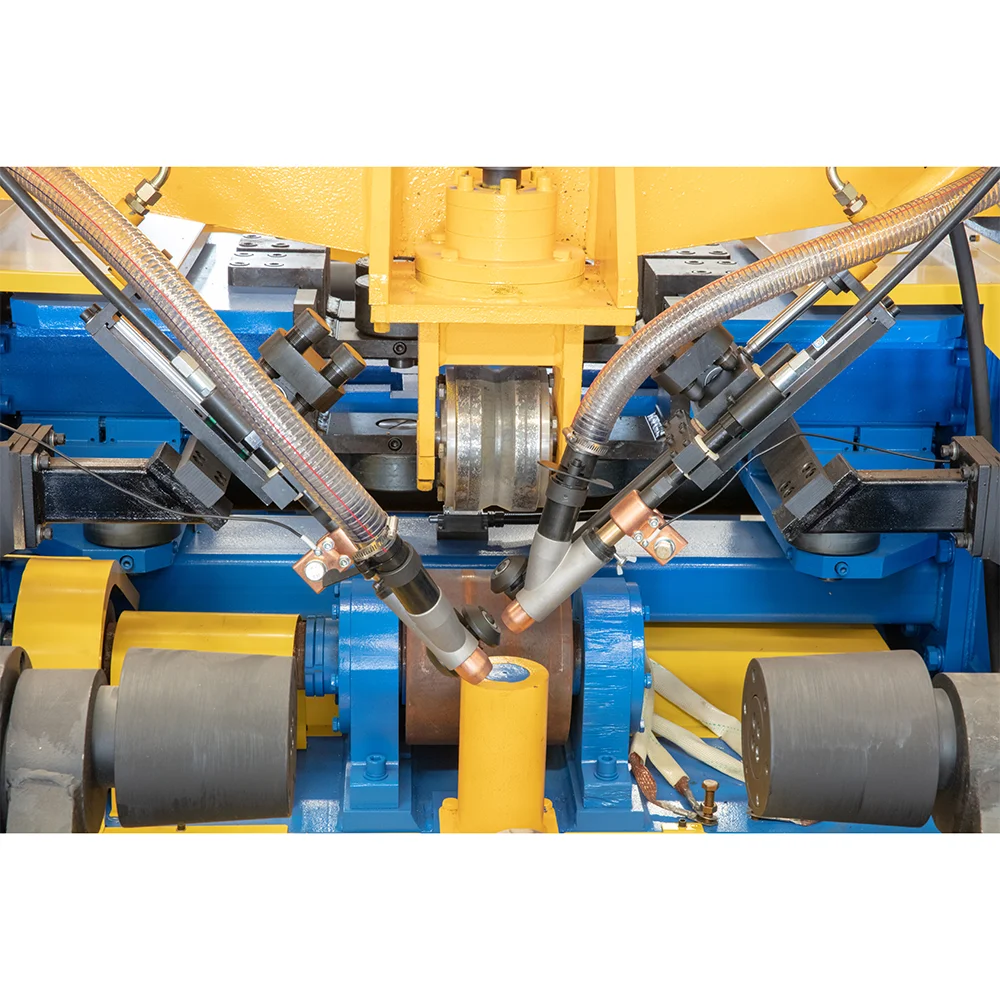

Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form.




Various welding forms, generally single-arc single-wire submerged arc welding or single-arc double-wire submerged arc welding; according to the customer's sheet thickness and actual requirements, CO2 gas shielded welding can also be used.


Details


Flange and web centering device driven by hydraulic motor for automatic centering


American Lincoln welding power source DC-1000 and NA-3S control system can ensure the forming quality of welding seam, especially
the welding leg forming of fillet welding seam, which is easy to use


Standardized wiring method is neat and uniform, which greatly facilitates the operation and maintenance of customers.


High-quality hydraulic valves can precisely and effectively control the clamping and loosening of each web and wing plate.

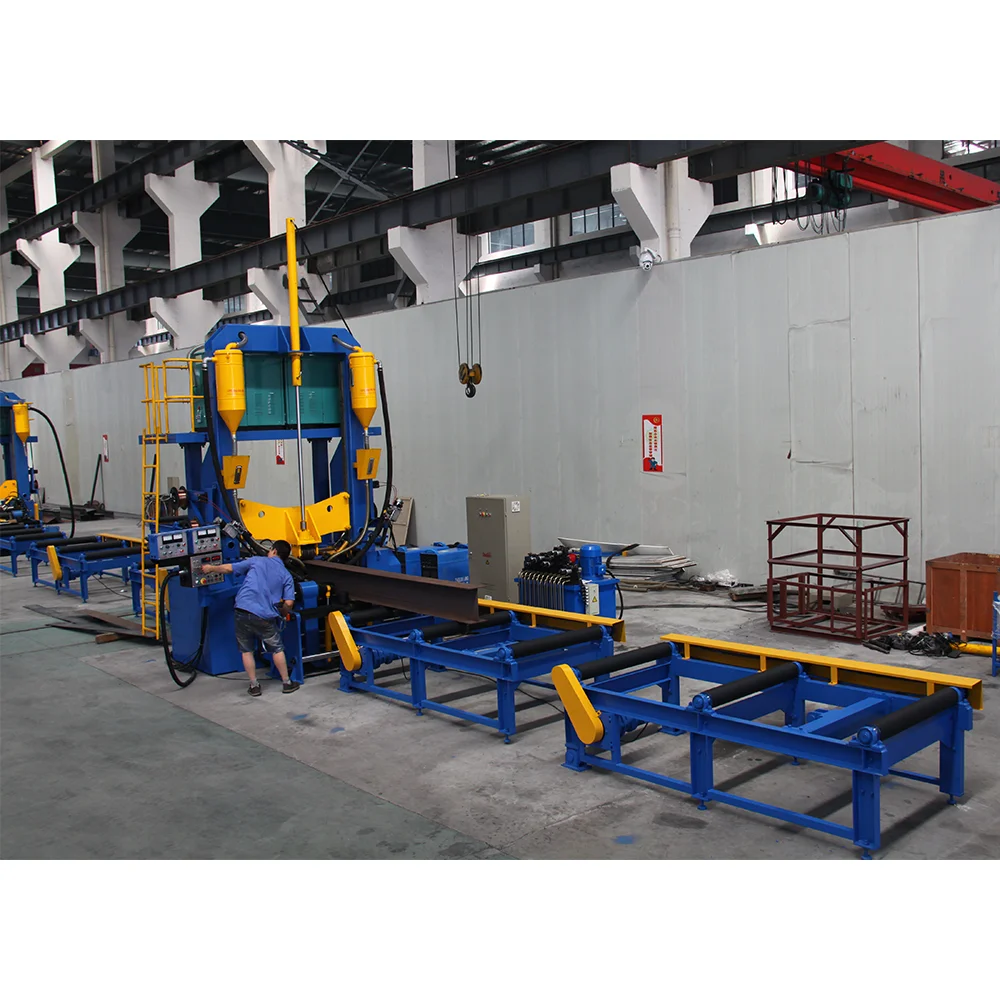

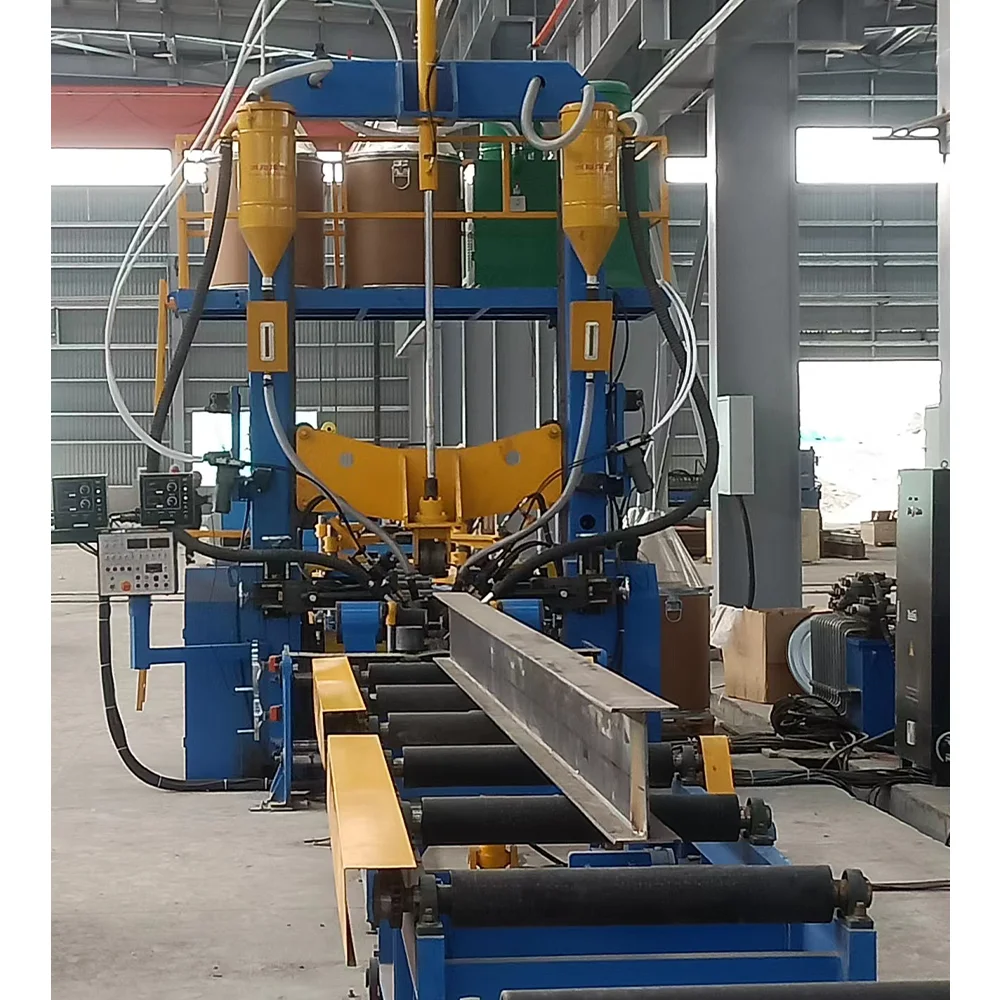

Customer Photos




Related Products




Main Products




Why Choose Us




Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.




We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!




Our Service




FAQ



1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Years.
