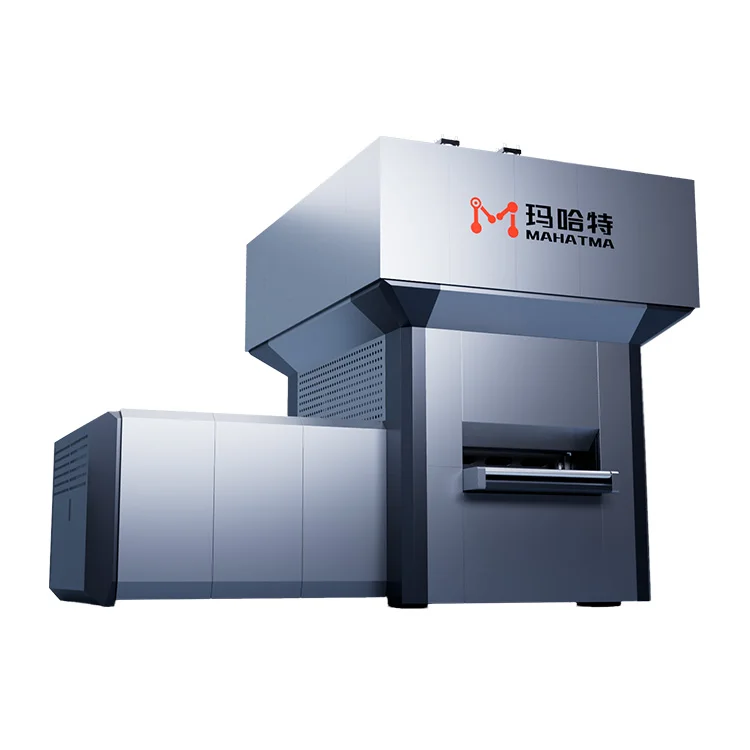

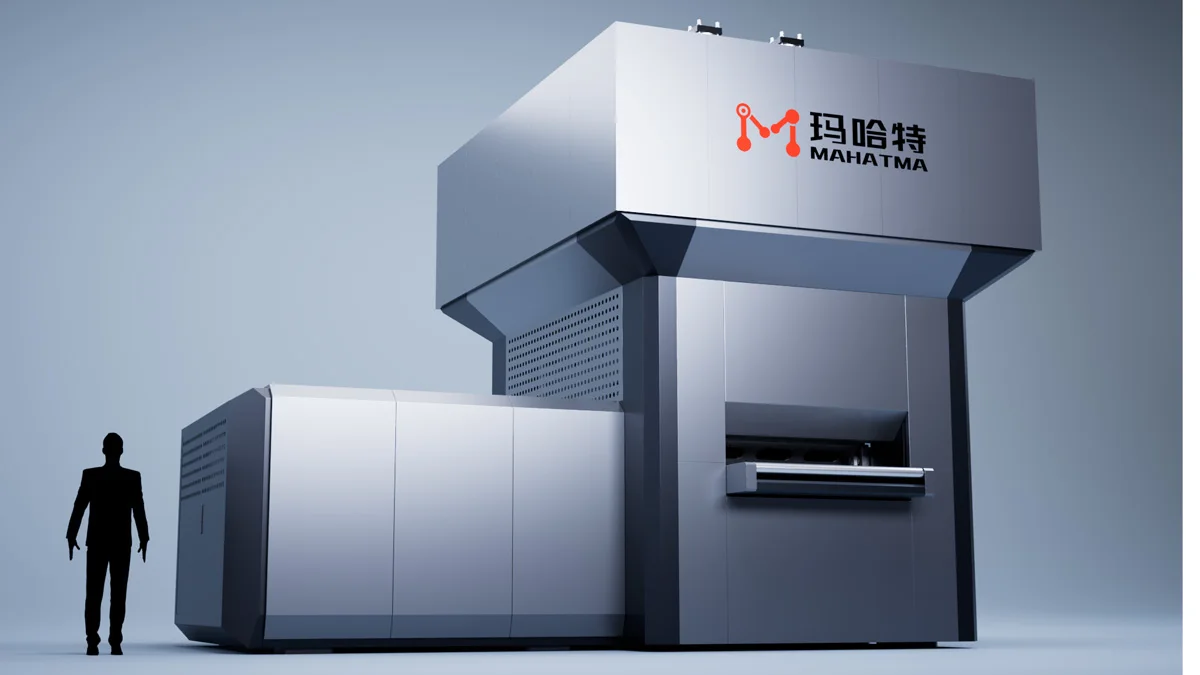

Производство Китай гидравлическая сталь прецизионная Выравнивающая машина для выпрямления

Описание и отзывы

Трекер стоимости

Характеристики

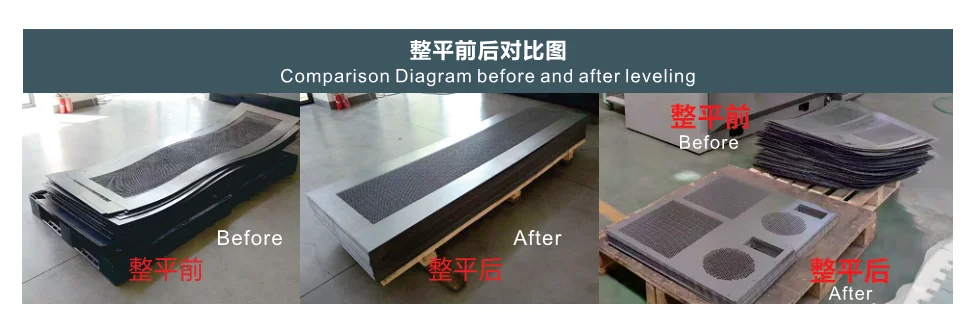

Under the condition of large elastic-plstic bending, no mater how different the original bending degree, precision levelling machine uses the "Bauschinger effect" of the material to bend the plate repeatedly, gradually reduce the bending deflection, and gradually change the origina curvature into a single curvature, and finally level it to achieve the leveling accuracy required by the process.

           After a series of alternating bending, the sheet metal is controlled by the motor and the PLC to accurately control the lower pressure of each leveling drum,elminating the internal stress,and fundamentally solving the unsatisfactory leveling effect caused by the different stress in each part of the sheet metal,thus achieving high precision leveling.

MHT10/15 Series sheet metal CNC precision leveler parameter table
Machine Model	MHT10-200-19	MHT10-300-19	MHT10-400-19	MHT15-200-19	MHT15-300-19	MHT15-400-19
Roller Diameter	φ10mm	φ10mm	φ10mm	φ15mm	φ15mm	φ15mm
Roller Number	19/23	19/23	19/23	19/23	19/23	19/23
Speed	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min
Leveled Width	0-200mm	0-300mm	0-400mm	0-200mm	0-300mm	0-400mm
Rated Plate Thickness	0.05~0.6mm	0.05~0.6mm	0.05~0.6mm	0.08~1.0mm	0.08~1.0mm	0.08~1.0mm
Maximum Thickness	1.0mm	1.0mm	1.0mm	1.5mm	1.5mm	1.5mm
Shortest Workpiece	30mm	30mm	30mm	35mm	35mm	35mm
Applicable Object	Tape Coiling. Strip Steel, Sheet Metals,etc.
