Дешевый полуавтоматический штамповочный станок аккумулятор электрод для

Дешевый полуавтоматический штамповочный станок аккумулятор электрод для

Категория: Paper Processing Machinery >>>
Поставщик: Shandong,AME,Energy,Co.,Ltd.

Цена:2 000,00 $ - 2 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	2380.97 $*	2499.25 $*
Aug-19-2025	2360.32 $*	2478.50 $*
Jul-19-2025	1980.5 $*	2079.57 $*
Jun-19-2025	2320.48 $*	2436.96 $*
May-19-2025	2020.38 $*	2121.7 $*
Apr-19-2025	2280.67 $*	2394.65 $*
Mar-19-2025	2260.76 $*	2373.95 $*
Feb-19-2025	2240.42 $*	2352.21 $*
Jan-19-2025	2220.46 $*	2331.18 $*

Характеристики

On Sale Die Cutting Punching Machine Die Cutter Machine For Lab Reserch

Model	Pneumatic Battery Electrode Die Cutter
Stroke	35mm
Vertical burr	≤12μm
Horizontal burr	≤20μm
Punching accuracy	±0.1mm
feeding way	manually
Max punching size	L85*W65mm Or customized according to requirements
Punching pressure	Max. 1T (0.5MPa compressed air) Punching the battery electrode recommended pressure 500Kg
equipment production capacity	800-2000 - ea/H die cutting efficiency is lower (sheet material)
Compressed air	0.5MPa If placed in a glove box, the gas used is the same as that used in the glove box.

Product Description

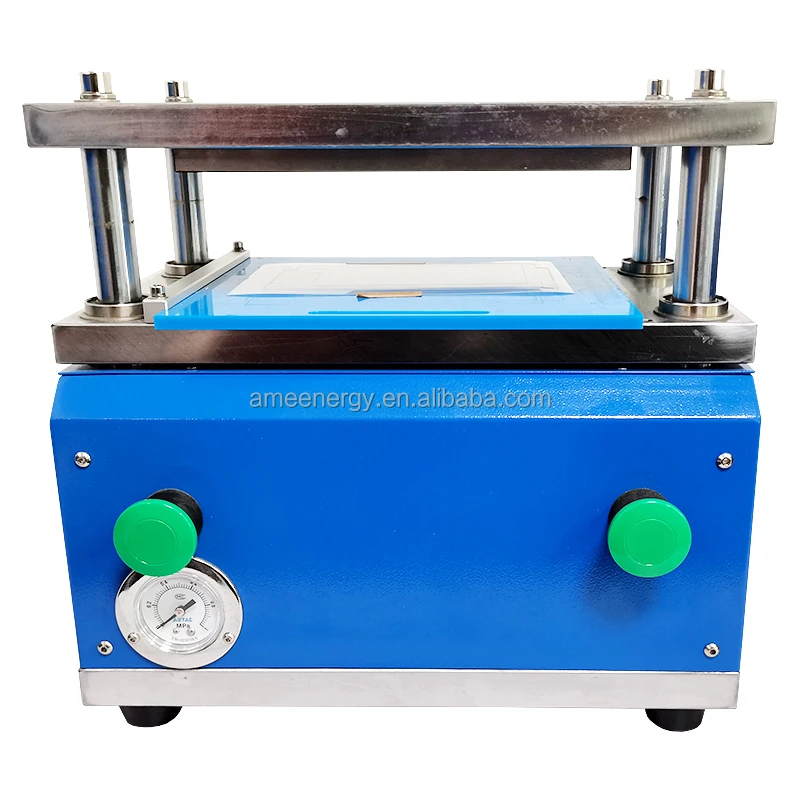

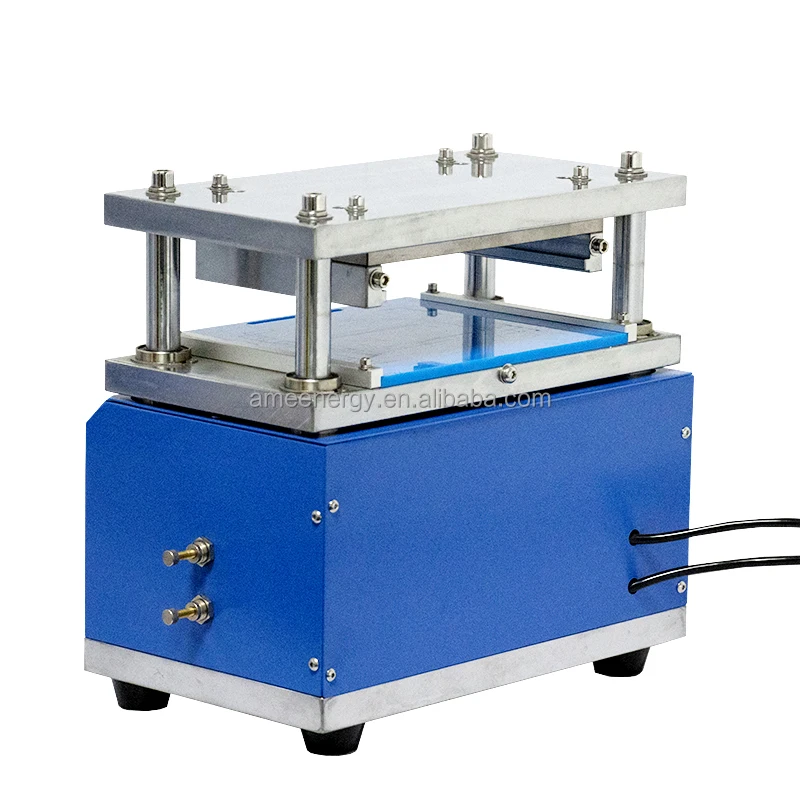

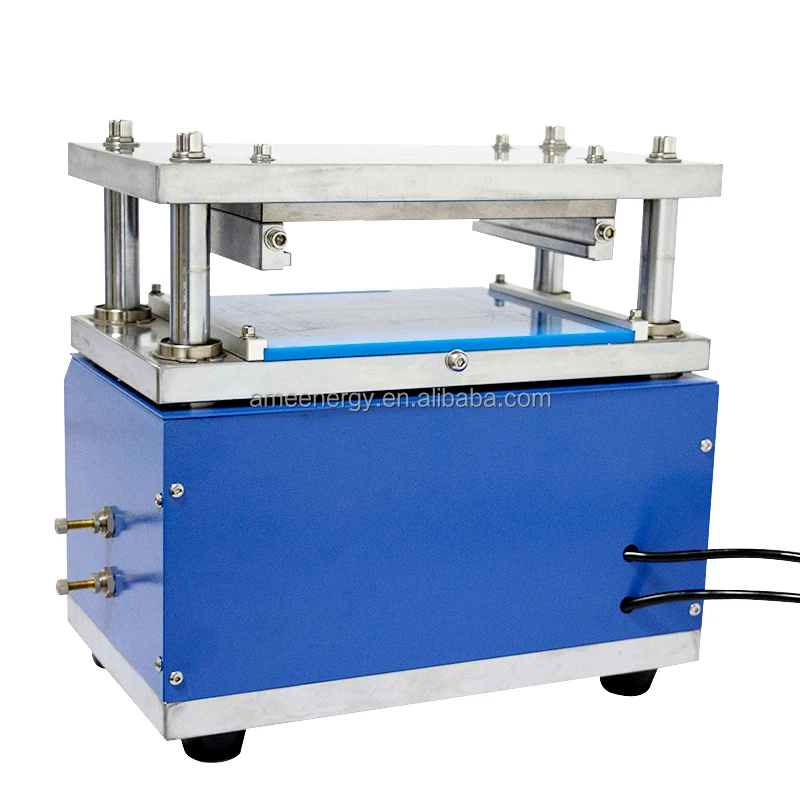

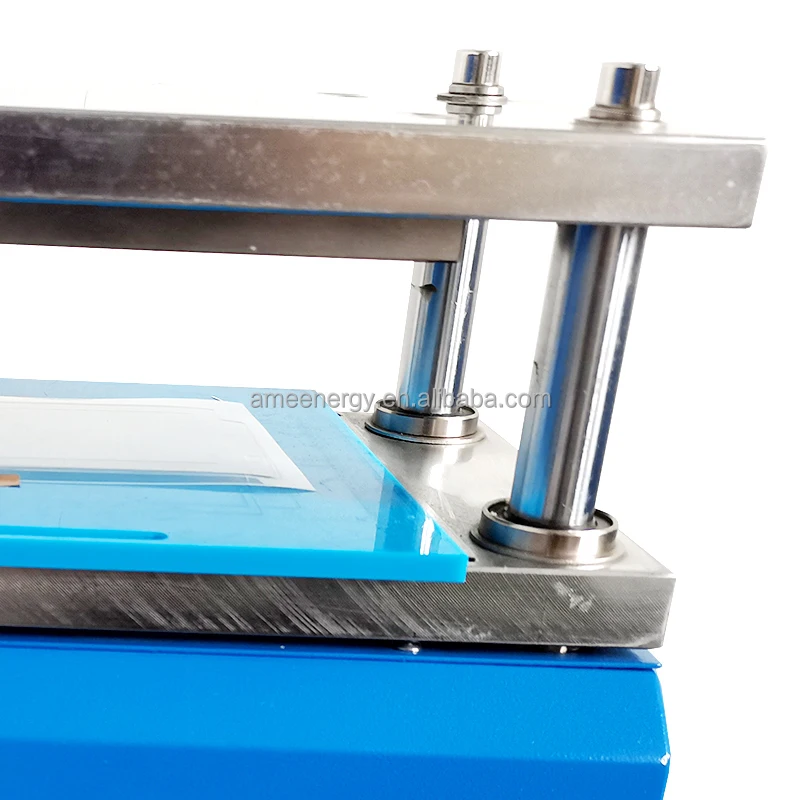

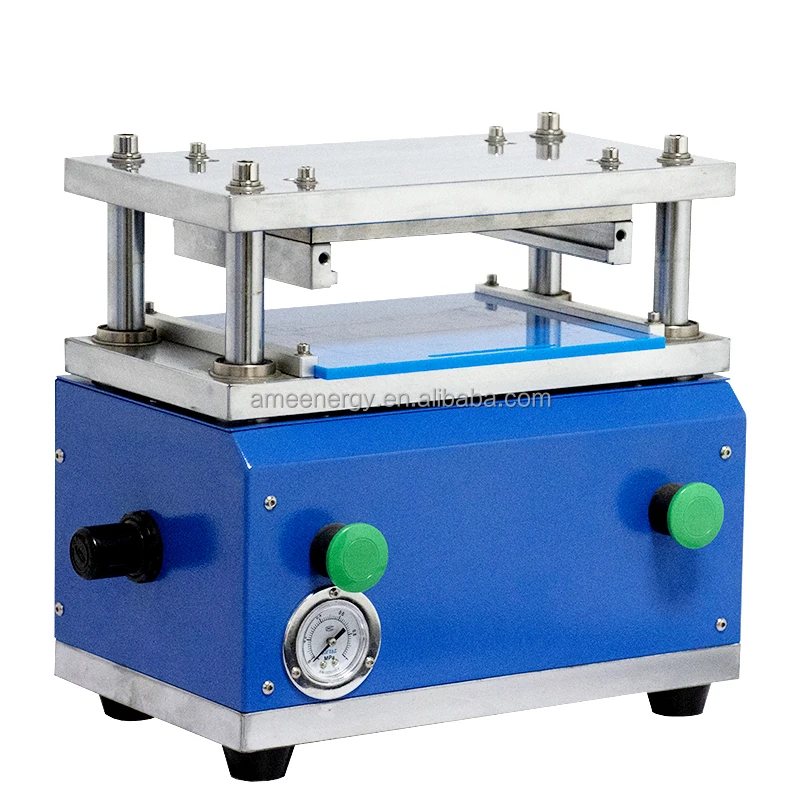

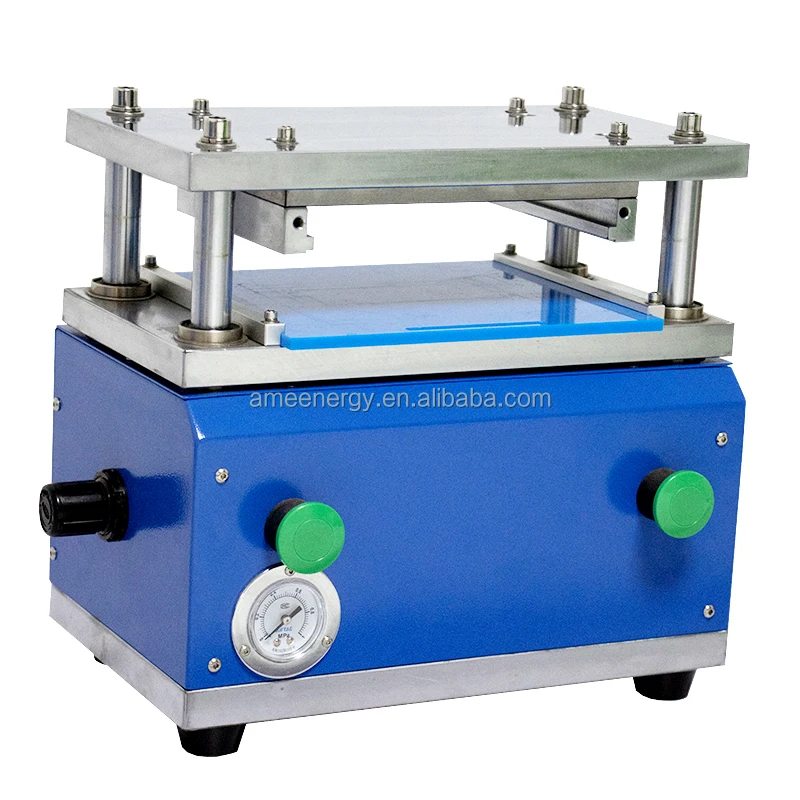

Pneumatic Battery Electrode Die Cutter Feature:

* replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times);
* manual and continuous feeding, automatic discharging, and can automatically separate waste;
* no quality defects such as burrs, off powder, indentation;
* between manual and automatic, high efficiency, 800-2000 / per hour;
* simple operation, safe and reliable, beautiful appearance, small size.
