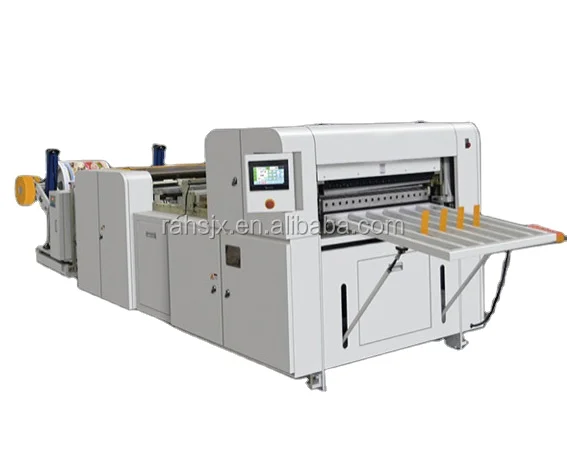

HQJ-1100B high speed bopp and virous paper roll to sheet cutting machine

1.Usage:

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3, A2,and other sizes etc .

2.Performance and Characteristics

1)Adopts pneumatic automatic materials loading system with much easy operation  and convenience.

2)Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time

3)It adopts servo motor for controlling constant-length cutting.

4)It adopts PLC control, contact screen operation.

5)It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good  stability, low noise.

6)This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste.

7)It has the functions of high-precision of cutting, high speed,etc. pneumatic structure combined with computer control be adopted for transmission section , making it become much more steady operation.

8)It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system.

3.Main Technical Specification

Model	HQJ-1100B	HQJ-1300B
Max. Unwind diameter	1400mm	1400mm
Max. cutting width	1100mm	1200mm
Cutting length	400-1200mm	400-1200mm
Cutting precision	±0.2mm	±0.2mm
Cutting speed	10-200cuts/min.	10-200cuts/min.
Max.stack height	1200mm	1200mm
Power	7.5KW	11.5KW
Suitable Power supply	380v/50hz	380v/50hz
Weight	3000kg	3800KG
Machine dimension	5500×2000×1800mm	5500×2200×1800mm



4. Detail pictures

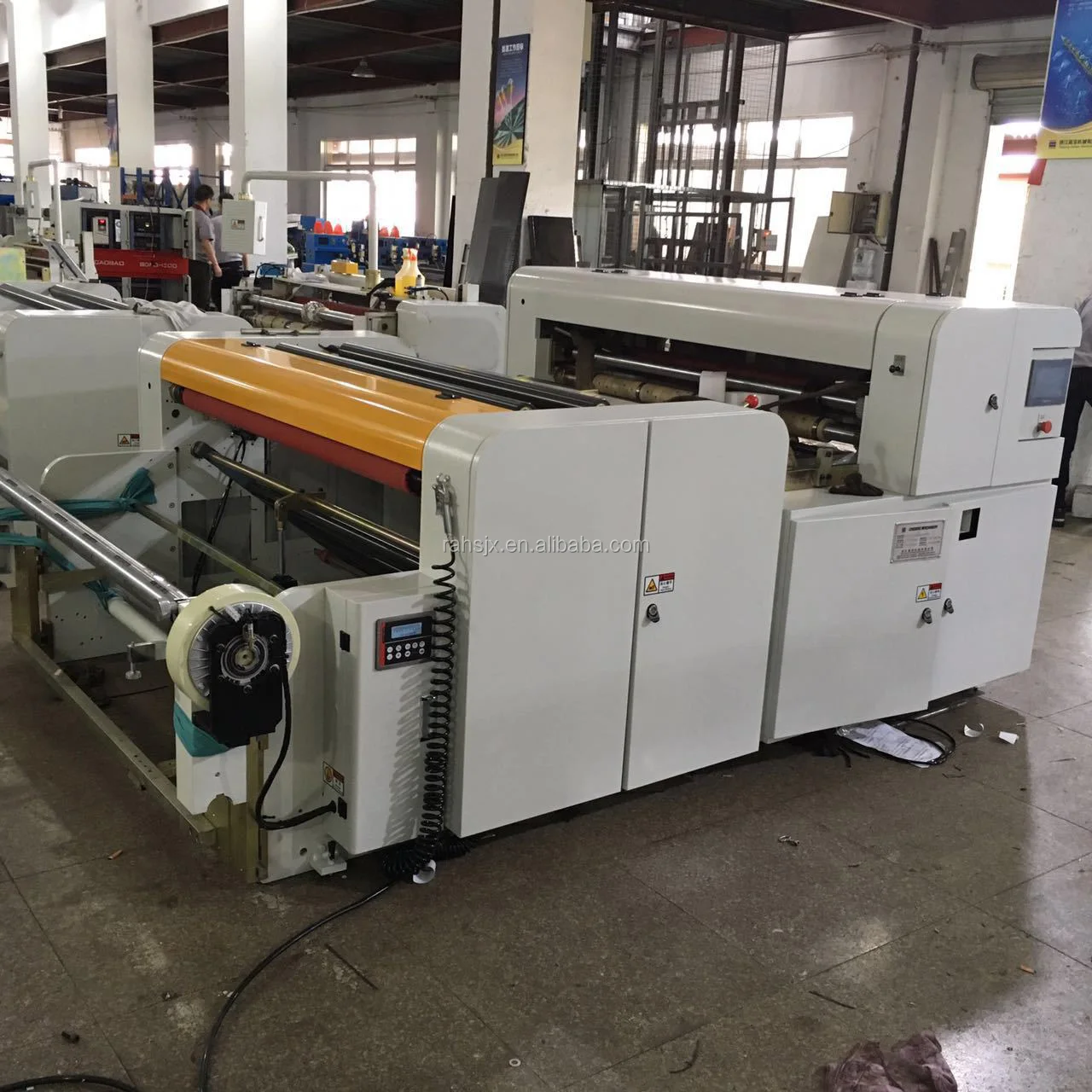

1)hydraulic auto loading

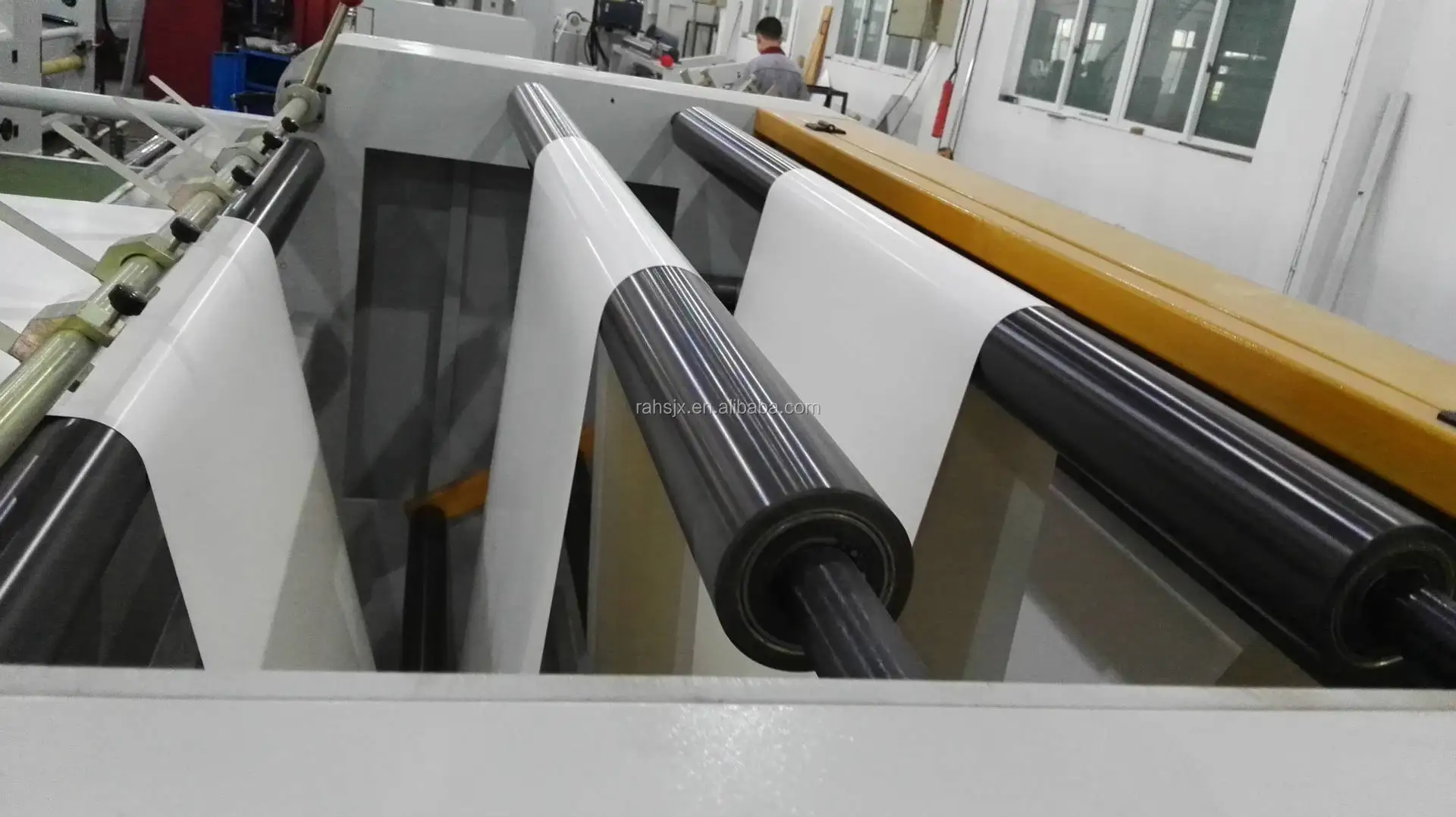

2)auto tension controller



3)slitter blade

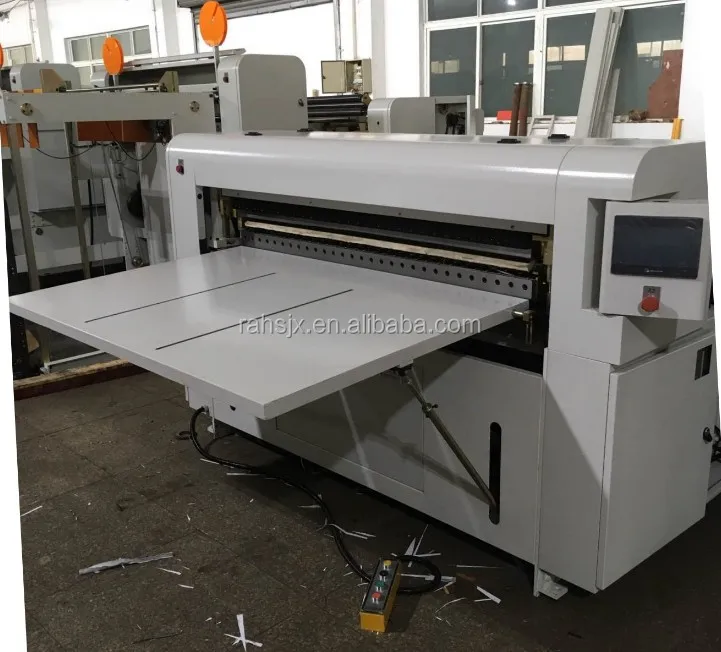

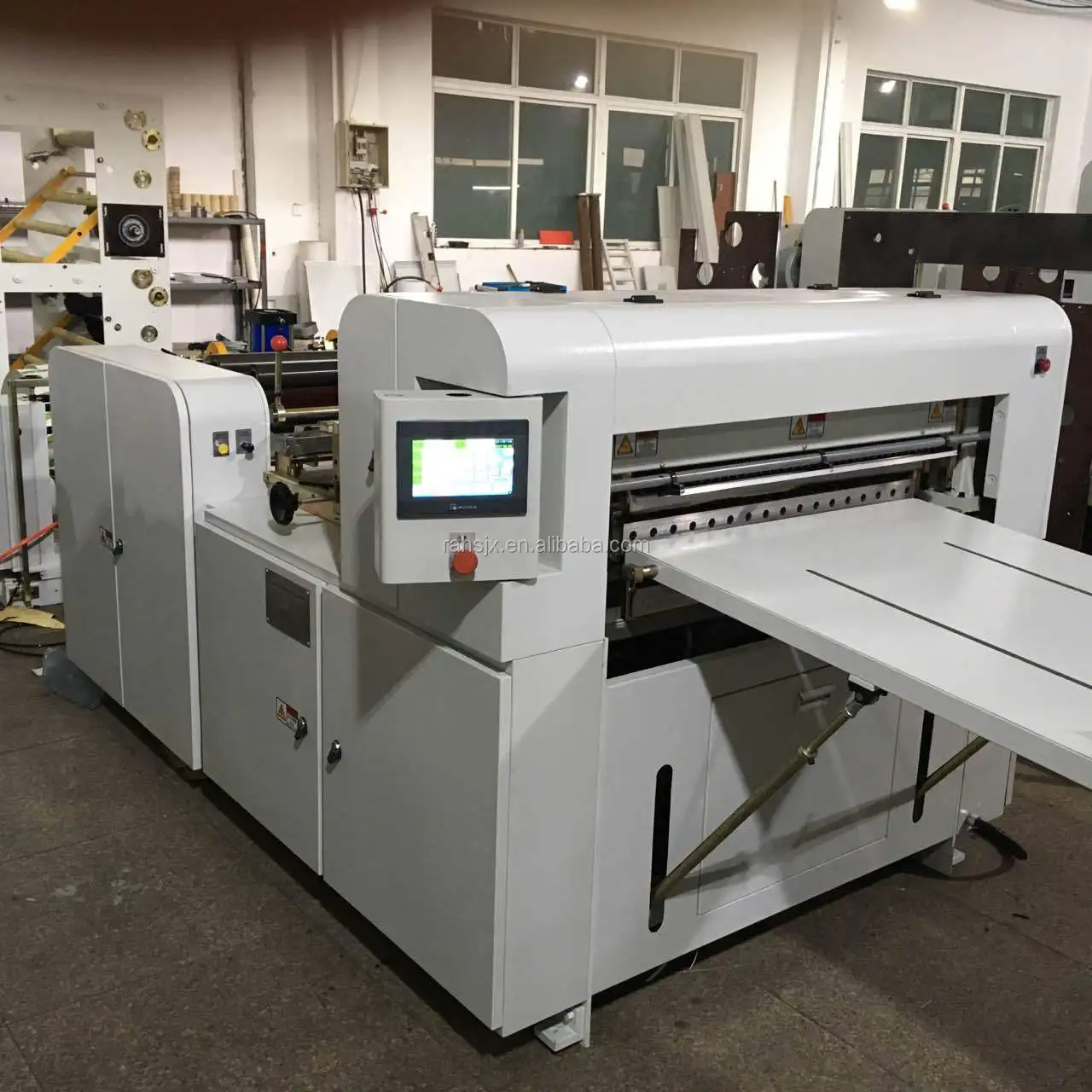

4)machine front view

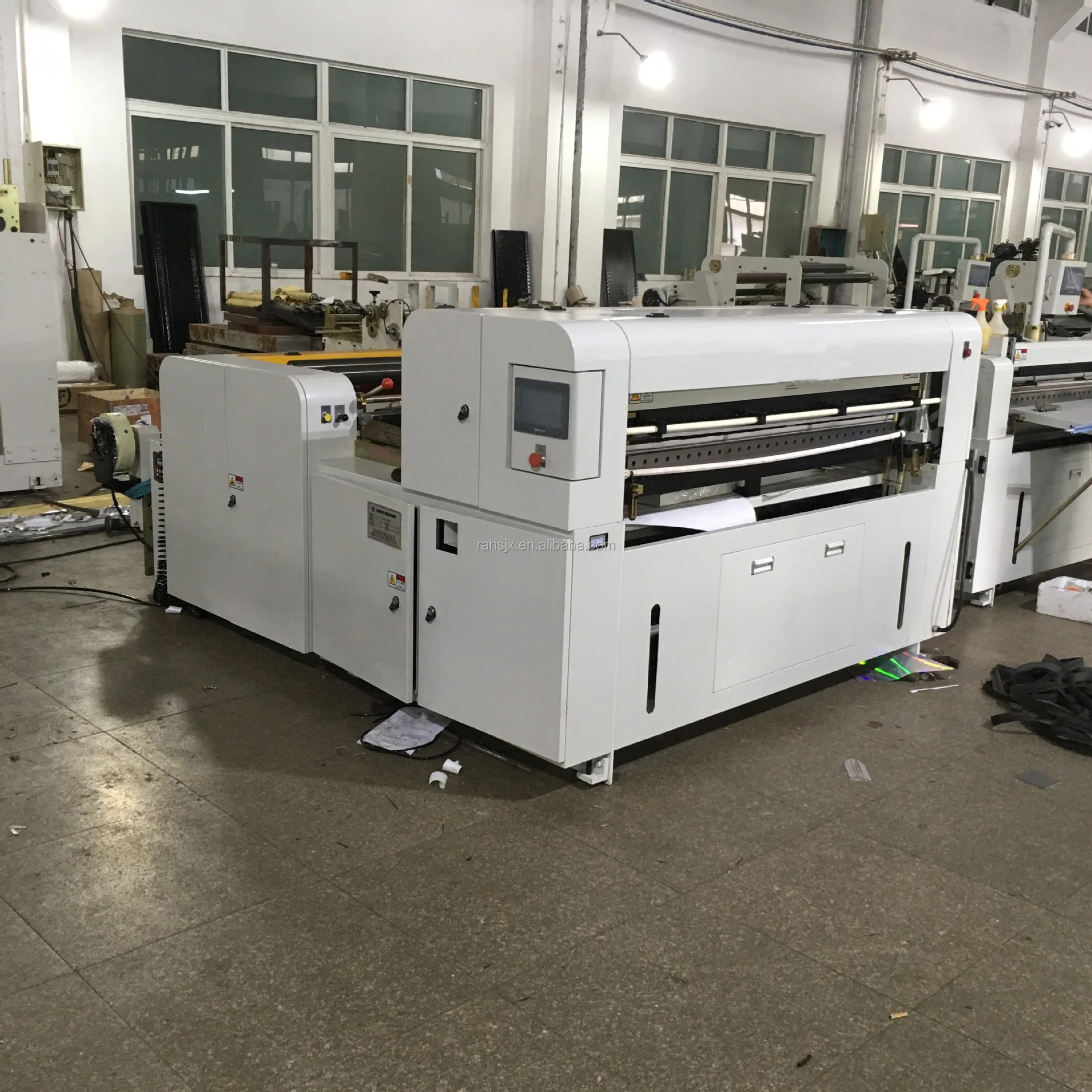

6) side view
