Станок для выпрямления проводов диаметром
- Категория: Metal Straightening Machinery >>>
- Поставщик: Anping,Tianke,Wire,Mesh,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1428.87 $* | 1499.74 $* |
| Aug-18-2025 | 1416.67 $* | 1487.86 $* |
| Jul-18-2025 | 1188.13 $* | 1247.51 $* |
| Jun-18-2025 | 1392.59 $* | 1462.85 $* |
| May-18-2025 | 1212.56 $* | 1273.27 $* |
| Apr-18-2025 | 1368.91 $* | 1436.7 $* |
| Mar-18-2025 | 1356.23 $* | 1424.19 $* |
| Feb-18-2025 | 1344.78 $* | 1411.66 $* |
| Jan-18-2025 | 1332.22 $* | 1399.59 $* |
Характеристики

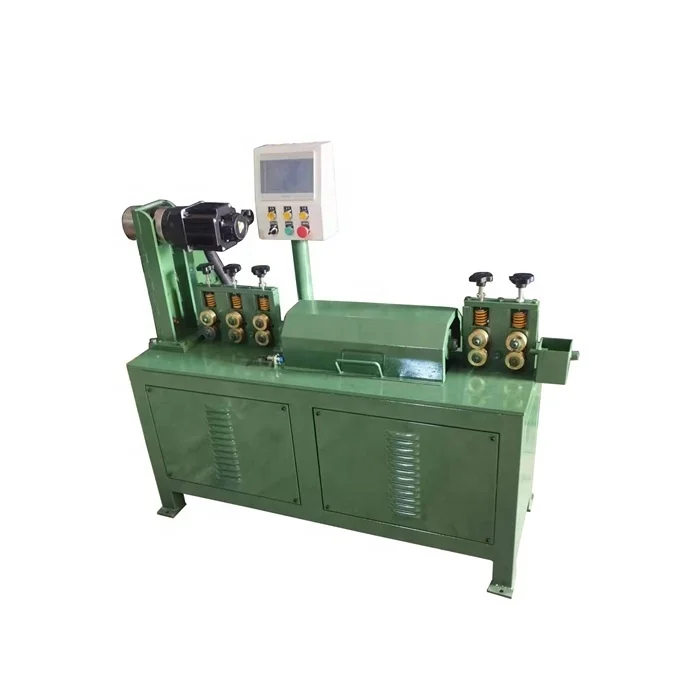

Machine Description
The wire straightening cutting machine belongs to cnc wire cutting machine.The advantages of the machine are high-accuracy,cover small area and easy operation.It can straighten thin wire of 1mm diameter.
It is widely used in wire mesh production plants, building materials processing plants, hardware processing plants, machine distribution stores and cage processing plants,etc.
Working Principle
After the wire is straightened,it enters the discharge track.After it is pushed to the positioning device inside the track,the wire pushes the discharge track forward.When the preset length is reached,the upper punch coincides with the vertical cutter,the wire is cut off,the chute of the discharge track is opened,the wire falls down.
Machine Parameters
Model | Wire Diameter | Cutting Length | Length Erro | Motor | Speed | Cutting Style | Voltage |
TK-TZJ2.5 | 1.0-2.5mm | 1m | ±0.5mm | 1.5kw | 30m/min | Mechanical | Customized |
Machine Details
Straightening shaft
The whole straightening shaft is cast.,without noise while rotate at high speed.
Discharge track
The length of the discharge track is customized according to needs.
Cutting party
The cutters become high hardness, wear resistance and long service life after high temperature heat treatment
Machine head
The hole part is cast,no need to replace.
The wire feeding wheels is wear-resistant and durable after high temperature heat treatment.
Details of the head
Adding lubricating oil can lubricate and maintain the machine
Support frame
The support frame is also cast and heavy, no jitter during the movement of the discharge track.
Safety Cover
The rotating and friction parts are equipped with safety shields to ensure the safety of operators.
Machine Photos
Packing & Shipping
Packing
Shipping
For LCL, we cooperate with the reputable logistics team to transport the machines to the seaport or the warehouse designated by you quickly and safely.
For FCL, after we get the container our skillful worker will load the container carefully.
We have long-term cooperation with professional freight forwarders, who will help smooth customs clearance and shipment of goods.We can also work closely with your freight forwarder.
High quality wooden box protects machine from strike and damage.
Fumigation-free package helps the smooth customs clearance.
The packing belt can ensure that the wooden case will not be damaged during transportation.
Fumigation-free package helps the smooth customs clearance.
The packing belt can ensure that the wooden case will not be damaged during transportation.
Shipping
For LCL, we cooperate with the reputable logistics team to transport the machines to the seaport or the warehouse designated by you quickly and safely.
For FCL, after we get the container our skillful worker will load the container carefully.
We have long-term cooperation with professional freight forwarders, who will help smooth customs clearance and shipment of goods.We can also work closely with your freight forwarder.

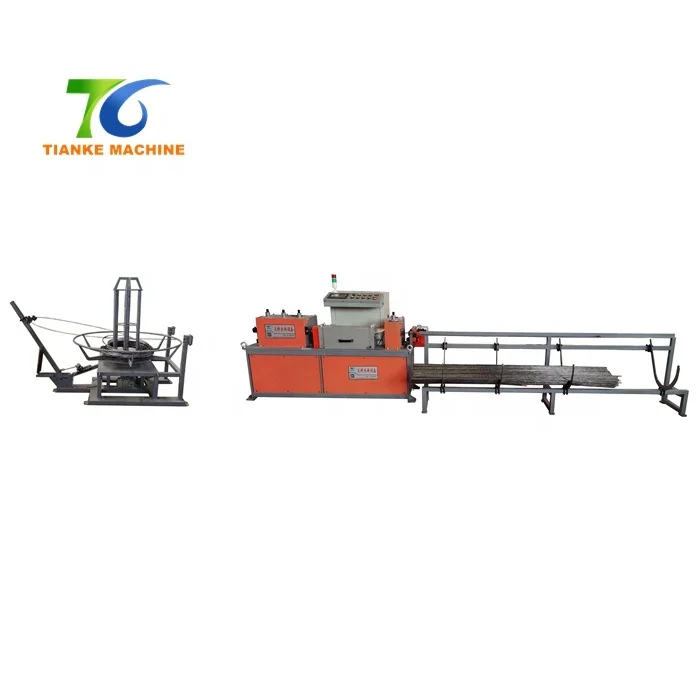

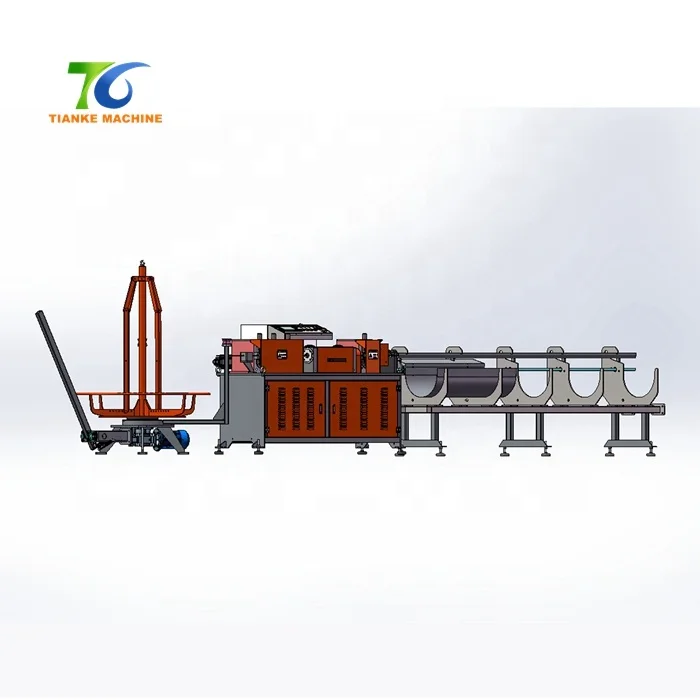

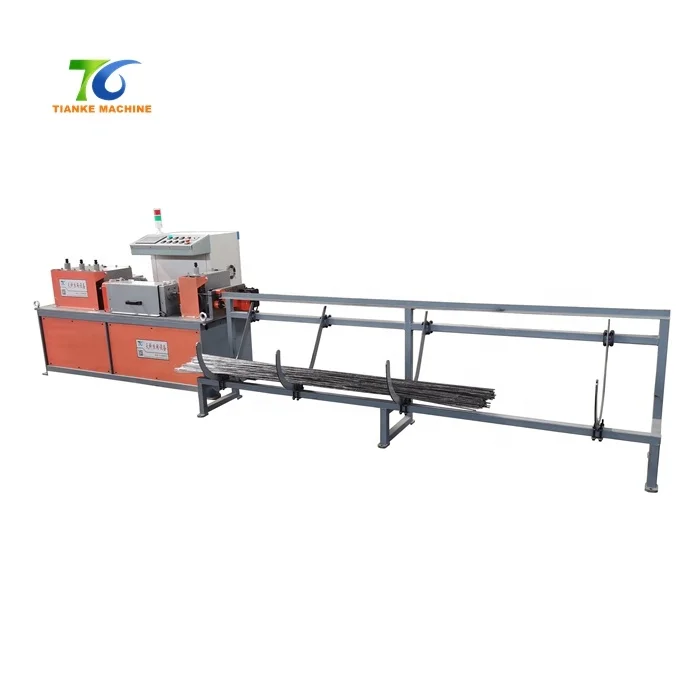

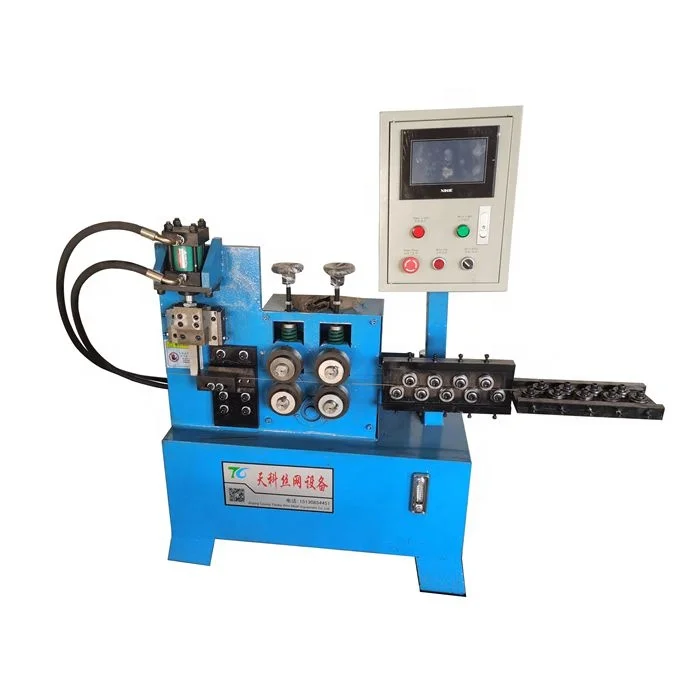

Related Machines
About us
Our company is a factory integrating production and sales. We have more than 10 years experience in wire and wire mesh machines.And we can customized machines according to the product you want to make.Welded wire mesh machines is already one kind of traditional products.These years we have designed and developed new products such as Razor welded wire fence machine,CNC high speed wire straightening and cutting machine,CNC mesh slitting and cutting machine, wire buckle making machine,etc.
Our company have adheres to the beliefof "Quality first,Sincerity win future", and has been recognized by customers at home and abroad.
