Оцинкованные Столбы для ламп XINTONG высота 6 м 8 столбы уличного освещения
- Категория: Lamp Poles >>>
- Поставщик: Yangzhou,Xintong,Transport,Equipment,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 36.47 $* | 38.19 $* |
| Aug-15-2025 | 35.10 $* | 37.59 $* |
| Jul-15-2025 | 30.79 $* | 32.24 $* |
| Jun-15-2025 | 35.99 $* | 37.65 $* |
| May-15-2025 | 30.38 $* | 32.34 $* |
| Apr-15-2025 | 34.19 $* | 36.4 $* |
| Mar-15-2025 | 34.27 $* | 36.18 $* |
| Feb-15-2025 | 34.53 $* | 36.0 $* |
| Jan-15-2025 | 33.12 $* | 35.26 $* |
Характеристики
Products Description
Height | From 3 m to 25 m |
Apply in | Highway, freeway, Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conical, octagonal, square, cylinder |
Material | Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |
Lamp power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
Tolerance of the dimension | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,inner flange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 12m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |

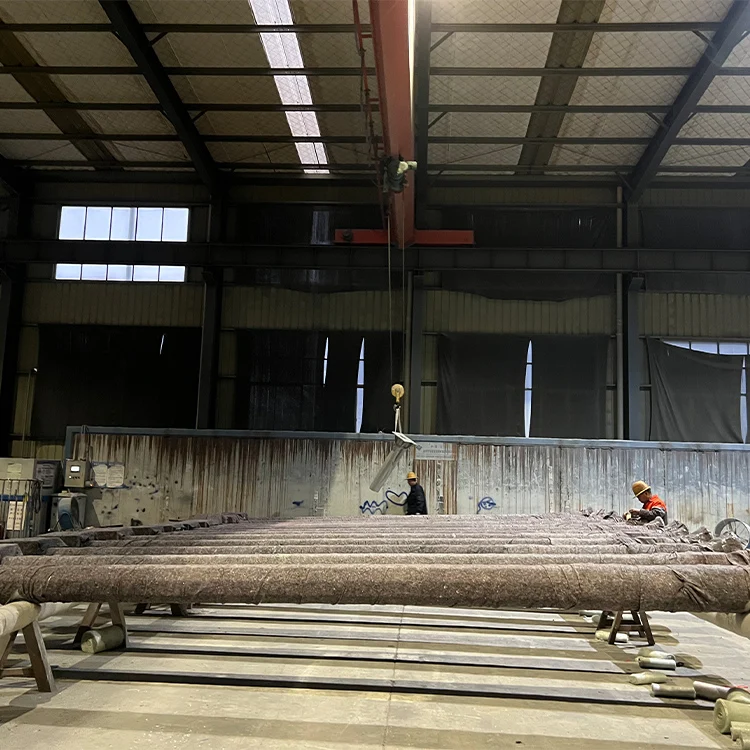

Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling → Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

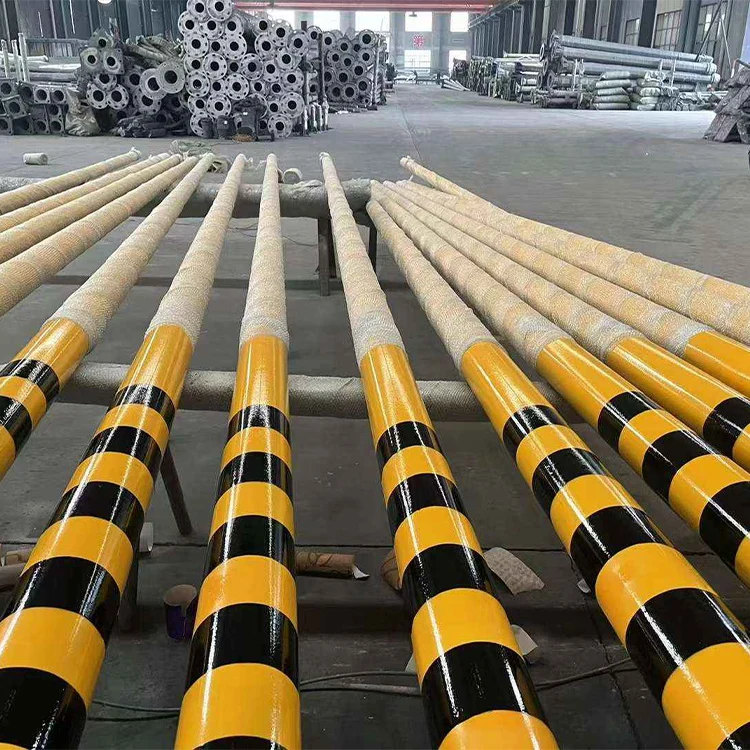

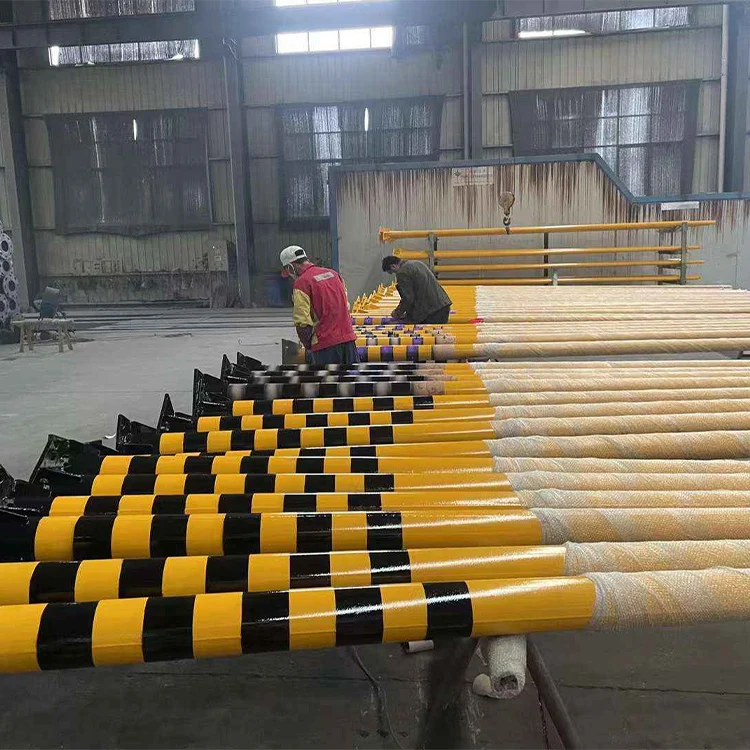

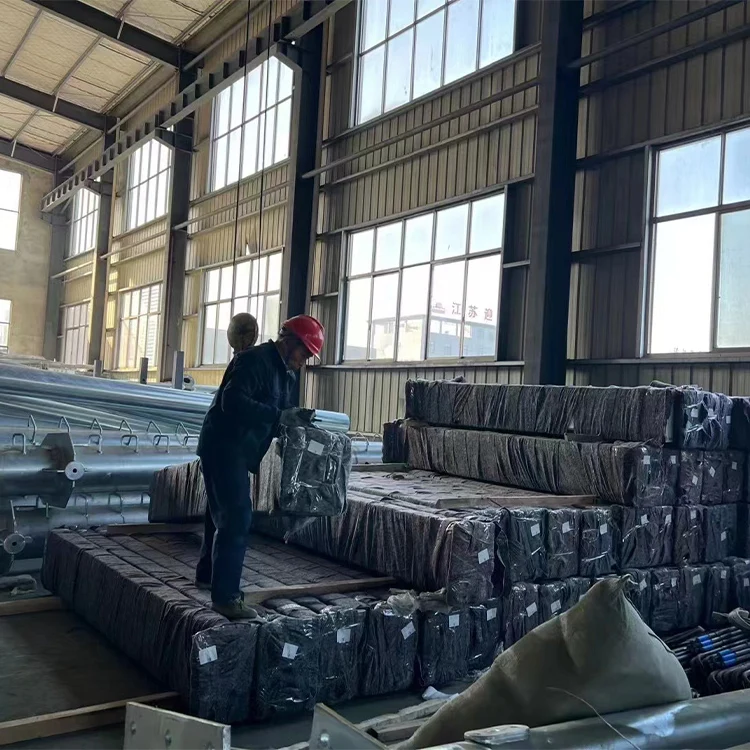

Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Style | Size and styles are veriable as per customer requestManufacture Process |
More Details |
Company Profile
Oversea Project
Certifications
Customer Comment
Logistics & Package
Recommend Products
FAQ
1. Could I control the traffic light through WI-FI or Bluetooth?
A: Yes our traffic light can be controlled through WI-FI and Bluetooth.
2. Is it controlled by a computer based system?
A: Yes our latest control system is based on computer, IPAD and mobile phone.
3. Can you provide oversea installation guidance service?
A: Yes we could send engineer team to help with onsite installation.
4. Can I get intersection design or complete solution for traffic light?
A: Sure just contact us to get more information.
5. What is the warranty?
A: Five years.
2. Is it controlled by a computer based system?
A: Yes our latest control system is based on computer, IPAD and mobile phone.
3. Can you provide oversea installation guidance service?
A: Yes we could send engineer team to help with onsite installation.
4. Can I get intersection design or complete solution for traffic light?
A: Sure just contact us to get more information.
5. What is the warranty?
A: Five years.
