ET120M 2 4-дюймовый экран цифровой осциллограф 120 МГц полоса пропускания 500MSa/s частота дискретизации аналоговых сигналов лозы
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Anysecu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71.5 $* | 75.54 $* |
| Aug-16-2025 | 71.12 $* | 75.74 $* |
| Jul-16-2025 | 59.36 $* | 62.0 $* |
| Jun-16-2025 | 70.96 $* | 74.98 $* |
| May-16-2025 | 61.56 $* | 64.80 $* |
| Apr-16-2025 | 68.65 $* | 71.96 $* |
| Mar-16-2025 | 68.58 $* | 71.22 $* |
| Feb-16-2025 | 67.89 $* | 70.29 $* |
| Jan-16-2025 | 67.62 $* | 70.28 $* |
Характеристики
Product Description

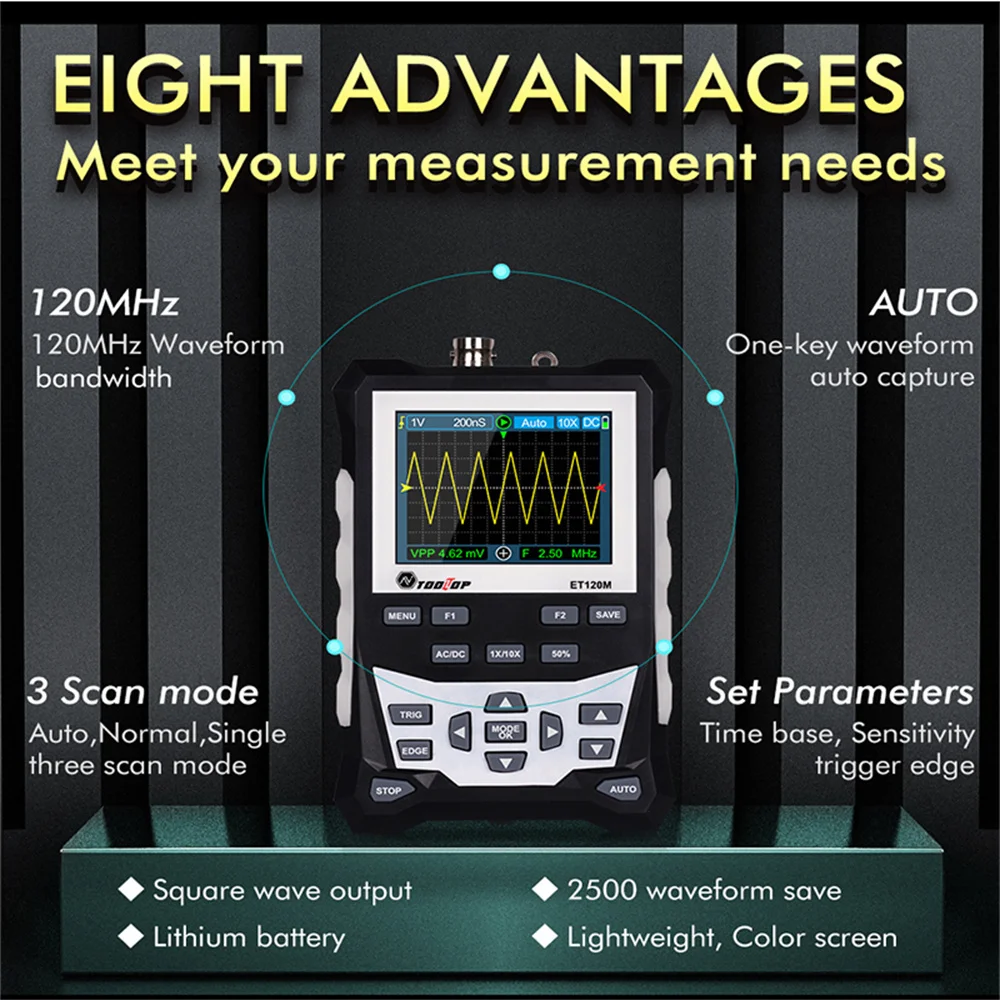

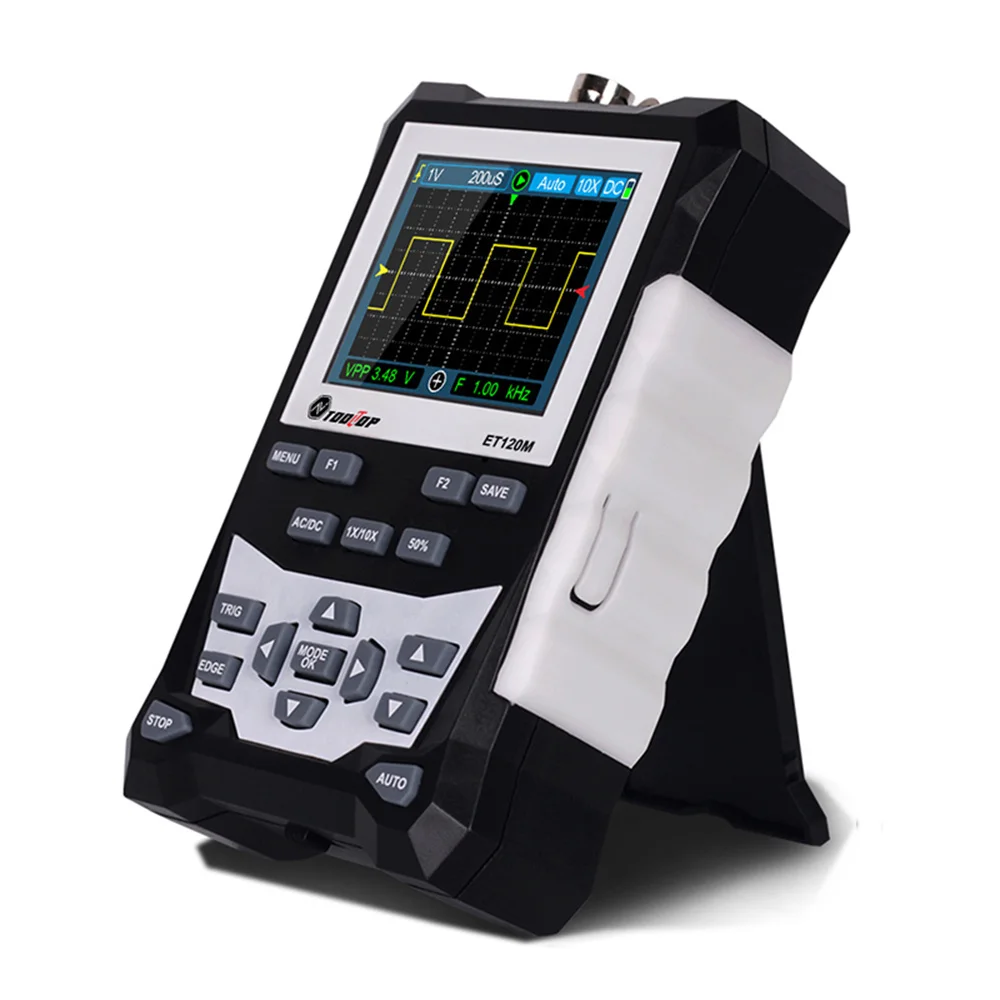

ET120M 2.4-inch Screen Digital Oscilloscope 120MHz Bandwidth 500MSa/s Sampling Rate Analog Waveform Oscilloscope Withe Backlight
Description:
1. 320 * 240 LCD screen is used to display data more clearly.
2. It has 120MHz ana log bandwidth and 500MS/s sampling rate.

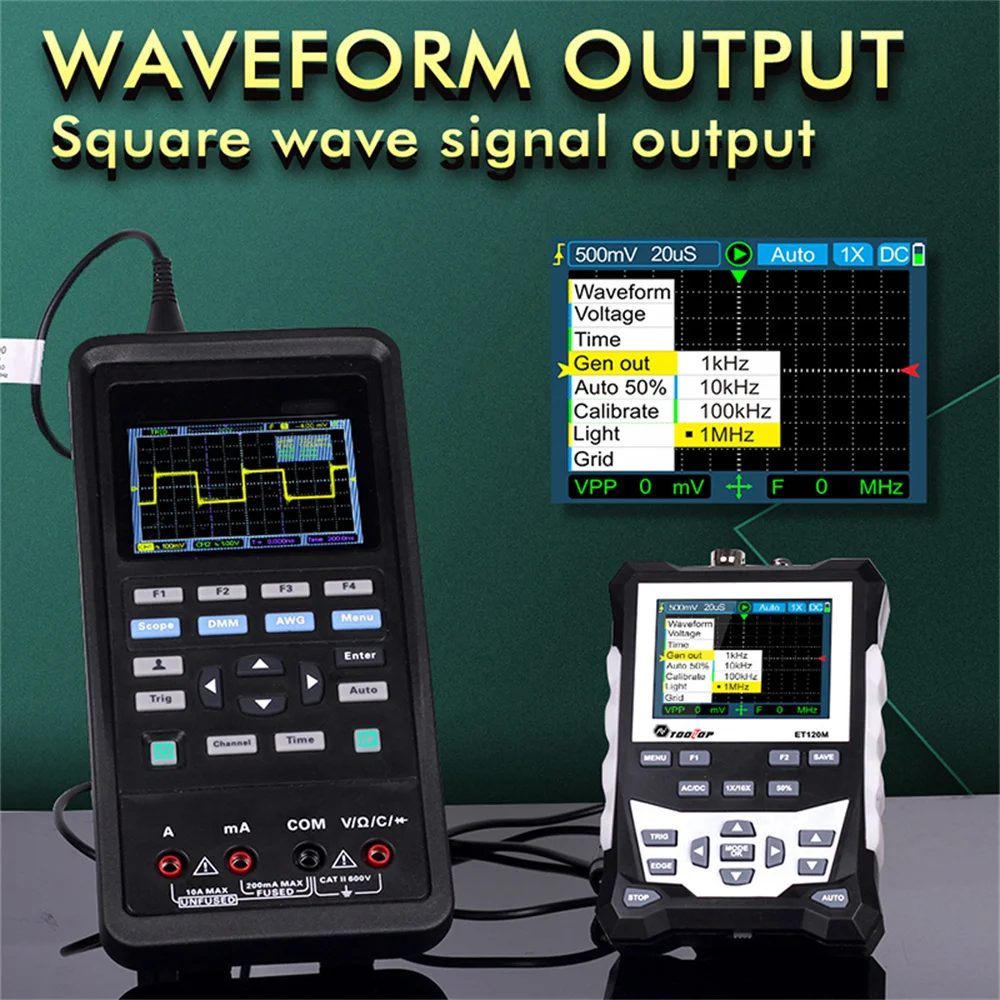

3. Square wave signal output function with 4 speeds: 1kHz, 10KHz, 100KHz, 1MHz.
4.12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T -. Du+、Du-。

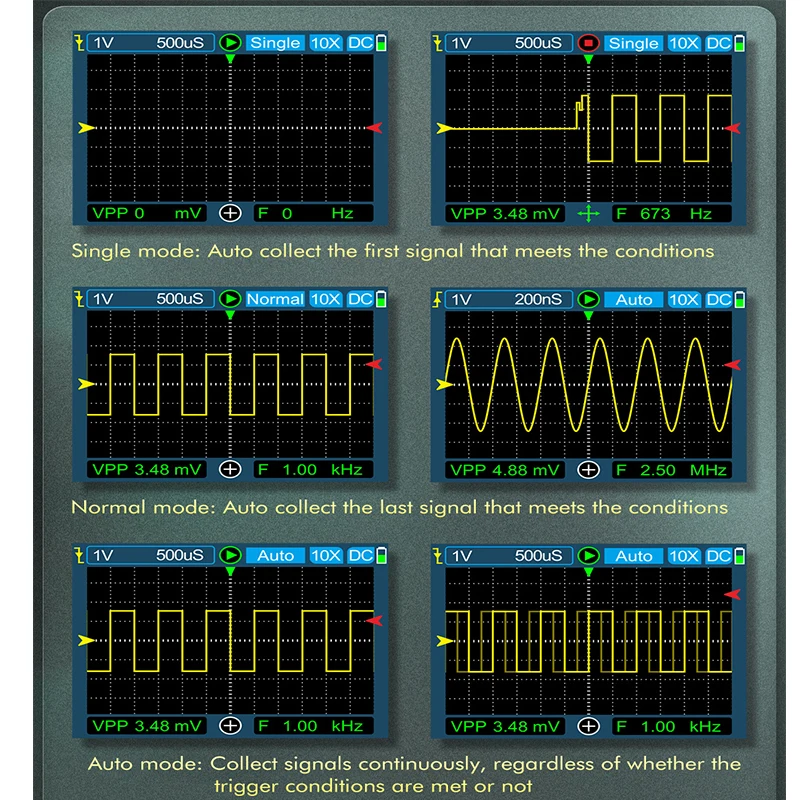

5. Function: one ke-y oscilloscope, three scanning modes: automatic, normal and single, 12 kinds of test data, which can store
2500 waveforms and support thumbnail browsing.
6. Waveform parameters such as time base, amplitude and trigger slope can be set by yourself.
7. The silicone protective covers on both sides of the machine body are anti-skid, fall proof, shockproof and comfortable to
handle.
8. Small size, light weight, easy to carry.
Product specification:
Material: ABS
Screen: 320 * 240 LCD
Impedance:
*1： 1MΩ
*10： 10MΩ
Storage: 2500 DSO waveforms
Service conditions: 0C~+40 ℃,<75% relative humidity
Storage conditions: - 10C~+60 ℃,<90% relative humidity
Vertical resolution: 8 bits
Vertical accuracy: ± (5%+0.2div)
Voltage accuracy: 10%
Frequency accuracy: 1%
Trigger level: ± 3.8div (0.1div per step)
Trigger position: ± 6div (0.1div per step)
Time base range: 6ns/div ～ 50s/div
Scanning mode: automatic, single, normal
Battery: 1 * 18650 lithium battery (included)

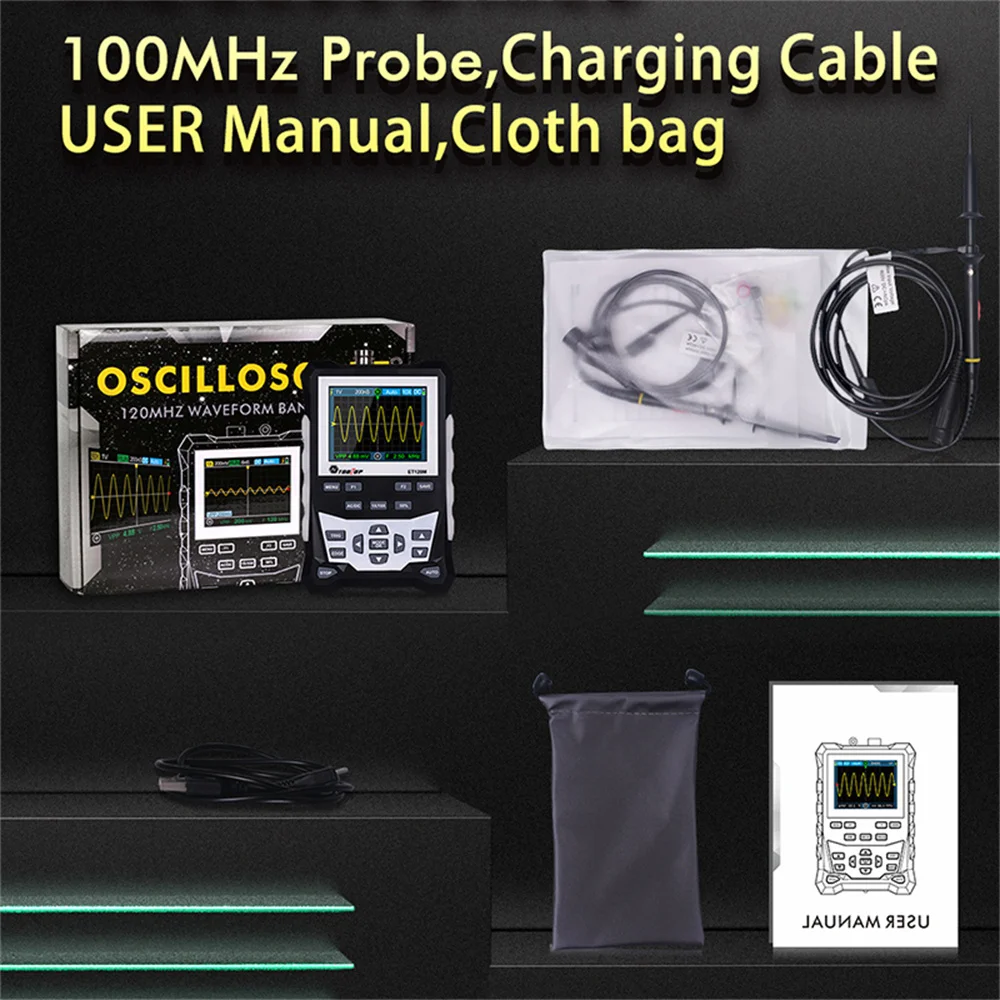

Package Included:
1pcs x ET120M 2.4-inch Screen Digital Oscilloscope 120MHz Bandwidth 500MSa/s Sampling Rate Analog Waveform Oscilloscope Withe
Backlight
Description:
1. 320 * 240 LCD screen is used to display data more clearly.
2. It has 120MHz ana log bandwidth and 500MS/s sampling rate.
3. Square wave signal output function with 4 speeds: 1kHz, 10KHz, 100KHz, 1MHz.
4.12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T -. Du+、Du-。
5. Function: one ke-y oscilloscope, three scanning modes: automatic, normal and single, 12 kinds of test data, which can store
2500 waveforms and support thumbnail browsing.
6. Waveform parameters such as time base, amplitude and trigger slope can be set by yourself.
7. The silicone protective covers on both sides of the machine body are anti-skid, fall proof, shockproof and comfortable to
handle.
8. Small size, light weight, easy to carry.
Product specification:
Material: ABS
Screen: 320 * 240 LCD
Impedance:
*1： 1MΩ
*10： 10MΩ
Storage: 2500 DSO waveforms
Service conditions: 0C~+40 ℃,<75% relative humidity
Storage conditions: - 10C~+60 ℃,<90% relative humidity
Vertical resolution: 8 bits
Vertical accuracy: ± (5%+0.2div)
Voltage accuracy: 10%
Frequency accuracy: 1%
Trigger level: ± 3.8div (0.1div per step)
Trigger position: ± 6div (0.1div per step)
Time base range: 6ns/div ～ 50s/div
Scanning mode: automatic, single, normal
Battery: 1 * 18650 lithium battery (included)
Package Included:
1pcs x ET120M 2.4-inch Screen Digital Oscilloscope 120MHz Bandwidth 500MSa/s Sampling Rate Analog Waveform Oscilloscope Withe
Backlight
