5*5*5 мм NPBS неполяризационный сплиттер кубический призма
- Категория: Prisms >>>
- Поставщик: Changchun,Sunday,Optics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 17.11 $* | 17.71 $* |
| Jul-18-2025 | 13.28 $* | 13.15 $* |
| Jun-18-2025 | 16.90 $* | 16.69 $* |
| May-18-2025 | 16.17 $* | 16.4 $* |
| Apr-18-2025 | 13.40 $* | 13.49 $* |
| Mar-18-2025 | 16.55 $* | 16.10 $* |
| Feb-18-2025 | 16.66 $* | 16.74 $* |
| Jan-18-2025 | 16.11 $* | 16.39 $* |
Характеристики

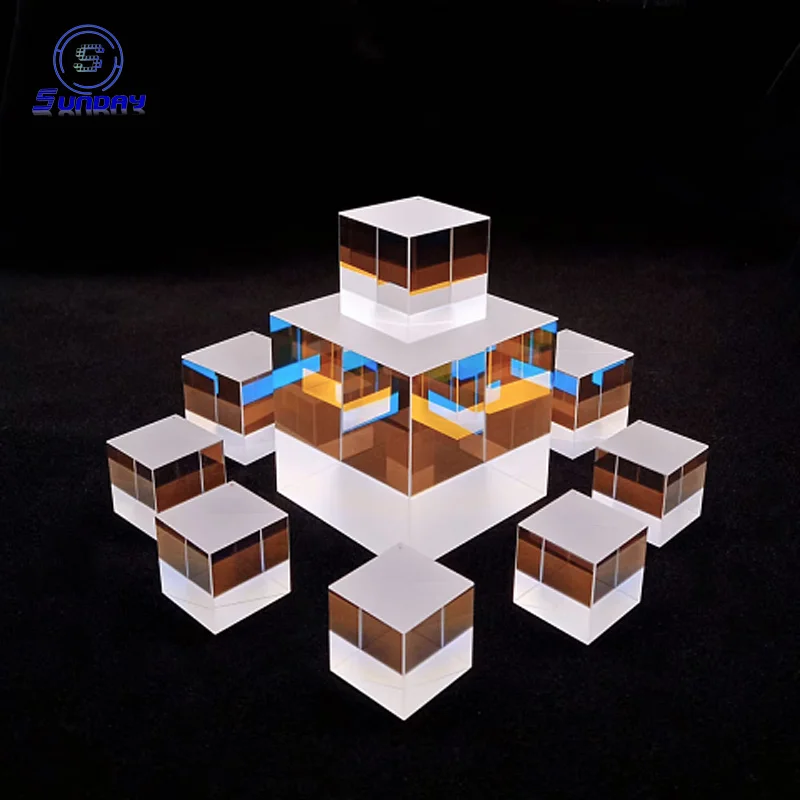

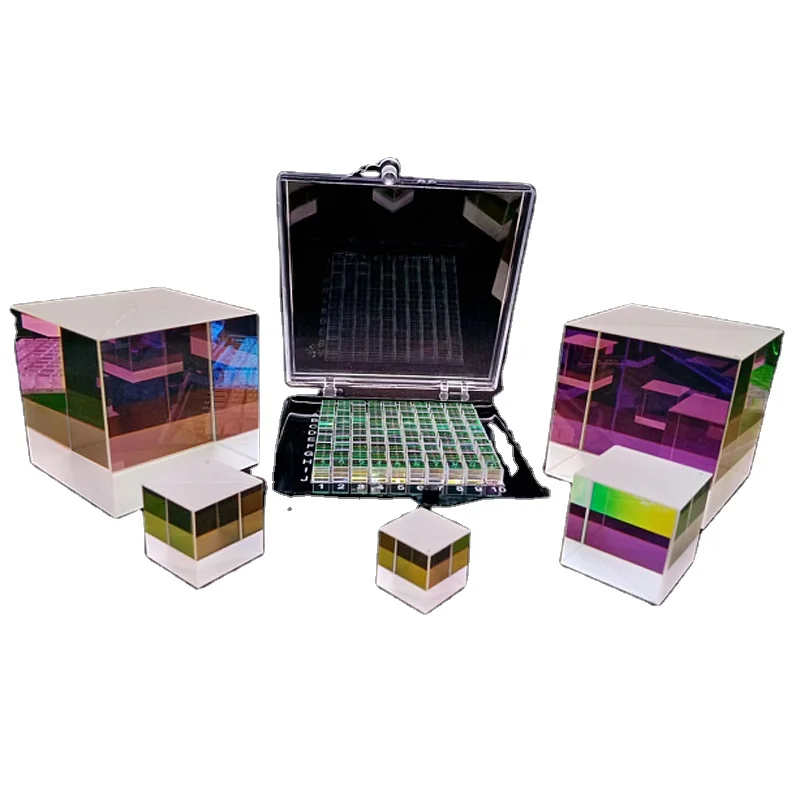

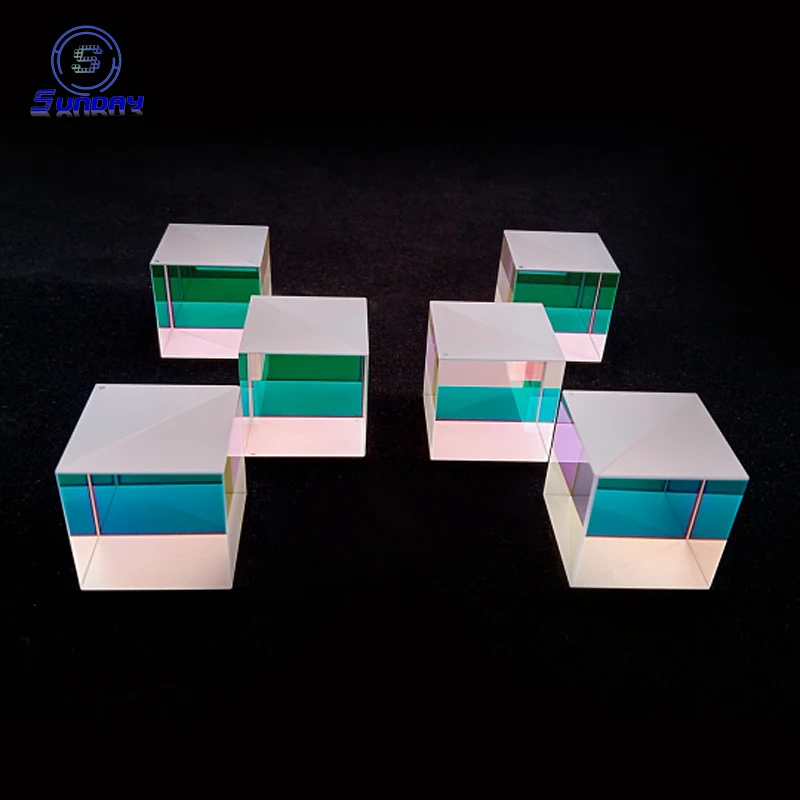

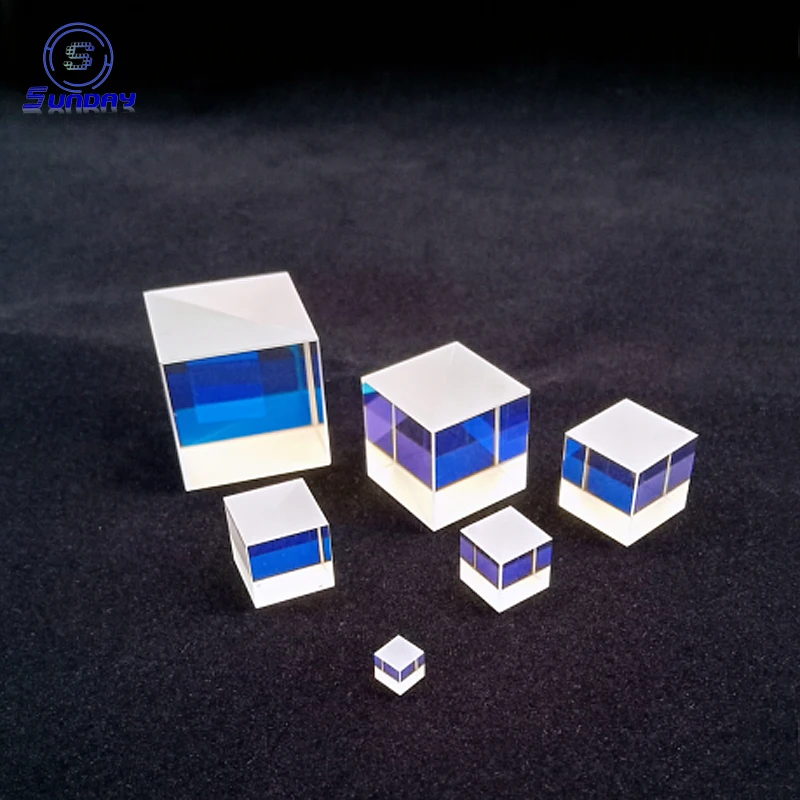

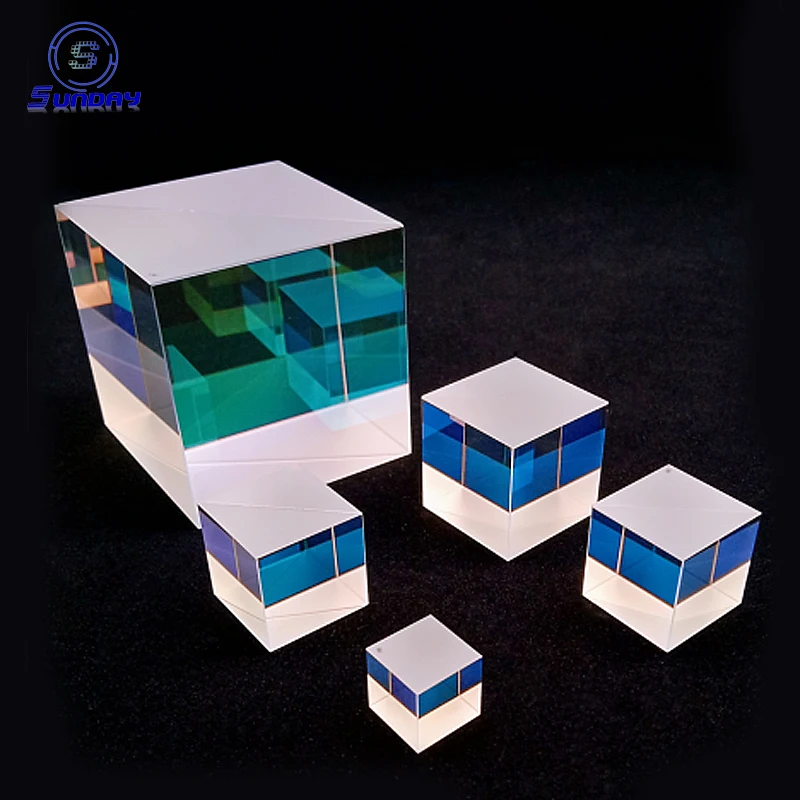

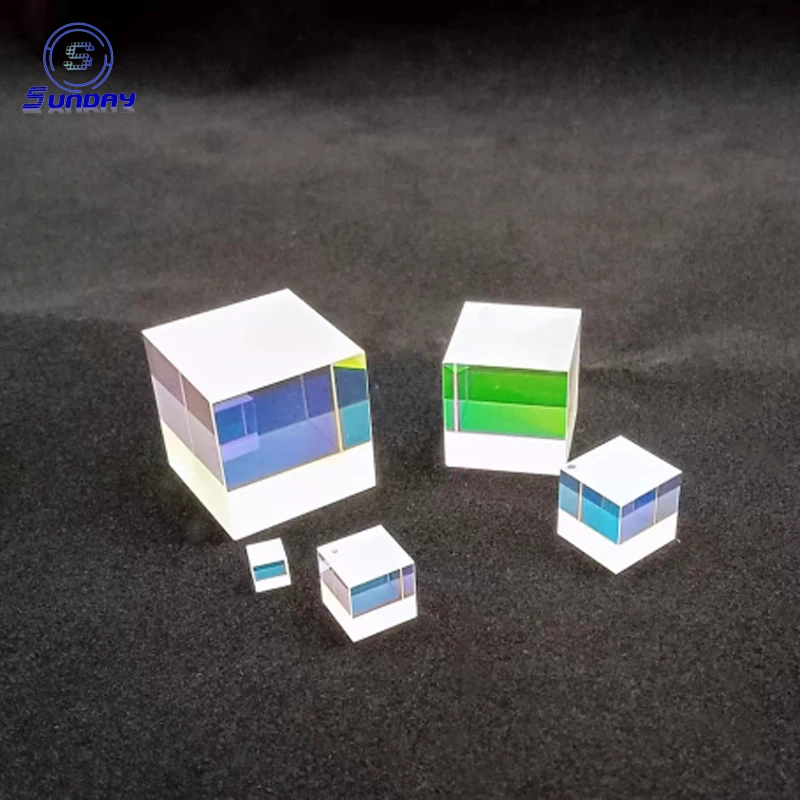

Non-Polarizing Cube Beamsplitters
Non-polarizing Beam Splitter Cube is made of two right angle prisms, with the hypotenuse coated metallic dielectirc coating and all input and output face AR Coated. NPBS coating allow the transmission and reflection of P- and S- polarization stay in6% of each other. We can make customized size NPBS beam splitter cube.
Specifications
Standard Size:8*8*8mm 10*10*10mm 12.7*12.7*12.7mm 25.4*25.4*25.4mm 38.1*38.1*38.1mm
Size Tolerance:+/-0.05mm or customized
Surface Quality:10-5
Surface Flatness:1/10 lambda@632.8nm
Extinction Ratio>100:1
Absorption<10%
Polarization:6%
Wavelength:488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
Damaged threshold:15J/cm^2@1064nm, 20ns, 20HZ
Coating:Typotenuse coated with pbs coating,all input and output coated with AR
Size Tolerance:+/-0.05mm or customized
Surface Quality:10-5
Surface Flatness:1/10 lambda@632.8nm
Extinction Ratio>100:1
Absorption<10%
Polarization:6%
Wavelength:488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
Damaged threshold:15J/cm^2@1064nm, 20ns, 20HZ
Coating:Typotenuse coated with pbs coating,all input and output coated with AR
Prisms production Line
Sunday Optics manufacture right angle prism,dove prism,corner cube prisms,penta angle prism, roof prisms,Wedge Prism NPBS, PBS,etc
Right Angle Prism
The minimun size is 0.1mm A=B=C
We have large stock for 2mm 5mm 10mm 12.7mm 20mm 25.4mm 38.1mm 50.8mm
Corner Cube Prism
We have the ability to manufacture high precision angle tolerance to be 0.2''.
CaF2 Prism
Monocrystal CaF2 Wedge Prism
Customized Roof Prism
Beam splitter cube, NPBS, PBS
About Sunday Optics
Changchun Sunday Optics Co.,ltd, was founded in 2010, located in optical base Changchun city. With branches in
Changchun, Jiangsu, Nanjing, Sunday Optics mainly produces spherical lens, aspheric lens, prisms, high precision window,
filter,coating, laser lens, optical design and optical assembly. The minimum size of the lens can be 0.1mm, and the tolerance of prism’s 90-degree angle can be 2 ' '.
Changchun, Jiangsu, Nanjing, Sunday Optics mainly produces spherical lens, aspheric lens, prisms, high precision window,
filter,coating, laser lens, optical design and optical assembly. The minimum size of the lens can be 0.1mm, and the tolerance of prism’s 90-degree angle can be 2 ' '.
Process
Equipment: Sunday Optics owns milling and grinding machine, polishing machine, ring throwing, glue machine, coating
equipment.These equipments make complete production process of cutting, grinding, polishing, coating and glue.
Annual output: With multiple branches, our annual processing capacity up to 1 million pieces,which can achieve sample order and mass production.
Technical support: Relying on the technology of changchun institutr of optics, we can complete the processing of parts with high difficulty and provide optical design, assembly and other services.
Main materials: optical glass, infrared materials, BK7 FK61 CaF2 Silicon Germanium, etc.
Coating film: In addition to providing high-quality parts, we can also offer most kinds of coating, optical films equipped
withcrystal film thickness controller 360C and ion source to ensure the coating precision and quality.
equipment.These equipments make complete production process of cutting, grinding, polishing, coating and glue.
Annual output: With multiple branches, our annual processing capacity up to 1 million pieces,which can achieve sample order and mass production.
Technical support: Relying on the technology of changchun institutr of optics, we can complete the processing of parts with high difficulty and provide optical design, assembly and other services.
Main materials: optical glass, infrared materials, BK7 FK61 CaF2 Silicon Germanium, etc.
Coating film: In addition to providing high-quality parts, we can also offer most kinds of coating, optical films equipped
withcrystal film thickness controller 360C and ion source to ensure the coating precision and quality.
Payment
Production Line
Sunday Optics manufactures Prisms,Spherical lens, cylindrical lens, aspheric lens,powell lens, ball lens, collimator lens, filters, coatings,
How to Contact Us
E: sales(at)sunday-optics.com
W: www.sunday-optics.com
T: 86-431-81323204
M:86-15104452660
