Машина для продольной резки электрода TOB Roll to непрерывной батареи
- Категория: Other Machinery & Industrial Equipment >>>
- Поставщик: Xiamen,Tob,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 25585.33 $* | 26864.95 $* |
| Aug-18-2025 | 25370.30 $* | 26639.71 $* |
| Jul-18-2025 | 21285.98 $* | 22349.80 $* |
| Jun-18-2025 | 24940.83 $* | 26187.51 $* |
| May-18-2025 | 21715.61 $* | 22801.84 $* |
| Apr-18-2025 | 24510.46 $* | 25736.22 $* |
| Mar-18-2025 | 24295.9 $* | 25510.21 $* |
| Feb-18-2025 | 24080.97 $* | 25284.63 $* |
| Jan-18-2025 | 23865.85 $* | 25058.34 $* |
Характеристики
Products Description

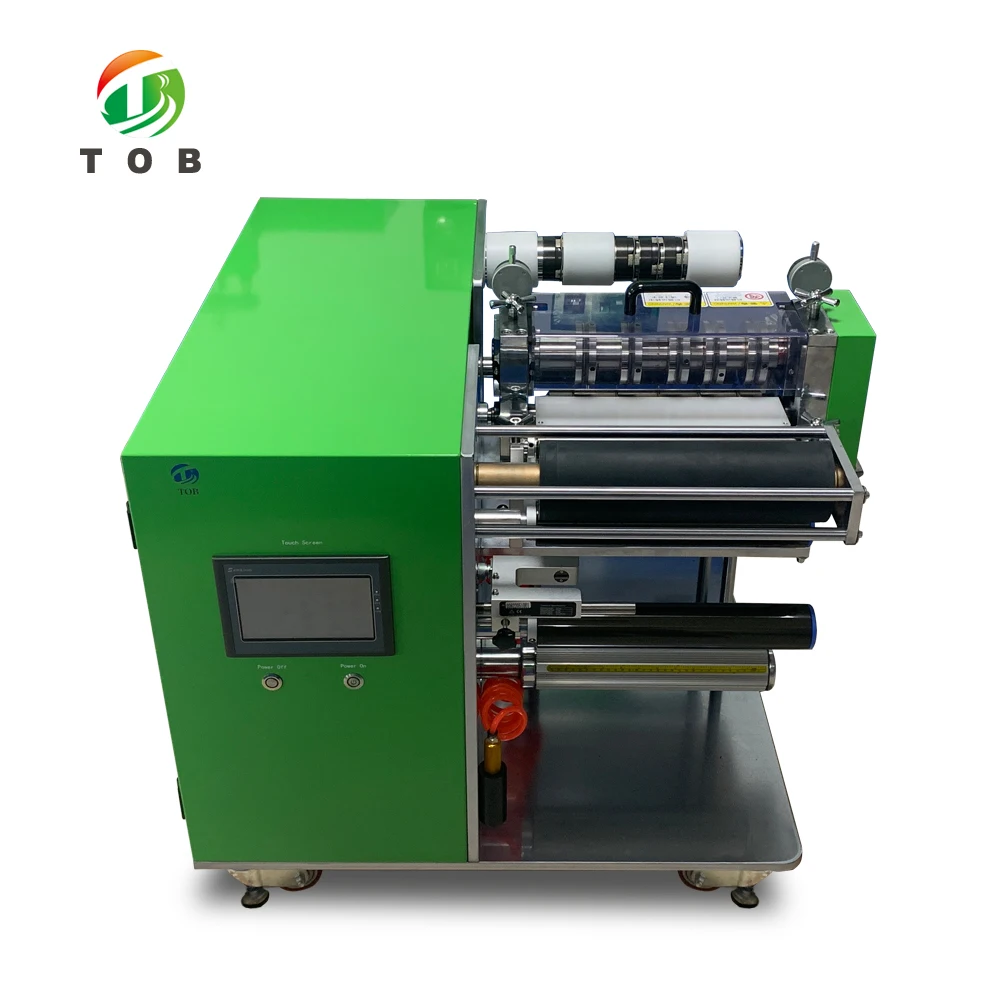

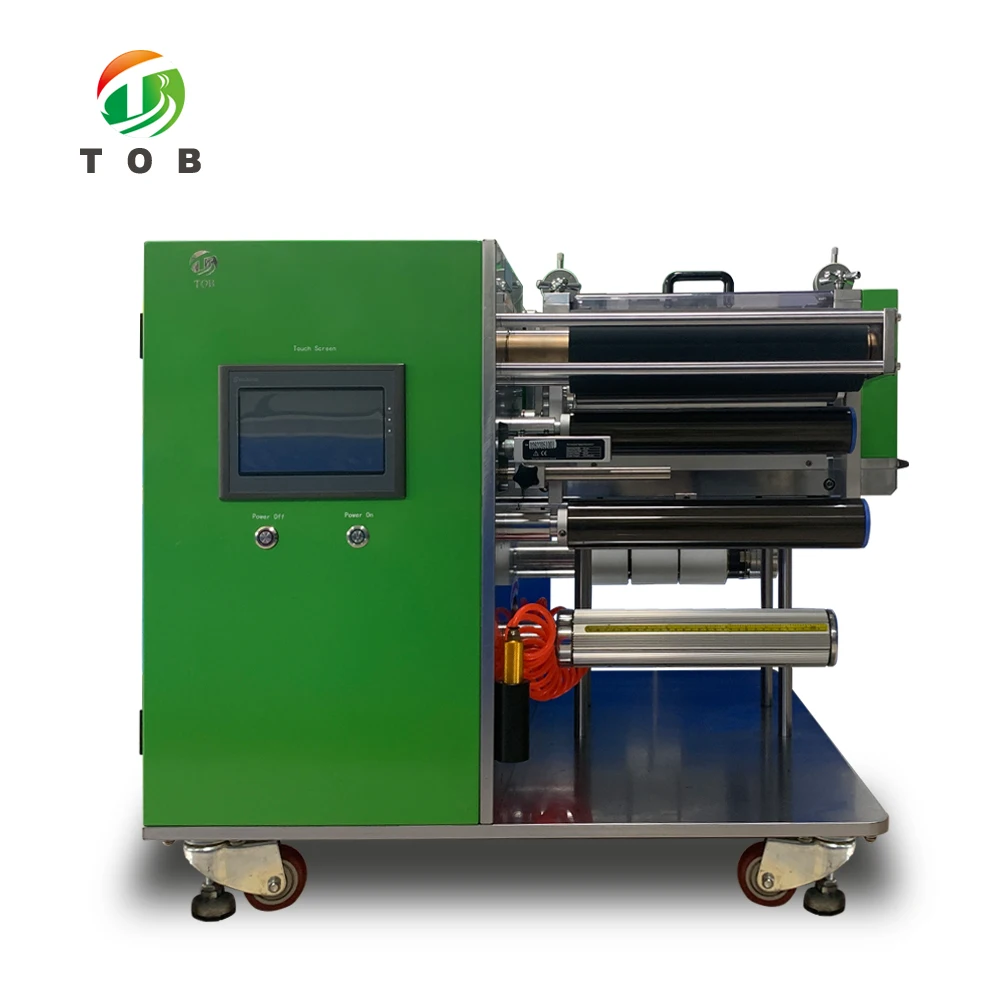

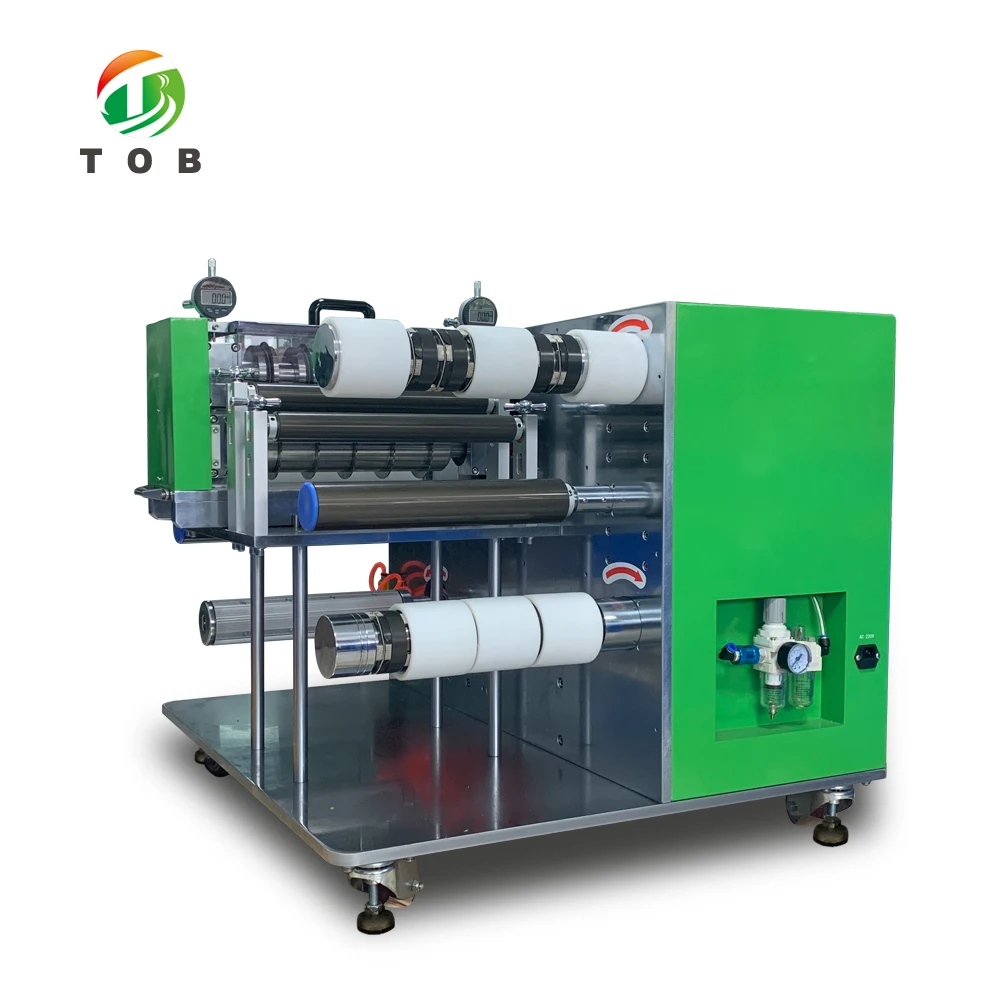

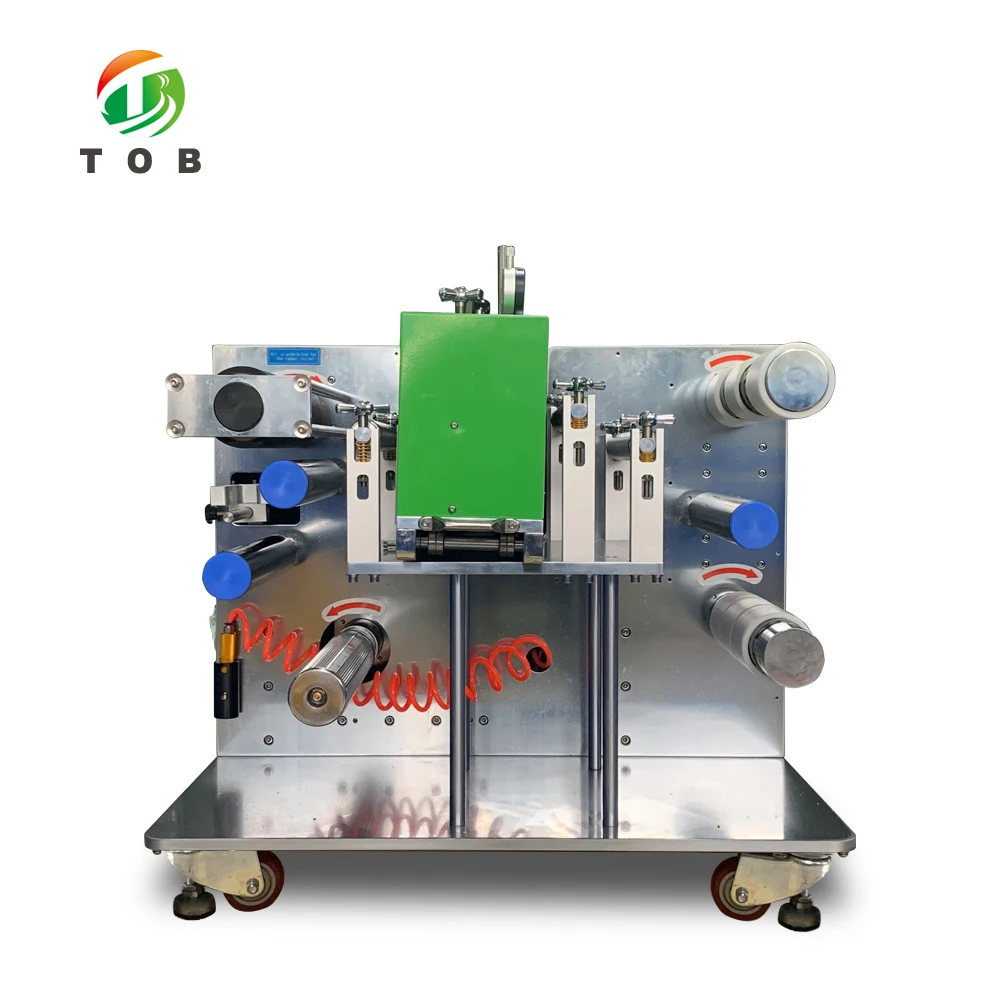

TOB Roll to Roll Continuous Battery Electrode Slitting Machine for Matel Foil
Technical specifications
Using two or more continuous slitting processes for rolled material. The equipment is equipped with a precision knife holder,which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other
functional film industries.
The main features
*Correction system for feeding is set to ensure the neat coils.
*Ultrafine alloy blade, good cutting quality and long service life;
*High slitting width precision, no burrs, waves, or indentations in the finished product;
*The amount for the feed knife is adjustable, and the ratio of the knife speed to the linear speed of the material is adjustable;
*By adjusting the inlet and outlet angles, it can adapt to the cutting of different materials and thickness values;
*Single stand structure, independent knife holder, equipped with dust removal device;
*Upper and lower circular knife structure, slitting width can be adjusted by changing the sleeve;
*adjustable within 50N of upper and lower shafts;
*PLC control, HMI operation, easy to operate;
Technical Parameters
Using two or more continuous slitting processes for rolled material. The equipment is equipped with a precision knife holder,which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other
functional film industries.
The main features
*Correction system for feeding is set to ensure the neat coils.
*Ultrafine alloy blade, good cutting quality and long service life;
*High slitting width precision, no burrs, waves, or indentations in the finished product;
*The amount for the feed knife is adjustable, and the ratio of the knife speed to the linear speed of the material is adjustable;
*By adjusting the inlet and outlet angles, it can adapt to the cutting of different materials and thickness values;
*Single stand structure, independent knife holder, equipped with dust removal device;
*Upper and lower circular knife structure, slitting width can be adjusted by changing the sleeve;
*adjustable within 50N of upper and lower shafts;
*PLC control, HMI operation, easy to operate;
Technical Parameters
Slitting method : | Monolithic roll cutting |
Cutter type : | Upper and lower circular knife |
Width adjustment: | Replace spacer adjustment, will suggest Complete set design, easy to disassemble |
Materials thickness: | 100 ~ 300μm |
Slitting blade: | Ultra fine alloy steel, diameter Φ100mm |
Slitting width: | Adjustment range 20 ~ 280mm |
Burr condition: | ≤25μm |
Slitting accuracy | ±0.09mm |
The amount for the feed knife | 0.2 ~ 0.4mm adjustable, dial indicator display |
Slitting speed: | Max. 4m / min |
Power supply: | Single-phase voltage 220VAC ± 10%, frequency 50Hz / 60Hz, power 1kW |
Work environment: | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference |
Installation size: | L850mm*W800mm*H650mm |
Weight: | About 550Kg |
Company Profile
FAQ
Q1: How to order?
A: Please send us your purchase order by email or call us sales, or we can make the pro forma invoice under your request. We need to know the following information for your order before sending your PI.
1)Product information-quantity, specification (size, material, Technology if needed and packing requirements etc.
2) Delivery time required.
3)Shipping information company name, street address, phone number, destination sea port.
4) Forwarder's contact details if there is any in china.
Q2: How to control quality?
A. All the raw materials by lOC (Incoming Ouality Control) before launch whole process into the process after the screening.
B. Process each link in the process of IPOC ( lnput Process Ouality Control ) patrol inspection
C．After finished by QC full inspection before packing into the next process packing.
D．OQC before shipment for each slipper to do full inspection.
Q3: How can l install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. What’s you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4: How to get technical support after purchasing?
A: Our factory providing online technical support in English, you can easy catch us online by SKYPE, WECHAT, WAHTSAPP or Email. if you need any remote assistant support. then we will support you though TeamViewer software.
Q5: What certificates do you have?
A. Since Europe and America are our main markets. all of our products are with CE /FCC compliant For some models, the certificates are already available. For other models, we will need your assistance to apply the certificates.
Q6: What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition.any quality issue, we will deal with it immediately Warranty for equipment is a year (12 months) lf the equipment parts are damaged due to nonhuman factors within one year. we will provide replacement parts free of charge.
A: Please send us your purchase order by email or call us sales, or we can make the pro forma invoice under your request. We need to know the following information for your order before sending your PI.
1)Product information-quantity, specification (size, material, Technology if needed and packing requirements etc.
2) Delivery time required.
3)Shipping information company name, street address, phone number, destination sea port.
4) Forwarder's contact details if there is any in china.
Q2: How to control quality?
A. All the raw materials by lOC (Incoming Ouality Control) before launch whole process into the process after the screening.
B. Process each link in the process of IPOC ( lnput Process Ouality Control ) patrol inspection
C．After finished by QC full inspection before packing into the next process packing.
D．OQC before shipment for each slipper to do full inspection.
Q3: How can l install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. What’s you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4: How to get technical support after purchasing?
A: Our factory providing online technical support in English, you can easy catch us online by SKYPE, WECHAT, WAHTSAPP or Email. if you need any remote assistant support. then we will support you though TeamViewer software.
Q5: What certificates do you have?
A. Since Europe and America are our main markets. all of our products are with CE /FCC compliant For some models, the certificates are already available. For other models, we will need your assistance to apply the certificates.
Q6: What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition.any quality issue, we will deal with it immediately Warranty for equipment is a year (12 months) lf the equipment parts are damaged due to nonhuman factors within one year. we will provide replacement parts free of charge.
