Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-18-2025 | 53550.1 $* | 56228.66 $* |
Aug-18-2025 | 53100.94 $* | 55755.21 $* |
Jul-18-2025 | 44550.97 $* | 46778.78 $* |
Jun-18-2025 | 52200.34 $* | 54810.92 $* |
May-18-2025 | 45450.34 $* | 47723.6 $* |
Apr-18-2025 | 51300.62 $* | 53865.91 $* |
Mar-18-2025 | 50850.93 $* | 53393.20 $* |
Feb-18-2025 | 50400.81 $* | 52920.48 $* |
Jan-18-2025 | 49950.33 $* | 52448.90 $* |

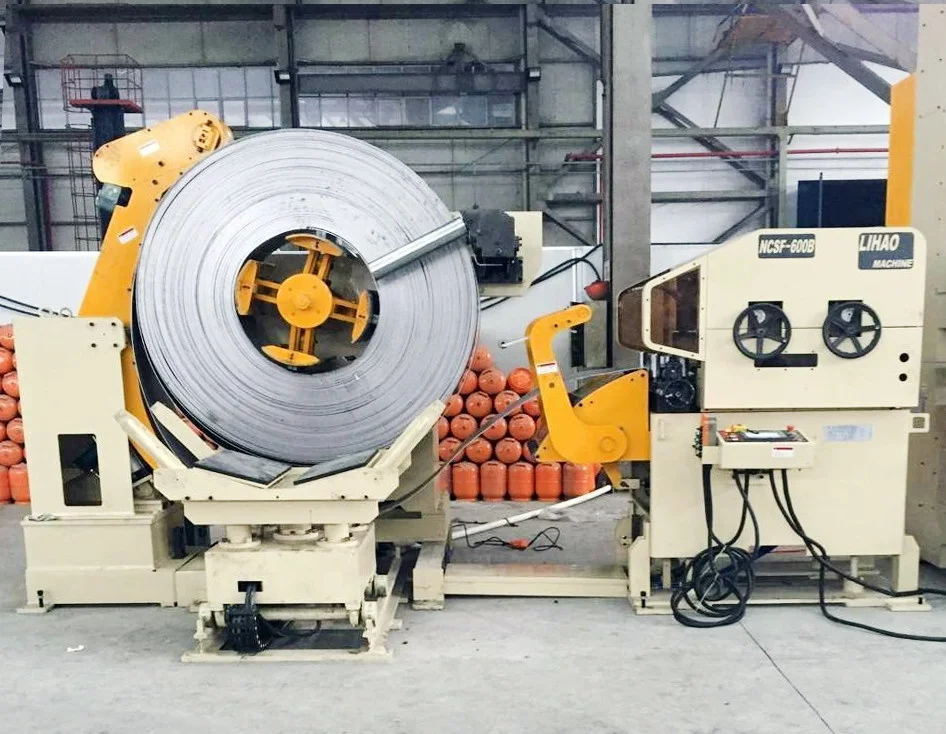

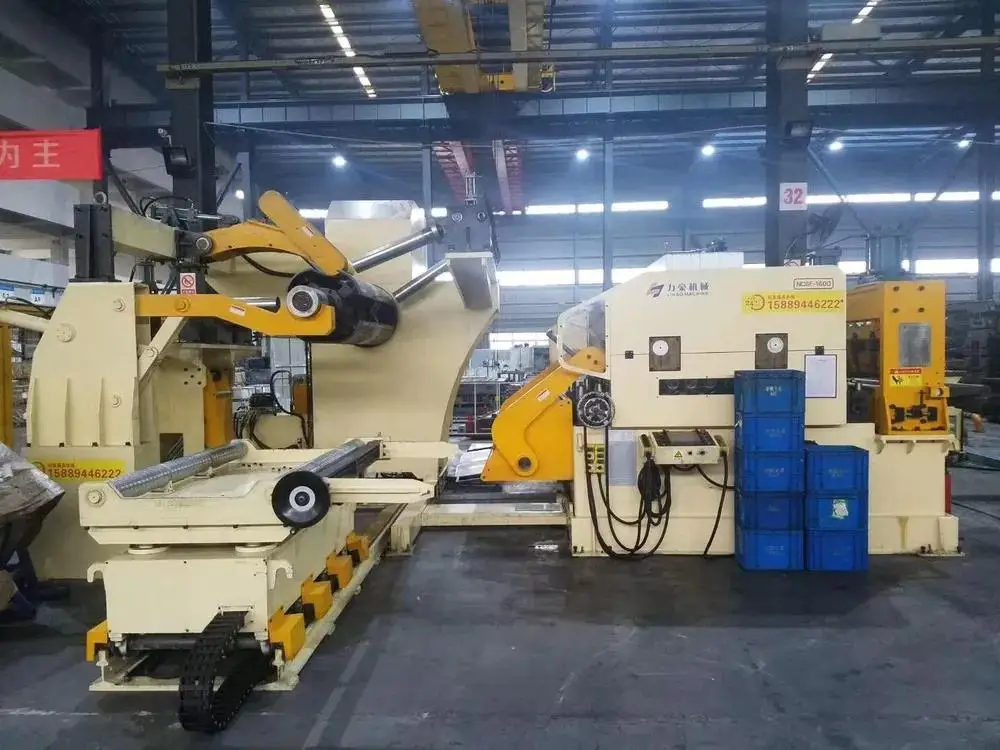

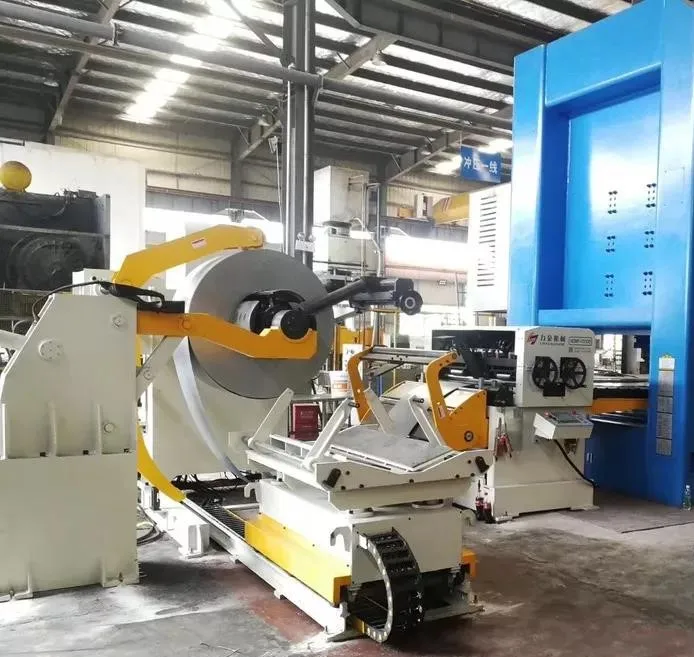

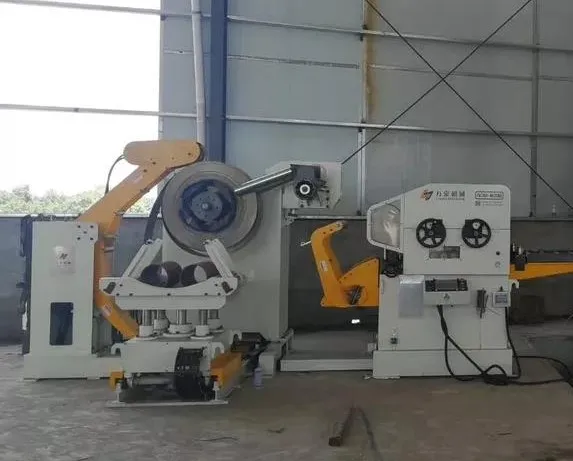

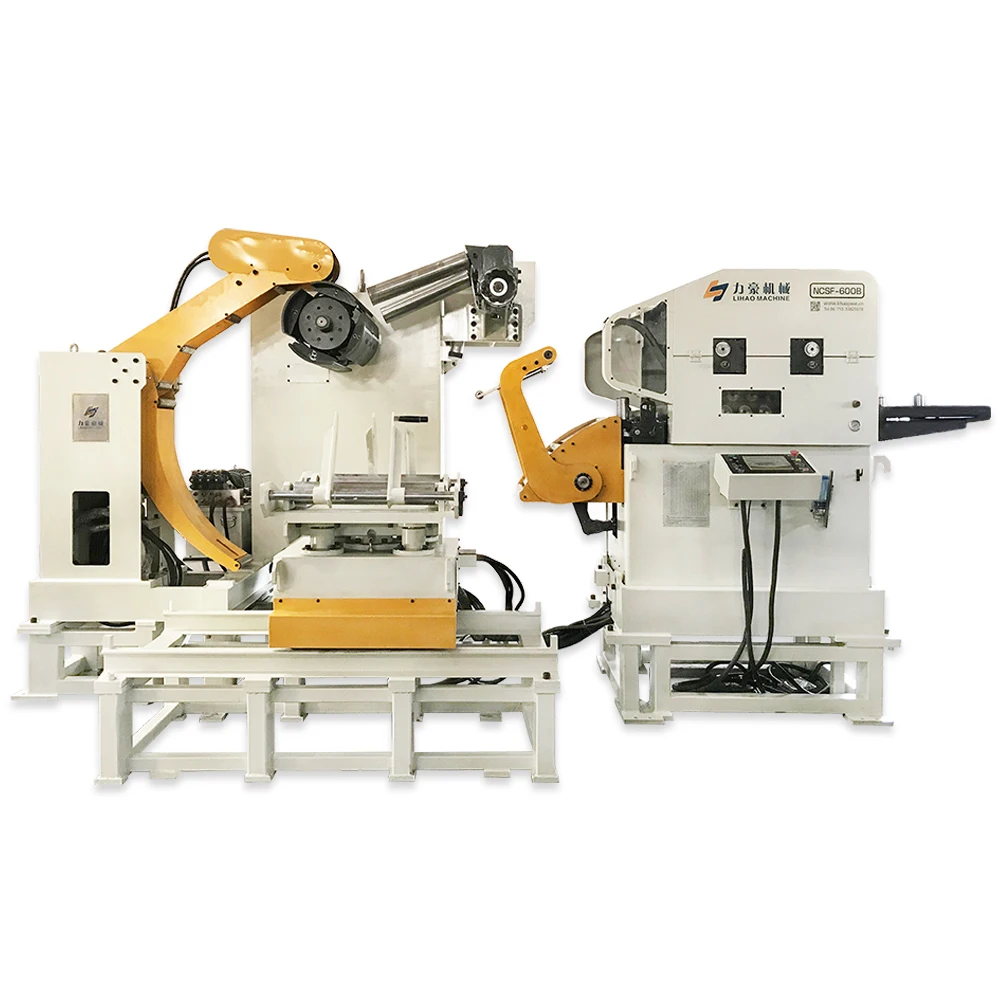

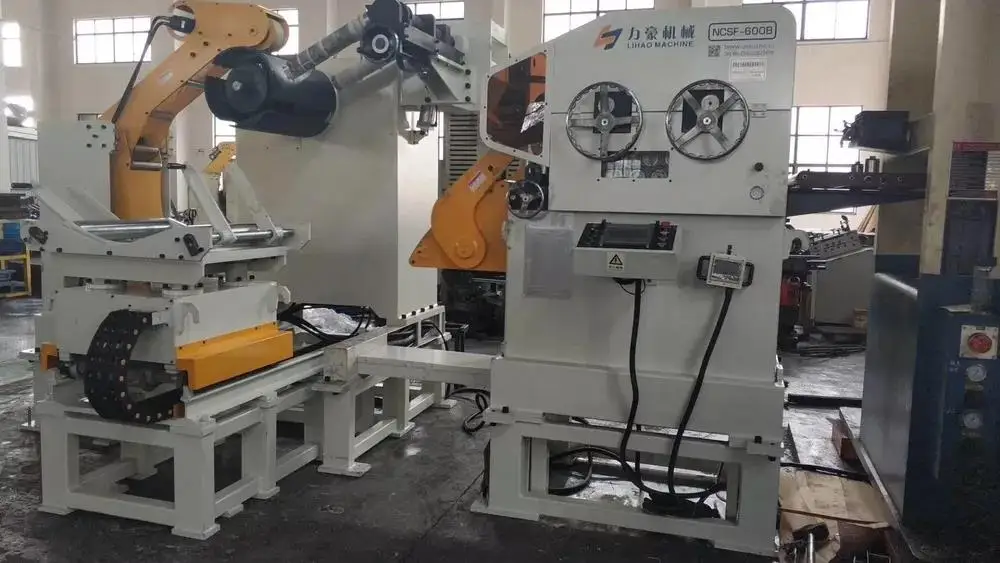

1. This big machine combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1.
2. It can decoil suitable metal sheet coil, then straighten the metal sheet, then feed the metal sheet to press machine automatically, for automatic stamping processing.
Basic parameters | ||||||
Name | Uncoiler, straightener, NC servo roll feeder, 3 in 1 (including hydraulic expansion, coil car) | |||||
Model | NCSF-400B | |||||
Width of the material | 50mm~400mm | |||||
Thickness of the material | 1.0mm~6.0mm | |||||
Straightening capacity (σs≤250MPa) | 400×2.8mm 400×3.2mm | 400×4.0mm 360×4.5mm | 290×5.0mm 200×6.0mm | |||
Inside coil diameter | Φ460mm~Φ530mm | |||||
Max.coil outside diameter | Φ1400mm | |||||
Max.coil weight | 5T | |||||
Straightening roll diameter | Φ88mm×7(up4/down3) | |||||
Material of straightening roll | GCr15(HRC58-62) | |||||
Feeding roll diameter | Φ120mm | |||||
Decoiler power | 2.2Kw | |||||
Straightening power | 5.5Kw | |||||
Feeding speed | 0~20m/min | |||||
Feeding precision | <±0.2mm | |||||
Other configuration | ||||||
Straightening adjustment type | Eccentric shaft adjust by worm and gear | |||||
Load material type | coil car | |||||
Feed discharging line adjustment method | Electric | |||||
Press material for decoiling part | By pneumatic | |||||
Feeding guide arc drive mode | By hydraulic | |||||
Block arm drive mode | Manual | |||||
Front block arm opening and closing method | Pneumatic | |||||
Feeding device movement mode | Two-way screw hands | |||||
Head of material flattening device | Hydraulic | |||||
Operation control mode | Main control cabinet + action unit remote control switch | |||||
Tail of material detector | Exist | |||||
Purchased parts brand | ||||||
Main bearing | HRB,ZWZ | |||||
Servo motor | Japan YASKAWA(SGMGH) | |||||
Man-machine interface | Taiwan WEINVIEW(Colored) | |||||
Common motor | Taiwan Wanxin | |||||
Frequency changer | Taiwan DELTA | |||||
Pneumatic unit | Taiwan Airtac | |||||
PLC | Japan Mitsubishi | |||||
Relay | Japan Omron | |||||
Hydraulic fittings | Beijing HUADE | |||||
Other technical data | ||||||
Pneumatic pressure | 0.5Mpa | |||||
Hydraulic pressure | 7Mpa | |||||
voltage | 3phase 380V | |||||
Feeding line height | 1050mm-1250mm | |||||
Input material type | From down to up | |||||
Standard direction | From left to right | |||||
Equipment length(Not included outlet shelf) | ≈4.5m |
Ruler at plate of mandrel, can indicate width of coil material.
..., 400, 300, 200, 100, 0 | 0, 100, 200, 300, 400, ...
User can put coil material at center line position of this machine very easiliy.
Retainers of uncoiler, can keep coil material at center line position.
While uncoiler decoil coil material, so material can get into entrance of feeder easily.
Guiding device, let material at center line position.
Good design, safe and easy to use.
Touch screen and buttons.
User touch numbers and input feeding length numbers.
User touch order menu for the machine.
Straightener has upper staightening rollers and lower straightening rollers.
As per various thickness of coil material, user need to adjust distance between upper rollers and lower rollers.
With the dial gauge, user can adjsut distance easily.
Pedestal height is customized for you.
Feeding line height is adjustable.
