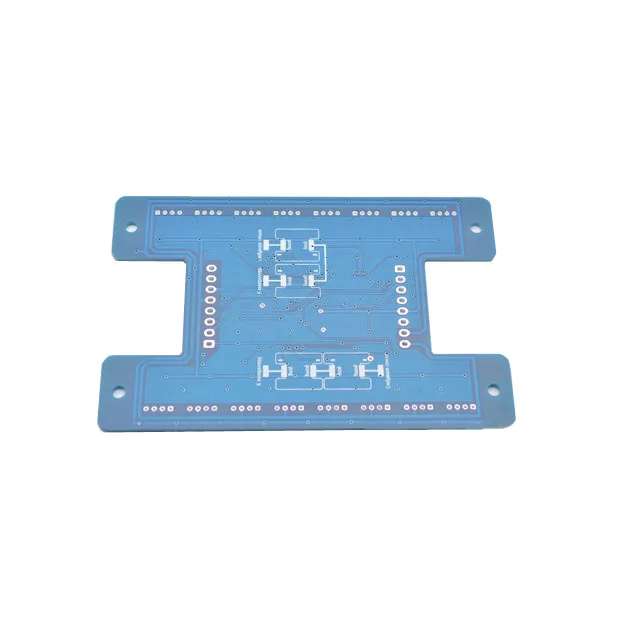

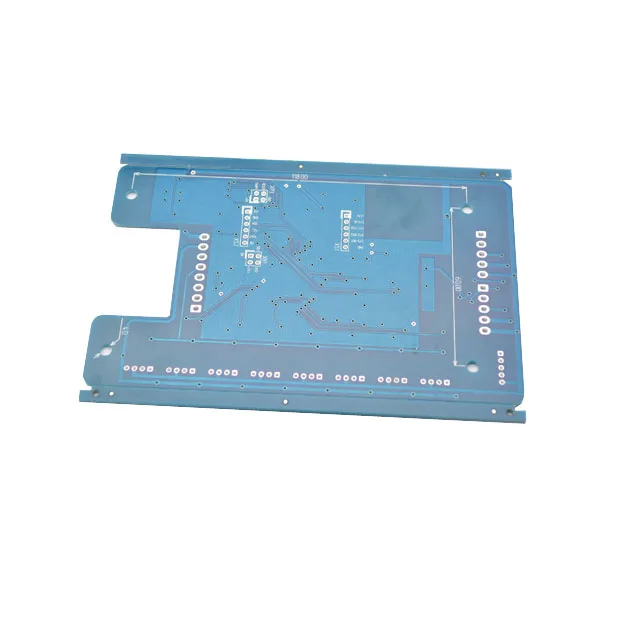

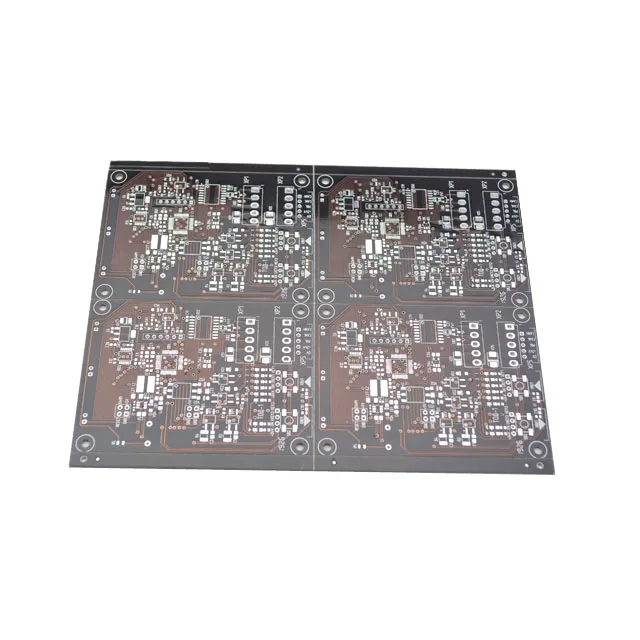

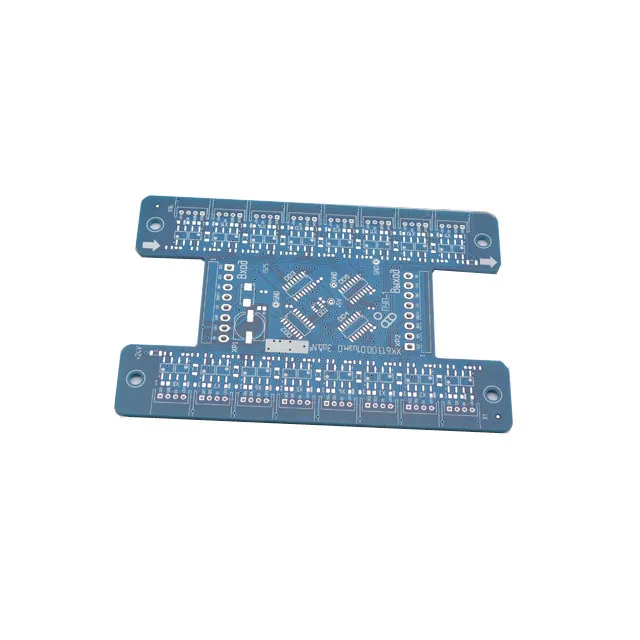

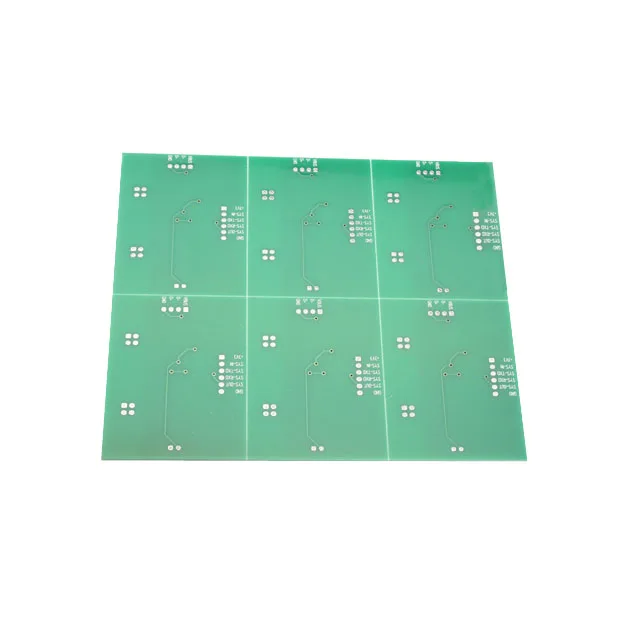

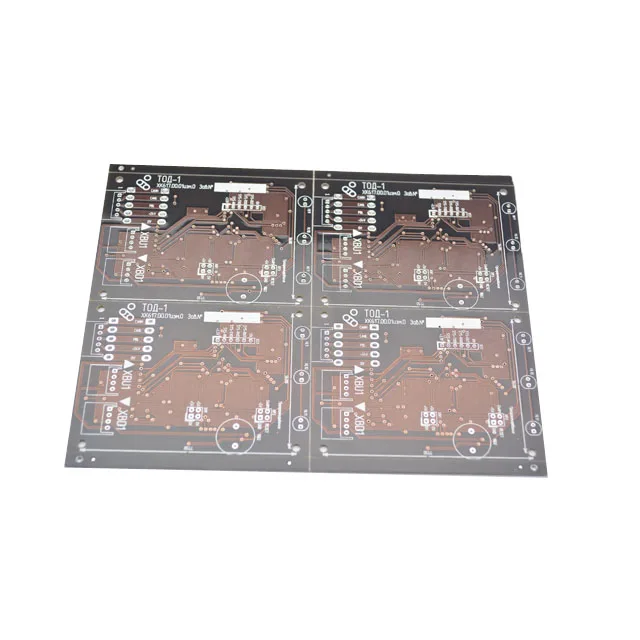

FR4 2 слоев электронные 94v0 двустороннние платы
- Категория: Double-sided PCB >>>
- Поставщик: Shenzhen,Moko,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.59 $* | 0.80 $* |
| Aug-17-2025 | 0.66 $* | 0.10 $* |
| Jul-17-2025 | 0.14 $* | 0.38 $* |
| Jun-17-2025 | 0.43 $* | 0.39 $* |
| May-17-2025 | 0.89 $* | 0.81 $* |
| Apr-17-2025 | 0.3 $* | 0.6 $* |
| Mar-17-2025 | 0.68 $* | 0.42 $* |
| Feb-17-2025 | 0.38 $* | 0.44 $* |
| Jan-17-2025 | 0.61 $* | 0.51 $* |
Характеристики
Quick Turn PCB Manufacturer
PCB Fabrication & Production
We focus on the medium and small batch rapid manufacturing PCB services.
If you need to meet high, medium products and special needs , welcome to send an inquiry.
24 hours to complete the double-sided PCB boards; 2~7 days to fabricate multilayer PCB circuit boards.
10 days for formal production.
Our Hightech Options:
We do
| PCB Prototypes
|
| Technical Specification For PCB | |
| Number of Layer | 1,2,4 or 6,up to 32 layers |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 1.0, 1.5, 2.0 oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width | 0.006'' or 0.15mm |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Board Thickness Tolerance | ±10% |
| Copper Weight Tolerance | ± 0.25 oz |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-Score Depth | 20-25% of board thickness |
| Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
Company Information
Founded in the year 2006,located in Shenzhen, as a professional EMS/OEM Manufacturer,
MOKO covers an area of more than 8,000 square meters, and has over 250 employees, among them, there’re 70 engineers for R&D team and 45 overseas sales for business team.
We have got the ISO9001:2015, ROHS certifications, and UL listed (File Number: E501497 & E499341). We can offer all kinds of services including PCB manufacturing and PCB assembly, sample orders and batch orders. For PCB assembly, utilizing 5 high-speed SMT PCBA lines from Yamaha and Sony, to meet our customers’ need. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.
If you need to fast fabricate PCBs, welcome to send us Gerber files for small batch order.
Certifications
* Factory certificated by ISO9001.
* Product certificated with CE, Rohs.
* Alibaba Golden supplier
Packaging & Shipping
FAQ
Q: What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q: How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing
Q: How can I make sure the quality of my PCBAs?
A: We ensure that each piece of PCBA products work well before shipping. We'll test all of them according to your test procedure. Also if there are any defect items during the shipping, we also can be free to repair for you.
